Complete Technical Parameters
Basic Vehicle Data

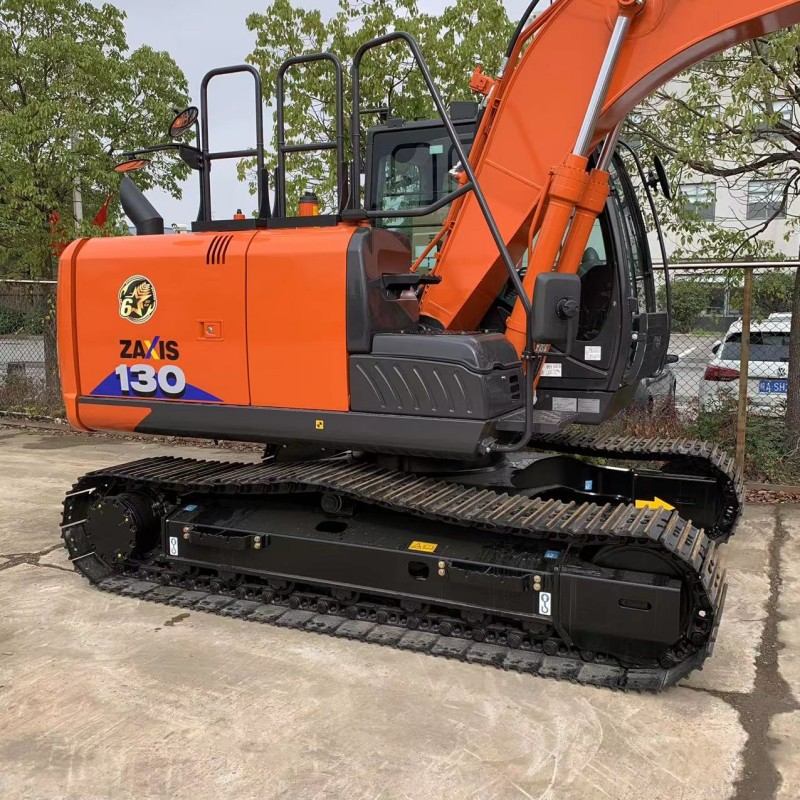

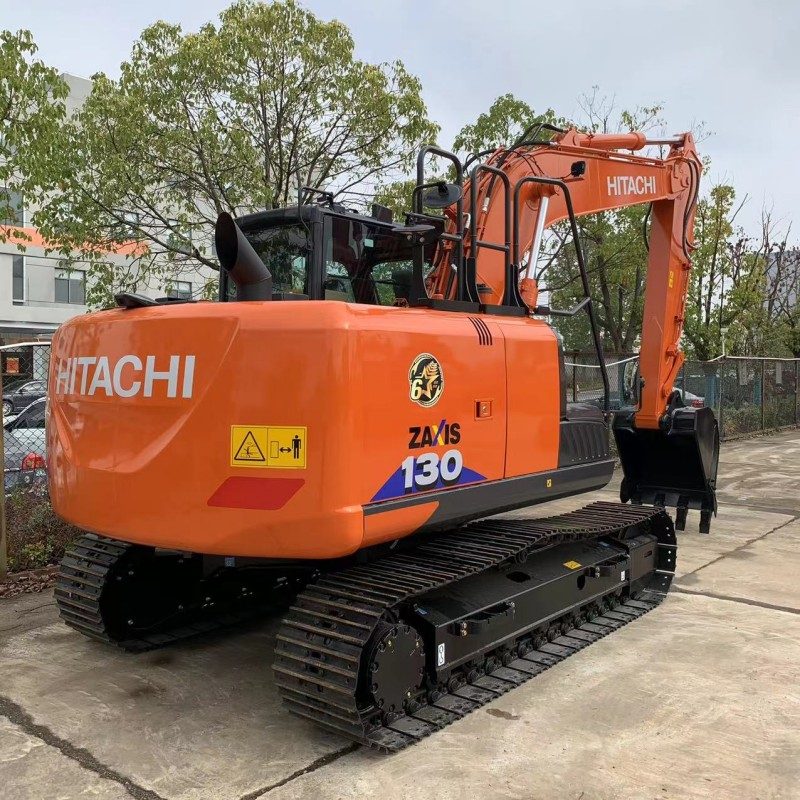

- Model: HITACHI ZX130 Crawler Excavator
- Operating Weight: 13100kg (ZX130‑6A) / 13700–16100kg (ZX130‑7)Hitachi Construction Machinery
- Standard Bucket Capacity: 0.52m³, optional 0.19–0.66m³Hitachi Construction Machinery
- Overall Dimension(L×W×H): Approx. 7600×2490×2740mm

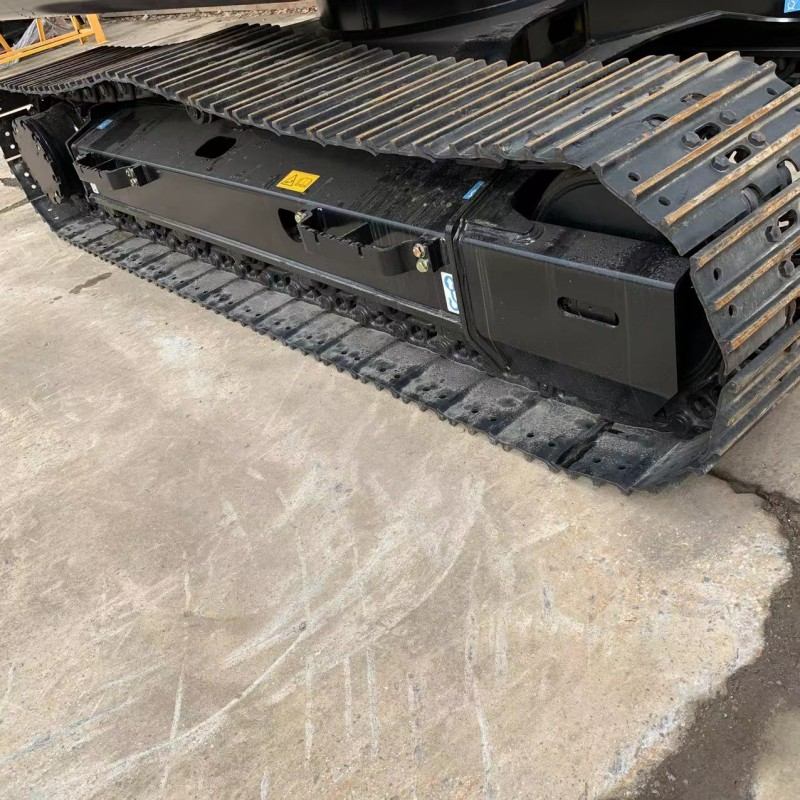

- Track Width: 500mm (standard), optional 600/700mm
- Track Gauge: 1990mm
- Ground Pressure: 35–42kPa
- Maximum Travel Speed: 5.5km/h (Dual speed: 3.3/5.5km/h)
- Slew Speed: 12.0rpm
- Maximum Climbing Gradient: 35°
- Fuel Tank Volume: 170L
Working Performance Parameter
- Maximum Digging Force (Bucket): 104kN日立建机
- Maximum Digging Depth: 5540mm (2.52m arm)Hitachi Construction Machinery
- Maximum Digging Radius: 8300mm (2.52m arm)Hitachi Construction Machinery
- Maximum Dump Height: 6550mmHitachi Construction Machinery
- Dozer Blade: Optional
Power System Configuration
- Engine Brand: Isuzu / Taiyo (Toyota Industries) Diesel EngineHitachi Construction Machinery
- Rated Power: 78.5kW / 107HP (ZX130‑6A, ISO14396)
- Rated Rotation Speed: 2000rpm
- Displacement: 2.999L
- Maximum Torque: 375N·m @ 1800rpm
- Emission Standard: Euro 4 / Tier 4 Final /
- Performance Characteristic: High torque at low speed, fast cold start, low fuel consumption, stable power output
Transmission and Chassis System
- Travel System: Full hydraulic drive, dual‑speed travel

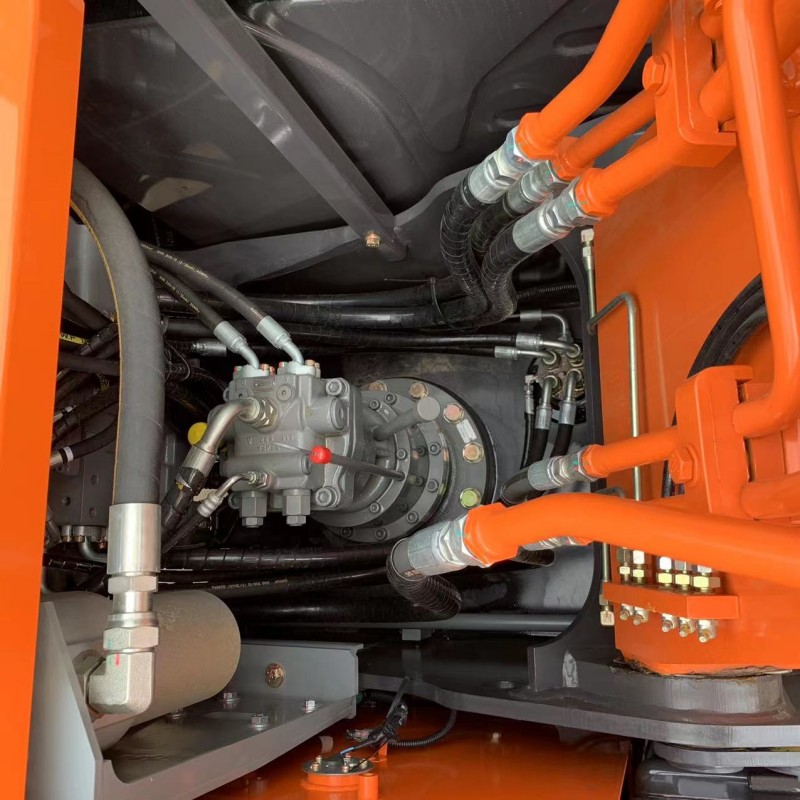

- Slew System: Independent hydraulic slew motor, smooth rotation
- Chassis Structure: Reinforced X‑shaped heavy‑duty frame, anti‑torsion

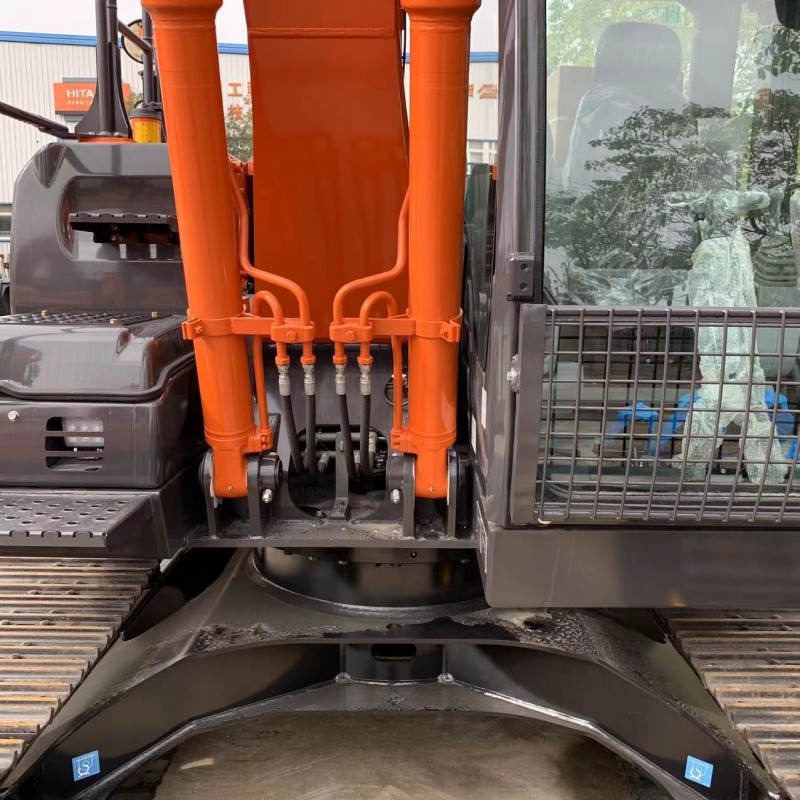

- Working Attachment: Reinforced boom, arm and bucket, high‑strength wear‑resistant steel
Hydraulic Working System
- Hydraulic Structure: HIOS IV (2 variable piston pumps + 1 gear pump)日立建机
- System Working Pressure: 34.3MPa
- Working Advantage: Fast response, smooth compound movement, high fuel efficiency, precise control
Driving Cab and Safety Configuration

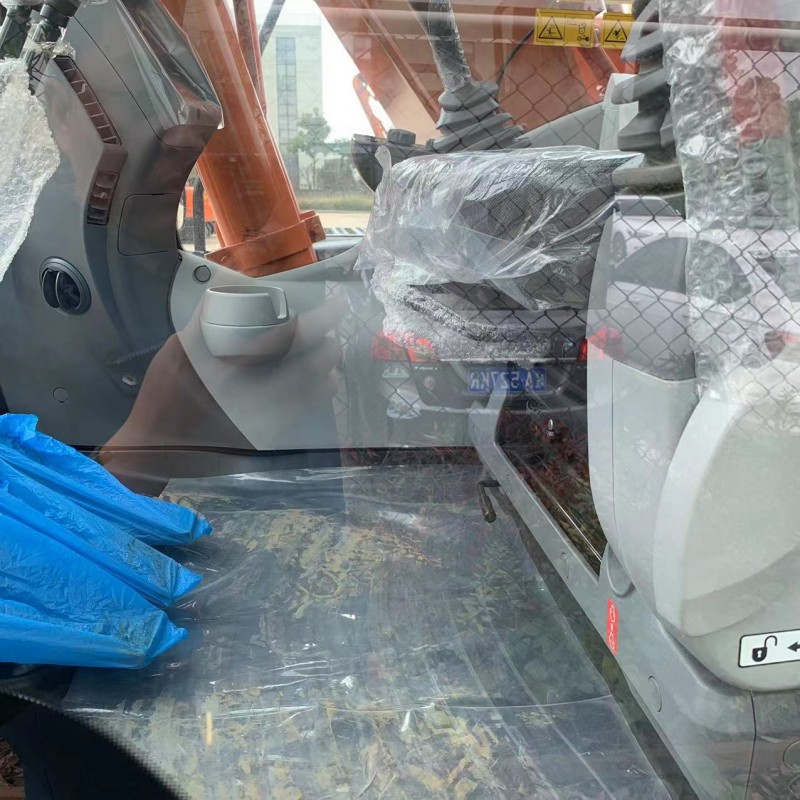

- Cab Type: Fully enclosed noise‑reduction cab
- Safety Grade: ROPS & FOPS safety protection certified

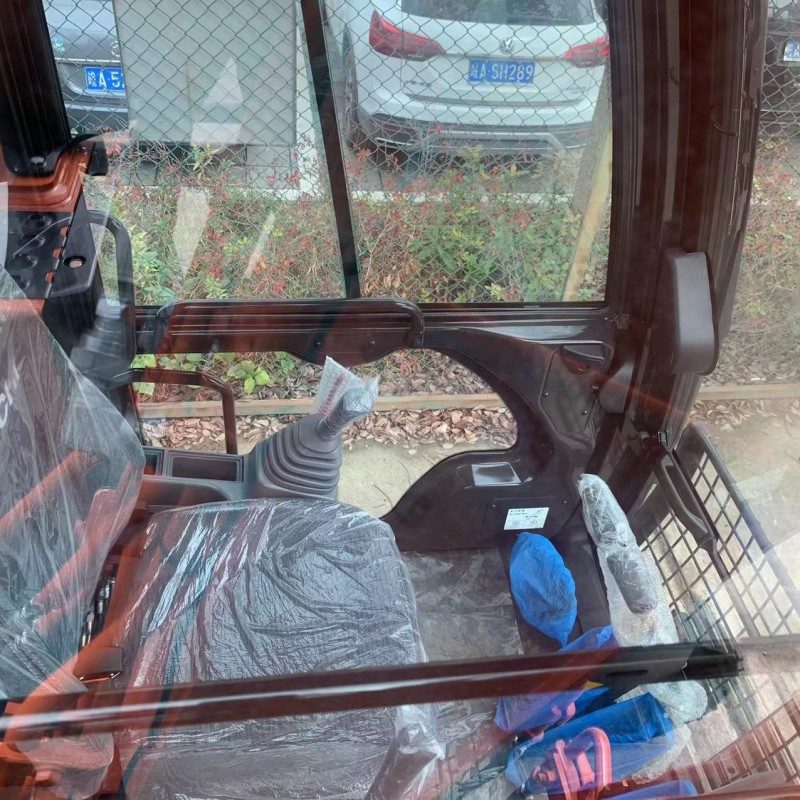

- Internal Configuration: Adjustable suspension seat, ergonomic pilot control handles
- Optional Function: Air conditioning, rear‑view camera, LED working lights
- Noise Control: Internal noise ≤78dB
- Visual Effect: Large panoramic glass, 360° wide operating view
Six Core Product Advantages
Powerful & Efficient Diesel Engine
Equipped with Isuzu or Taiyo high‑efficiency diesel engine, the ZX130 delivers strong torque and stable power output. The electronically controlled fuel injection system reduces fuel consumption, supports long‑hour heavy‑duty operation, and lowers overall operating costs.
High‑Efficiency HIOS IV Hydraulics
Advanced HIOS IV hydraulic system with dual variable pumps provides fast, smooth and coordinated movements. It reduces energy loss, improves cycle times and ensures precise control during digging, grading and loading tasks.
Strong Digging & Loading Capacity
With 104kN bucket digging force and optimized front‑linkage design, the ZX130 excels in heavy trenching, earthmoving, quarrying and truck loading. High bucket fill rate and fast working cycles greatly improve jobsite productivity.
Reinforced Heavy‑Duty Structure
Key components including boom, arm, bucket and chassis use high‑strength wear‑resistant steel. Reinforced welding and thickened stress points resist impact, abrasion and deformation, extending service life under harsh mine and quarry conditions.
Comfortable & Safe Operating Environment
Spacious fully enclosed cab with ROPS/FOPS protection reduces noise and vibration. Adjustable suspension seat and ergonomic pilot controls minimize operator fatigue, enabling efficient work during long shifts.
Low Maintenance & Global Parts Support

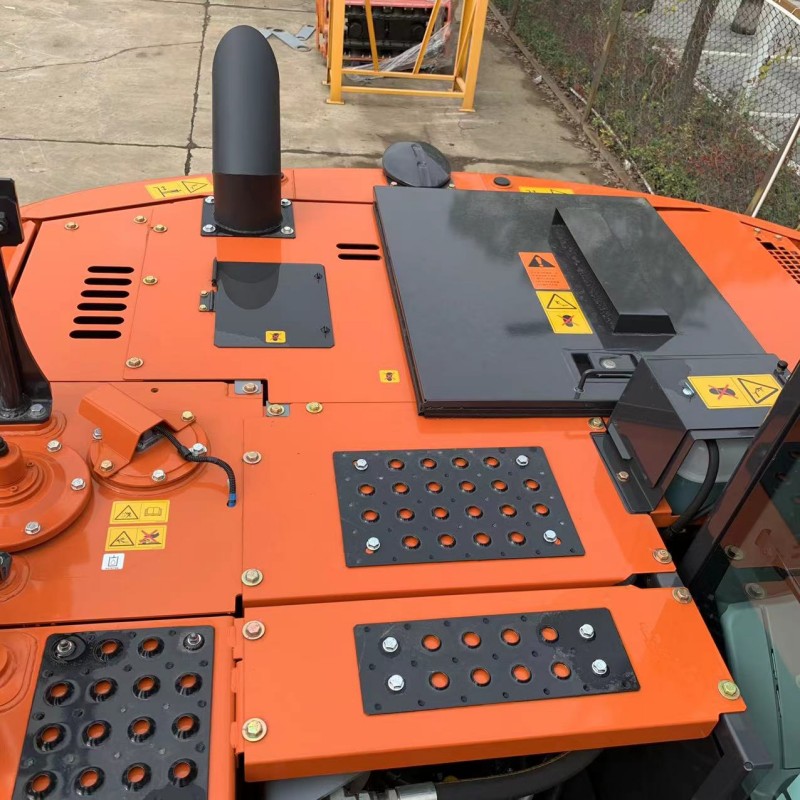

Easy‑access engine hood and centralized lubrication simplify daily inspection and maintenance. Standard, widely available spare parts worldwide reduce downtime and repair costs, making the ZX130 ideal for heavy‑duty fleets and long‑term projects.
