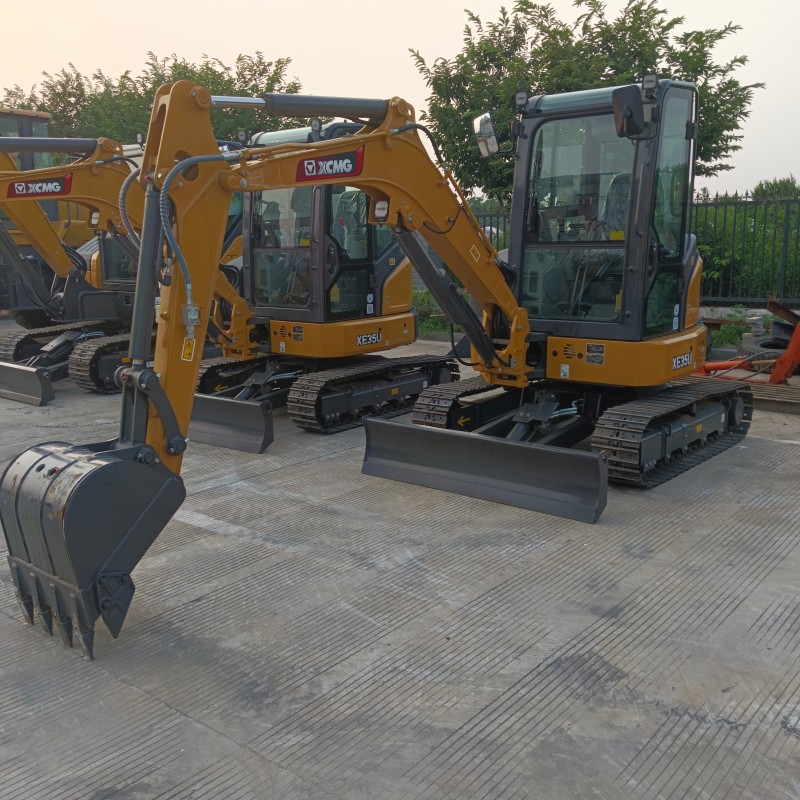

roduct Overview of XCMG XE35U Mini Crawler Excavator

The XCMG XE35U mini crawler excavator is XCMG U-series flagship 3.5-ton zero-tail compact excavator, specially developed for narrow-space construction scenarios including residential landscaping, municipal pipeline trenching, indoor demolition, farmland renovation, villa foundation and small garden engineering. The flexible structure of the XCMG XE35U mini crawler excavator makes it the preferred machine for limited working areas where medium excavators cannot access. This XCMG XE35U mini crawler excavator adopts genuine Japan Yanmar 3TNV88F three-cylinder water-cooled diesel engine, complying with China National Stage IV / EPA Tier4 Final emission standards, stable low-speed torque output with low vibration and low fuel consumption. Equipped with independent load-sensing variable hydraulic system, matched with 75° left / 50° right variable angle boom design, the XCMG XE35U mini crawler excavator realizes parallel wall excavation in limited space; zero tail swing structure ensures the counterweight does not exceed track width during full rotation, greatly improving safety in narrow yards and roadside construction. The reinforced undercarriage of XCMG XE35U mini crawler excavator, standard bulldozer blade and multi-functional auxiliary hydraulic circuit support quick switching of breaker, auger, grapple and other attachments. Optional enclosed air-condition cab or open canopy meets different regional market demands, making XCMG XE35U the most popular compact rental machinery for global landscaping contractors, municipal maintenance teams and small engineering fleets.

Full Official Technical Parameters of XCMG XE35U Mini Crawler Excavator

Basic Overall Dimension & Weight of XCMG XE35U

• Model: XCMG XE35U Zero Tail Swing Mini Crawler Excavator
• Operating Weight: 4200kg (Cab version) / 4100kg (Canopy version)
• Standard HD Bucket Capacity: 0.12m³ general digging bucket, optional 0.08m³ narrow trenching bucket
• Standard Boom Length: 2560mm Variable Angle Boom
• Standard Arm Length: 1350mm Standard Arm
• Overall Transport Total Length: 4960mm
• Overall Transport Total Width: 1740mm (Track retractable optional to 1440mm)
• Overall Cab Top Height: 2550mm
• Track Gauge: 1440–1740mm adjustable track
• Standard Track Shoe Width: 300mm, optional rubber track pad
• Minimum Ground Clearance: 297mm

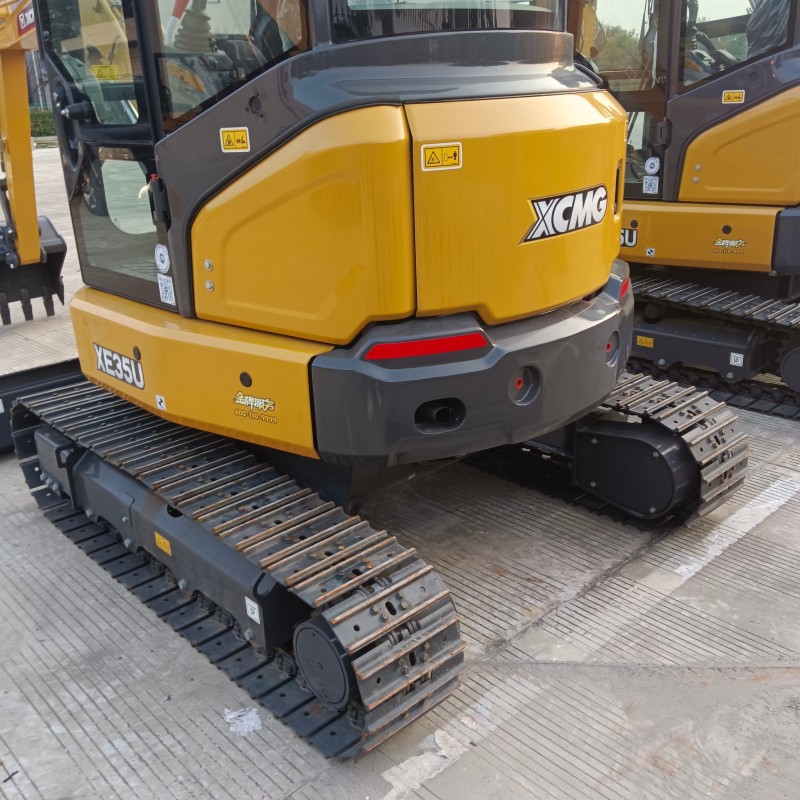

• Tail Swing Radius: Zero tail design, counterweight within track width
• Ground Pressure: 36kPa (cab + steel track)
• Fuel Tank Volume: 40L compact large capacity
• Hydraulic Oil Tank Volume: 45L
• Full System Hydraulic Oil Volume: 85L, service life up to 2000 working hours

Travel & Swing Performance

• Two-speed Travel Speed: Low gear 2.2km/h, High gear 3.6km/h
• Slew Rotation Speed: 9.0rpm
• Maximum Climbing Gradient: 35°（70%）
• Maximum Drawbar Traction Force: 31.6kN
• Travel System: Full hydraulic two-speed travel motor with mechanical parking brake, 5 bottom track rollers + 1 top carrier roller, optimized meshing structure preventing rubber track falling off
• Slew System: Compact reinforced slew bearing + low noise slew motor, built-in anti-creep holding brake
• Standard Configuration: Integrated heavy-duty bulldozer blade, maximum cutting depth 360mm

ISO Standard Digging Working Range & Digging Force

• Max Horizontal Digging Radius: 5415mm
• Max Ground Digging Radius: 5230mm
• Max Digging Depth: 3060mm
• Max Vertical Wall Digging Depth: 2260mm
• Max Digging Height: 4730mm
• Max Material Dumping Height: 3760mm
• Minimum Front Swing Radius: 2170mm
• Max Bucket Digging Force (ISO): 28.6kN
• Max Arm Digging Force (ISO): 20.3kN
• Standard Factory Configuration: Pre-plumbed auxiliary hydraulic piping for hydraulic breaker, auger and grapple

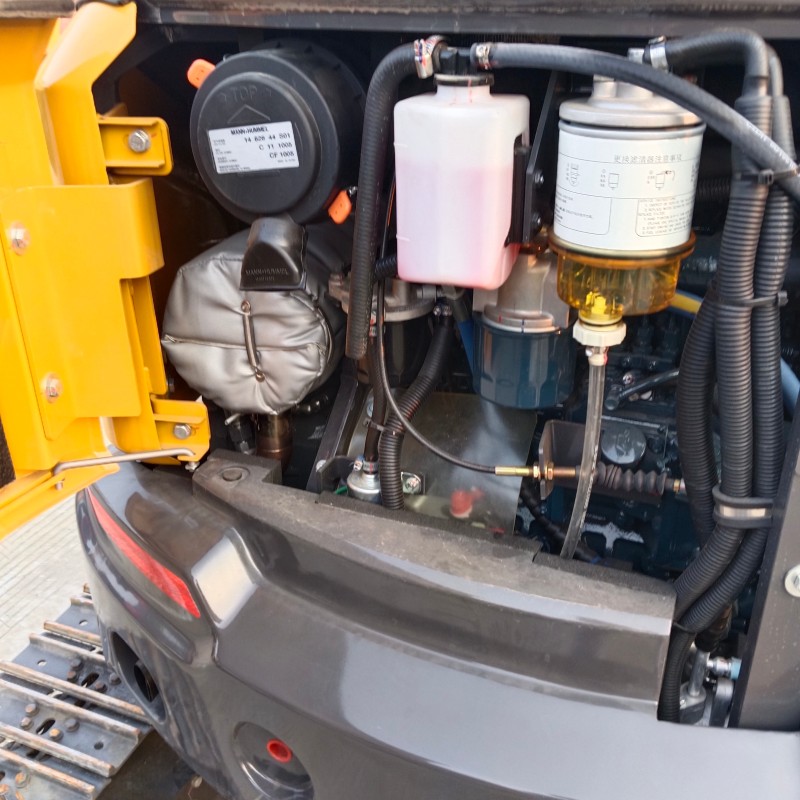

Genuine Yanmar 3TNV88F Power Engine System

The XCMG XE35U mini crawler excavator is fitted with original Japan Yanmar 3TNV88F three-cylinder inline turbo intercooled diesel engine, fully compliant with China National Stage IV, US EPA Tier 4 Final emission standards. You can check full engine official data via Yanmar official construction machinery engine website.

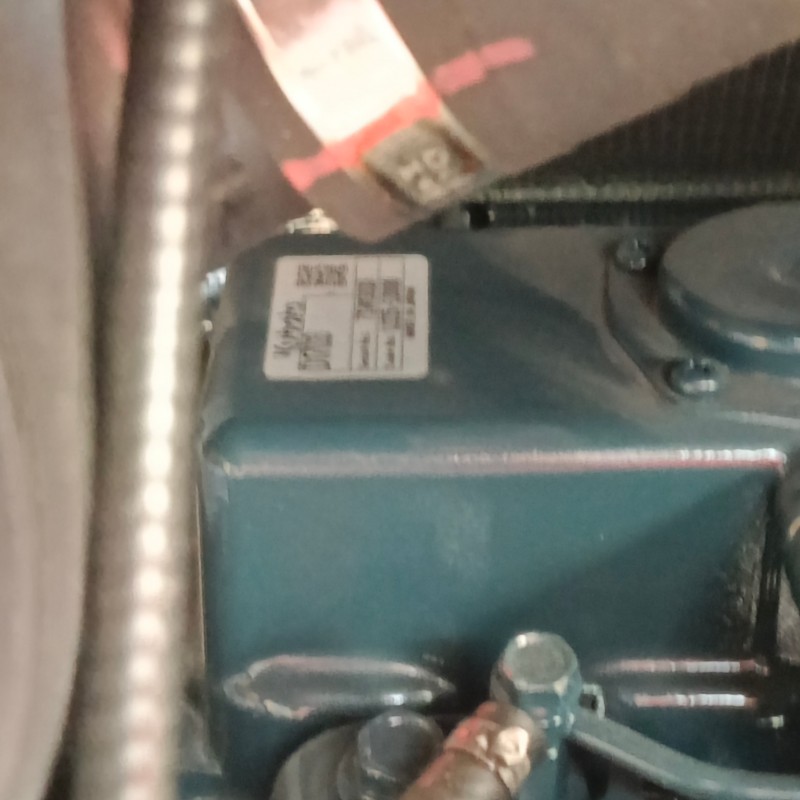

• Engine Model: Yanmar 3TNV88F Water-cooled 3-cylinder inline diesel engine
• Net Power – ISO 9249: 18.2kW / 24.4HP @ 2200rpm
• Peak Torque: 85.3–94.2N·m @ 1320rpm, stable low-speed torque output
• Displacement: 1.642L
• Emission Standard: China Stage IV / Tier4 Final
• Core Advantages:
  1. Low vibration & low noise design, suitable for residential area daytime and night construction where XCMG XE35U mini crawler excavator usually operates
  2. Optimized fuel injection calibration, excellent fuel economy for long-hour light operation
  3. Simple and reliable structure, easy daily maintenance with fewer vulnerable parts
  4. Stable cold start at -15°C, reliable operation under high temperature tropical environment
  5. Global Yanmar spare parts supply network, convenient overseas maintenance support

XCMG Load-Sensing Intelligent Hydraulic System

• Main Pump Configuration: Variable displacement axial piston load sensing main pump
• Total Main Pump Max Output Flow: 108 L/min combined flow
• Max System Working Pressure: 23MPa
• Auxiliary Circuit Max Flow: 40L/min for attachments
• Pilot Control Pressure: 3.2MPa
• Control Logic: XCMG customized load-sensing control system, accurately distribute flow according to operation demand, reduce overflow energy loss; support smooth composite action of boom, arm, swing and travel; variable angle boom independent hydraulic circuit for side wall excavation when XCMG XE35U mini crawler excavator works alongside walls
• Three preset working modes: Standard / Eco / Attachment, one-touch switch for landscaping, fuel-saving operation and breaker work
• Auxiliary Hydraulic Circuit: Double-way auxiliary hydraulic line as standard, compatible with hydraulic rock breaker, earth auger, log grapple and hydraulic quick hitch coupler
• Hydraulic Oil Replacement Cycle: Extended to 2000 working hours

Chassis & Reinforced Working Attachment

Crawler Chassis Frame

• Integral box-type anti-torsion chassis frame, robot full penetration welding technology

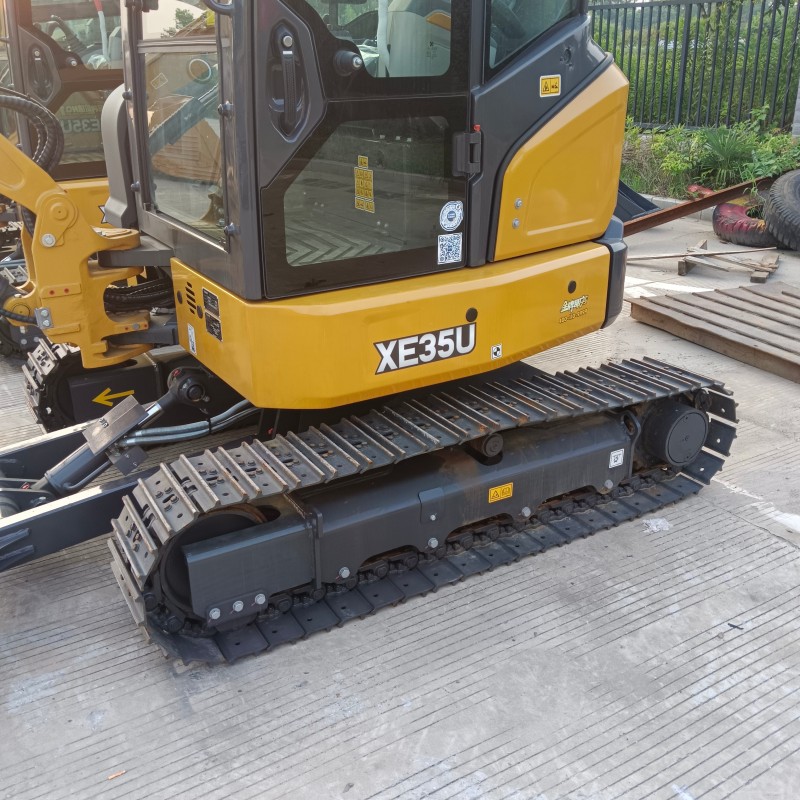

• Adjustable width track frame, retractable width from 1740mm to 1440mm, convenient for passing narrow gateways and greenhouses, one core advantage of XCMG XE35U mini crawler excavator
• Optional steel track / rubber track pads; rubber track protects asphalt, lawn and floor without surface damage

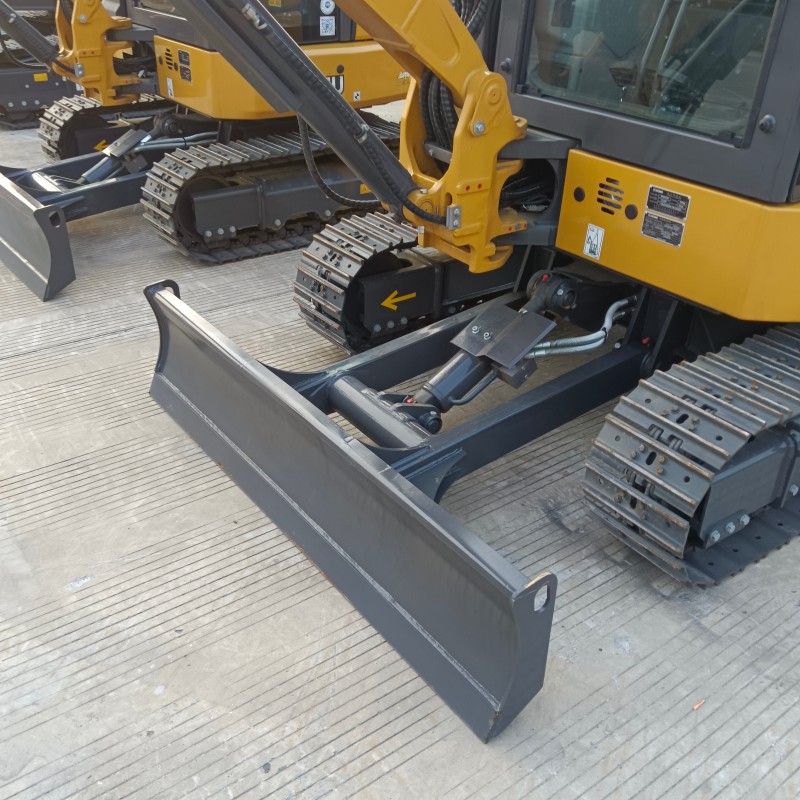

• Standard heavy-duty bulldozer blade for site leveling and stabilizing machine during digging

Boom & Arm Working Device

• Boom, arm and bucket base adopt high-strength low-alloy steel plate, all hinge positions thickened with wear-resistant bushings
• Unique variable angle offset boom: swing 75° left / 50° right, realize excavation parallel to walls and fences without frequent machine relocation
• Hidden hydraulic pipeline design, effectively avoid branch and stone scratch damage during garden operation
• Bucket cutting edge adopts wear-resistant steel, durable for soil and soft rock excavation

Cab, Electronic Control & Safety Configuration

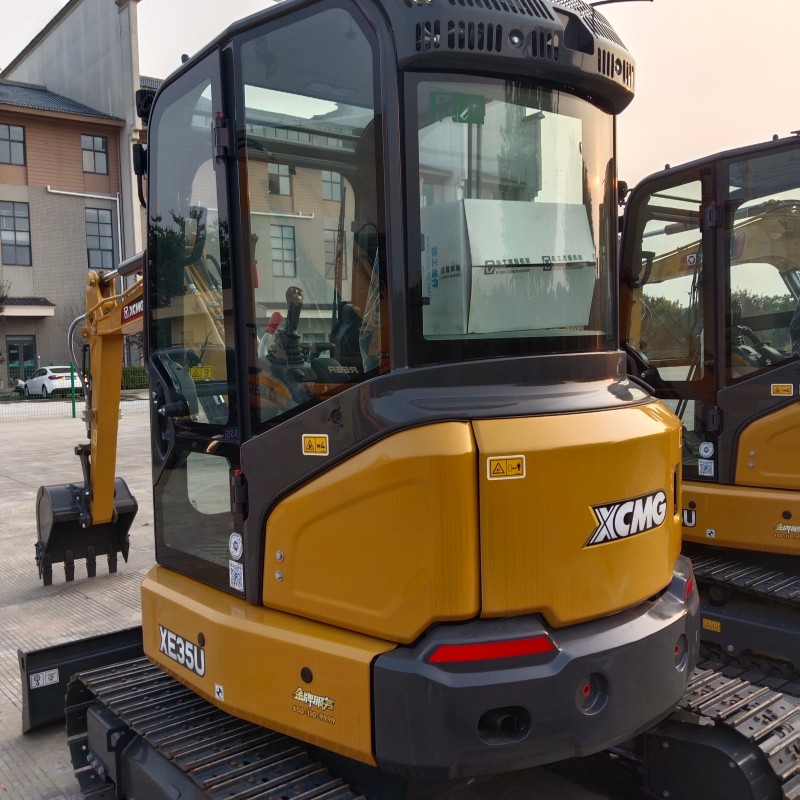

• Cab Type: Two options available: Fully enclosed ROPS/TOPS certified air-condition cab or open FOPS safety canopy

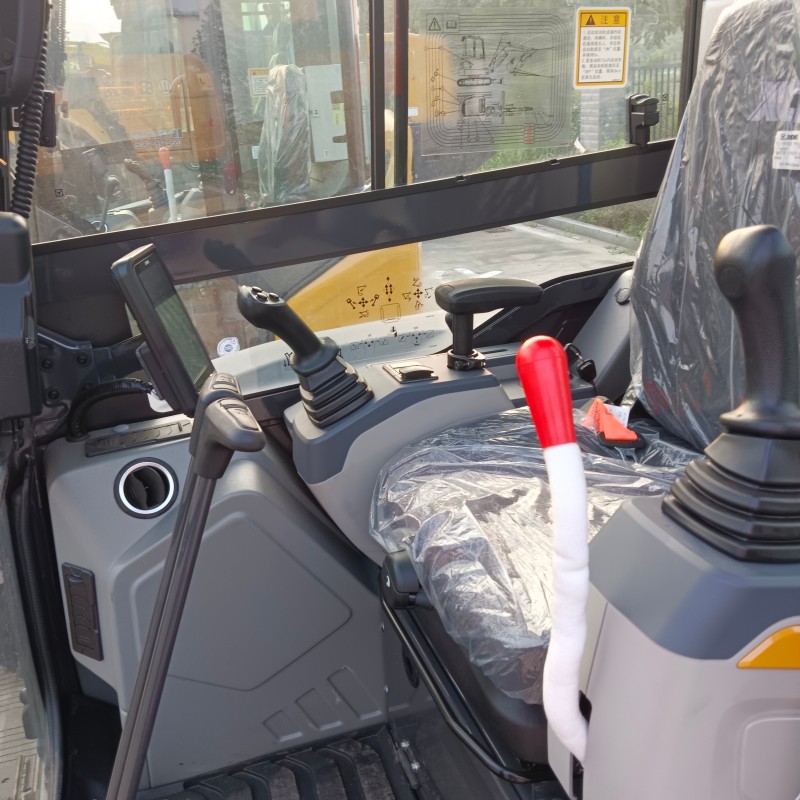

• Standard Interior Equipment (Cab Version)

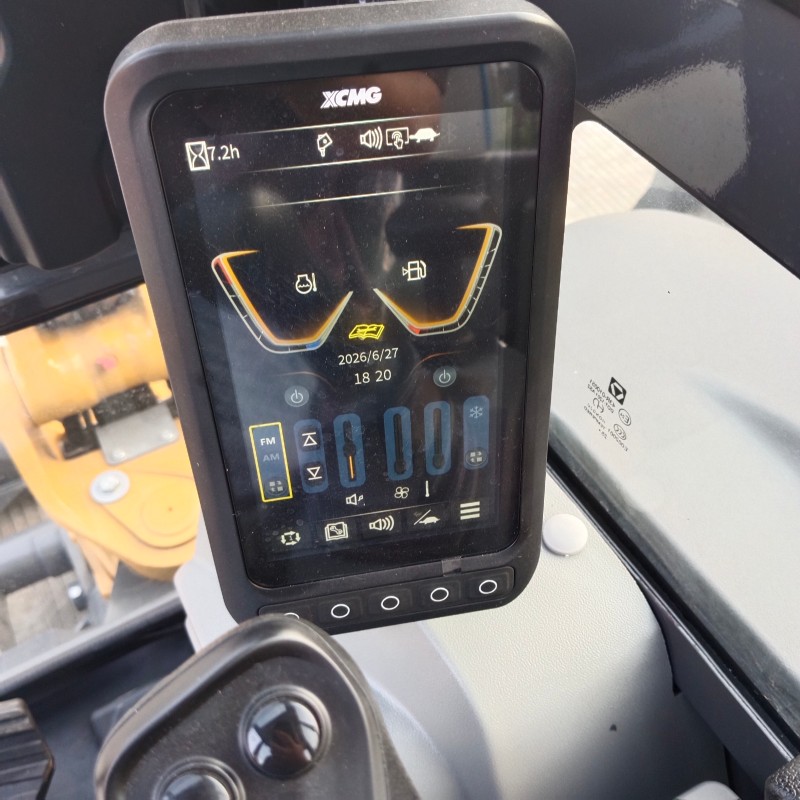

  1. 7-inch intelligent LCD touch monitor, real-time display fuel consumption, engine status, working mode and fault reminder
  2. Multi-adjustable suspension driver seat, flip-up console design for easy entry
  3. Ergonomic ISO pilot joysticks, shortcut buttons for auxiliary attachments, USB charging port, Bluetooth audio
  4. Large panoramic laminated windshield, front windshield can be opened upwards; LED front & rear working lights
• Optional Upgrades: Rubber track pads, hydraulic quick hitch, 3rd auxiliary hydraulic circuit, travel alarm, rearview camera
• Internal Operating Noise: ≤74dB
• Safety Design: ROPS/FOPS anti-roll & anti-falling object protection structure; emergency engine stop switch; hydraulic safety lock lever; cab can be wholly flipped upwards for full hydraulic component inspection and maintenance

Standard Factory Equipment & Optional Matching Attachments

Standard Configuration

0.12m³ standard digging bucket, pre-plumbed auxiliary hydraulic piping, integrated bulldozer blade, steel crawler shoes, FOPS safety protection, intelligent LCD monitor, auto-idle fuel saving system

Optional Attachments

Rubber track pads, 0.08m³ narrow trenching bucket, hydraulic rock breaker, earth auger drill, log grapple, hydraulic quick hitch coupler, enclosed air-condition cab, rearview camera, travel warning alarm

Six Core Competitive Advantages of XCMG XE35U Mini Crawler Excavator

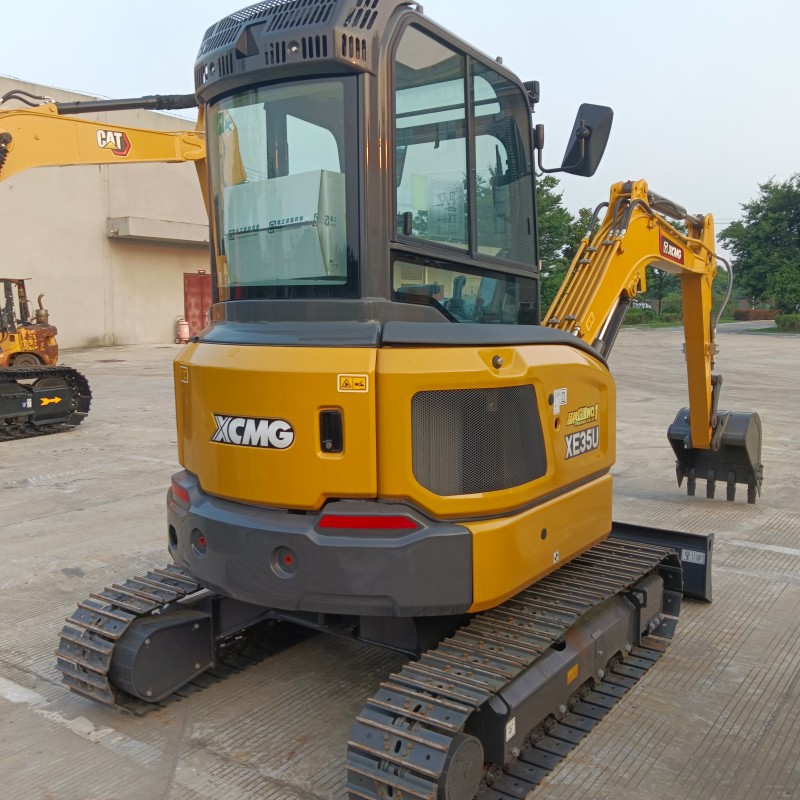

1. Zero Tail Swing + Variable Offset Boom, Ultimate Adaptability for Narrow Sites

Equipped with zero tail rotation structure, the counterweight never extends outside track width during full 360° rotation, eliminating collision risk in narrow alleys, villa yards and roadside construction. The 75° left / 50° right variable angle boom enables parallel excavation along walls and fences, no need to frequently reposition the whole machine, greatly improving operation efficiency for landscaping and municipal pipeline jobs. Retractable track width further enhances passability for gateways and greenhouses, making XCMG XE35U mini crawler excavator stand out among same-class mini diggers.

2. Genuine Yanmar Original Power, Stable Performance & Low Fuel Consumption

Powered by authentic Yanmar 3TNV88F three-cylinder diesel engine with mature market verification, featuring low vibration, low noise and reliable low-speed torque output. Calibrated matching with XCMG load-sensing hydraulic system reduces unnecessary power waste; Eco working mode further cuts hourly fuel consumption, perfectly matching long-hour light-load landscaping and renovation projects. Simple mechanical layout lowers daily maintenance difficulty and spare parts cost for owners of XCMG XE35U mini crawler excavator.

3. Customized Load-Sensing Hydraulic System, Smooth Multi-Action Operation

XCMG self-developed load-sensing hydraulic system dynamically adjust flow output according to operation load, realizing smooth simultaneous movement of digging, swing and traveling without action lag. Independent offset boom hydraulic circuit ensures stable side excavation performance; standard double-way auxiliary hydraulic line supports various attachments, one machine realizes digging, breaking, drilling and grabbing multi-purpose functions to raise equipment utilization rate of XCMG XE35U mini crawler excavator.

4. Multi-Protection Reinforced Structure, Durable For Long-Term Rental Use

Integral box anti-torsion chassis and optimized boom & arm structure pass strict finite element impact simulation test. Hidden hydraulic pipeline effectively prevents scratch damage in garden and woodland construction; thickened hinge wear sleeves extend service life of working device. Optional rubber track avoids damaging asphalt roads, lawns and indoor floors, widely welcomed by landscaping and indoor renovation customers who purchase XCMG XE35U mini crawler excavator.

5. Optional Air-Condition Cab / Open Canopy, Meet Global Diversified Demands

Dual cab solutions available for different market requirements: fully enclosed ROPS certified cab with full air conditioning suitable for high-temperature and high-dust regions; lightweight open canopy reduces purchase cost for price-sensitive markets. The cab can be wholly flipped upward, all hydraulic pumps, valves and pipelines exposed for convenient inspection and repair, greatly shortening maintenance downtime of XCMG XE35U mini crawler excavator.

6. Compact Multi-Functional Mini Machine, High Investment Return For Small Contractors

With compact transportation dimension, XCMG XE35U mini crawler excavator can be transported on small flat trucks without large low-bed trailer, cutting logistics cost. Compatible with multiple attachments to undertake landscaping, pipeline digging, house renovation, farmland sorting and small demolition projects. Small site access capability makes it hard to be replaced by medium excavators, enjoying stable high rental rate for global small engineering teams and equipment rental fleets.

Wide Application Scope

The XCMG XE35U mini crawler excavator is widely applied for villa garden landscaping, municipal underground pipeline trenching, indoor building demolition, farmland irrigation channel digging, greenhouse foundation construction, residential area renovation, small road maintenance and park reconstruction projects. If you need smaller lightweight mini excavator for indoor narrow space operation, check our XCMG XE27U Mini Excavator. For larger 6-ton compact excavator with higher loading capacity, view the XCMG XE60GA Crawler Excavator product page.

The XCMG XE35U mini crawler excavator is a versatile 3.5-ton zero-tail compact digger equipped with original Yanmar 3TNV88F low-noise diesel engine and customized load-sensing hydraulic system. Featuring zero tail swing, variable offset boom, optional rubber track and dual cab solutions, XCMG XE35U mini crawler excavator delivers excellent flexibility for narrow-site landscaping, municipal maintenance and indoor renovation construction, becoming the preferred cost-effective compact machinery for global landscaping contractors and mini equipment rental businesses.
