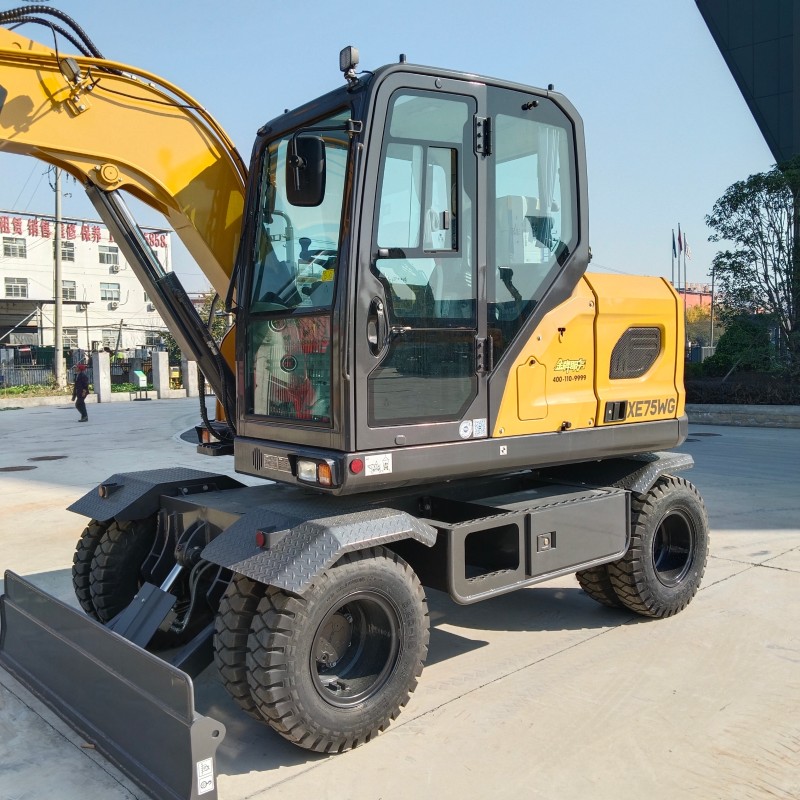

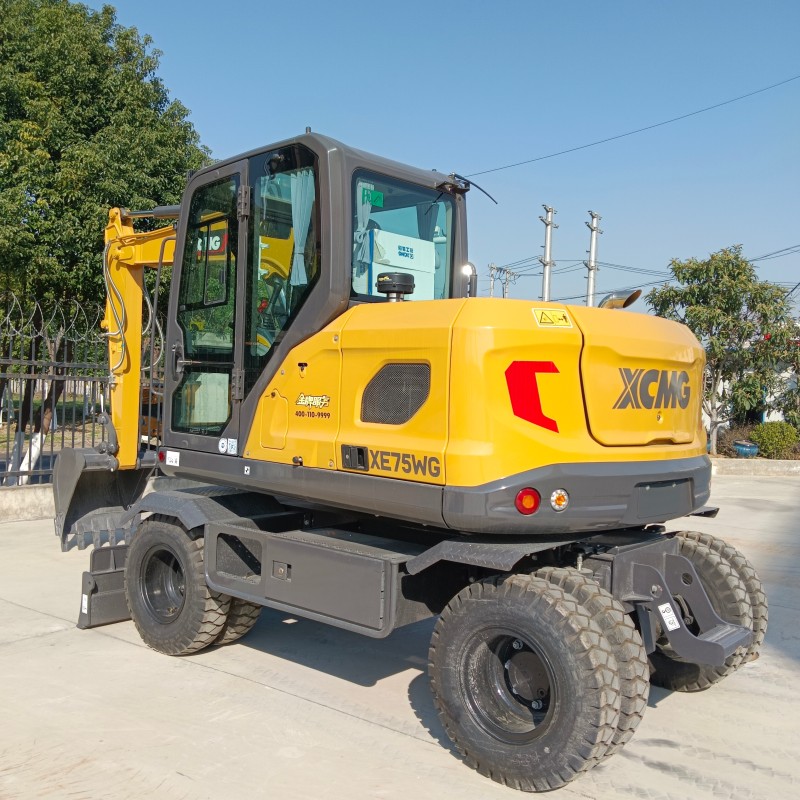

Product Overview of XCMG XE75WG Wheel Excavator
The XCMG XE75WG wheel excavator is a new-generation National Stage IV compact wheeled mini excavator independently developed by XCMG Construction Machinery, specially designed for urban municipal road repair, community pipeline trenching, landscaping greening, rural infrastructure, farmland irrigation and small light crushing projects. Different from crawler excavators, this XCMG XE75WG wheel excavator supports up to 30km/h high-speed road travel, realizing self-driving cross-site transfer without flatbed truck to save huge transportation cost and transition time. Equipped with mature Yuchai turbocharged diesel engine meeting China Stage IV emission standard, matched with upgraded electronic load-sensing hydraulic system, it delivers smooth coordinated multi-action operation and intelligent auto idle fuel-saving function to cut hourly fuel consumption. Reinforced heavy-duty vehicle frame, double hydraulic suspension axle and thickened boom & arm greatly improve stability on uneven pavement and muddy ground. The ROPS/FOPS certified large panoramic intelligent cab and ground centralized maintenance layout effectively reduce operator fatigue and daily inspection labor cost, making XCMG XE75WG wheel excavator the most cost-effective small wheel construction machine for global municipal maintenance teams, landscaping contractors and equipment rental fleets.
Full Official Technical Parameters of XCMG XE75WG Wheel Excavator
Basic Overall Dimension & Weight of XCMG XE75WG Wheel Excavator
- Model: XCMG XE75WG Compact Mini Wheel Excavator
- Operating Weight: 6010kg (6 ton class, standard single front tire)
- Standard Bucket Capacity: 0.30m³ general earth bucket, optional 0.23m³ narrow bucket / 0.33m³ rock bucket
- Standard Boom Length: 3340mm
- Standard Arm Length: 1896mm
- Overall Total Transport Length: 5920mm
- Overall Total Transport Width: 2240mm
- Overall Cab Top Height: 2848mm
- Wheelbase: 2400mm widened stable wheelbase
- Standard Tire Spec: 7.50-16 single heavy-duty road tire, dual front tire optional
- Minimum Ground Clearance: 360mm
- Tail Swing Radius: 2150mm compact rear body design
- Front Dozer Blade Width: 2240mm
- Fuel Tank Volume: 115L
- Hydraulic Oil Tank Volume: 106L
Travel & Swing Performance
- Two-speed Travel Speed: Low gear 10km/h, High gear 30km/h
- Slew Rotation Speed: 10.5rpm
- Maximum Climbing Gradient: 35° (70%)
- Maximum Drawbar Traction Force: 38kN
- Steering Type: Full hydraulic front wheel steering, front axle hydraulic suspension shock absorption & lock function
- Transmission System: Two-speed power shift gearbox, hydraulic clutch automatic speed switching
- Brake System: Full hydraulic wet multi-disc service brake, spring-applied hydraulic release parking brake
- Slew System: Independent low-noise hydraulic slew motor, built-in holding brake for precise grading and pipeline trenching
ISO Standard Digging Working Range & Digging Force
- Max Horizontal Digging Radius: 6430mm
- Max Digging Depth: 3600mm
- Max Vertical Digging Depth: 3100mm
- Max Digging Height: 6820mm
- Max Material Dumping Height: 4960mm
- Minimum Front Swing Radius: 2380mm
- Max Bucket Digging Force (ISO): 35.9kN
- Max Arm Digging Force (ISO): 27.5kN
- Standard Factory Configuration: Front floating dozer blade, pre-reserved multi-way hydraulic piping for hydraulic breaker hammer

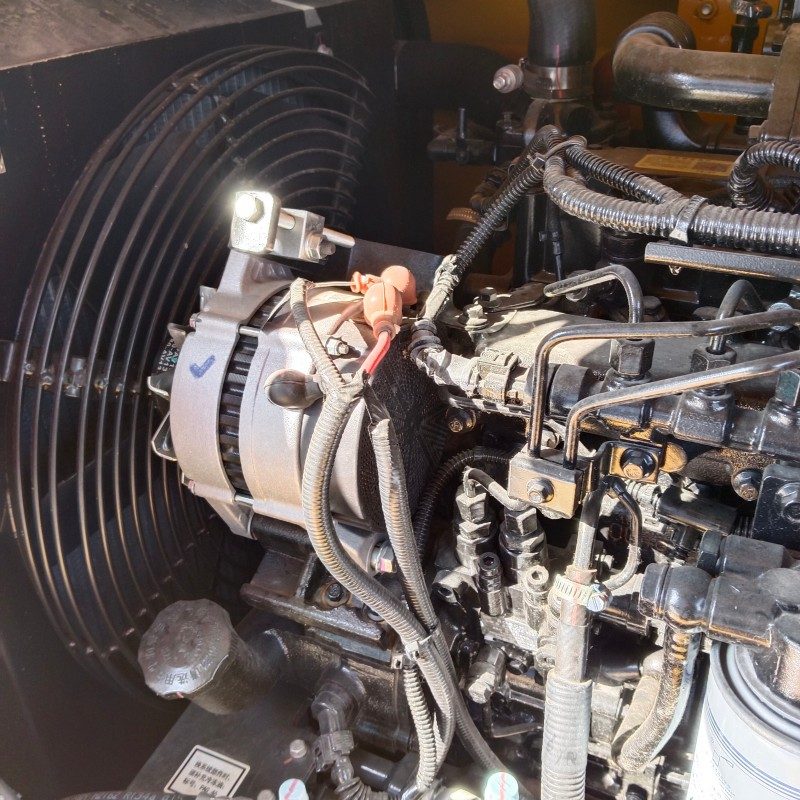

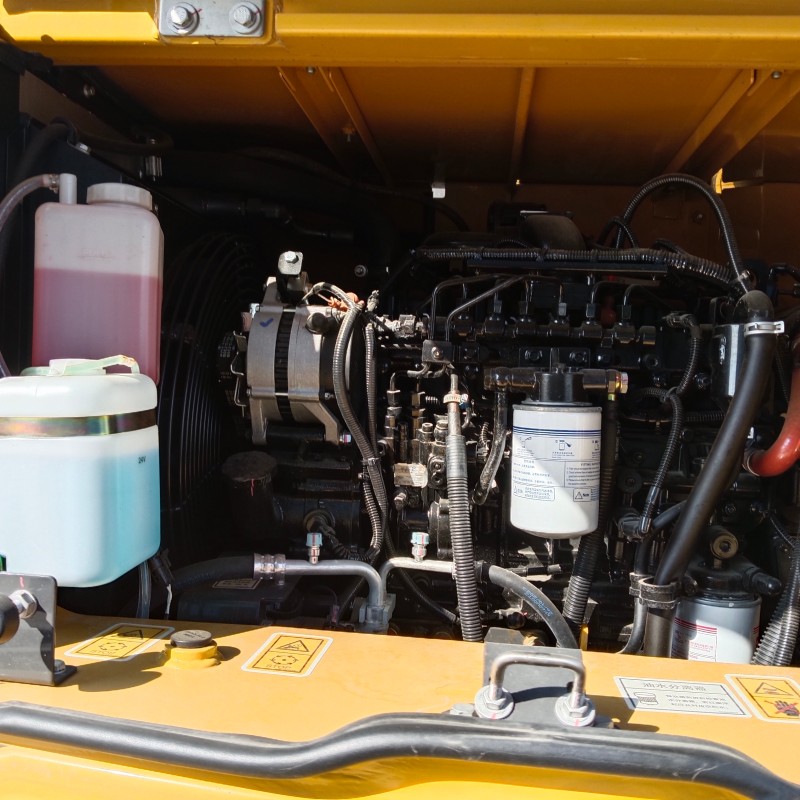

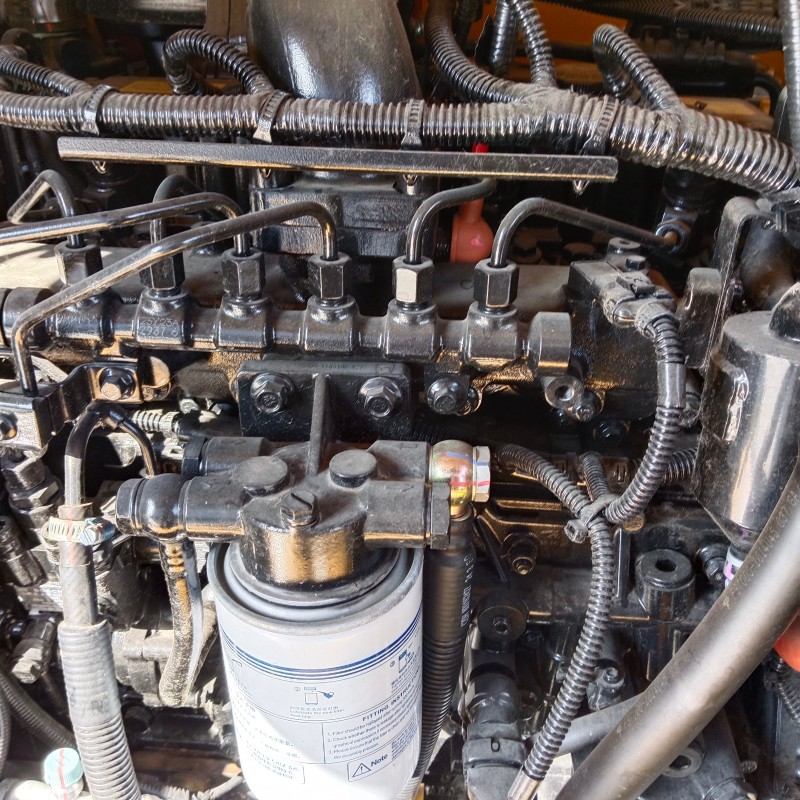

Yuchai Power Engine System
The XCMG XE75WG wheel excavator is equipped with reliable domestic Yuchai YCF3065-T480 four-cylinder turbo diesel engine, fully compliant with China Stage IV emission standard with mature DOC+SCR aftertreatment system.
- Engine Model: Yuchai YCF3065-T480 Water-cooled 4-cylinder inline turbocharged diesel engine(www.yuchai.com)https://www.yuchai.com/construction/
- Rated Power: 55.8kW / 74.8HP @ 2200rpm
- Peak Torque: 260N·m @ 1400–1700rpm
- Displacement: 2.982L
- Emission Standard: China Stage IV
- Core Advantages: Low-speed high torque output, auto idle fuel-saving technology, stable cold start at low temperature, 500-hour filter maintenance cycle, three adjustable working modes (ECO/Power/Breaker) matching different construction loads, low spare parts cost for domestic market.
Upgraded Electronic Load-Sensing Hydraulic System
- System Type: Large-displacement electronic load-sensing dual variable piston main pumps
- Total Main Pump Max Output Flow: 148 L/min
- Standard System Working Pressure: 27MPa
- Power Boost Instant Pressure: 30MPa
- Pilot Control Pressure: 3.5MPa
- Control Feature: Intelligent real-time load flow compensation, soft start-stop without walking impact, sensitive micro-operation for landscaping fine shaping and precise pipeline trenching
- Auxiliary Hydraulic Circuit: Factory pre-installed multi-function breaker piping, compatible with hydraulic hammer, earth auger, thumb grab and hydraulic quick hitch coupler
- Full System Hydraulic Oil Replacement Cycle: Up to 2000 working hours

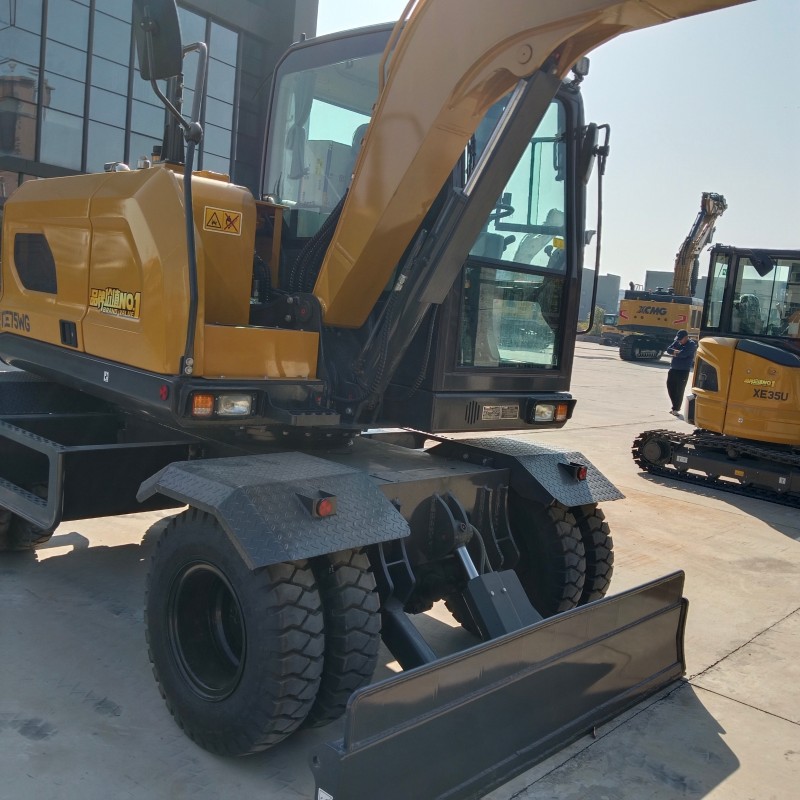

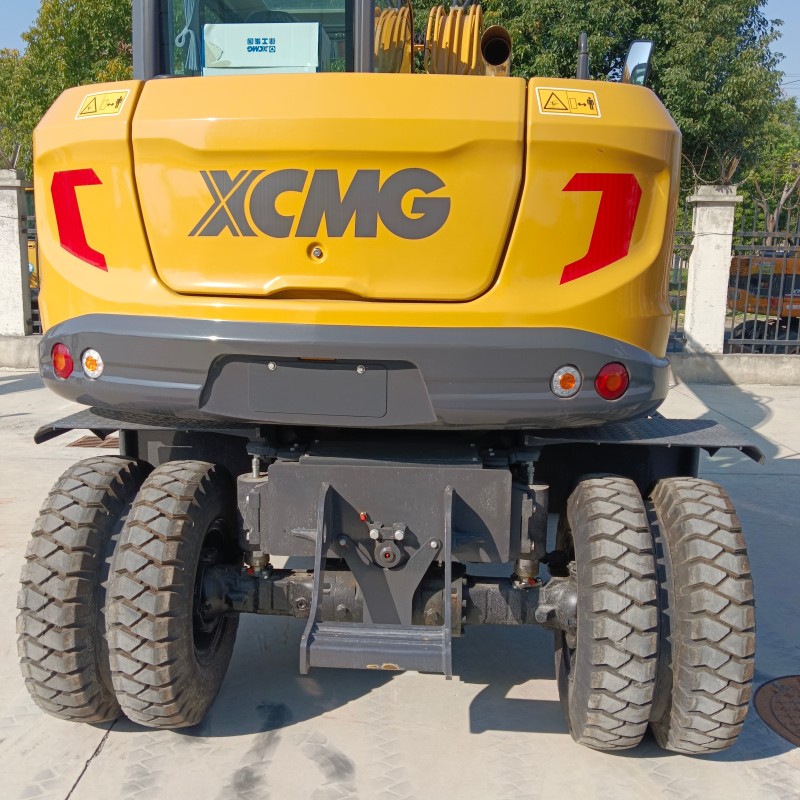

Chassis & Reinforced Working Attachment
Wheel Chassis Frame
- Integral thickened box-type heavy-duty anti-torsion frame, full penetration robot welding technology
- Front axle double hydraulic suspension shock absorption system, shock absorption lock function for stable heavy load operation
- Reinforced heavy-duty drive axle with fully sealed lubrication, wear-resistant road tires with anti-slip pattern
- Front dozer blade with floating leveling function for ground flatting work

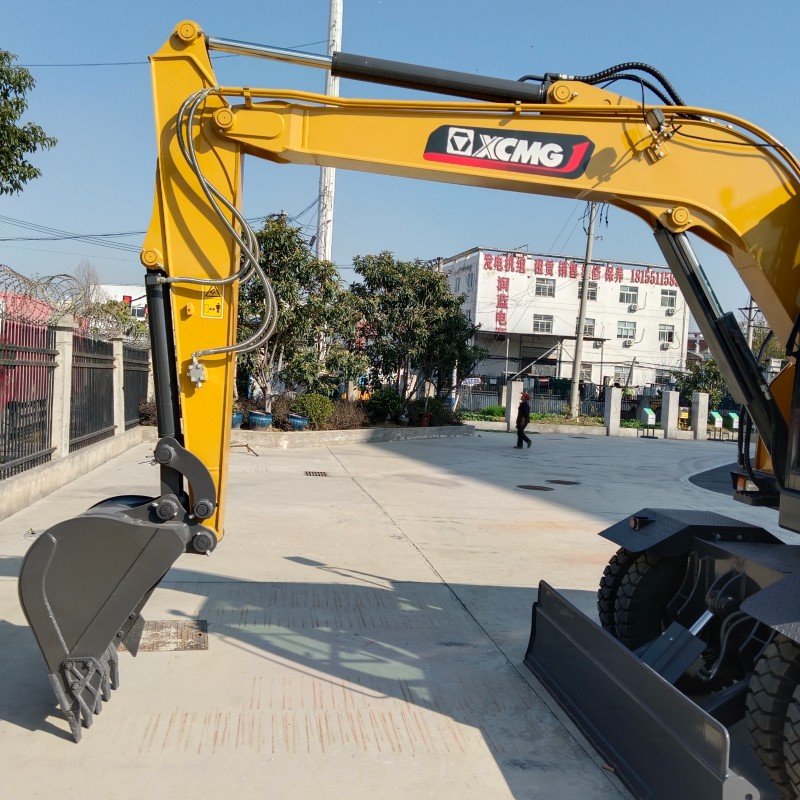

Boom & Arm Working Device
- Boom, arm and bucket base adopt thick high-strength low-alloy wear-resistant steel plate, all stress joint positions thickened with buffer anti-shock heavy bushings
- Optimized finite element reinforced box arm structure, improved bending resistance for long-hour light rock breaking and earthmoving tasks
- Bucket cutting edge adopts HB400 wear-resistant steel, higher soil filling efficiency and lower daily abrasion loss

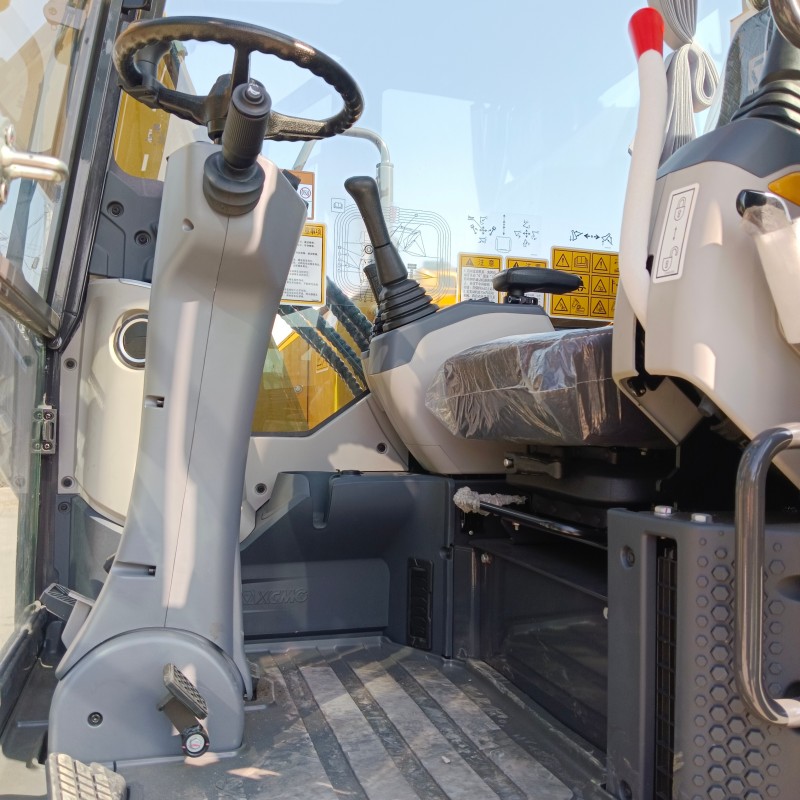

Cab, Electronic Control & Safety Configuration
- Cab Type: Fully enclosed positive pressure dustproof & noise reduction ROPS/FOPS anti-falling object safety cab, three-side wide panoramic laminated glass
- Standard Interior Equipment

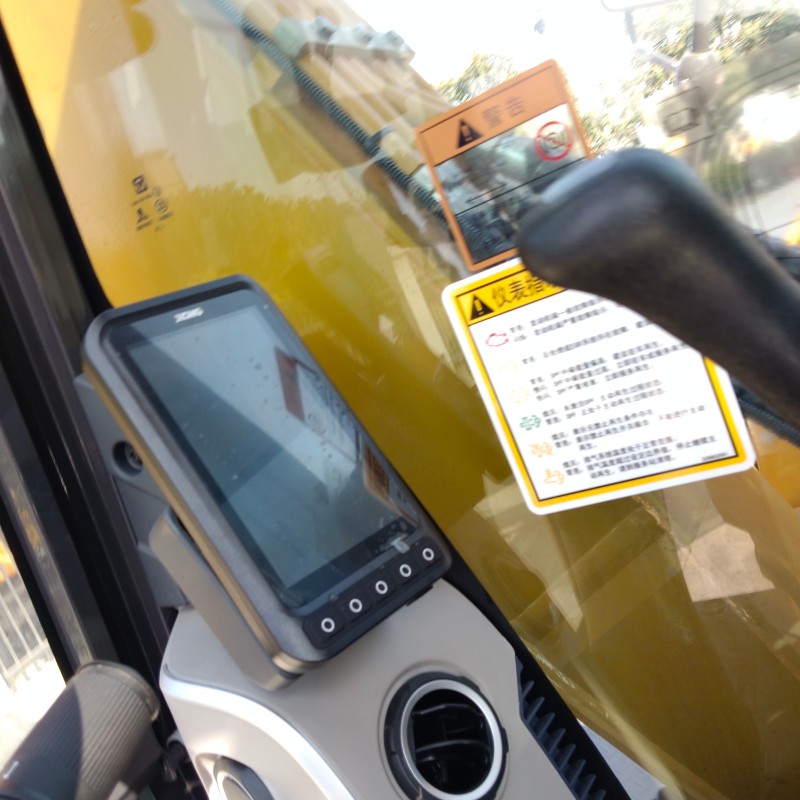

- 7-inch intelligent color LCD touch monitor, real-time display fuel consumption, hydraulic pressure, engine fault code and three working mode switching
- Multi-adjustable ergonomic suspension shock absorption seat with heating function, flip left armrest to widen boarding space
- ISO standard pilot control joysticks, one-touch engine start/stop button, USB fast charging port, Bluetooth hands-free call
- Multi-group LED working lights, independent cab ceiling light for night construction
- Optional Upgrades: Full automatic constant temperature heating & cooling air conditioner, rear-view HD reversing camera, multi-angle surround LED lighting
- Internal Operating Noise: ≤75dB
- Safety Design: Emergency flameout switch, overload sound-light alarm, hydraulic safety lock handle, anti-rollover reinforced cab frame; all daily maintenance inspection points set at ground height with wide three-side open engine hood
Standard Factory Equipment & Optional Matching Attachments
Standard Configuration
Front floating dozer blade, pre-installed breaker hydraulic piping, 7.50-16 single road tires, 0.30m³ general earth bucket, ROPS/FOPS safety intelligent cab, E/P/B three-mode intelligent hydraulic control system, auto idle fuel-saving system
Optional Attachments
Dual front heavy-duty tires, solid engineering tires, 0.23/0.33m³ rock/narrow bucket, hydraulic stone breaker, earth auger, log thumb grab, hydraulic quick hitch coupler, rear-view reversing camera, full automatic cab heating & cooling air conditioner
Six Core Competitive Advantages of XCMG XE75WG Wheel Excavator
1. 30km/h Ultra-Fast Self-Driving Transfer, Zero Flatbed Transportation Cost
The XCMG XE75WG wheel excavator reaches maximum 30km/h road travel speed, freely driving between multiple municipal construction sites without renting flatbed trucks. It greatly shortens project transition waiting time and cuts long-term transportation expense for rental and municipal engineering teams, a core advantage compared with crawler mini excavators.
2. Stage IV Yuchai High-Torque Power, Low Comprehensive Operation Cost
Matched with mature domestic Yuchai turbo engine meeting National IV emission standard, the machine outputs sufficient low-speed torque for trenching, grading and light rock breaking tasks. Three intelligent E/P/B working modes plus auto idle technology reduce comprehensive fuel consumption by 6%, domestic universal spare parts supply lowers parts replacement cost by 30% compared with imported engine wheel diggers.
3. Optimized Electronic Load-Sensing Hydraulic System, Smooth & Precise Operation
The upgraded low-loss load-sensing hydraulic system of XCMG XE75WG wheel excavator intelligently distributes flow and pressure according to real-time working load. All multi-action coordination of lifting, digging, slewing and dozing runs synchronously without lag; one-click power boost instantly increases digging force to handle compact soil and small rock blocks, improving daily construction output significantly.
4. Double Hydraulic Suspension Axle, Ultra-Stable Complex Terrain Adaptability
Unique front axle double hydraulic shock absorption suspension design effectively buffers pavement bump vibration during fast travel, and the suspension lock function can be turned on during heavy digging to eliminate axle bounce, ensuring stable operation on uneven rural roads and muddy construction sites. Reinforced thickened frame and working attachments resist long-hour impact abrasion, extending whole machine service cycle.
5. ROPS/FOPS Large Panoramic Comfort Cab, All-Day Low-Fatigue Operation
The fully sealed positive pressure wide-view cab of XCMG XE75WG wheel excavator isolates urban road dust and engine operating noise. Flip armrest design simplifies entry & exit; ergonomic suspension seat and sensitive pilot joysticks effectively relieve operator fatigue during continuous all-day shifts. Three-side large laminated glass eliminates operation blind zones for safer road travel and loading work.
6. Wide Three-Side Open Maintenance Layout, 40% Faster Daily Inspection
The engine compartment adopts wide three-side open lightweight hood design, fuel filter, air filter, engine oil port, hydraulic oil inspection window and all daily maintenance components are centrally arranged at ground height. Operators complete routine oil replacement and fault inspection without climbing steps, greatly cutting daily maintenance labor time and machine downtime.
Wide Application Scope
The XCMG XE75WG wheel excavator is widely applied to urban municipal road maintenance, underground pipeline trenching, community old house reconstruction, landscaping greening tree pit excavation, farmland irrigation channel digging, small earthwork backfilling, rural road renovation and indoor small demolition construction projects. If you need compact crawler mini digger for ultra-narrow muddy sites without road transfer demand, check our XCMG XE75GA Crawler Excavator. For larger 13-ton heavy-duty wheel excavator with stronger loading power, view the XCMG XE135WG Wheel Excavator product page.
The XCMG XE75WG wheel excavator is a cost-effective 7-ton fast-transfer mini wheel digger equipped with Yuchai National IV low-fuel turbo engine and upgraded electronic load-sensing hydraulic system. Featuring 30km/h self-driving transit, double hydraulic suspension stable chassis, three adjustable working modes, ROPS safety panoramic cab and convenient ground maintenance, this XCMG XE75WG wheel excavator is the ideal small wheel construction machinery for global municipal road, landscaping and equipment rental business customers.
