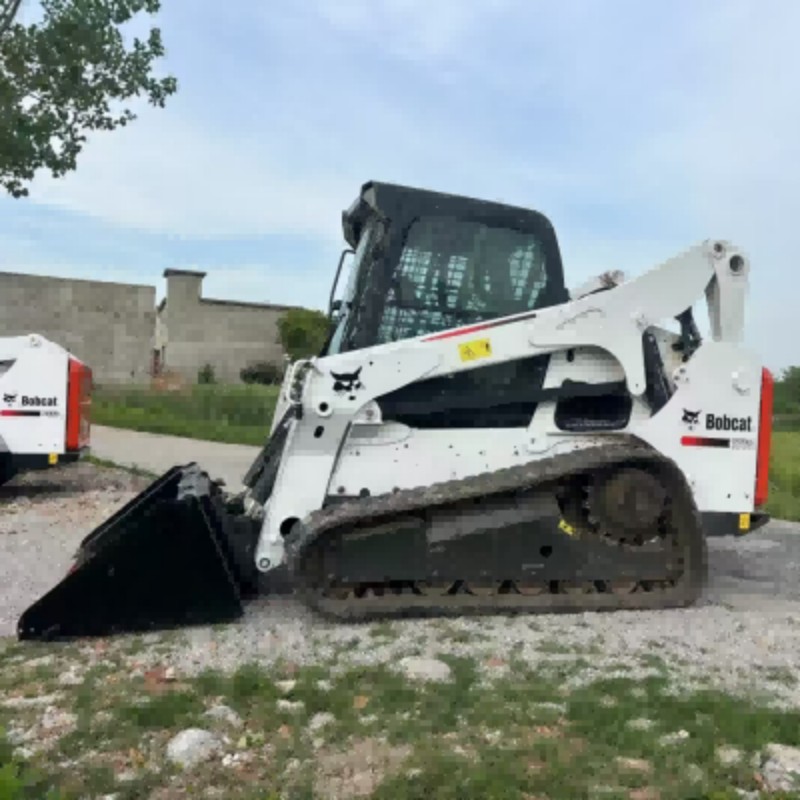

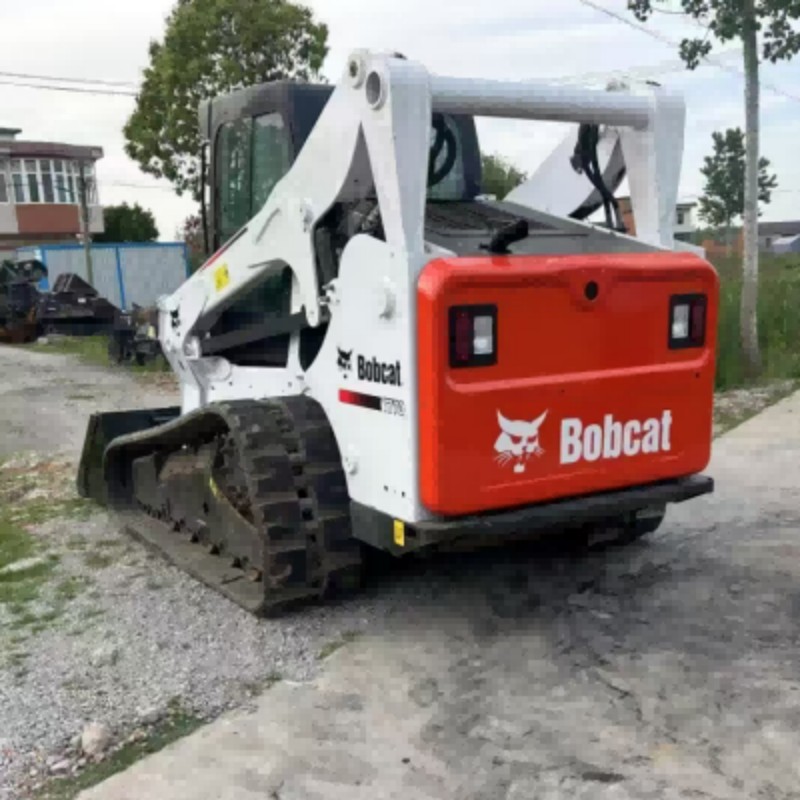

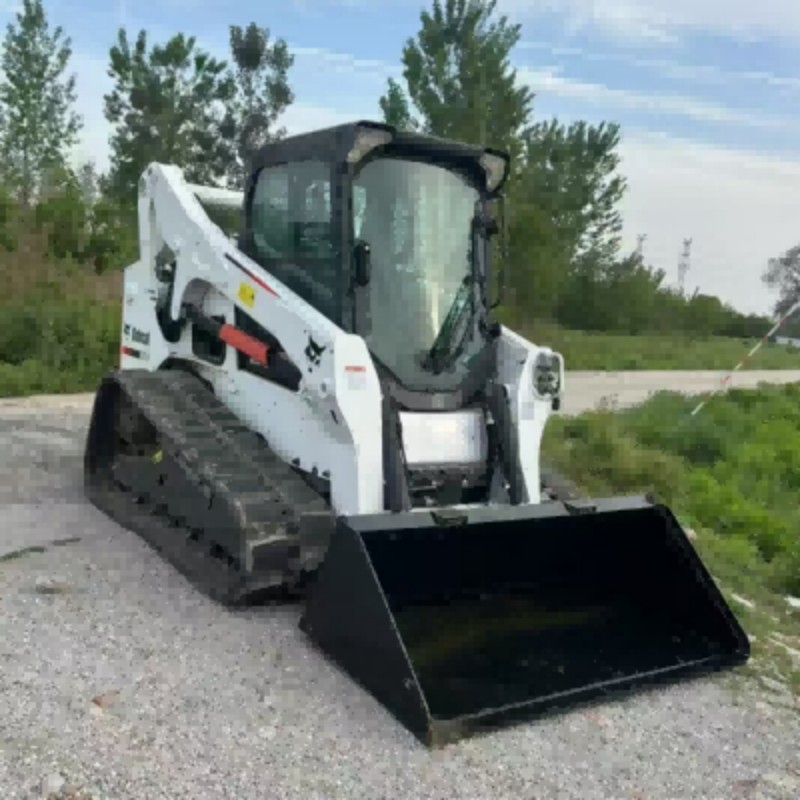

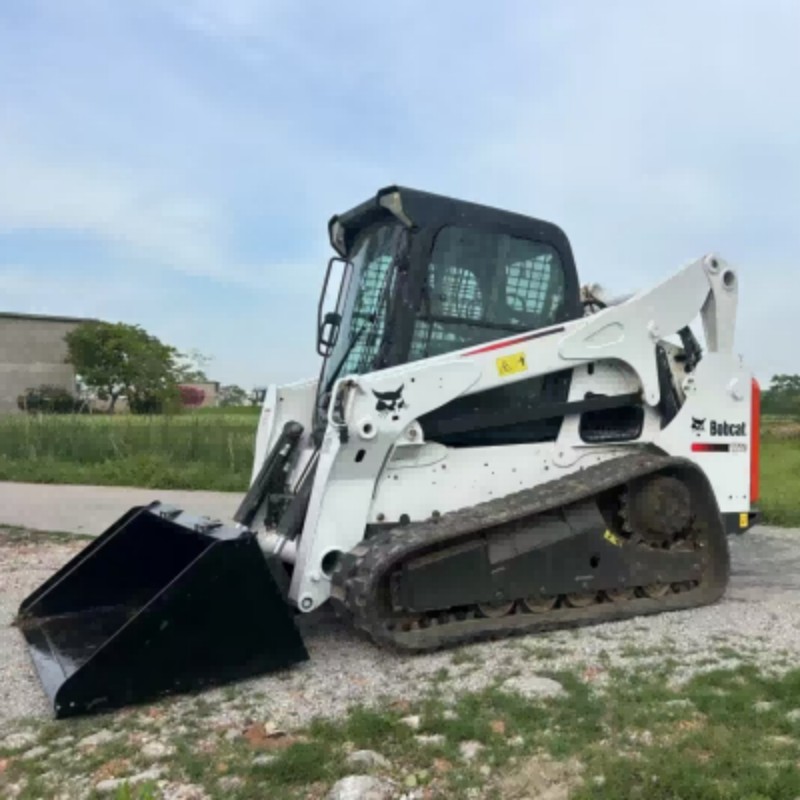

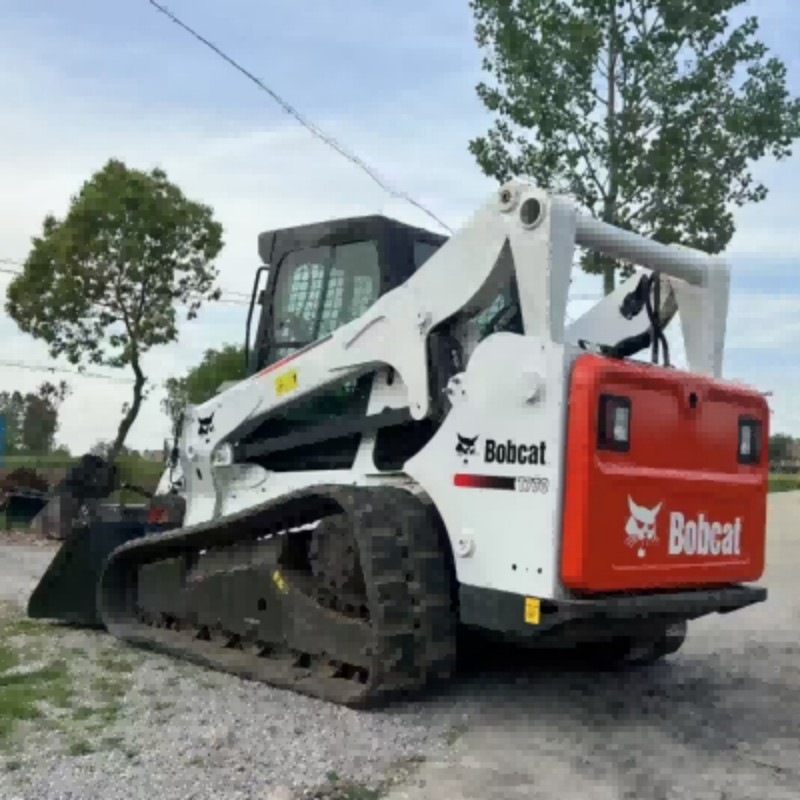

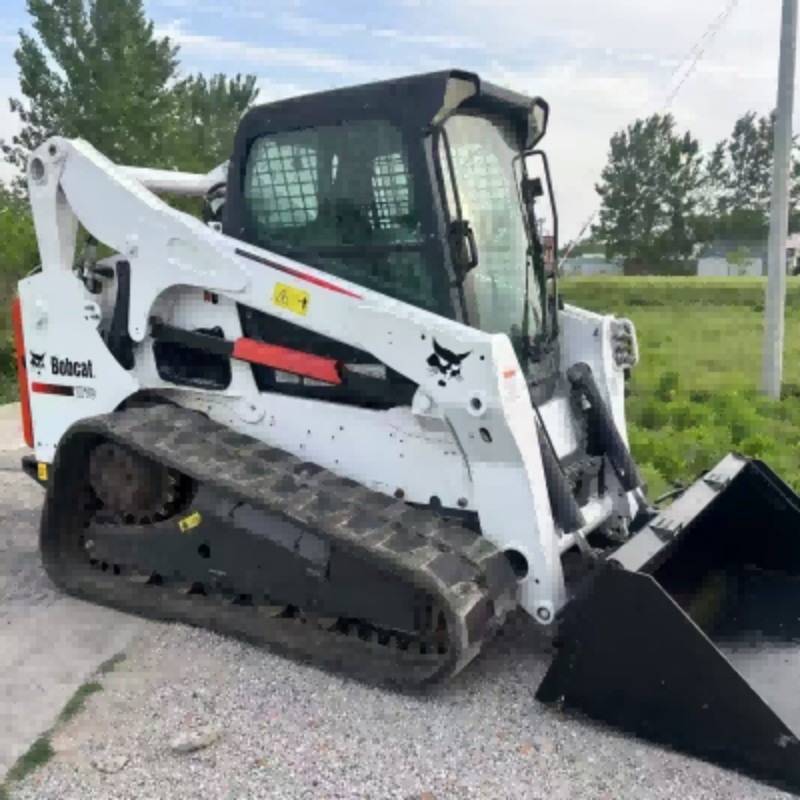

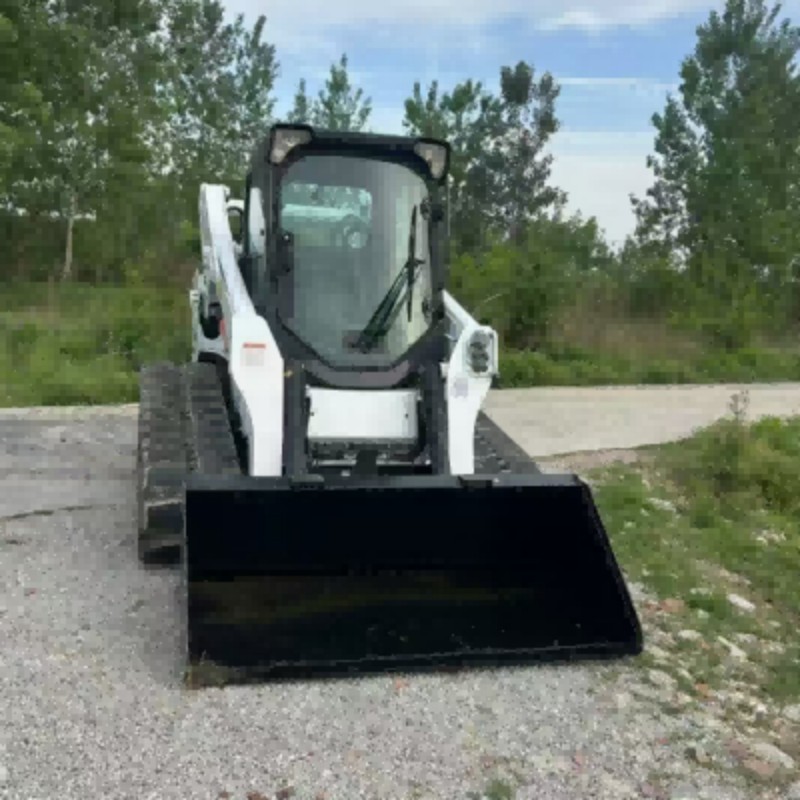

The Bobcat T770 is a heavy-duty compact track loader designed for maximum productivity in tight and tough job sites. Powered by a 92HP (67.6kW) Bobcat diesel engine (non-DPF), it delivers strong torque and reliable performance in all weather conditions. Featuring a vertical lift path and 1618kg rated operating capacity, it excels at lifting, loading, and stacking materials. The durable rubber track system provides excellent traction on mud, gravel, and uneven ground, while the compact design enables operation in narrow spaces山猫（Bobcat）. With advanced hydraulics, smart cooling, and quick attachment switching, the T770 is the ultimate versatile machine for contractors worldwide山猫（Bobcat）.
五、Technical Parameters
- Model: Bobcat T770 Compact Track Loader
- Engine: Bobcat Diesel (non-DPF), 4-cylinder
- Rated Power: 67.6kW / 92HP
- Operating Weight: 4683kg (10,515 lbs)
- Rated Operating Capacity (ROC): 1618kg (3,475 lbs)
- Tipping Load: 4602kg (9,929 lbs)
- Lift Path: Vertical
- Max Lift Height: 3353mm (131.4 in)
- Travel Speed: Up to 17.2 km/h (10.7 mph)
- Fuel Tank Capacity: 165L (43.8 gal)
- Bucket Capacity: 0.55m³
- Overall Dimensions (L×W×H): 4232×2065×2057mm
Core Advantages
Powerful & Reliable Bobcat Engine
92HP original Bobcat diesel engine, no DPF, strong low-speed torque, excellent fuel efficiency, and long service life. Cold-start reliable, less maintenance, lower operating costs.
Vertical Lift & High Load Capacity
Vertical lift path provides 3353mm max lift height, perfect for high stacking and truck loading. 1618kg ROC and 4602kg tipping load handle heavy materials with stability.
Durable Rubber Track System
Reinforced rubber tracks with steel embedded, long wear life, low ground pressure, and superior traction on mud, snow, and rough terrain（Bobcat）. Solid-mounted drive motors resist debris and vibration.
Smart Cooling & High-Flow Hydraulics
Patented Smart Cooling system with dual channels, efficient heat dissipation in dusty/hot conditions（Bobcat）. High-flow hydraulic system (up to 138.2 L/min) delivers strong power for attachments.
Quick Attachment Change
Standard Bob-Tach system enables tool change in 1 minute; optional Power Bob-Tach allows seat-side switching for non-hydraulic attachments（Bobcat）. Compatible with 50+ attachments: bucket, auger, grapple, rake, etc.
Applications
Construction: Site cleanup, trenching, backfilling, demolition
Landscaping: Grading, turf removal, mulch spreading, tree care
Material Handling: Loading/unloading, pallet moving, waste handling
Rural & Utility: Snow removal, fence building, farm maintenance, pipeline projects
