Complete Technical Parameters
Basic Vehicle Data

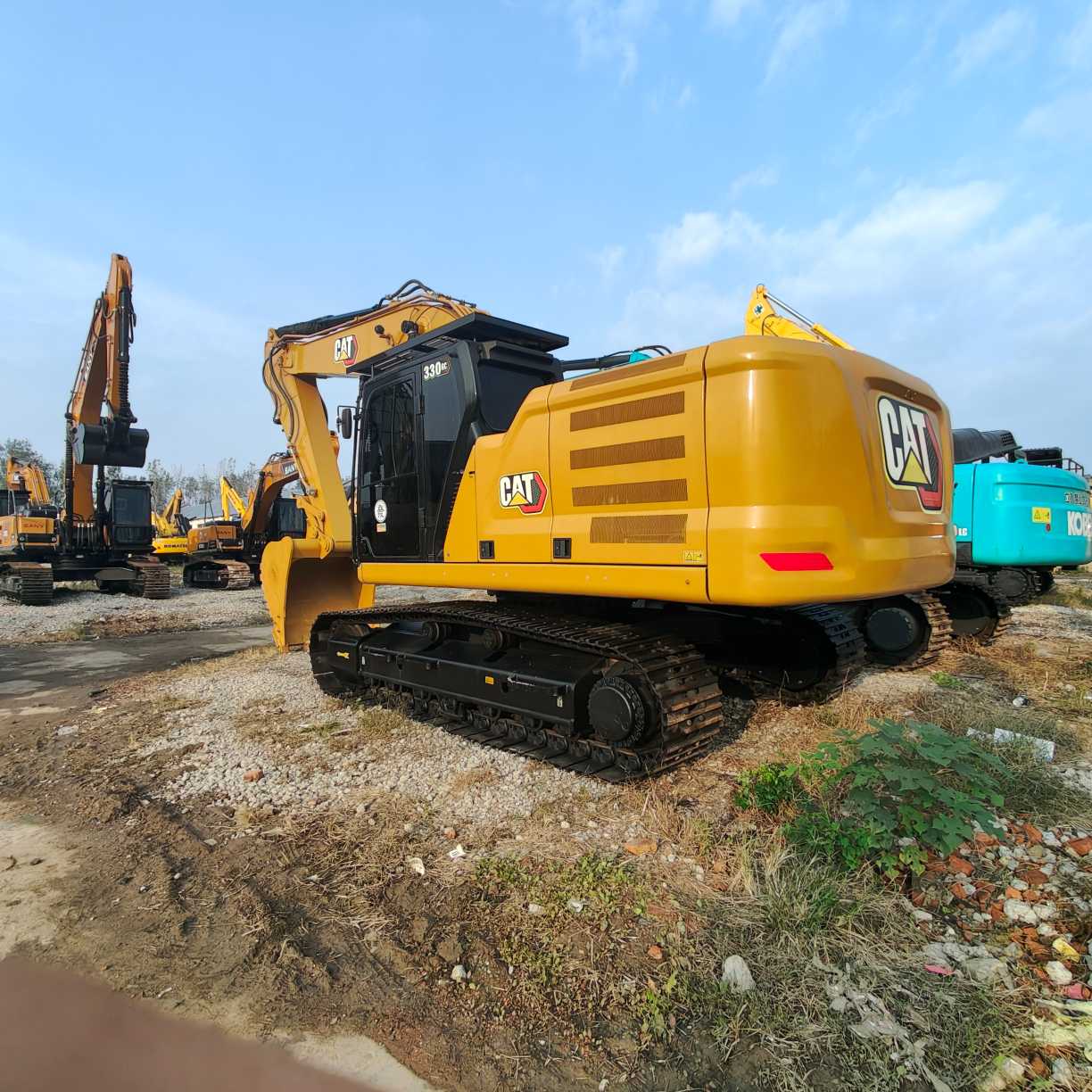

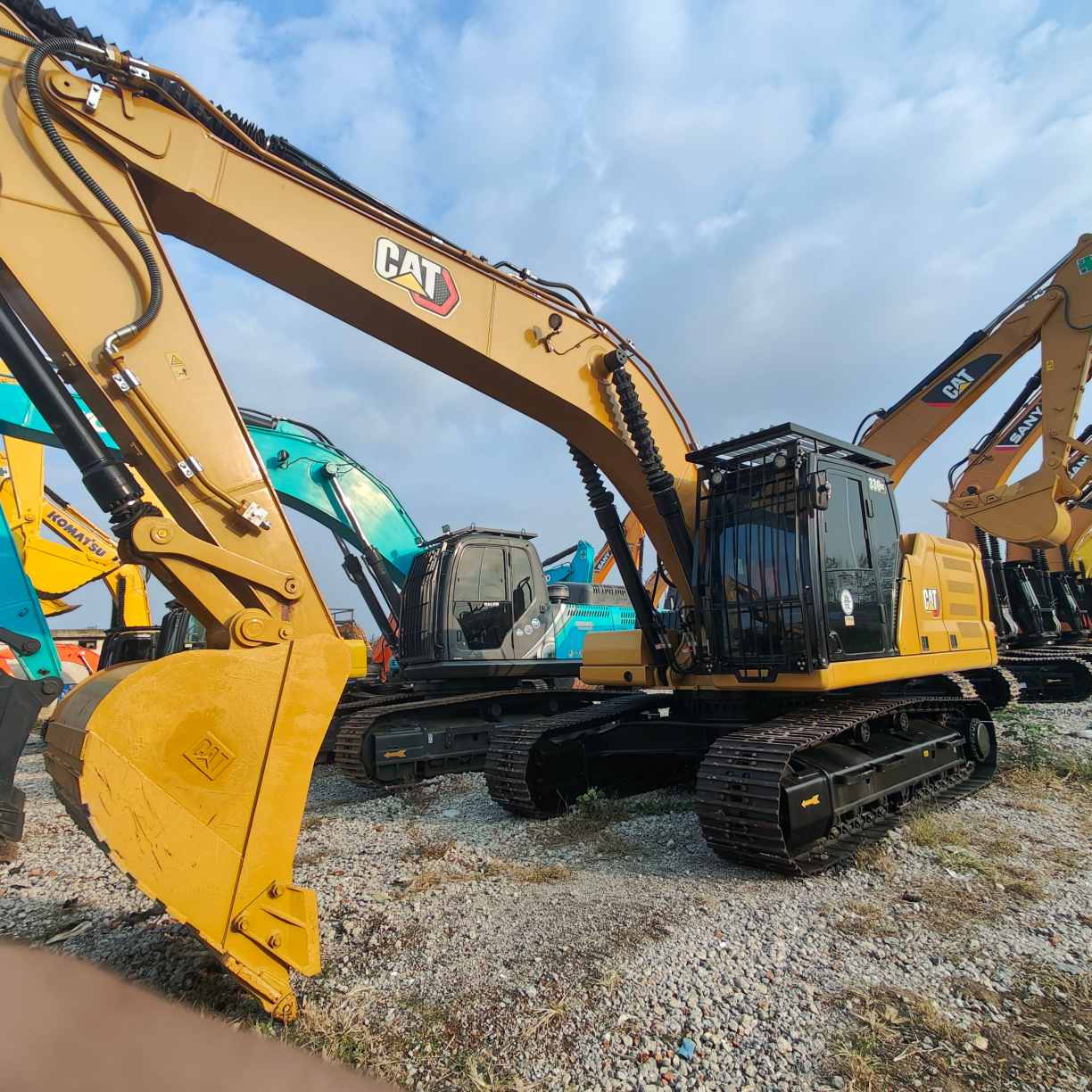

- Model: CAT 330GC Crawler Excavator
- Operating Weight: 28,900–30,700 kg
- Standard Bucket Capacity: 1.54–1.6 m³ (HD bucket)
- Overall Dimension (L×W×H): 10,500×2,990×3,250 mm
- Track Width: 600 mm (standard), optional 700/800 mm
- Track Gauge: 2,390 mm
- Ground Pressure: 51–55 kPa
- Maximum Travel Speed: 5.7 km/h (Dual speed: 3.5/5.7 km/h)
- Slew Speed: 11.5 rpm
- Maximum Climbing Gradient: 35°
- Fuel Tank Volume: 474 L
Working Performance Parameter
- Maximum Digging Force (Bucket): 178 kN
- Maximum Digging Depth: 7,260 mm
- Maximum Digging Radius: 10,610 mm
- Maximum Dump Height: 7,350 mm
- Dozer Blade: Optional
Power System Configuration

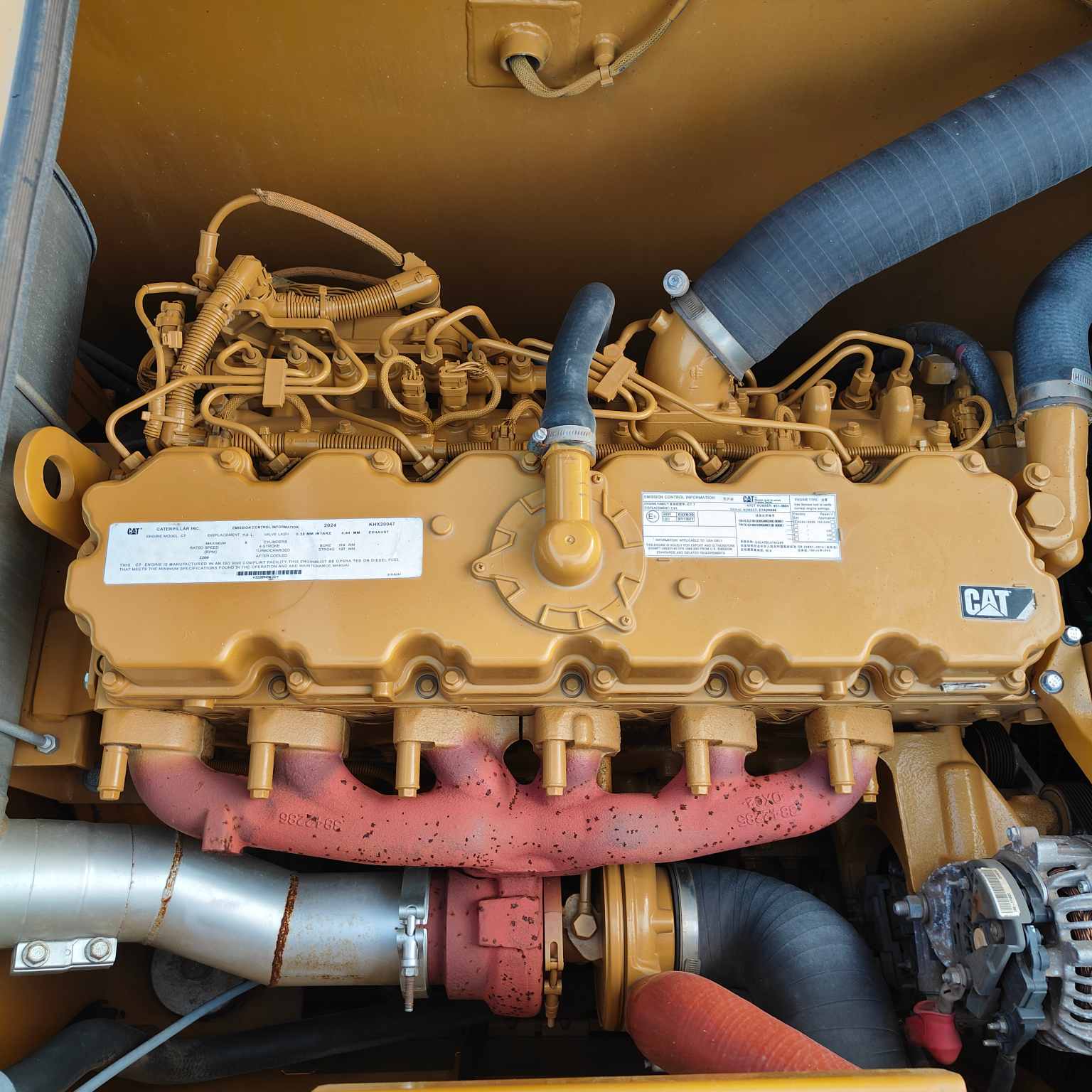

- Engine Brand: Cat C7.1 ACERT Diesel Engine
- Rated Power: 157.8 kW / 212 HP (ISO 9249)
- Rated Rotation Speed: 1,750 rpm
- Displacement: 7.01 L
- Maximum Torque: 850 N·m @ 1,400 rpm
- Emission Standard: Tier 4 Final / EU Stage V
- Performance Characteristic: Low-speed high torque, 12% lower fuel consumption, stable power, maintenance-free aftertreatment
Transmission and Chassis System
- Travel System: Full hydraulic drive, dual-speed travel

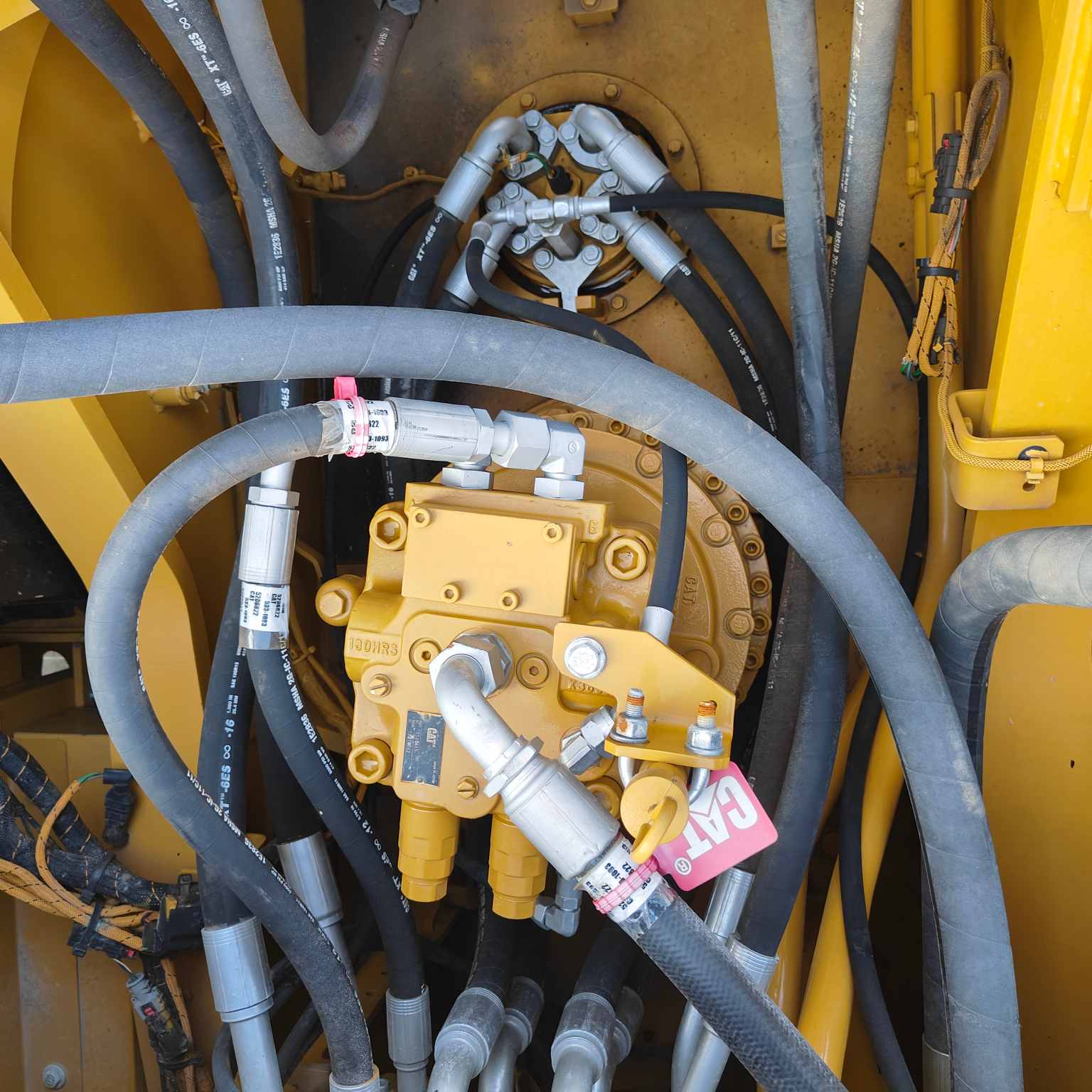

- Slew System: Independent hydraulic slew motor, smooth rotation

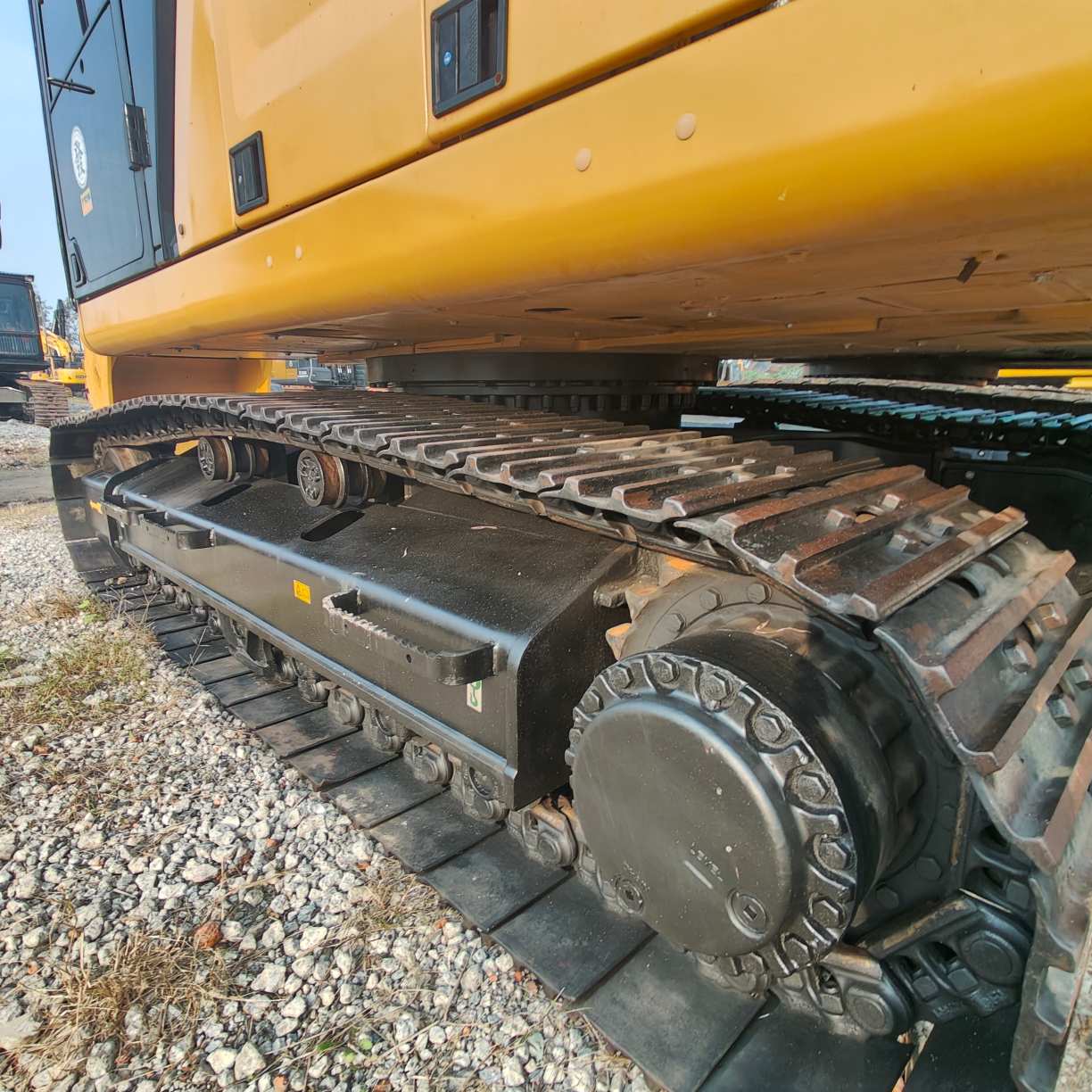

- Chassis Structure: Reinforced X-frame, heavy-duty undercarriage
- Working Attachment: High-strength steel boom/arm/bucket, Advansys™ bucket tips

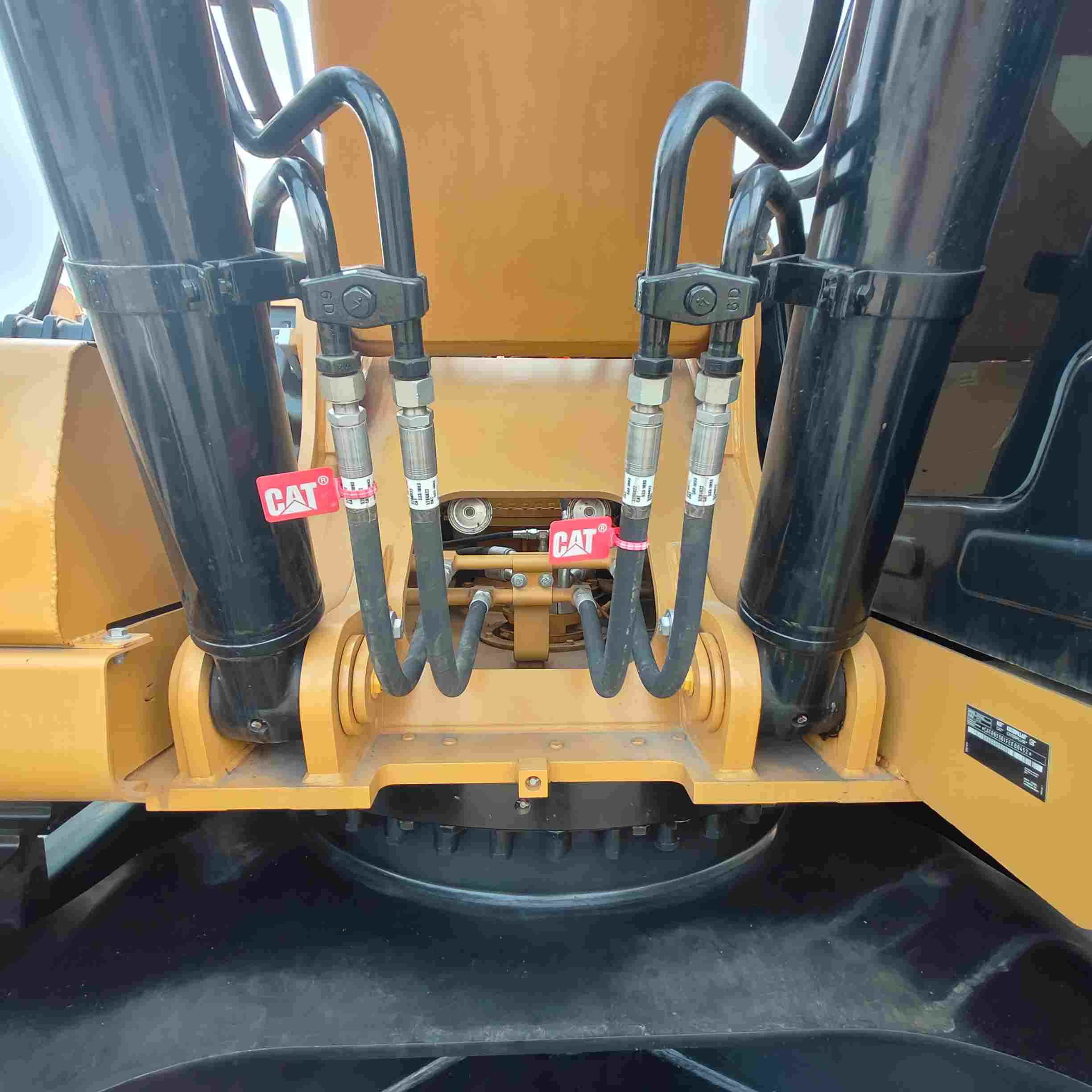

Hydraulic Working System

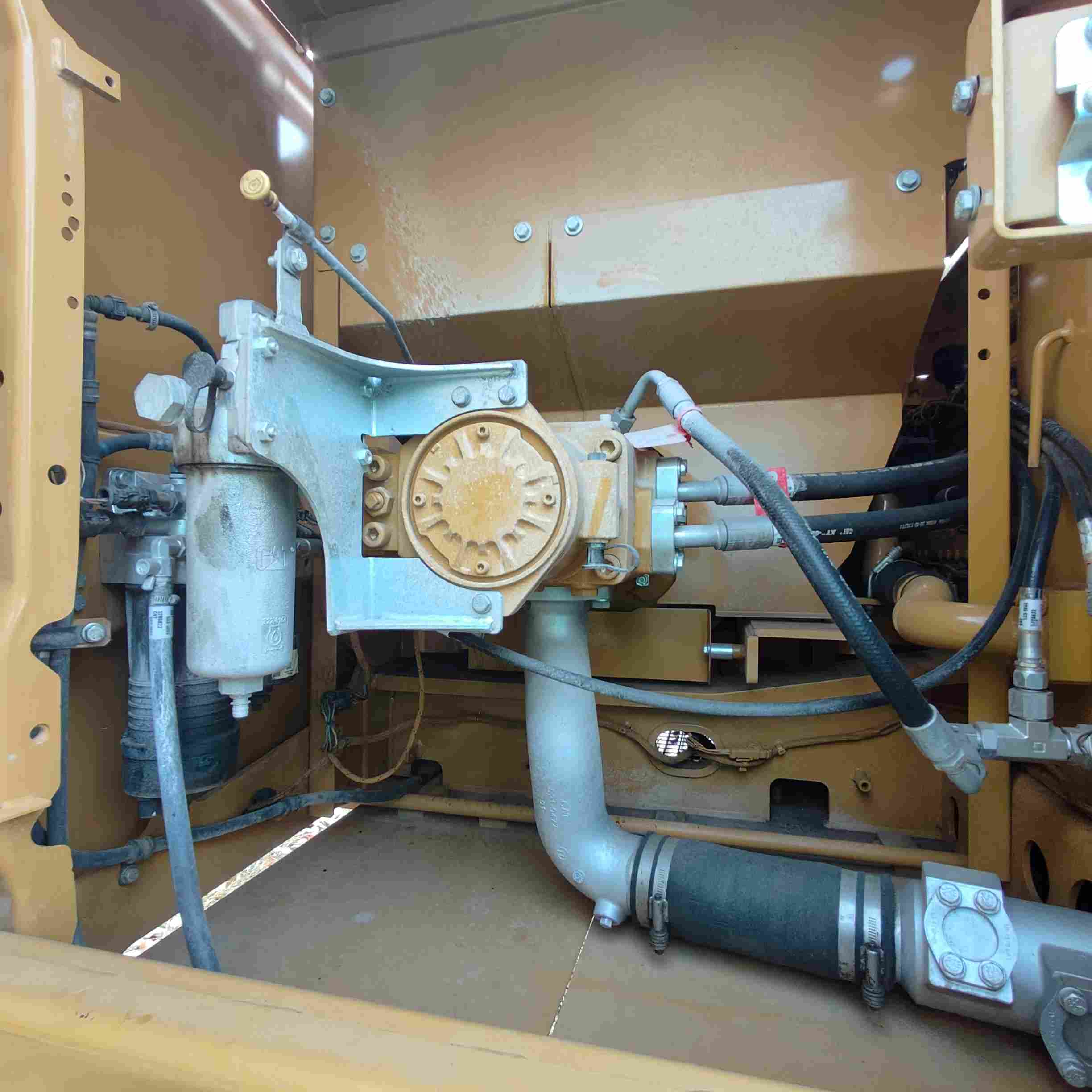

- Hydraulic Structure: Load-sensing system, 2 variable piston pumps
- System Working Pressure: 35 MPa (equipment), 28.4 MPa (slew)
- Working Advantage: Fast response, precise control, low energy loss, 560 L/min maximum flow
Driving Cab and Safety Configuration
- Cab Type: Fully enclosed sound-suppressed cab
- Safety Grade: ROPS certified, FOPS optional
- Internal Configuration: Adjustable suspension seat, ergonomic pilot controls

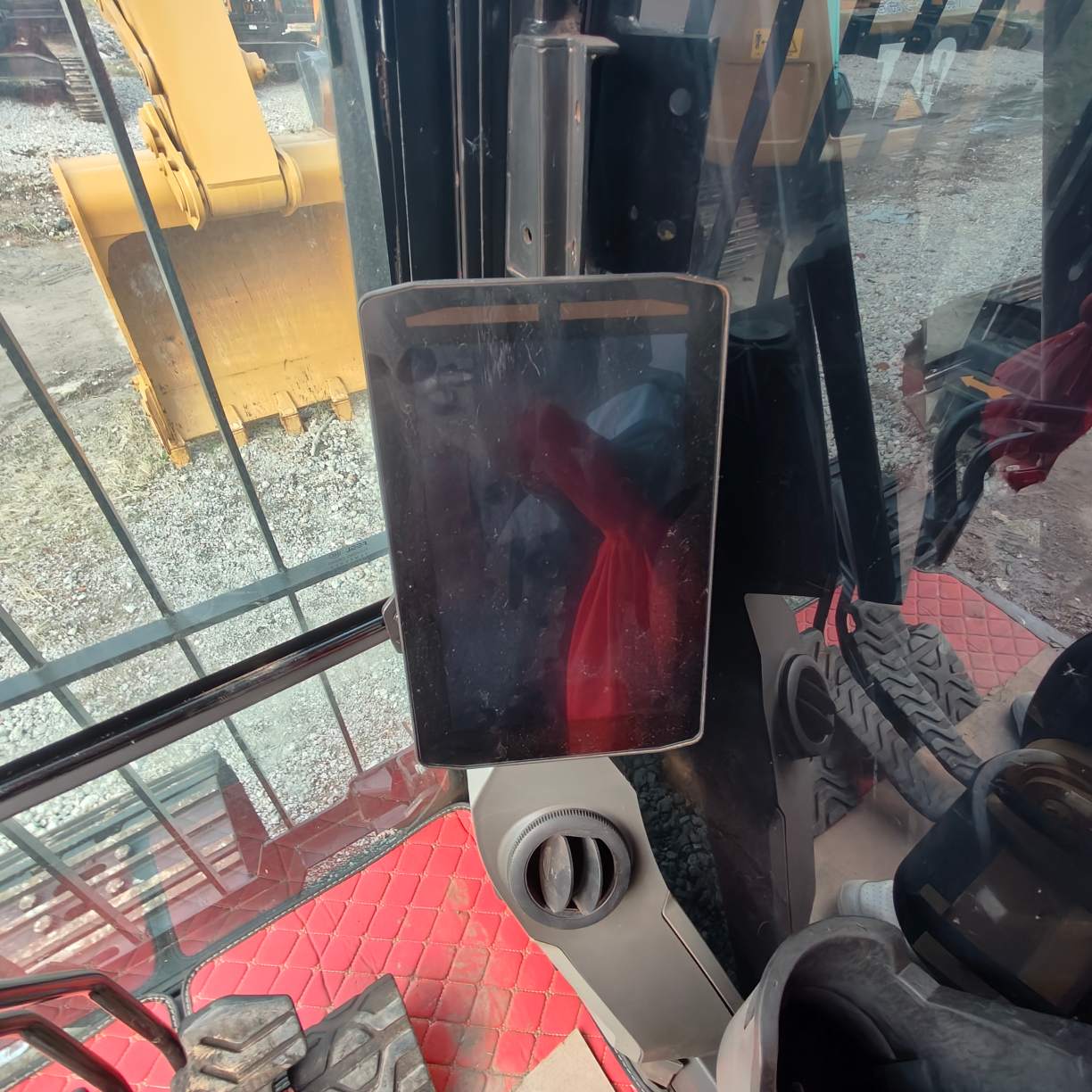

- Optional Function: Automatic climate control, rear-view camera, touchscreen monitor
- Noise Control: Internal noise ≤72 dB
- Visual Effect: Large panoramic glass, 360° visibility
Six Core Product Advantages
CAT 336GC Hydraulic ExcavatorFuel-Saving Cat C7.1 Engine
The proven C7.1 engine delivers 212 HP with 12% lower fuel consumption than previous models. It provides strong low-speed torque for heavy digging, while the maintenance-free aftertreatment system ensures reliable, cost-effective operation.
High-Efficiency Load-Sensing Hydraulics
Advanced load-sensing system with dual variable pumps optimizes power distribution, ensuring fast, smooth compound actions. Precise pilot controls reduce operator fatigue and improve grading/ trenching accuracy.
Durable Heavy-Duty Construction
Reinforced X-frame, thickened boom/arm and high-strength wear-resistant steel components withstand tough jobsites. The heavy-duty undercarriage resists abrasion and impact, extending service life.
Comfortable & Safe Operation
Spacious ROPS-certified cab reduces noise and vibration. Adjustable seat, intuitive controls and automatic climate control enable all-day comfort, while large windows enhance safety with 360° visibility.
Low Maintenance & Reduced Downtime
Extended, synchronized maintenance intervals cut service costs by up to 20%. Ground-level access to key components simplifies daily checks, and globally available Cat parts minimize repair delays.
Versatile for General Applications
Optimized for general construction, the 330GC excels in earthmoving, road repair, foundation digging and utility projects. A wide range of Cat attachments (buckets, hammers, augers) enhances jobsite flexibility.
