Complete Technical Parameters
Basic Vehicle Data

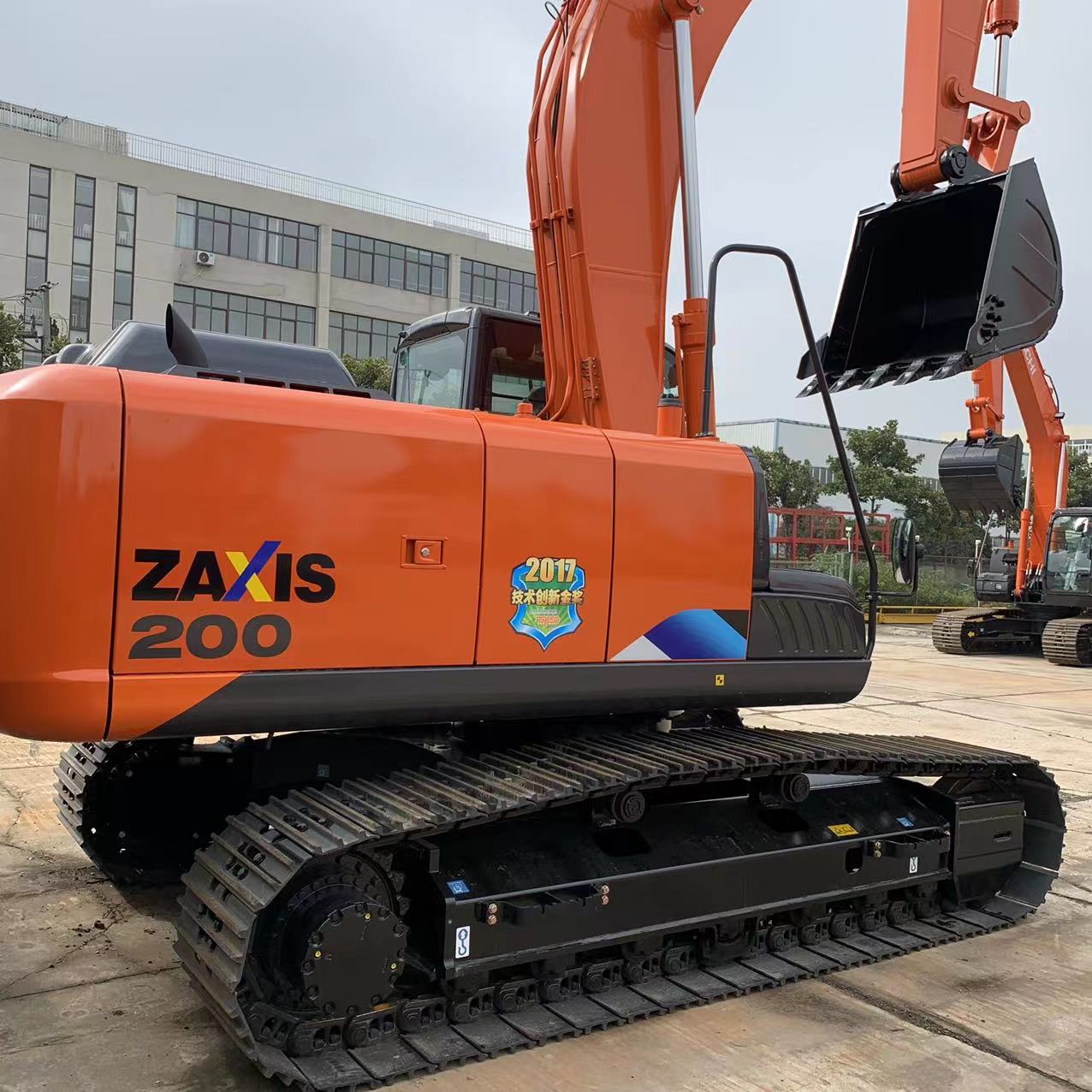

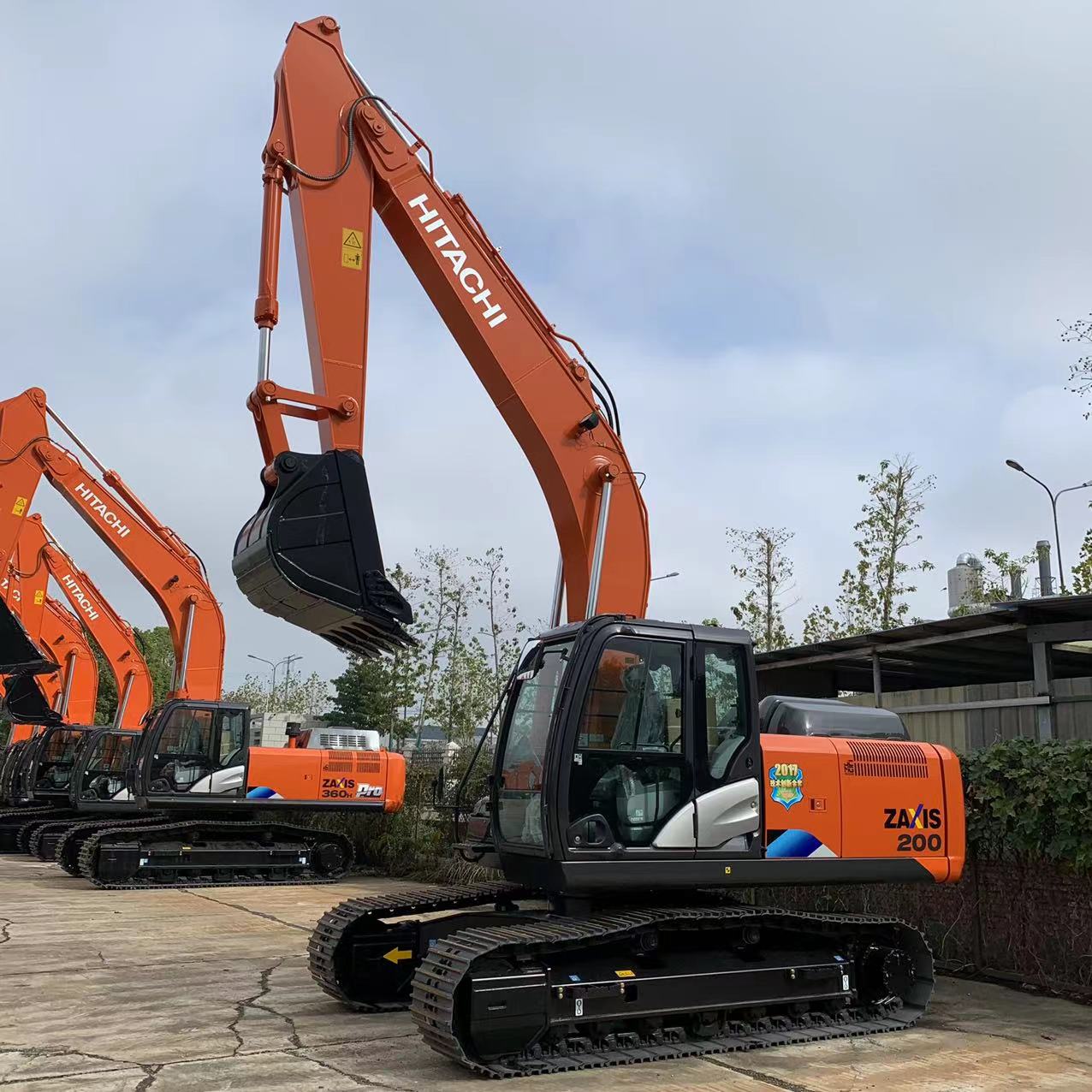

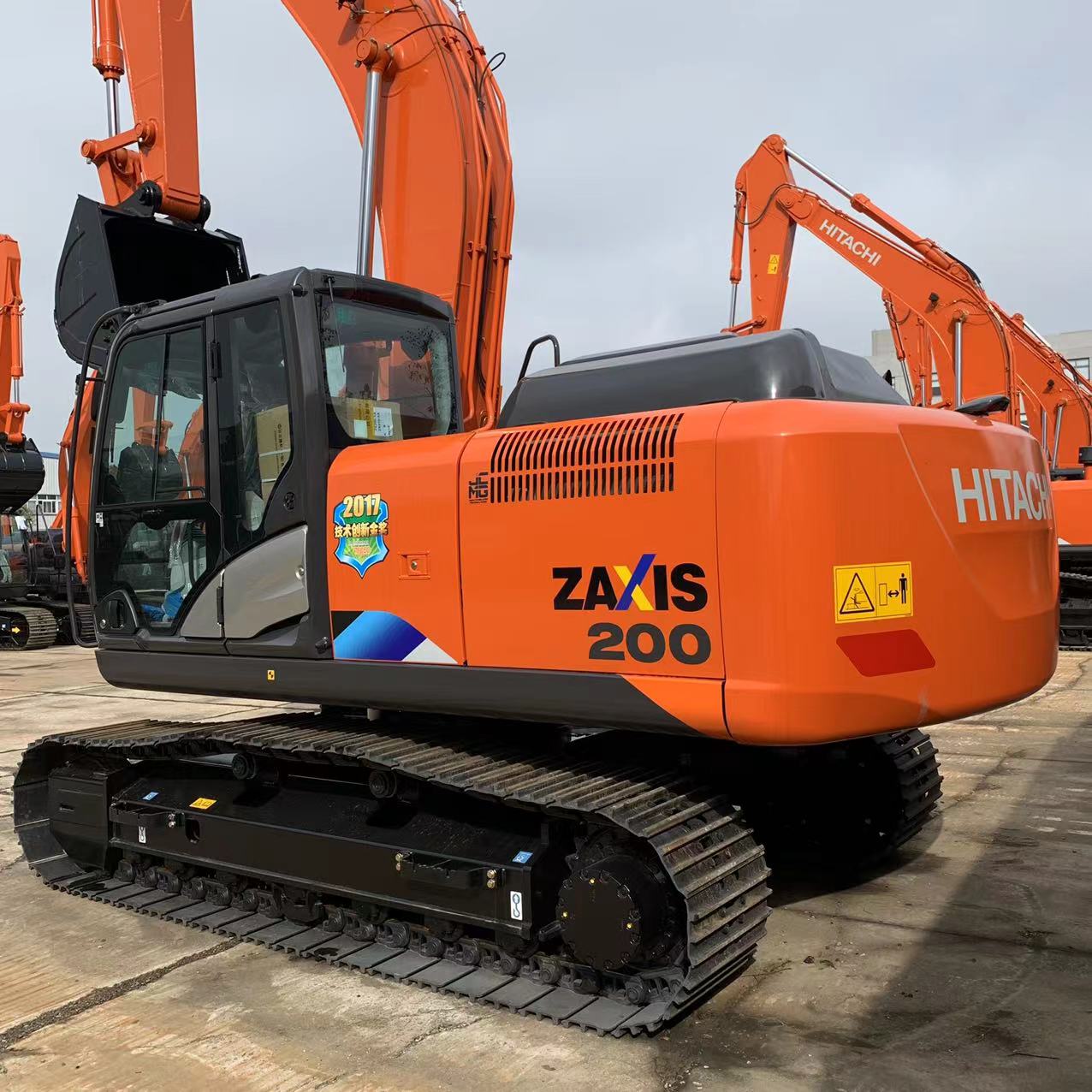

- Model: HITACHI ZX200 Crawler Excavator
- Operating Weight: 19,800–22,000 kg
- Standard Bucket Capacity: 0.91–1.0 m³ (ISO heaped)
- Overall Dimension (L×W×H): 9,500×2,800×3,120 mm
- Track Width: 600 mm (standard), optional 700/800 mm
- Track Gauge: 2,200 mm
- Ground Pressure: 44–49 kPa
- Maximum Travel Speed: 5.5 km/h (Dual speed: 3.4/5.5 km/h)
- Slew Speed: 13.3 rpm
- Maximum Climbing Gradient: 35° (70%)
- Fuel Tank Volume: 360 L
Working Performance Parameter
- Maximum Digging Force (Bucket): 158 kN
- Maximum Digging Depth: 6,670 mm
- Maximum Digging Radius: 9,920 mm
- Maximum Dump Height: 6,780 mm
- Dozer Blade: Optional
Power System Configuration
- Engine Brand: Isuzu AA‑6BG1T Diesel Engine
- Rated Power: 122–128.4 kW / 166–172 HP
- Rated Rotation Speed: 2,000 rpm
- Displacement: 5.193–6.5 L
- Maximum Torque: 670 N·m @ 1,600 rpm
- Emission Standard: Euro 4 / Tier 4 Final / 国四
- Performance Characteristic: High torque at low speed, fast cold start, low fuel consumption, stable power output
Transmission and Chassis System
- Travel System: Full hydraulic drive, dual‑speed travel

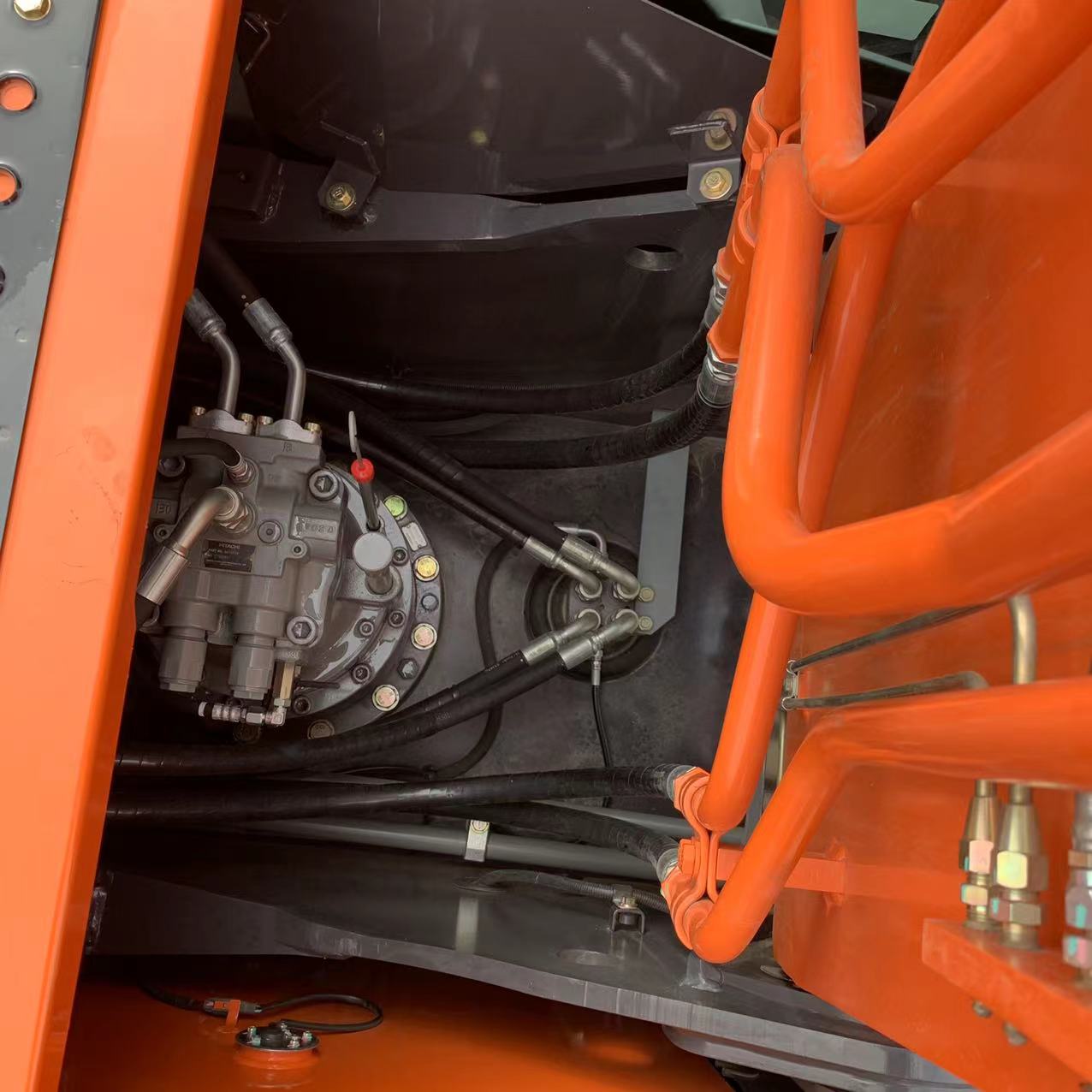

- Slew System: Independent hydraulic slew motor, smooth rotation

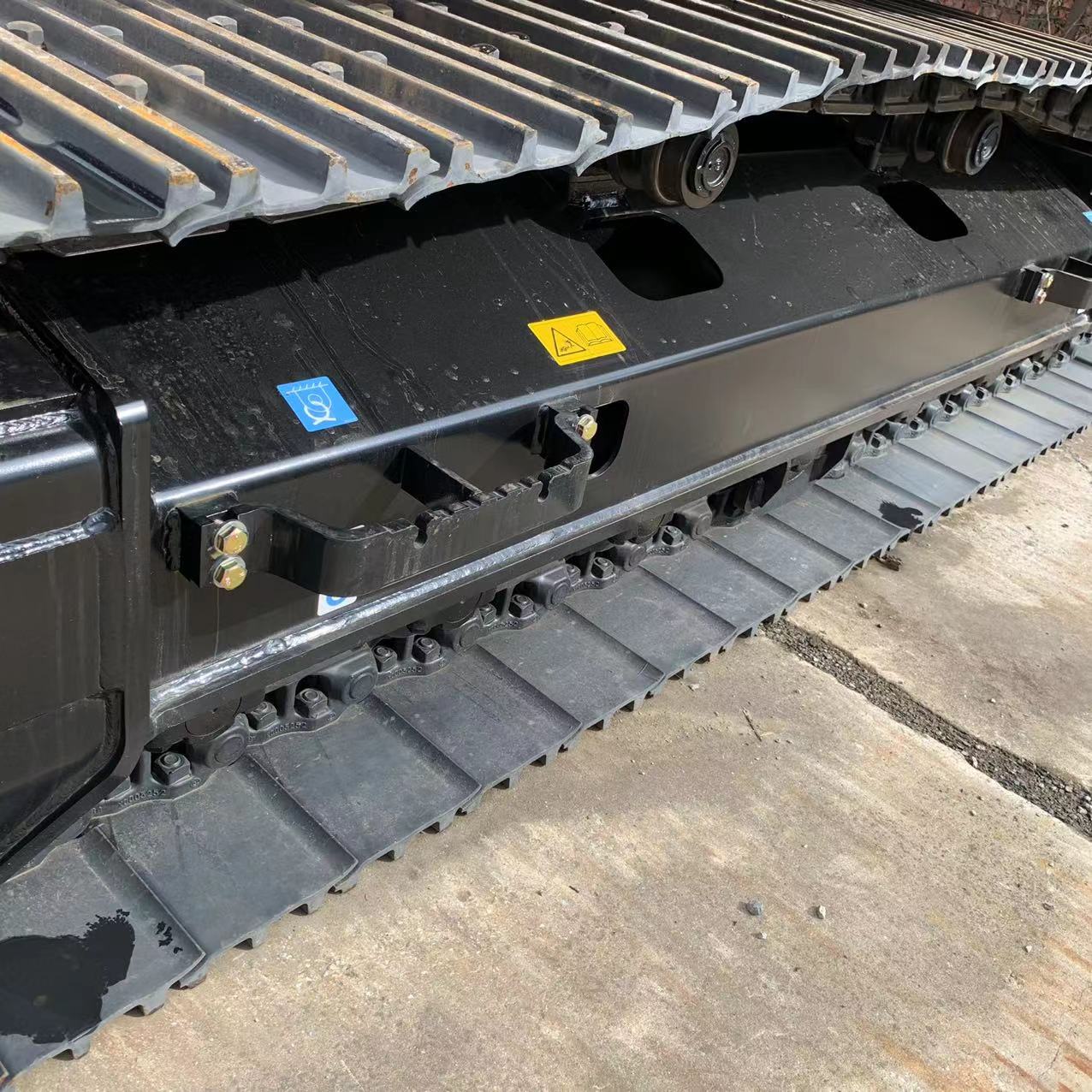

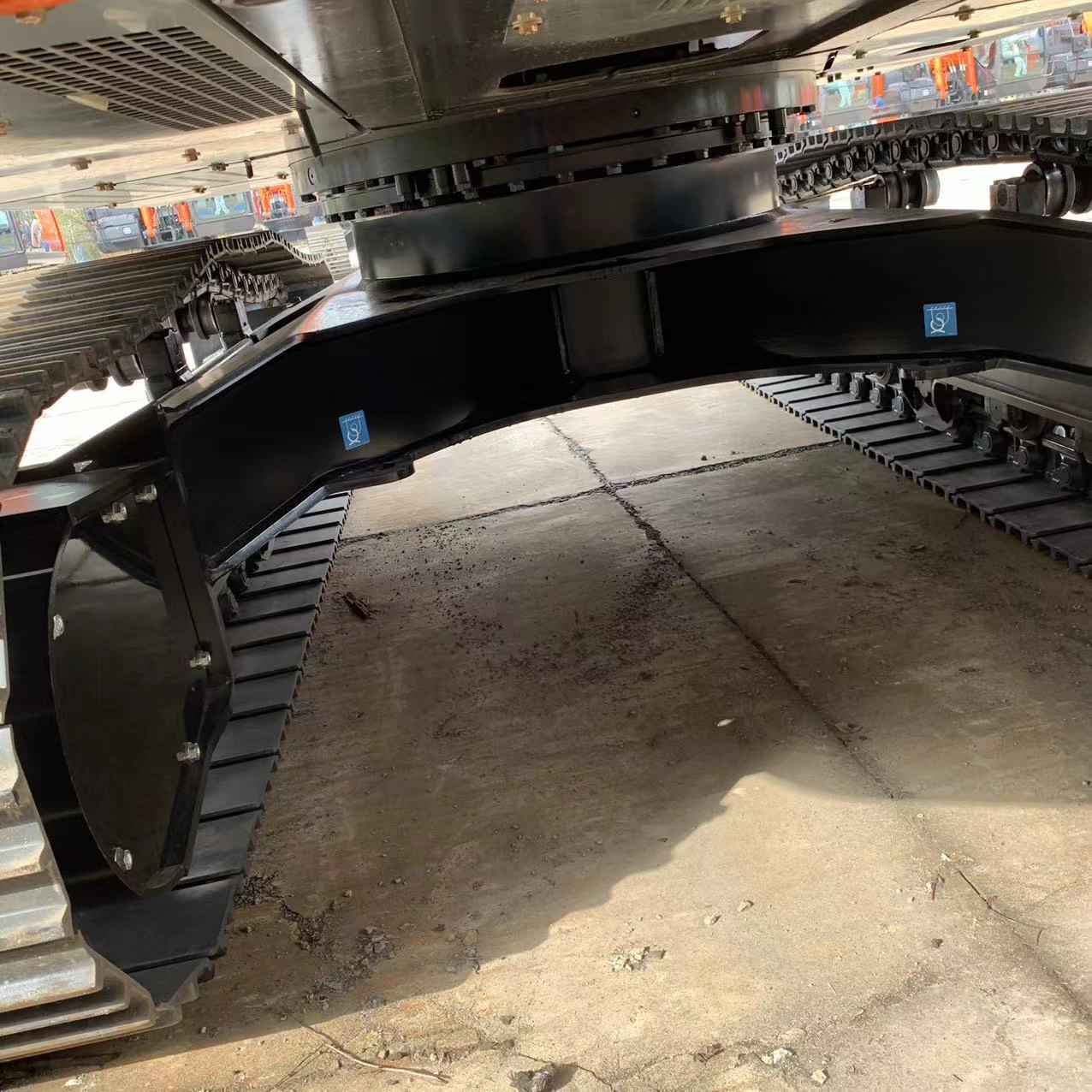

- Chassis Structure: Reinforced X‑shaped heavy‑duty frame, anti‑torsion

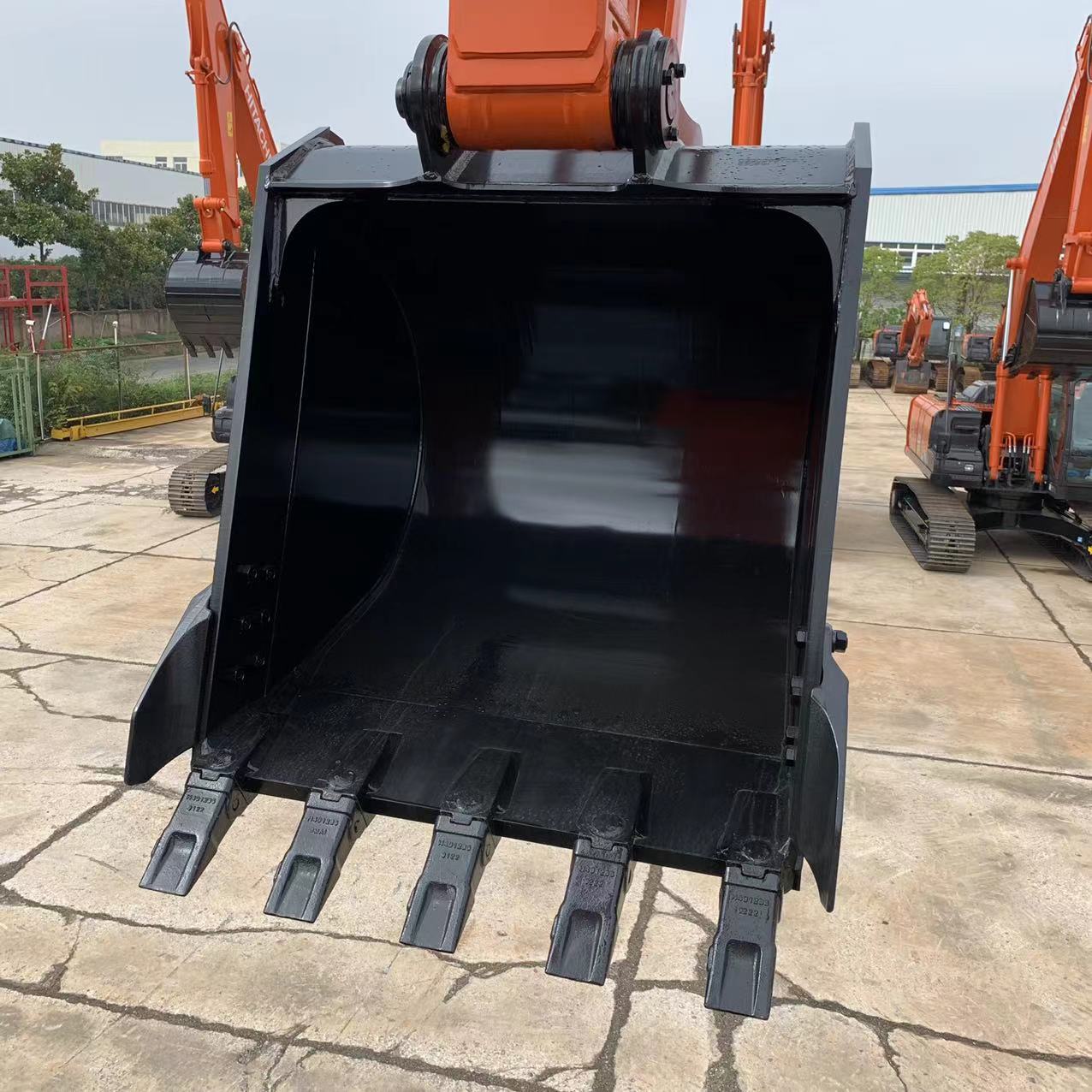

- Working Attachment: Reinforced boom, arm and bucket, high‑strength wear‑resistant steel

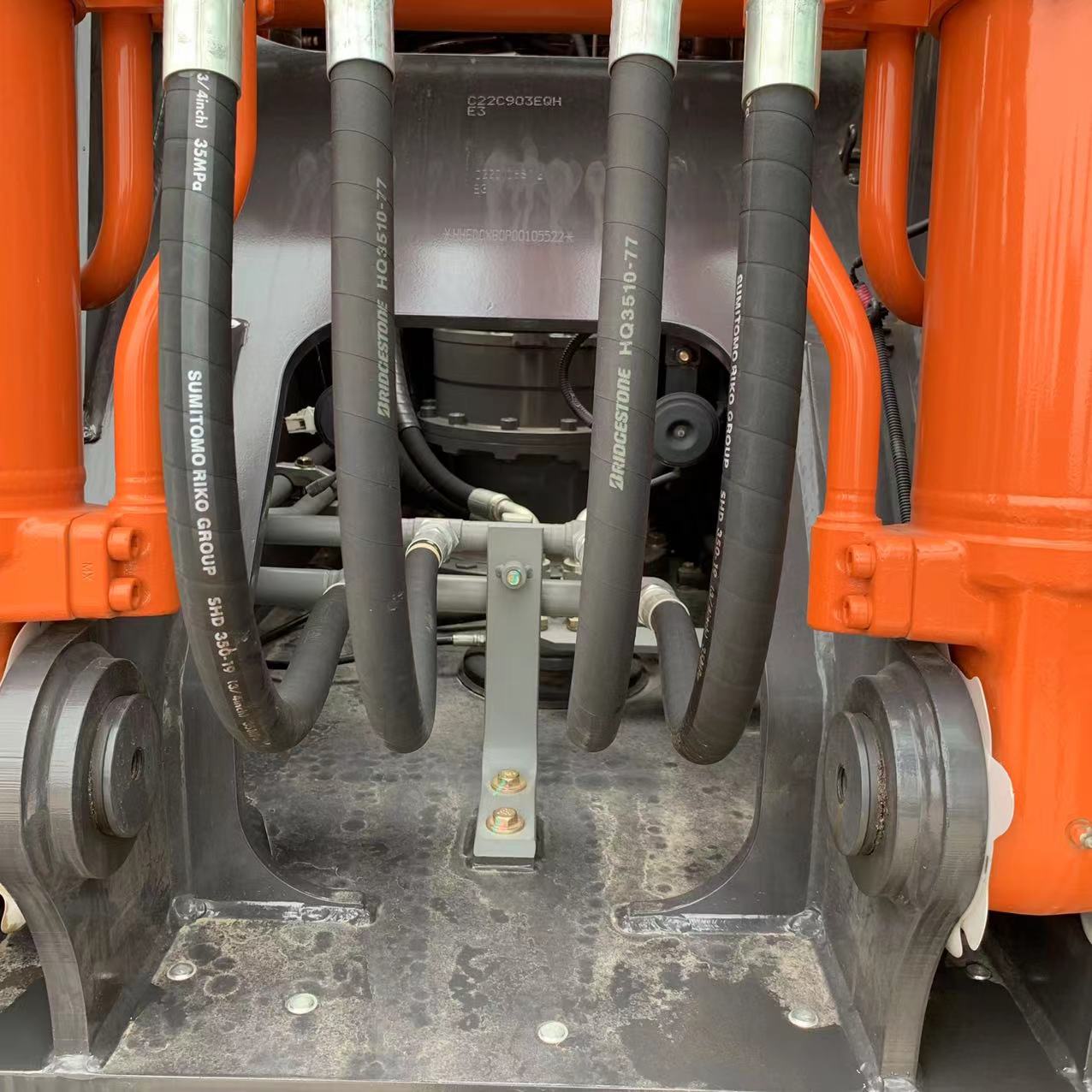

Hydraulic Working System
- Hydraulic Structure: HIOS III / HIOS IV (2 variable piston pumps + 1 gear pump)
- System Working Pressure: 34.3 MPa
- Working Advantage: Fast response, smooth compound movement, high fuel efficiency, precise control
Driving Cab and Safety Configuration
- Cab Type: Fully enclosed noise‑reduction cab
- Safety Grade: ROPS & FOPS safety protection certified

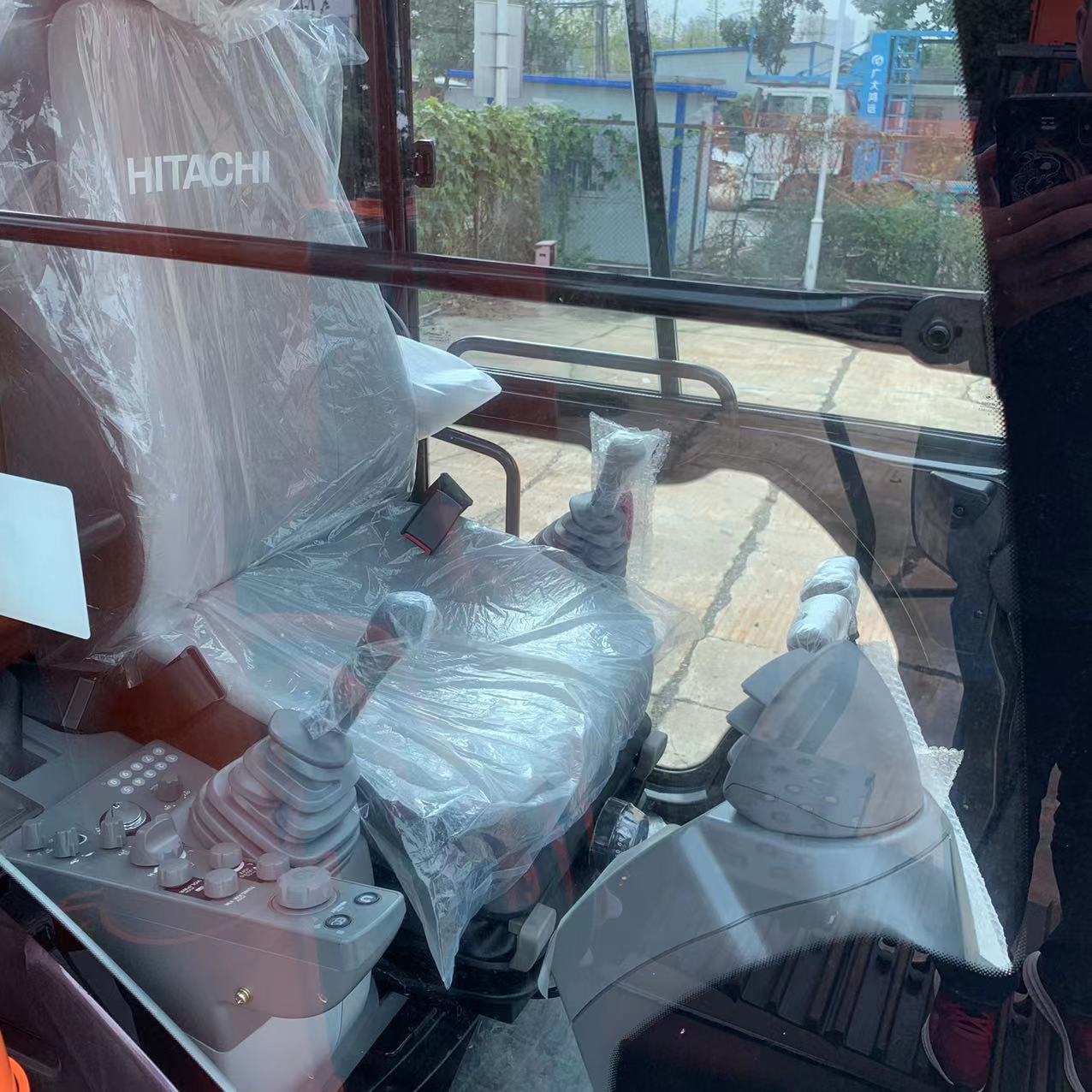

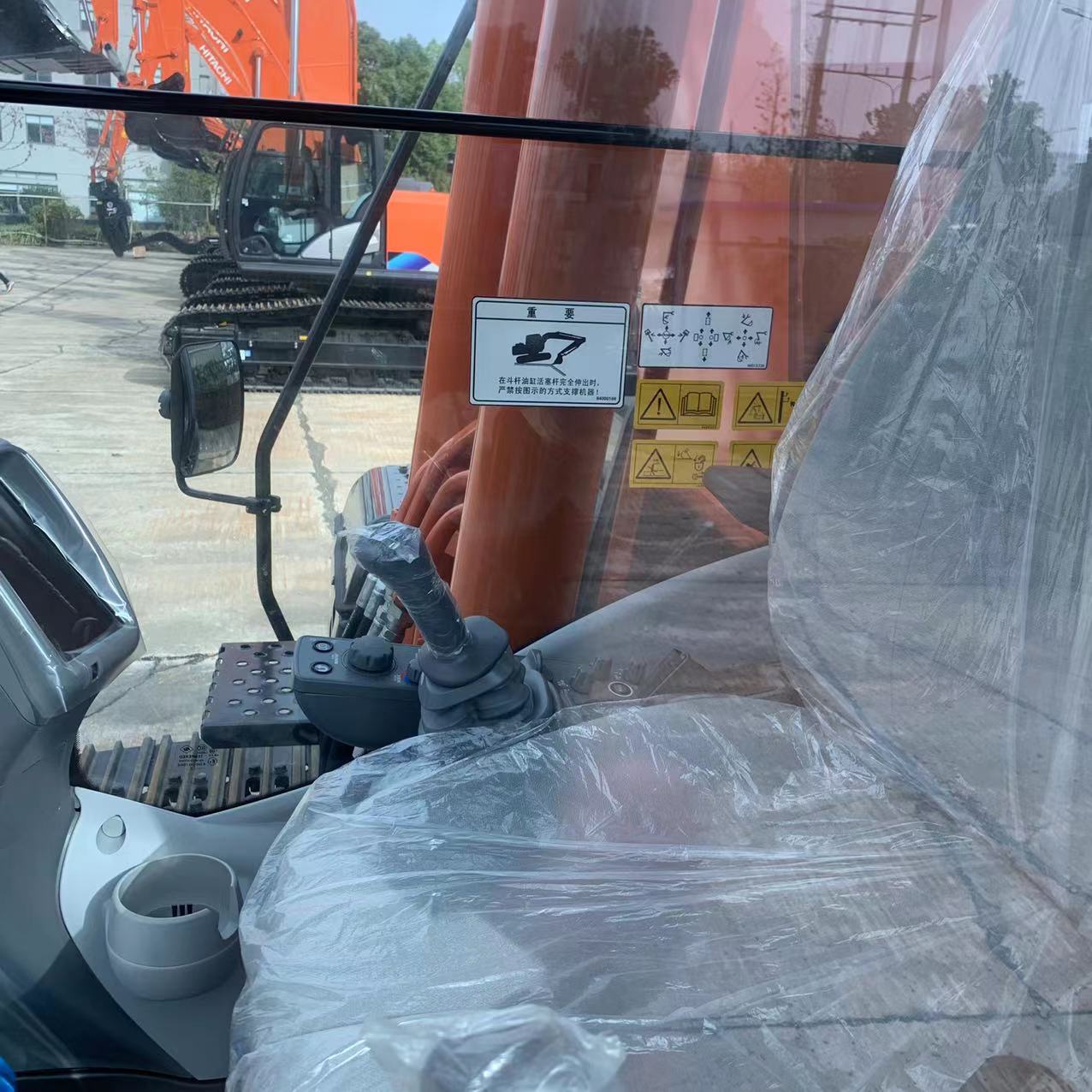

- Internal Configuration: Adjustable suspension seat, ergonomic pilot control handles
- Optional Function: Air conditioning, rear‑view camera, LED working lights
- Noise Control: Internal noise ≤69 dB
- Visual Effect: Large panoramic glass, 360° wide operating view
Six Core Product Advantages
Powerful & Reliable Isuzu Engine
Equipped with the proven Isuzu 6BG1T diesel engine, the ZX200 delivers exceptional torque and stable power. The electronically controlled fuel injection system reduces consumption, supports long‑hour heavy‑duty operation, and lowers overall operating costs.
High‑Efficiency HIOS Hydraulics
Advanced HIOS III/IV hydraulic system with dual variable pumps provides fast, smooth and coordinated movements. It reduces energy loss, improves cycle times and ensures precise control during digging, grading and loading tasks.
Superior Digging & Loading Performance
With 158 kN bucket digging force and optimized front‑linkage design, the ZX200 excels in heavy trenching, earthmoving, quarrying and truck loading. High bucket fill rate and fast working cycles greatly improve jobsite productivity.
Reinforced Heavy‑Duty Construction
Key components including boom, arm, bucket and chassis use high‑strength wear‑resistant steel. Reinforced welding and thickened stress points resist impact, abrasion and deformation, extending service life under harsh mine and quarry conditions.
Comfortable & Safe Operating Environment
Spacious fully enclosed cab with ROPS/FOPS protection reduces noise and vibration. Adjustable suspension seat and ergonomic pilot controls minimize operator fatigue, enabling efficient work during long shifts.
Low Maintenance & Global Parts Support

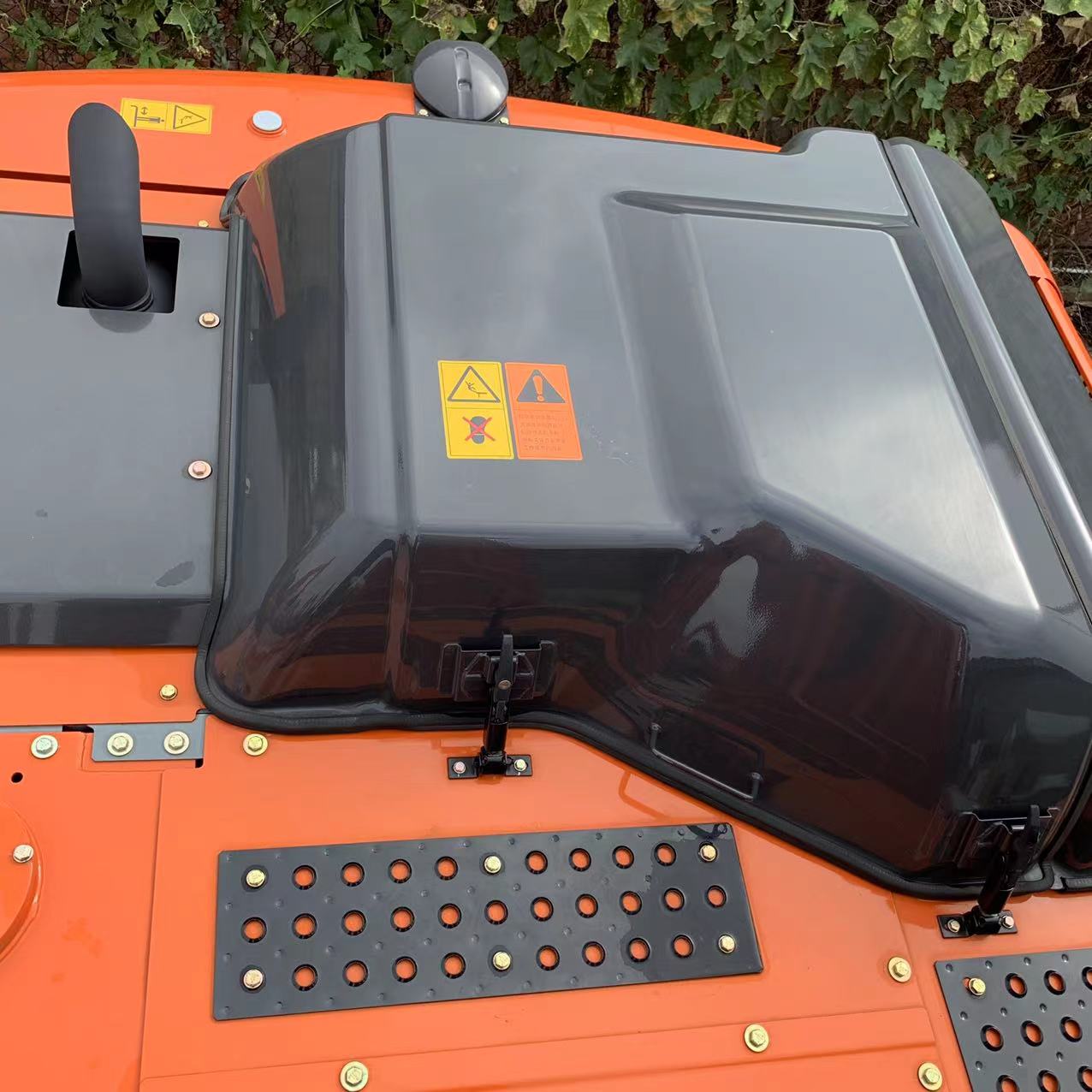

Easy‑access engine hood and centralized lubrication simplify daily inspection and maintenance. Standard, widely available spare parts worldwide reduce downtime and repair costs, making the ZX200 ideal for heavy‑duty fleets and long‑term projects.
