Complete Technical Parameters
Basic Vehicle Data

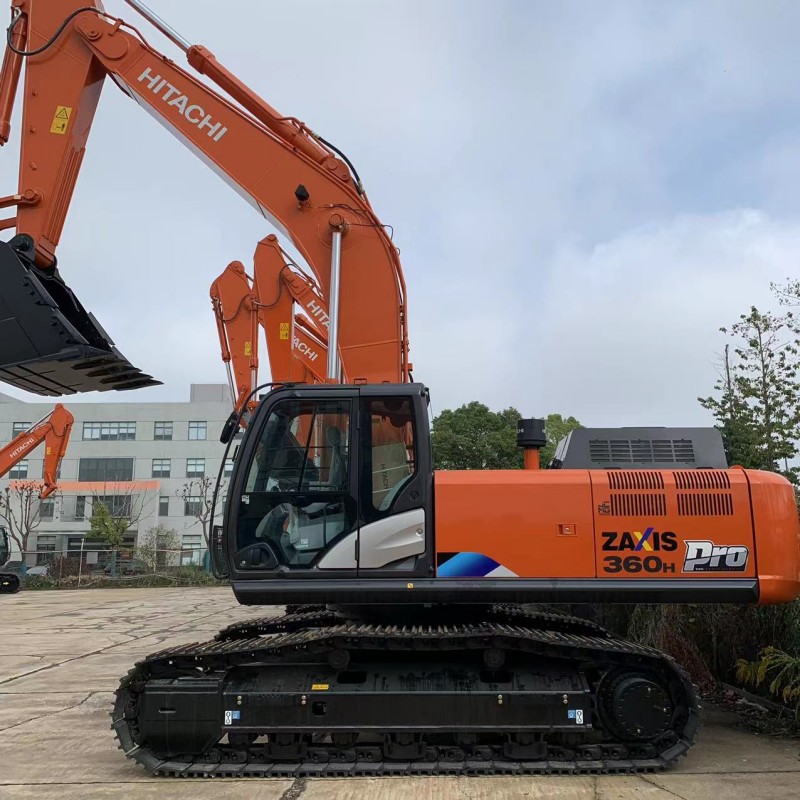

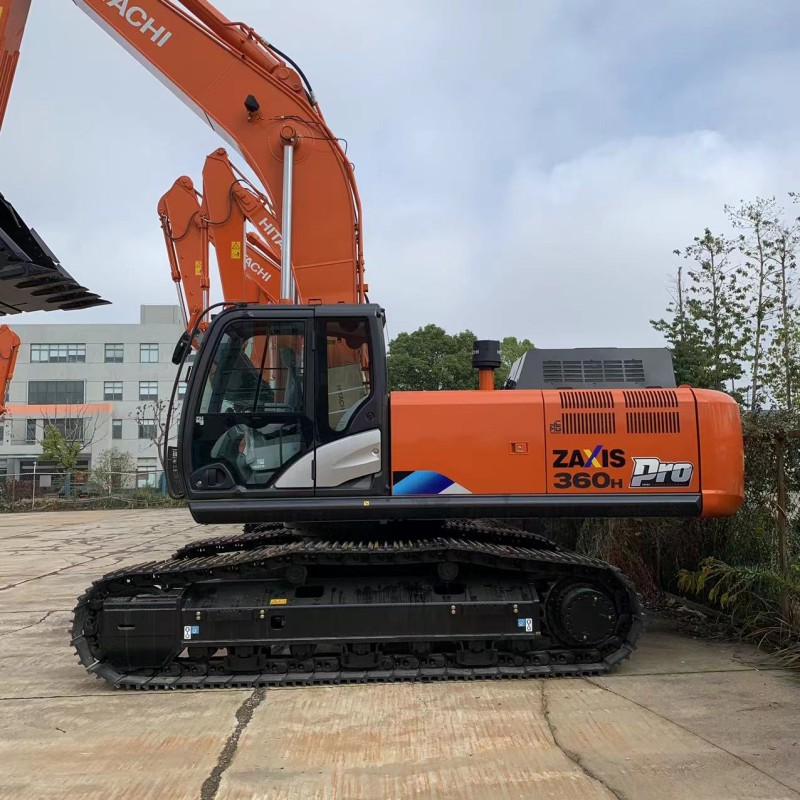

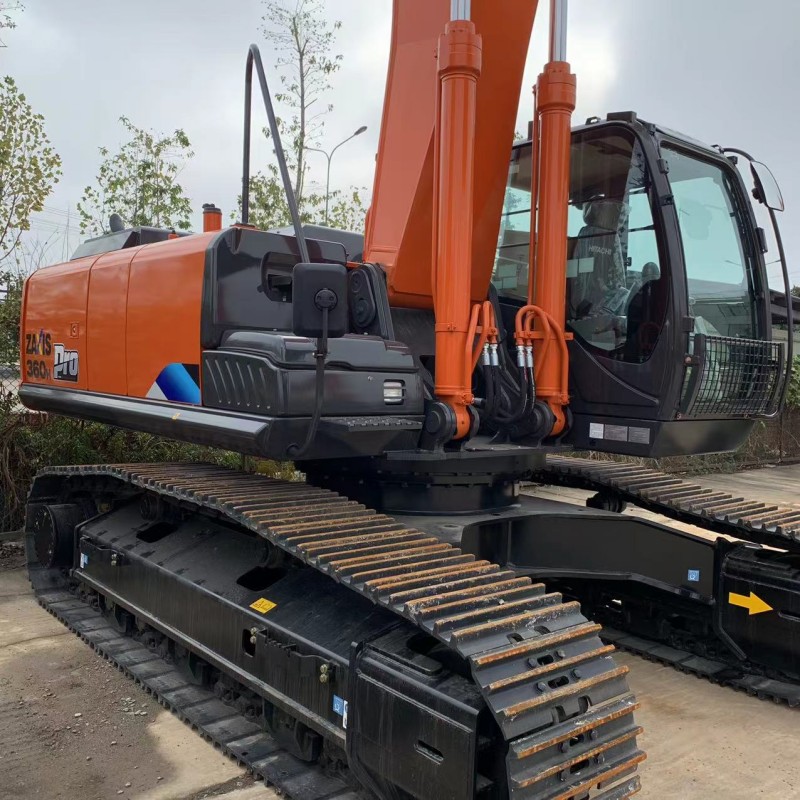

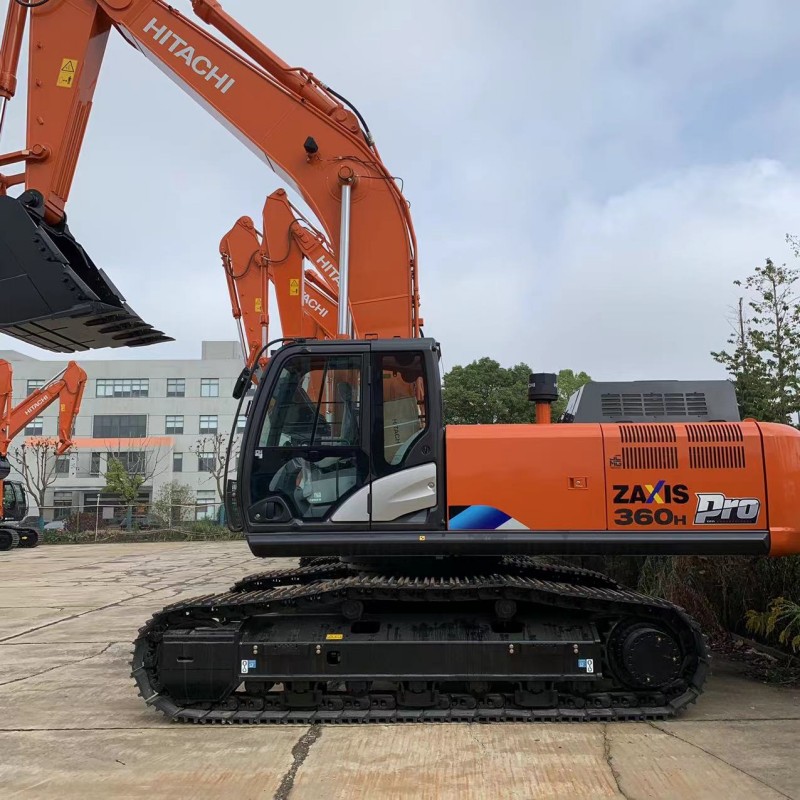

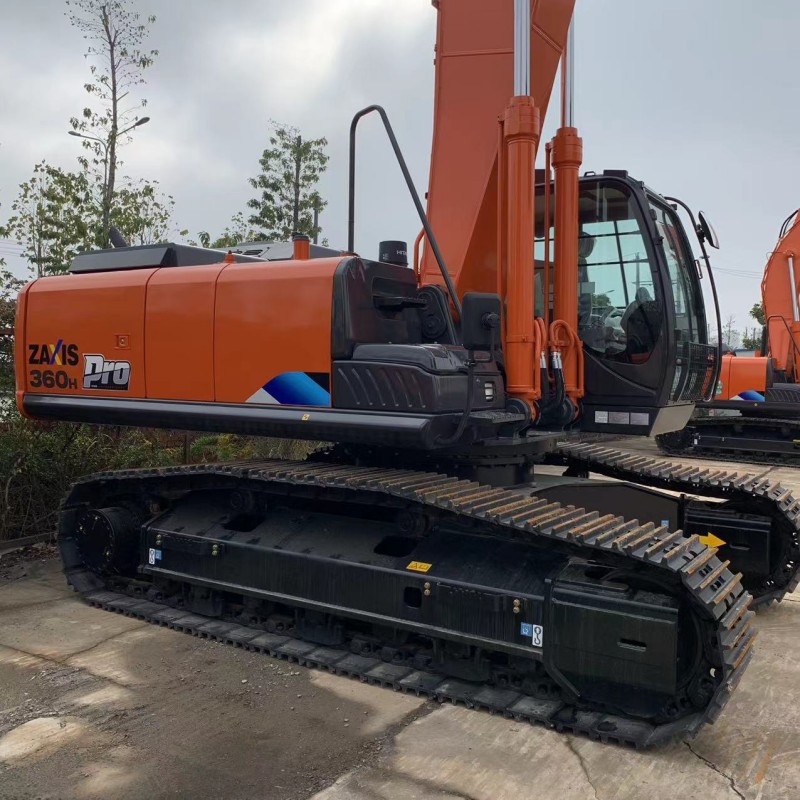

- Model: HITACHI ZX360H PRO Crawler Excavator
- Operating Weight: 35800kg

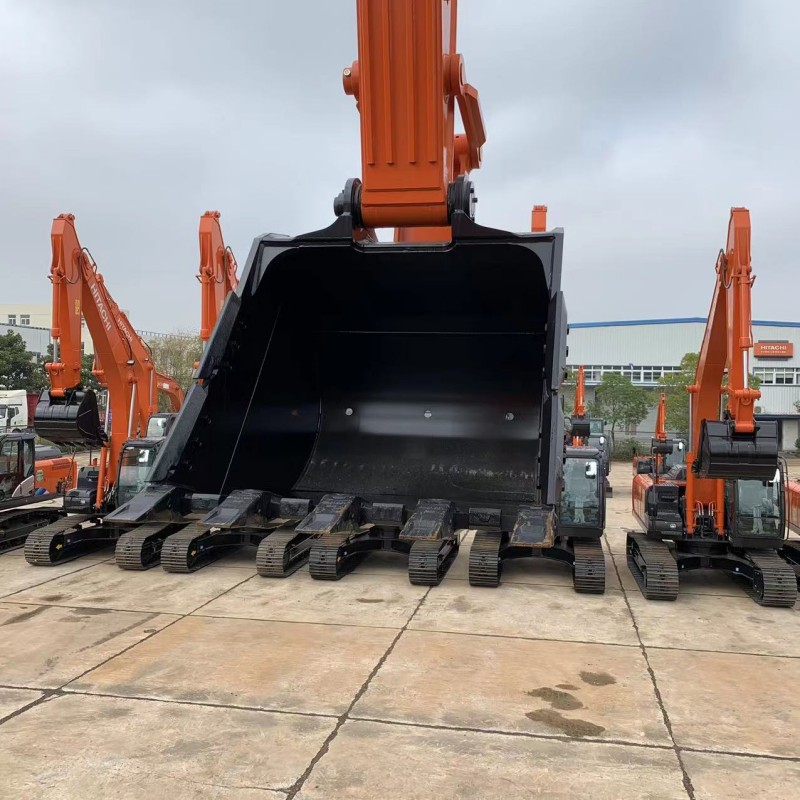

- Standard Bucket Capacity: 1.6m³, optional 1.4 / 1.8 / 2.0m³
- Overall Dimension(L×W×H): 11200×3200×3400mm
- Track Width: 600mm (standard), optional 700/800mm
- Track Gauge: 2600mm
- Ground Pressure: 55kPa
- Maximum Travel Speed: 5.3km/h (Dual speed: 3.2/5.3km/h)
- Slew Speed: 10.5rpm
- Maximum Climbing Gradient: 35°
- Fuel Tank Volume: 580L
Working Performance Parameter
- Maximum Digging Force (Bucket): 245kN
- Maximum Digging Depth: 7380mm
- Maximum Digging Radius: 11050mm
- Maximum Dump Height: 7920mm
- Dozer Blade: Not equipped
Power System Configuration
- Engine Brand: Isuzu 6HK1X Diesel Engine
- Rated Power: 186kW / 253HP
- Rated Rotation Speed: 2000rpm
- Displacement: 7.790L
- Maximum Torque: 990N·m @ 1500rpm
- Emission Standard: Euro 4 / Tier 4 Final
- Performance Characteristic: Ultra-high low-speed torque, strong overload resistance, stable operation, excellent cold start performance and energy-saving design
Transmission and Chassis System
- Travel System: Full hydraulic drive, dual speed travel

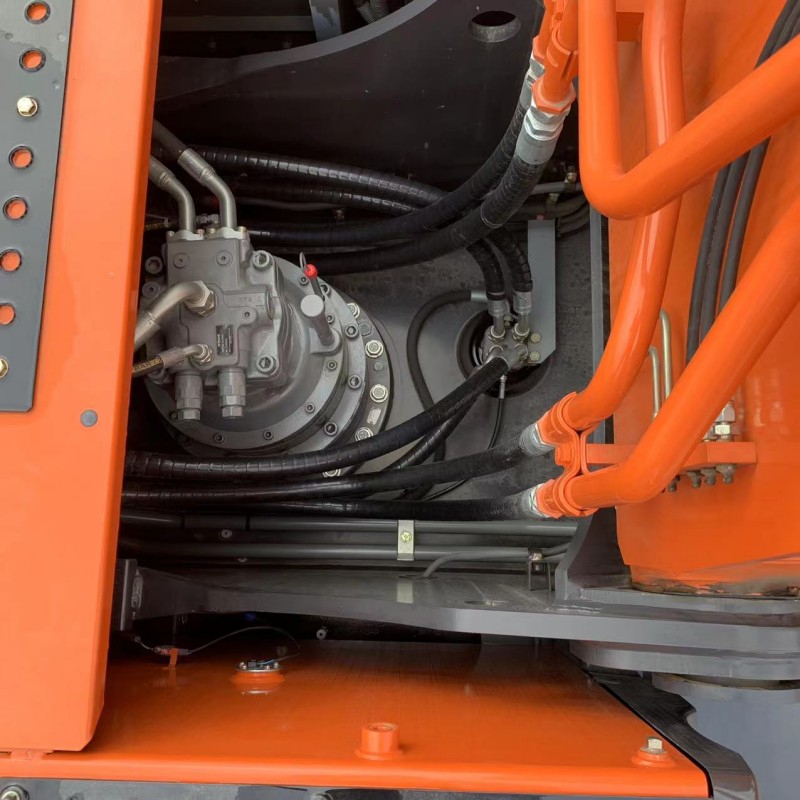

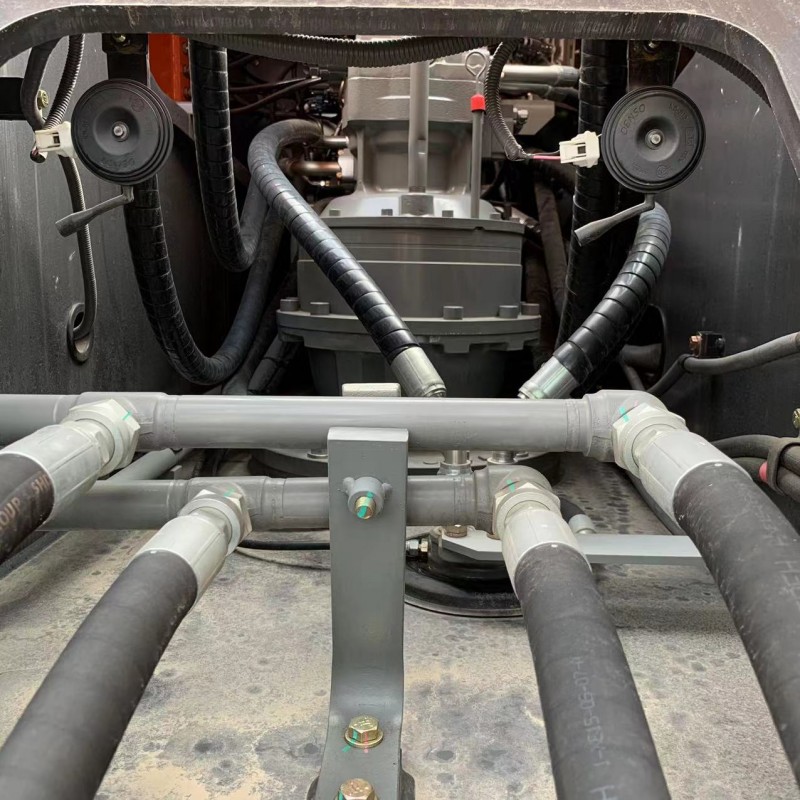

- Slew System: Heavy-duty independent hydraulic slew motor, stable and low noise rotation

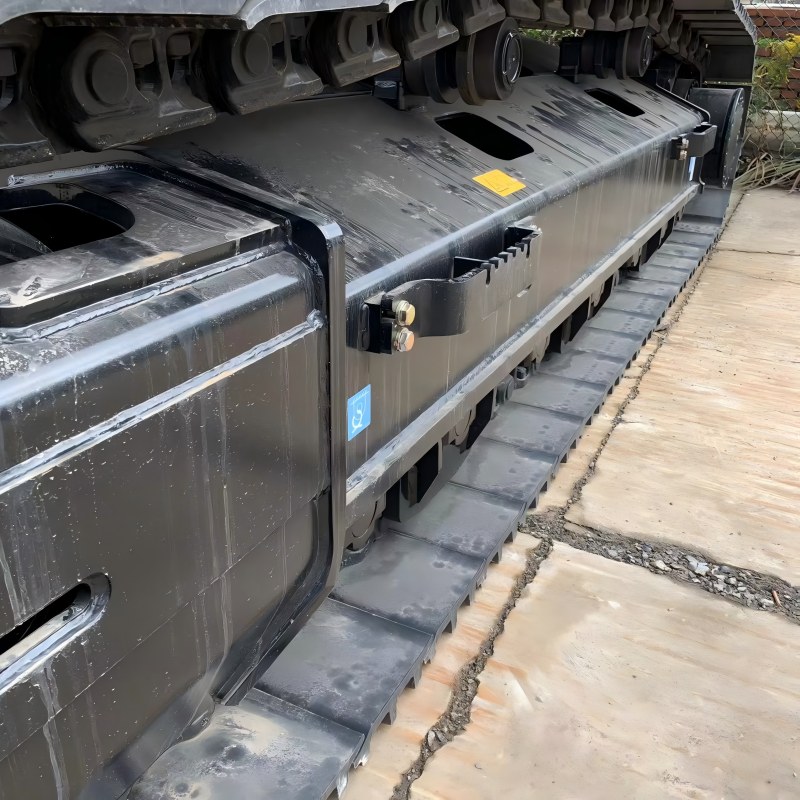

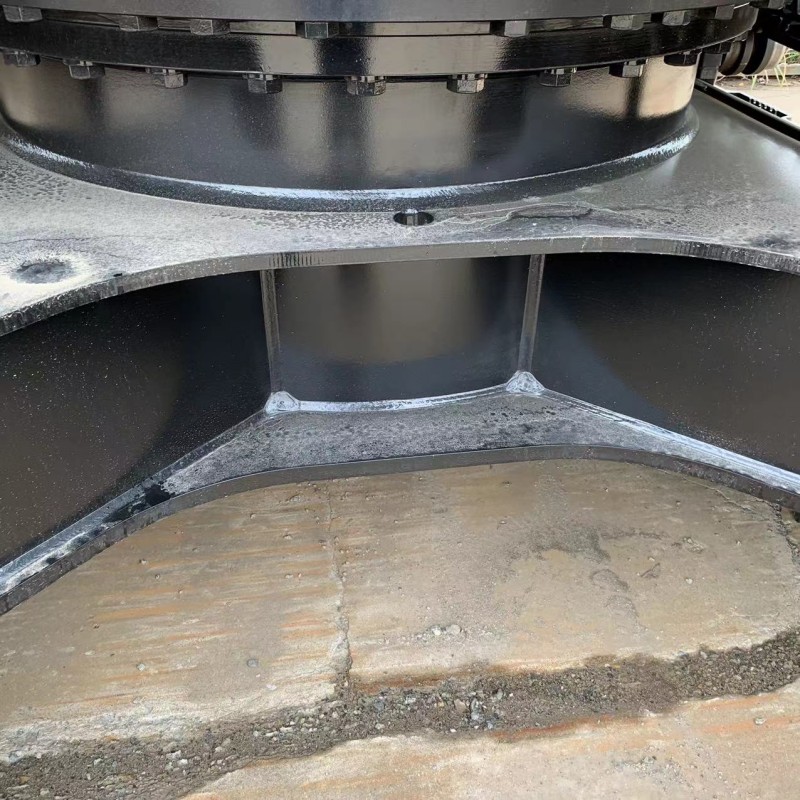

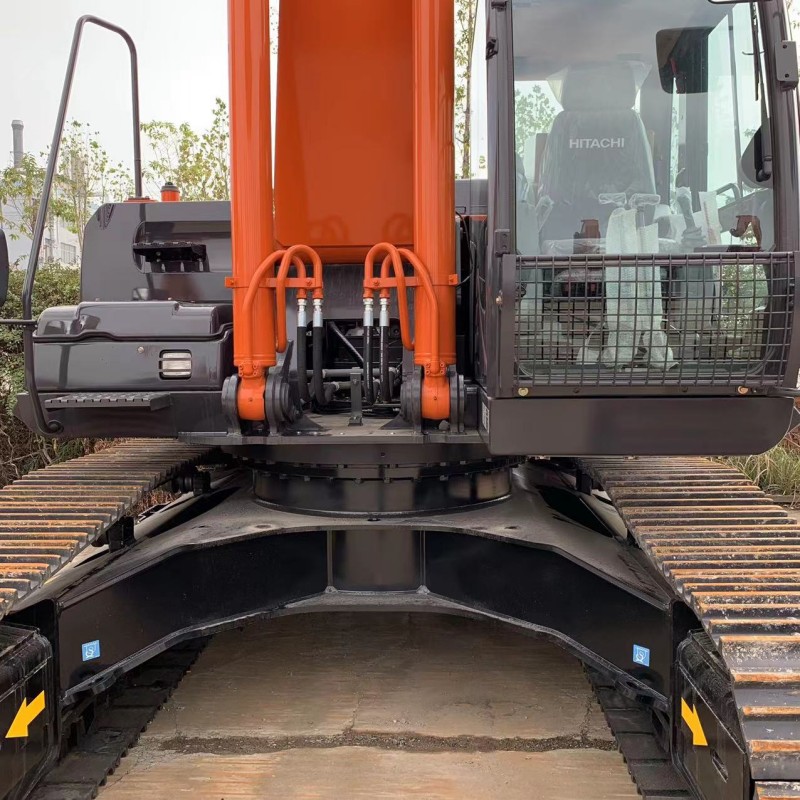

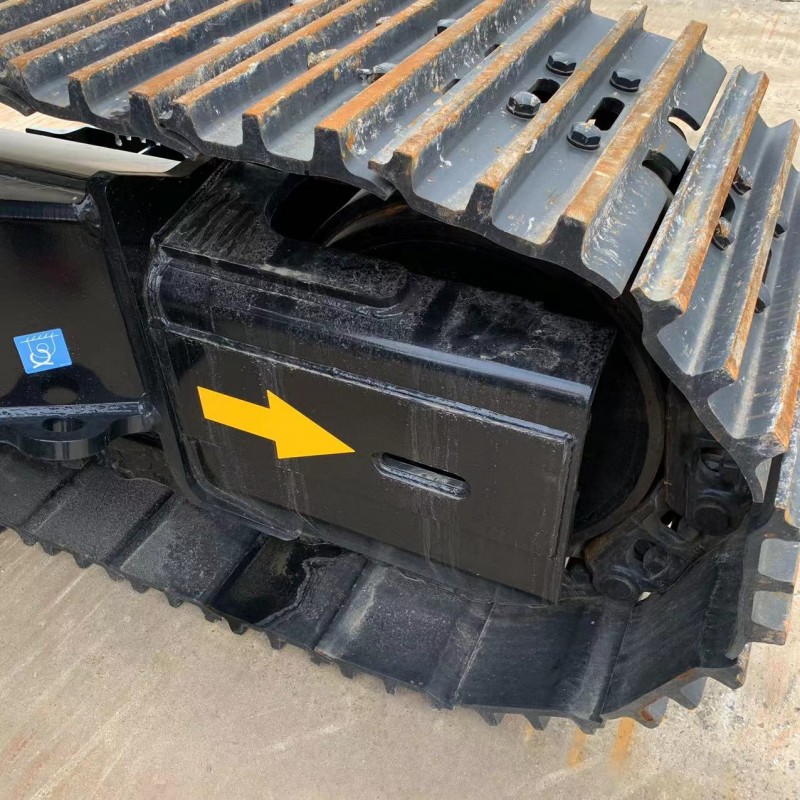

- Chassis Structure: Reinforced thickened X-shaped frame, anti-torsion and anti-deformation, mining-grade undercarriage
- Working Attachment: Super reinforced boom, arm and bucket, imported high-strength wear-resistant steel for heavy rock and ore operation
Hydraulic Working System
- Hydraulic Structure: Upgraded HIOS IV hydraulic system, dual large-displacement variable piston pumps
- System Working Pressure: 37.3MPa
- Working Advantage: Quick response, smooth compound action, high energy utilization rate, powerful output and precise control
Driving Cab and Safety Configuration
- Cab Type: Fully enclosed large noise reduction cab, dustproof and shockproof
- Safety Grade: ROPS & FOPS safety protection certified

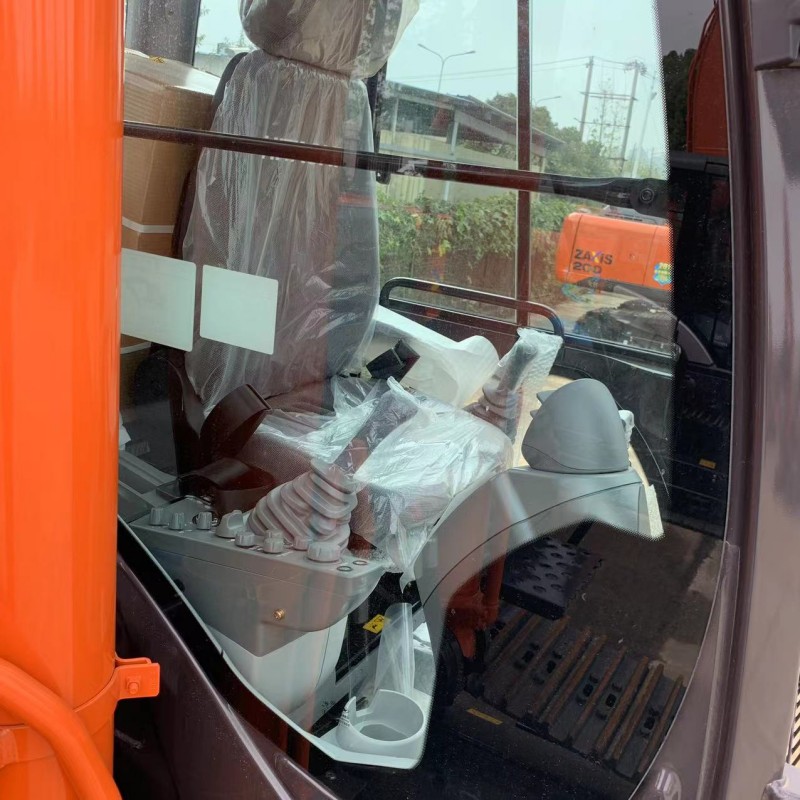

- Internal Configuration: Luxury adjustable suspension seat, ergonomic integrated pilot control handles
- Optional Function: Air conditioning, intelligent monitoring system, rear-view camera, LED working lights
- Noise Control: Internal noise ≤70dB
- Visual Effect: Super large panoramic glass, 360° full-view operating vision
Six Core Product Advantages
Super Powerful and Stable Power Performance
Adopts classic high-power Isuzu 6HK1X diesel engine with sufficient power reserve and tremendous low-speed torque. It can keep stable output under long-term heavy load and overload conditions. The optimized fuel injection technology effectively reduces fuel consumption and cuts comprehensive operation costs for large projects.
Mining-grade Reinforced Structure
All key load-bearing parts including boom, arm, bucket and chassis are thickened and strengthened with high-strength wear-resistant steel. Professional welding process improves overall rigidity. The heavy-duty undercarriage resists impact, abrasion and deformation, fully adapting to harsh mining and quarry working conditions.
Excellent Heavy-duty Excavation Capacity
With ultra-high digging force and optimized working device structure, the machine performs excellently in ore excavation, rock breaking, bulk material loading and large-scale earthmoving. High bucket filling rate and fast working cycle greatly improve overall construction efficiency.
Upgraded High-efficiency Hydraulic System
The updated HIOS IV hydraulic system matches large-displacement main pumps, delivering stronger hydraulic power and faster action response. Compound movements are smooth and coordinated, with low energy loss, realizing the perfect balance between high efficiency and energy saving.
Comfortable and Safe Long-shift Operation
The spacious fully enclosed cab effectively isolates external noise, dust and vibration. The humanized control layout and high-comfort suspension seat relieve operator fatigue during long-hour continuous work. ROPS and FOPS protection structure guarantees personal safety in complex working sites.
Convenient Maintenance and Global Parts Supply

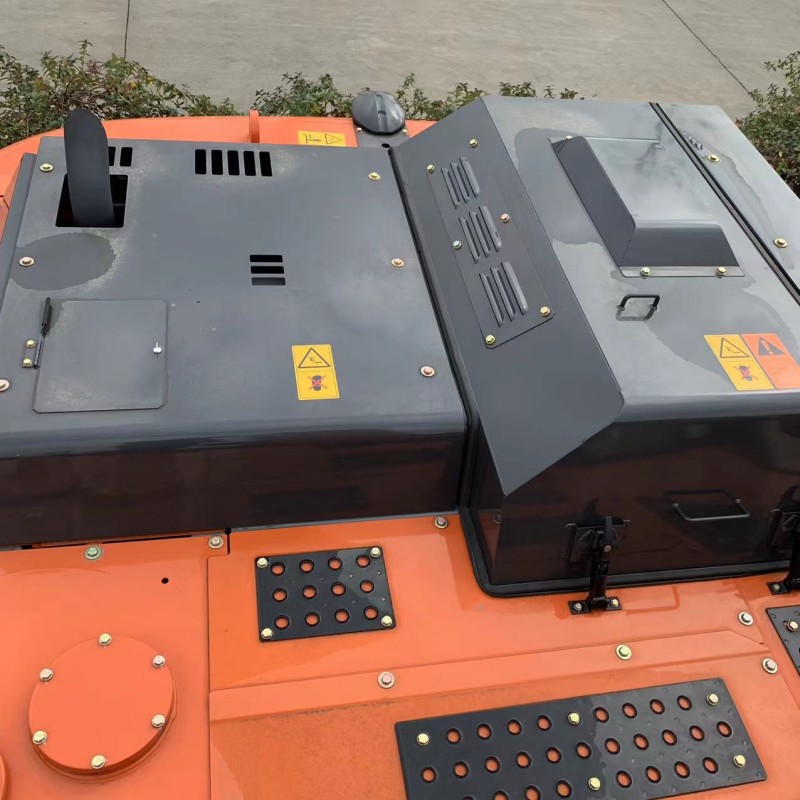

The open-type engine hood and centralized maintenance points make daily inspection, oil replacement and routine maintenance simple and efficient. Standard accessories are widely available globally, which greatly reduces equipment downtime and later maintenance costs.
