Complete Technical Parameters
Basic Vehicle Data

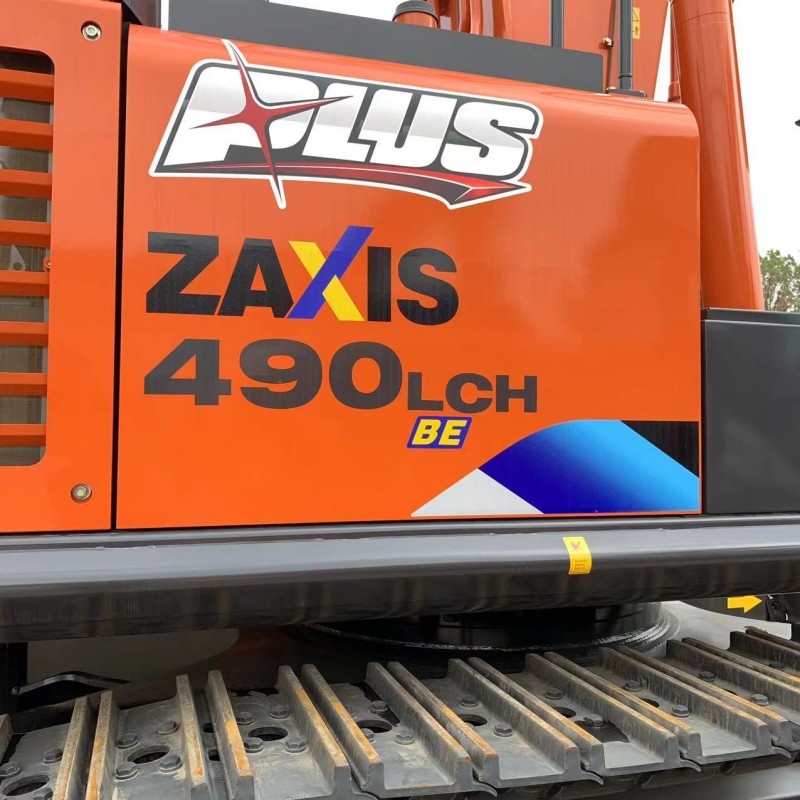

- Model: HITACHI ZX490LCH-5A PLUS / ZX490LCH-7G
- Operating Weight: 47200kg – 48900kg
- Standard Bucket Capacity: 2.1m³ – 3.0m³ (Rock Bucket)
- Overall Dimension(L×W×H): 11200×3340×3450mm
- Track Width: 600mm (standard), optional 700mm / 800mm
- Track Gauge: 2740mm
- Ground Pressure: 80kPa
- Maximum Travel Speed: 3.9km/h (Low speed) / 5.5km/h (High speed)
- Slew Speed: 9.5rpm
- Slew Torque: 148kN·m
- Maximum Climbing Gradient: 35°
- Fuel Tank Volume: 675L
Working Performance Parameter
- Maximum Digging Force (Bucket): 295kN – 296kN
- Maximum Digging Force (Arm): 224kN
- Maximum Digging Radius: 10750mm – 12060mm
- Maximum Digging Depth: 7850mm
- Maximum Dump Height: 7420mm
Power System Configuration
ZX490LCH-5A PLUS
- Engine Brand: Isuzu GH-6UZ1XKSA-01 Diesel Engine
- Rated Power: 257kW / 349HP @ 2000rpm
- Maximum Torque: 1363N·m @ 1500rpm
- Displacement: 9.839L, 6-cylinder
- Emission Standard: China Stage III / Tier 3
- Performance Characteristic: Low speed high torque, stable output under heavy load, durable structure and long service life
ZX490LCH-7G
- Engine Brand: Isuzu 6UZ1 Diesel Engine
- Rated Power: 296kW / 397HP
- Emission Standard: Tier 4 Final / EU Stage V
Hydraulic Working System
- Hydraulic Structure: HIOS IIIB Load Sensing Hydraulic System, 2 variable piston pumps
- Maximum Flow Rate: 2 × 385 L/min
- System Working Pressure: 35MPa (Travel & Working Device), 28.4MPa (Slew System)
- Working Advantage: Sensitive response, smooth compound movement, high energy efficiency and fuel saving
Transmission and Chassis System
- Travel System: Full hydraulic drive, dual speed travel

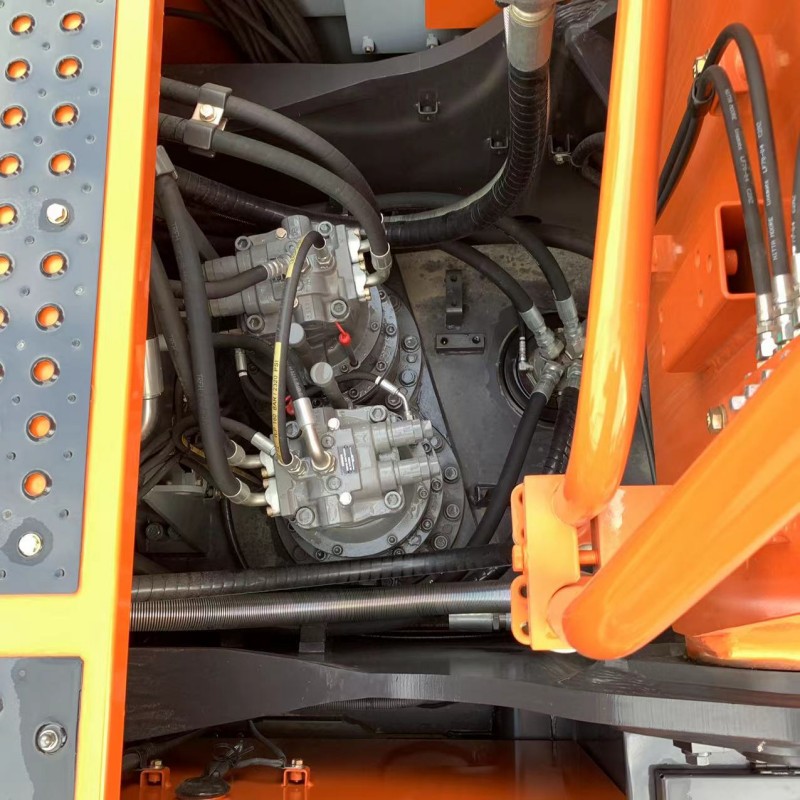

- Slew System: Independent hydraulic slew motor

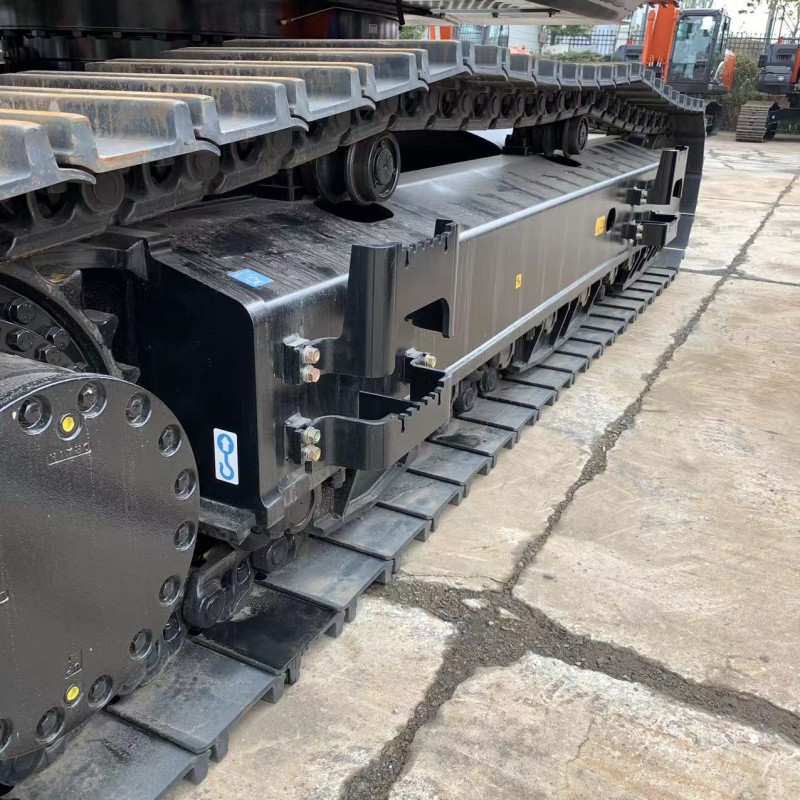

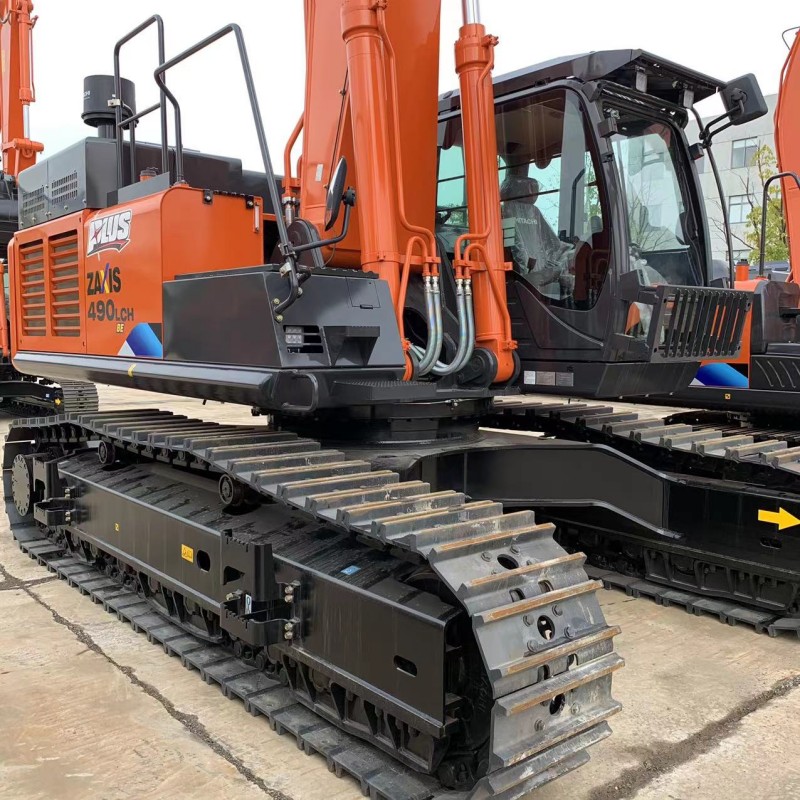

- Chassis Structure: Reinforced X-shaped heavy-duty frame, extended heavy-duty undercarriage
- Track Device: Quenched alloy track shoes, sealed lubricated track pins

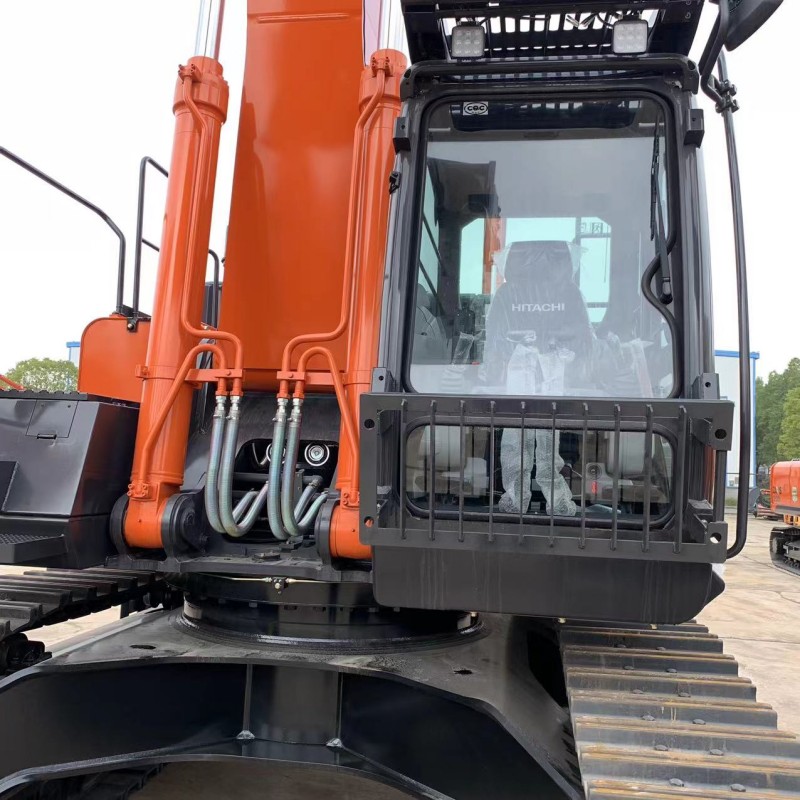

- Working Attachment: H-type reinforced boom and arm, forged key components, full welding reinforcement
Driving Cab and Safety Configuration
- Cab Type: Fully enclosed pressurized noise reduction cab, dustproof and shockproof

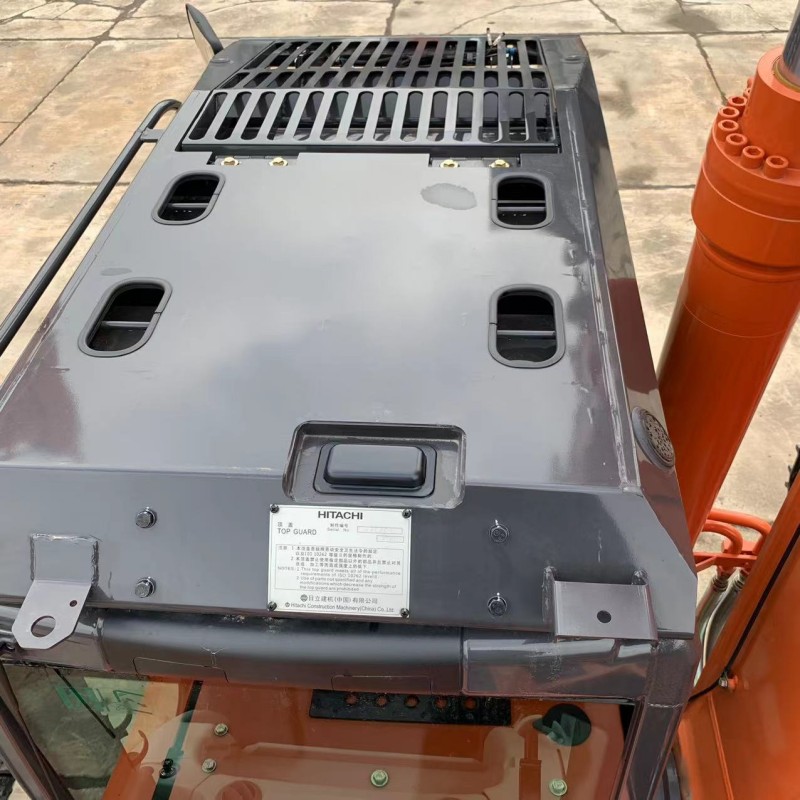

- Safety Grade: ROPS & FOPS safety protection certified

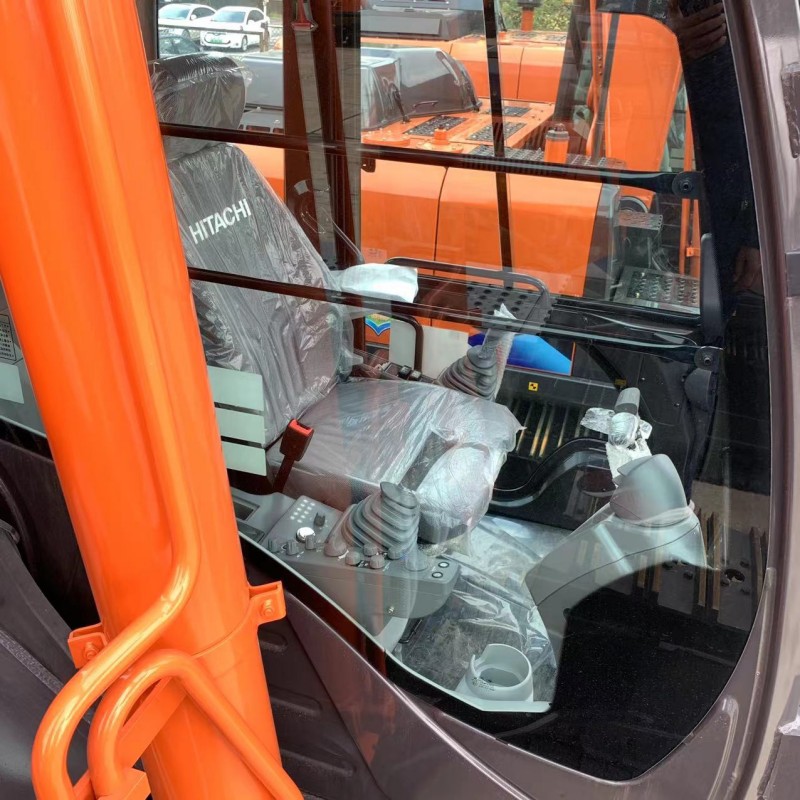

- Internal Configuration: Adjustable suspension seat, intelligent monitoring display, ergonomic pilot control handles
- Optional Function: Air conditioning system, rear-view camera, LED working lights
- Noise Control: Low internal noise for comfortable long-time operation
- Visual Effect: Large panoramic glass, 360° wide operating view
Six Core Product Advantages
Powerful and Reliable Engine Performance
Equipped with original imported Isuzu 6-cylinder heavy-duty engine, it delivers sufficient power reserve and strong low-speed torque. The engine keeps steady operation under continuous heavy load without speed drop. With simple structure and excellent durability, it perfectly adapts to severe mining and quarry working environments.
Superior Heavy-Duty Digging Capacity
The ultra-high bucket digging force matches the optimized H-type reinforced working device. It performs excellently in hard soil, rock excavation and bulk material loading, effectively improving overall construction productivity.
Energy-Saving HIOS IIIB Hydraulic System
The advanced HIOS IIIB hydraulic system realizes precise load sensing control. All compound actions are smooth and coordinated with quick response. It reduces energy loss and cuts fuel consumption by around 12% compared with previous generations.
Fully Reinforced Durable Structure
The whole machine adopts thickened high-strength steel and professional welding technology. Key stress parts including boom, arm, bucket and chassis are strengthened and forged. It effectively resists impact, abrasion and deformation, ensuring long-term stable operation under harsh conditions.
Comfortable and Safe Operating Environment
The spacious fully enclosed cab isolates external noise, dust and vibration. ROPS and FOPS protection structures guarantee operator safety. Humanized layout and high-comfort suspension seat relieve fatigue during long-hour continuous work.
Convenient Maintenance and Global Parts Supply

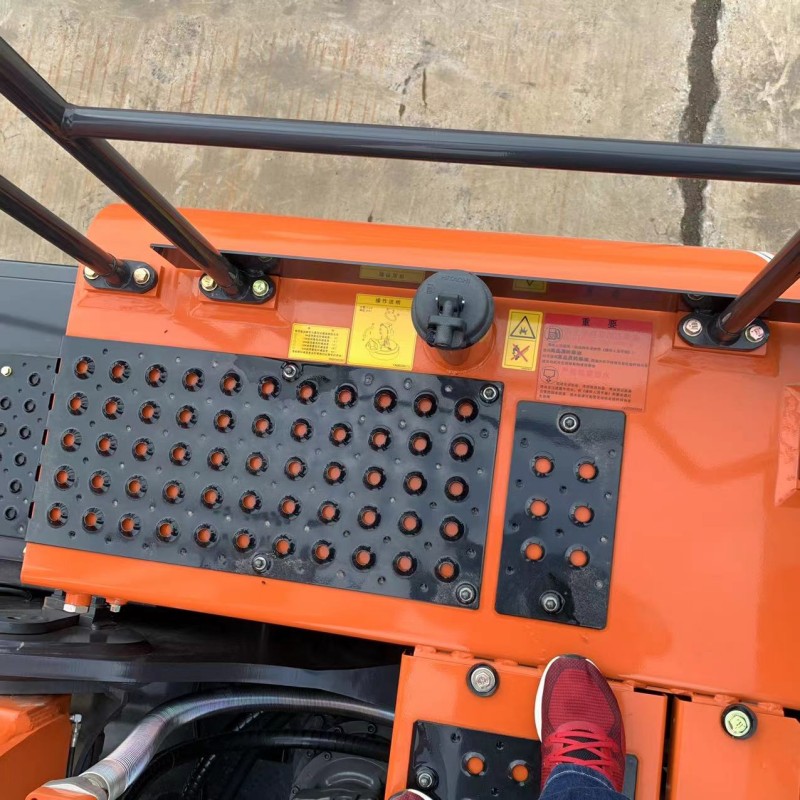

All daily inspection and maintenance points are designed at ground level for easy access. Extended service intervals reduce routine maintenance frequency. Standard spare parts are widely available worldwide, minimizing equipment downtime and lowering comprehensive operating costs.
