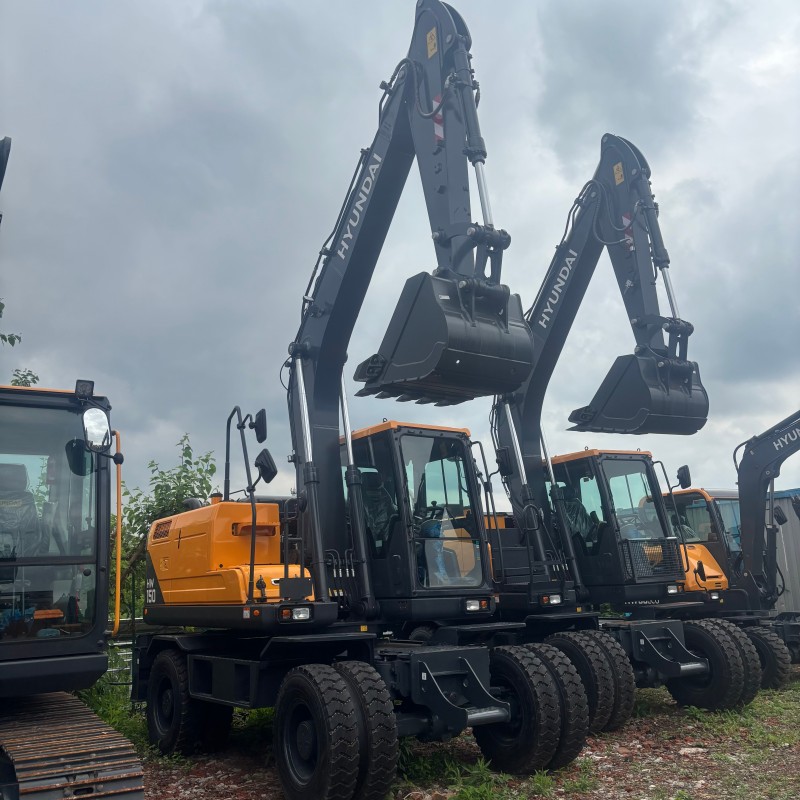

Product Overview of HYUNDAI HW150 Wheel Excavator
The HYUNDAI HW150 wheel excavator is a medium-sized high-speed wheeled digging machine developed by HD Hyundai Construction Equipment, specially built for municipal road repair, urban pipeline laying, landscaping renovation and highway maintenance. Unlike crawler excavators, the HYUNDAI HW150 wheel excavator supports up to 39.5km/h driving speed, enabling fast cross-site transfer without flatbed trucks to save transport cost and construction time. Equipped with reliable Cummins turbo diesel engine and EPFC electronic positive flow hydraulic system, the HYUNDAI HW150 wheel excavator delivers powerful digging force, smooth multi-action coordination and adjustable ECO fuel-saving mode. Reinforced heavy-duty chassis, thickened working attachment and fully enclosed FOPS safety cab guarantee long service life and all-day comfortable operation. It is widely recognized by global municipal contractors and road engineering teams as a cost-effective wheeled construction machine.
Full Technical Parameters of HYUNDAI HW150 Wheel Excavator
Basic Overall Dimensions & Weight of HYUNDAI HW150 Wheel Excavator
- Model: HYUNDAI HW150 Medium Wheel Excavator
- Operating Weight: 13740kg (13.74 ton)
- Standard Bucket Capacity: 0.58m³ general earth bucket, optional 0.65m³ rock bucket
- Standard Boom Length: 4600mm
- Standard Arm Length: 2450mm
- Overall Total Length: 7850mm
- Overall Total Width: 2490mm
- Cab Overall Height: 3160mm
- Minimum Ground Clearance: 370mm
- Minimum Tail Swing Radius: 2650mm
- Dozer Blade Width: 2490mm

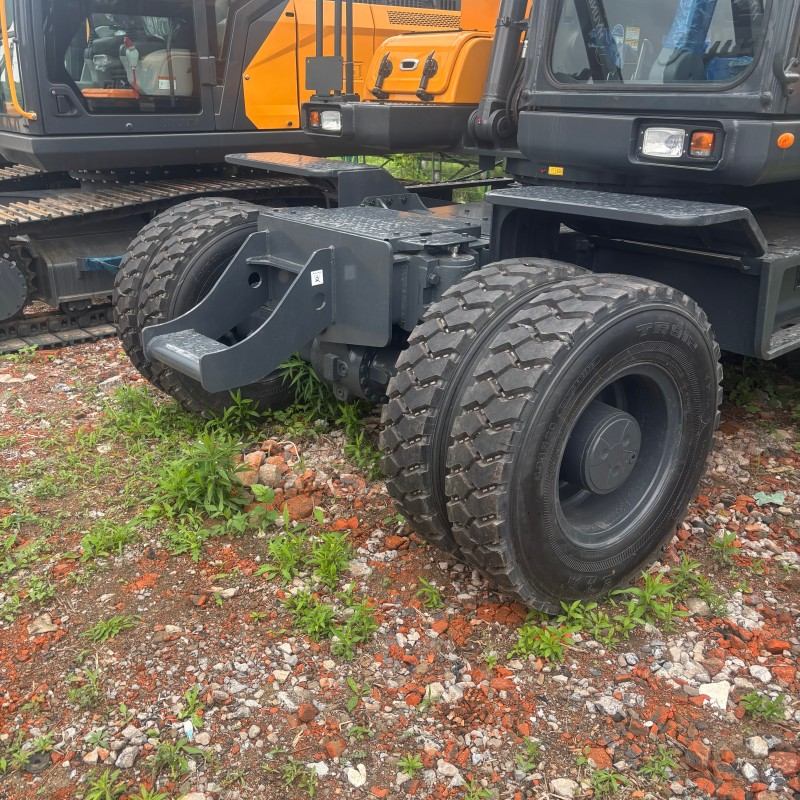

- Standard Tire Size: 11.00-20 single heavy-duty road tire, dual tire / solid tire optional
- Fuel Tank Volume: 240L
- Hydraulic Oil Tank Volume: 140L
Travel & Swing Performance
- Travel Speed: Low gear 10km/h, High gear 39.5km/h
- Swing Rotation Speed: 8.2rpm
- Maximum Climbing Gradient: 30°
- Maximum Drawbar Pull Force: 7850kgf
- Steering Type: Full hydraulic front wheel steering, front axle swing lock function
- Service Brake: Full hydraulic wet multi-disc brake for front & rear axles
- Parking Brake: Spring applied hydraulic release built-in transmission brake
Digging Working Range (ISO Standard)
- Max Horizontal Digging Radius: 8320mm
- Max Digging Depth: 4820mm
- Max Vertical Digging Depth: 4150mm
- Max Digging Height: 8500mm
- Max Dumping Height: 6250mm
- Minimum Front Swing Radius: 2410mm
- Max Bucket Digging Force: 82.5kN (8410kgf)
- Max Arm Digging Force: 61.2kN (6240kgf)
Power Engine System
The HYUNDAI HW150 wheel excavator adopts mature Cummins F4.5 four-cylinder turbocharged diesel engine with stable power output for all municipal working conditions. You can view complete engine technical data on Cummins official construction equipment website.
- Engine Model: Cummins F4.5 Water-cooled Turbo Diesel Engine
- Rated Power: 125kW / 168HP @ 2200rpm
- Peak Torque: 680N·m @ 1300-1500rpm
- Displacement: 4.5L
- Emission Standard: China Stage IV / Tier 4 Interim
- Core Configuration: Electronic common rail injection, DOC+SCR aftertreatment, electronic reversible cooling fan
- Working Modes: Standard Mode, ECO Fuel-saving Mode, Heavy Power Mode; ECO mode reduces fuel consumption by 10%
EPFC Electronic Positive Flow Hydraulic System

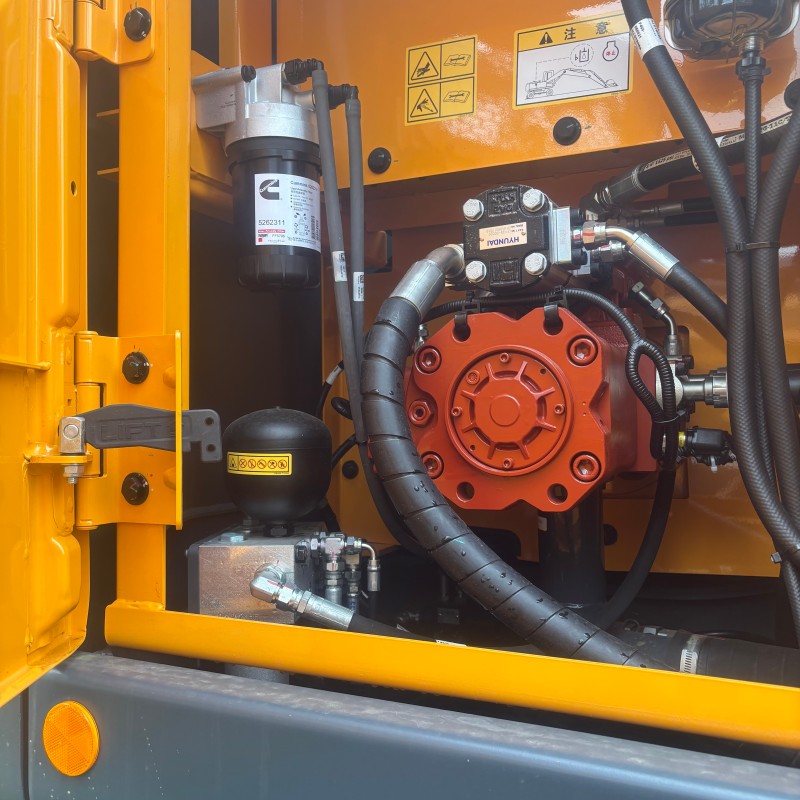

- Main Pump Type: Dual variable displacement plunger main pumps
- Total Main Pump Output Flow: 226 L/min
- Standard System Working Pressure: 26MPa
- Power Boost Pressure: 28MPa, instant lifting digging power
- Pilot Control: ISO standard pilot joystick, left handle controls swing & arm, right handle controls boom & bucket
- Auxiliary Hydraulic Circuit: Pre-installed breaker piping, supports 3 flow preset modes for hammer, auger and thumb grab
- Total Hydraulic Oil Capacity (Whole System): 210L
- Cylinder Specifications
- Boom Cylinder: 125×70×1020mm
- Arm Cylinder: 110×65×1150mm
- Bucket Cylinder: 100×60×980mm
Chassis & Working Attachment Structure
- Frame: Integral thick box heavy-duty frame, full penetration anti-torsion welding structure
- Transmission Box: 2-speed power shift gearbox, hydraulic clutch speed switching
- Drive Axle: DANA heavy-duty wheel reduction drive axle, fully sealed lubrication
- Boom & Arm: High-strength wear-resistant steel plate, thickened buffer bushings at stress joints
- Front Accessory: Integrated wide dozer blade with floating leveling function; rear stabilizer outriggers optional
Cab, Electronic Control & Safety Configuration
- Cab Type: Fully enclosed positive pressure dust-proof noise reduction cab with FOPS falling object protection frame
- Standard Interior Equipment
- 8-inch intelligent touch LCD monitor, real-time display fuel consumption, hydraulic pressure and fault codes
- Adjustable air suspension seat with heating function
- One-button engine start, USB charging port, Bluetooth hands-free call
- Panoramic laminated safety glass for wide unobstructed vision
- Optional Upgrades: Full automatic air conditioner, 360° panoramic camera, multi-group LED working lights
- Internal Operating Noise: ≤76dB
- Safety Design: Emergency flameout switch, overload sound-light alarm, hydraulic lock safety handle, anti-rollover reinforcement structure
Standard & Optional Attachments
Standard Factory Equipment
Front dozer blade, pre-installed breaker hydraulic piping, 11.00-20 single road tires, 0.58m³ general digging bucket, FOPS safety cab, 3 adjustable power modes, intelligent fuel consumption monitoring system
Optional Matching Accessories
Front & rear dual heavy-duty tires, solid engineering tires, 0.65m³ rock bucket, hydraulic breaker, log thumb grab, earth auger, quick hitch coupler, rear stabilizer outriggers, 360° surround view camera, cab heating & cooling air conditioner
Core Advantages of HYUNDAI HW150 Wheel Excavator
1. Ultra-Fast Transit Speed, Low Transport Cost
The HYUNDAI HW150 wheel excavator reaches a maximum driving speed of 39.5km/h, allowing quick transfer between multiple construction sites without flatbed truck rental. This feature greatly shortens project transition time and cuts extra transport expense for municipal road teams.
2. High-Efficiency Cummins Power & Low Fuel Consumption
Equipped with authentic Cummins F4.5 turbo engine, the HYUNDAI HW150 wheel excavator outputs strong low-speed torque for hard soil and rock breaking. The built-in ECO fuel-saving mode optimizes fuel injection logic, lowering hourly fuel consumption while maintaining stable working performance for long-hour continuous operation.
3. Precise EPFC Hydraulic System for Smooth Coordinated Action
The electronic positive flow hydraulic system of the HYUNDAI HW150 wheel excavator automatically distributes flow and pressure based on load changes. Lifting, digging, slewing and dozing movements run synchronously without lag. One-click power boost instantly raises digging force to handle tough construction conditions and improve daily work output.
4. Reinforced Heavy-Duty Frame & Long Service Life
The whole vehicle frame, boom and arm of the HYUNDAI HW150 wheel excavator adopt thickened high-strength steel with full penetration welding. Reinforced stress joints and sealed lubricated pins effectively resist impact and abrasion from frequent municipal operation, extending the whole machine service cycle and reducing replacement frequency of wearing parts.
5. Humanized Comfortable & Safe Operating Cab
The fully sealed positive pressure cab of the HYUNDAI HW150 wheel excavator isolates road dust and construction noise. Air suspension seat, ergonomic pilot joysticks and large panoramic glass relieve operator fatigue during all-day shifts. FOPS anti-falling structure and optional 360° camera eliminate blind zones to ensure construction safety.
6. Convenient Ground Maintenance & Low Comprehensive Cost
All daily inspection, oil filling and filter replacement points of the HYUNDAI HW150 wheel excavator are set at ground height without climbing steps. Universal global spare parts supply shortens machine downtime, and simple mechanical structure lowers daily maintenance and repair cost for rental and long-term users.
Wide Application Scope
The HYUNDAI HW150 wheel excavator is widely applied to municipal road maintenance, underground pipeline trenching, residential community reconstruction, urban landscaping shaping, farmland irrigation channel digging, small earthwork backfilling and highway auxiliary construction projects. If you need compact small wheeled digging equipment for narrow alleys, check our HYUNDAI HW60 Wheel Excavator. For larger capacity wheeled machines with stronger digging power, view the HYUNDAI HW155 Wheel Excavator product page.
The HYUNDAI HW150 wheel excavator is a high-performance 14-ton fast-transit municipal digger equipped with Cummins power and EPFC energy-saving hydraulic system. Featuring high driving speed, powerful digging force and durable reinforced structure, this HYUNDAI HW150 wheel excavator is the most cost-effective wheeled construction machinery for global municipal road maintenance and urban engineering rental projects.
