Product Overview
Complete Technical Parameters

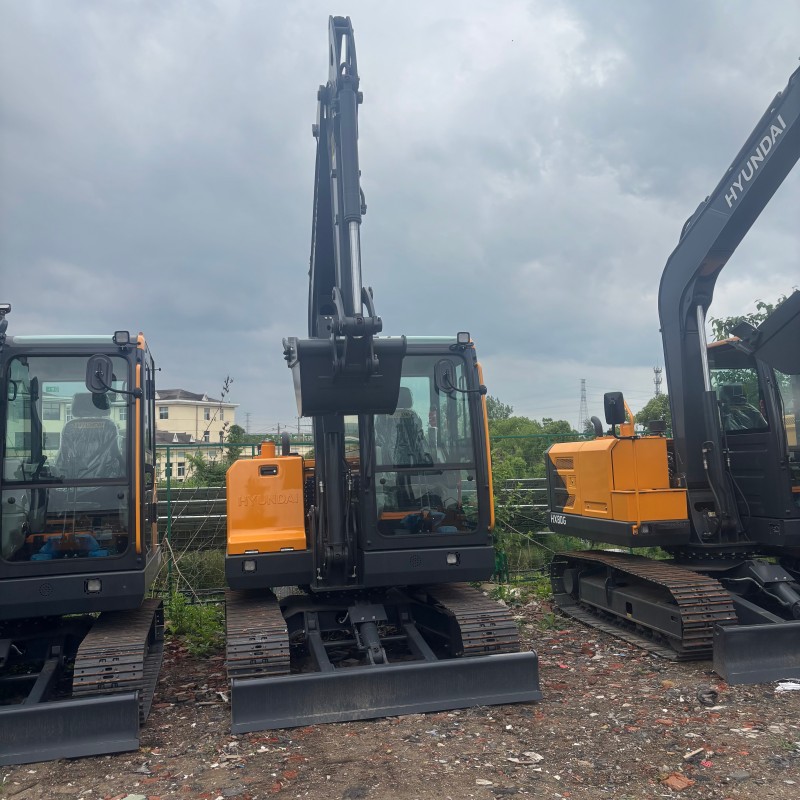

Basic Vehicle Data of HYUNDAI HX60G Crawler Excavator
- Model: HYUNDAI HX60G Compact Crawler Excavator
- Operating Weight: 5850kg
- Standard Bucket Capacity: 0.25m³, optional 0.18m³ / 0.21m³
- Overall Dimension(L×W×H): 5670×2000×2630mm
- Track Width: 400mm steel track, rubber track optional
- Track Gauge: 2000mm
- Short Tail Swing Radius: 1670mm
- Ground Pressure: 33kPa
- Maximum Travel Speed: 4.2km/h (High speed) / 2.5km/h (Low speed)
- Slew Speed: 9.4rpm
- Maximum Climbing Gradient: 35°
- Fuel Tank Volume: 118.5L
- Hydraulic Oil Tank Volume: 70L
Working Performance Parameter of HYUNDAI HX60G Crawler Excavator
- Maximum Digging Force (Bucket ISO): 46.7kN
- Maximum Digging Force (Arm ISO): 27.5kN
- Maximum Digging Depth: 3812mm
- Maximum Digging Radius: 5946mm
- Maximum Digging Height: 5962mm
- Maximum Dump Height: 4071mm

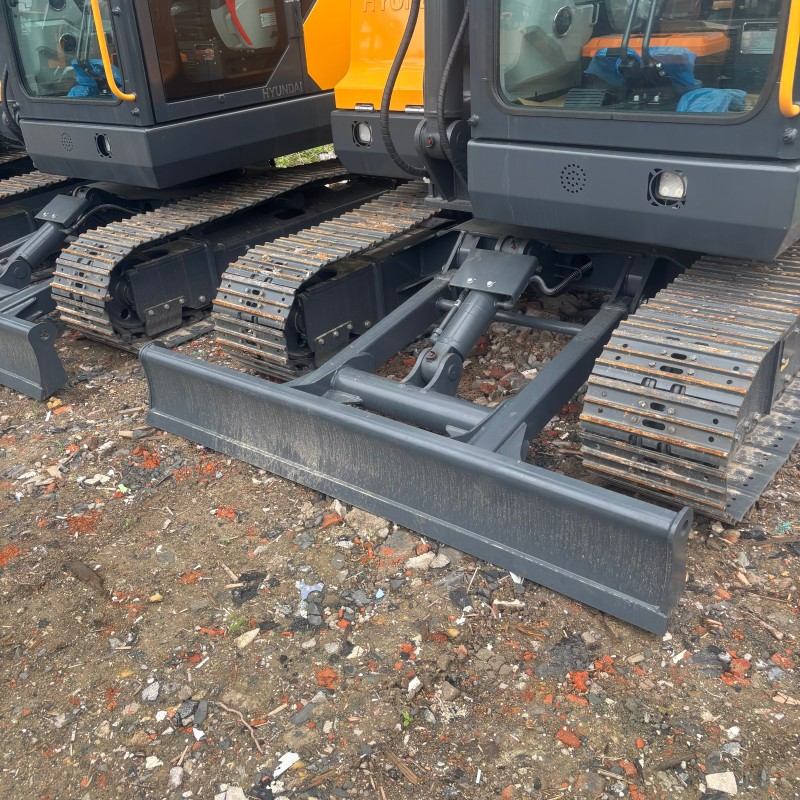

- Standard Equipped: Front dozer blade, breaker hydraulic piping reserved
Power System Configuration

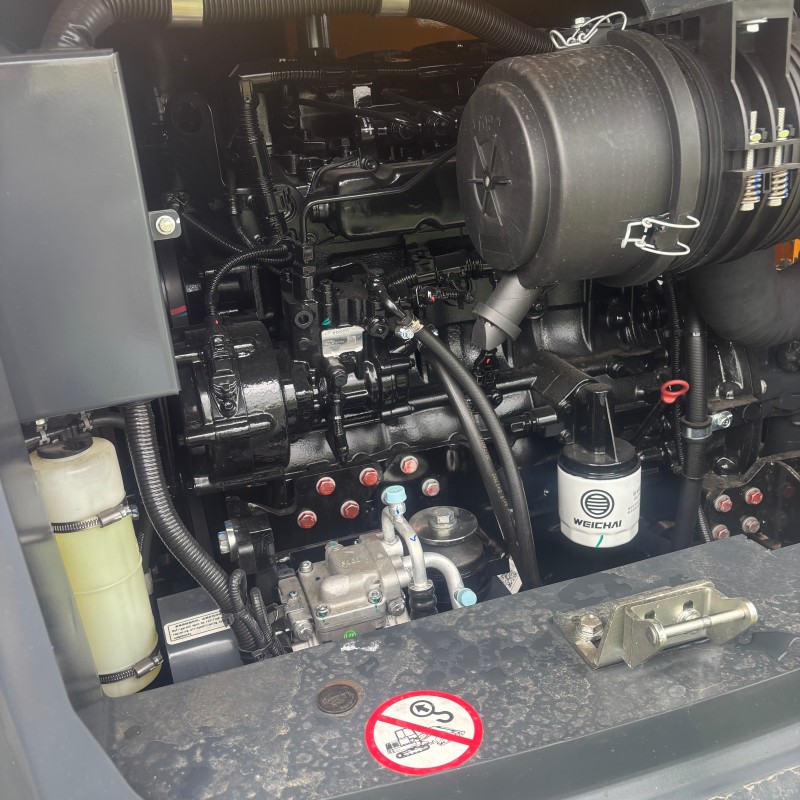

- Engine Brand: Yanmar 4TNV94L Water-cooled Diesel Engine
- Rated Power: 36.8kW / 49.3HP @ 2200rpm
- Maximum Torque: 210N·m @ 1400–1600rpm
- Displacement: 3168cc
- Emission Standard: Tier 2 / China Stage III
- Performance Characteristic: Low speed large torque, stable continuous output, low fuel consumption, reliable cold start, long service intervals, perfect for frequent light-duty urban operation
The Yanmar engine equipped on HYUNDAI HX60G crawler excavator adopts mature industrial technology, you can check official engine parameters on Yanmar official construction equipment website.
Transmission and Chassis System
- Travel System: Full hydraulic dual-speed crawler drive, anti-slip track design
- Slew System: Independent low-noise hydraulic slew motor, short tail swing structure

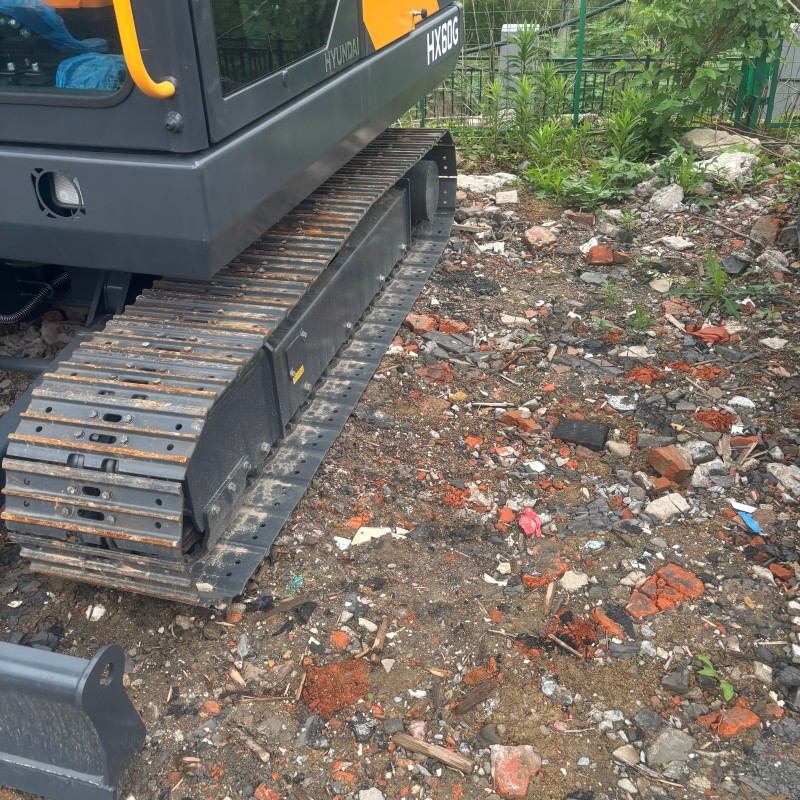

- Chassis Structure: Widened & lengthened reinforced X-shaped heavy-duty frame, anti-torsion anti-deformation
- Track Device: Thickened wear-resistant steel track shoes, sealed lubricated track pins
- Working Attachment: Thickened high-strength steel boom & arm, fully welded reinforcement, impact-resistant bucket structure
Hydraulic Working System of HYUNDAI HX60G Crawler Excavator

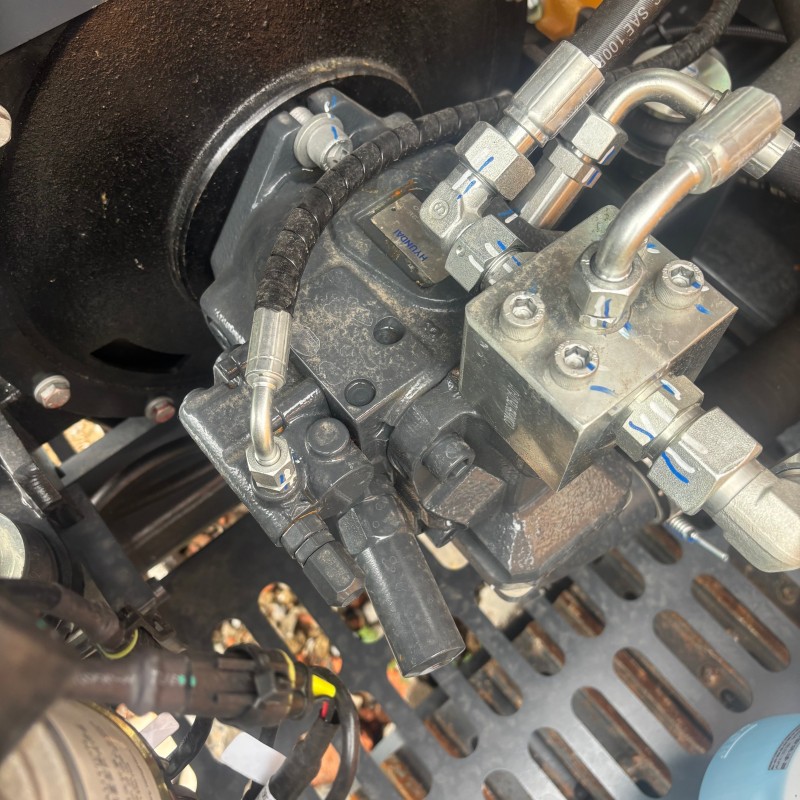

- Hydraulic Structure: Advanced LS Load Sensing Hydraulic System, dual variable main pumps
- Total Main Pump Flow: 138 L/min
- System Working Pressure: 22MPa standard, 24MPa power boost mode
- Working Advantage: Sensitive response, smooth coordinated compound movement, low energy loss, high bucket filling efficiency, stable performance for breaker, auger and thumb attachments
Driving Cab and Safety Configuration

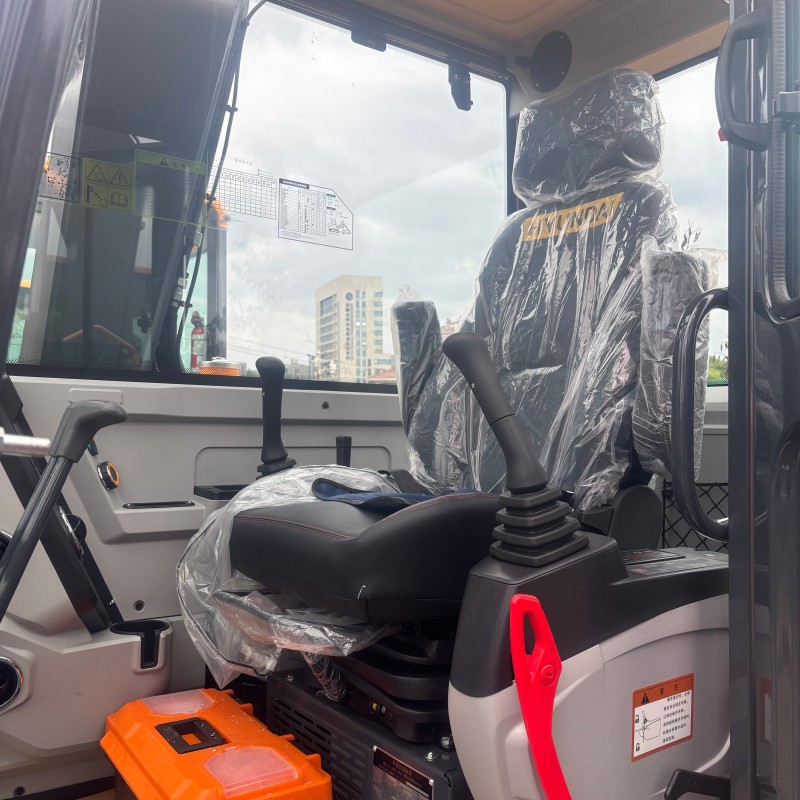

- Cab Type: Fully enclosed dustproof noise reduction cab, positive pressure design
- Safety Grade: Reinforced anti-collision cab frame, falling object protection

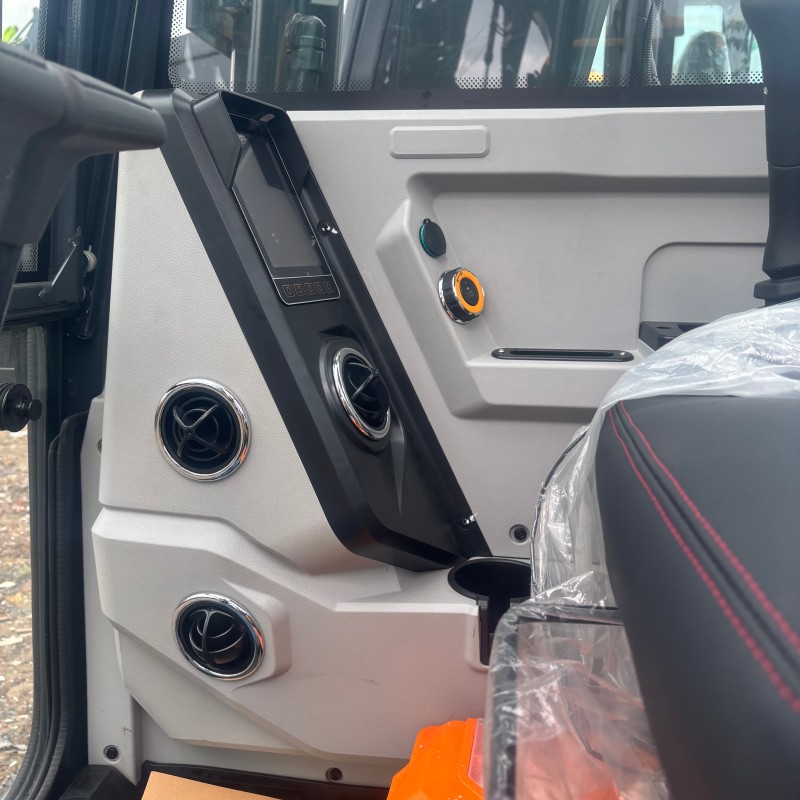

- Internal Configuration: 7-inch intelligent LCD monitor, ergonomic pilot control handles, adjustable suspension seat, one-button engine start
- Optional Function: Air conditioning system, rear-view camera, LED working lights, USB charging port
- Noise Control: Internal operating noise ≤75dB
- Visual Effect: Large panoramic laminated glass, 360° unobstructed wide operating view
Core Advantages of HYUNDAI HX60G Crawler Excavator
-
Short-Tail Compact Body & Superior Narrow-Site Flexibility

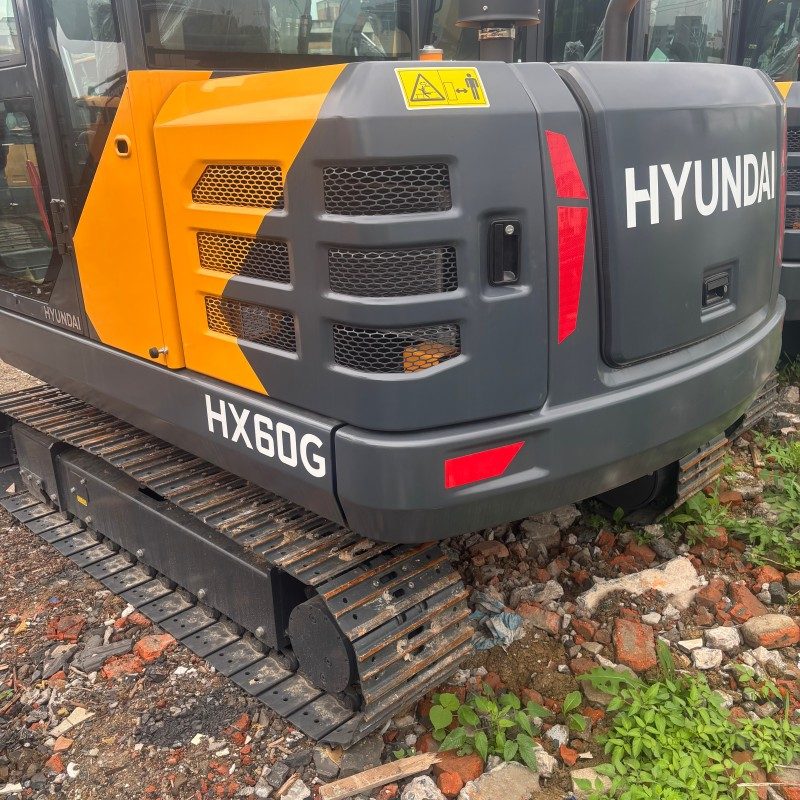

The HYUNDAI HX60G crawler excavator adopts advanced short tail swing design with only 1670mm tail swing radius, eliminating tail collision risks in narrow alleys, residential yards and tight construction spaces. Compact overall dimension with 2000mm widened track delivers balanced stability while retaining ultra-flexible turning performance, making this Hyundai small crawler digger far more adaptable to urban confined job sites than standard tail mini excavators.
-
Fuel-Saving Reliable Yanmar Diesel Power
Equipped with original Yanmar 4TNV94L four-cylinder diesel engine, the HYUNDAI HX60G crawler excavator generates strong low-speed torque for trenching, grading and breaking operations. Optimized fuel injection control cuts hourly fuel consumption significantly, with stable power output during long-hour continuous work. Simple engine structure reduces failure risks and extends maintenance cycles, lowering comprehensive operating costs for rental and long-term users.
-
High-Efficiency LS Load-Sensing Hydraulic System
The upgraded LS load sensing hydraulic system of the HYUNDAI HX60G crawler excavator intelligently distributes hydraulic flow and pressure according to working load. Lifting, digging, slewing and dozing movements run smoothly and synchronously with instant response speed. Built-in power boost mode instantly lifts digging force for hard soil and light rock tasks, improving daily construction output and attachment compatibility for breakers, augers and grab buckets.
-
Widened Reinforced Chassis & Long Service Life
The Hyundai HX60G mini crawler machine features widened and lengthened heavy-duty undercarriage and integrated thickened X-frame, greatly enhancing anti-torsion and anti-deformation capacity on slopes and uneven ground. Boom, arm and bucket all adopt high-strength wear-resistant steel with full penetration welding, effectively resisting impact and abrasion from frequent municipal and landscaping operations, extending whole-machine service life of the HYUNDAI HX60G crawler excavator.
-
Intelligent Comfortable All-Day Operating Cab
The fully sealed pressurized cab of the HYUNDAI HX60G crawler excavator isolates urban dust, construction noise and vibration. Standard one-button engine start, high-comfort suspension seat and humanized pilot handles drastically reduce operator fatigue during full-day shifts. Large panoramic windows and optional rear-view camera remove blind zones, ensuring safe and precise fine grading and trenching work in crowded urban environments.
-
Easy Access Maintenance & Global Spare Parts Supply

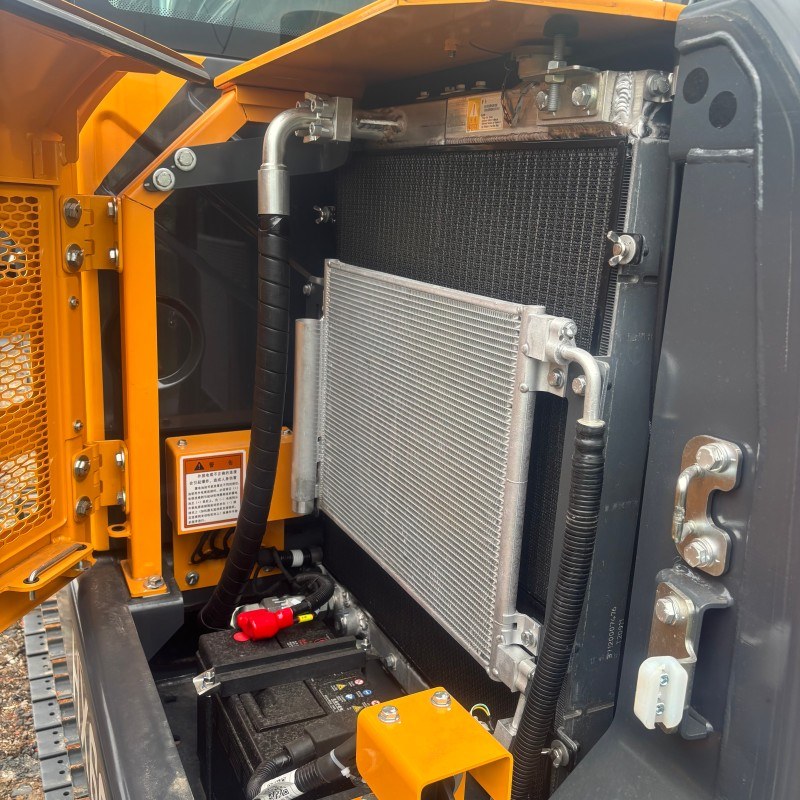

Three-side open engine hood of the HYUNDAI HX60G crawler excavator places all daily inspection, oil replacement and filter maintenance points at ground level for quick routine service. Standard universal spare parts are widely stocked worldwide, shortening machine downtime and cutting repair expenses. Versatile attachment compatibility enables multi-scenario operation, greatly improving return on investment for equipment rental businesses.
