Complete Technical Parameters

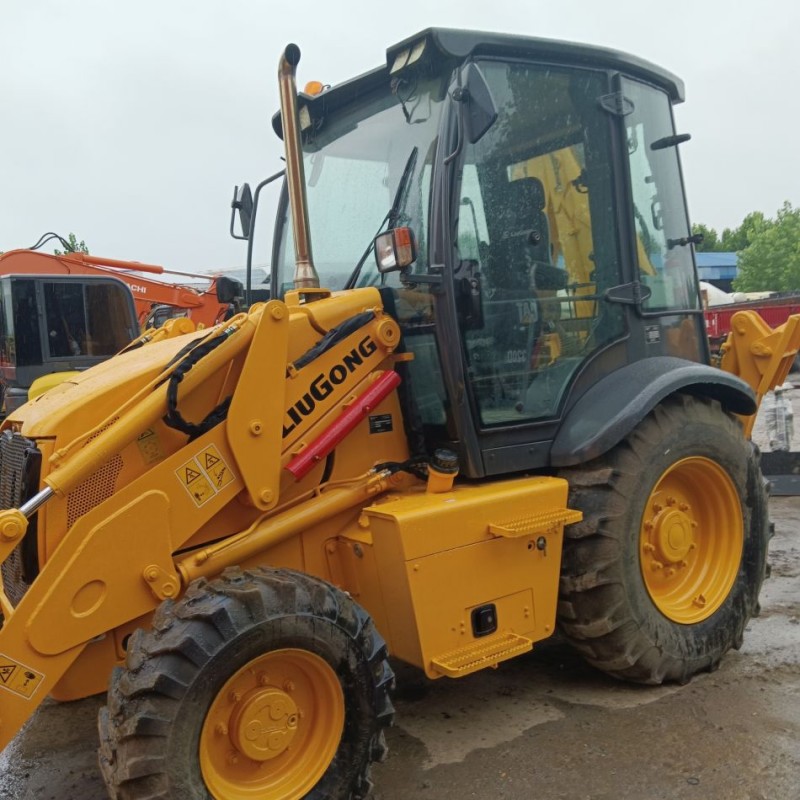

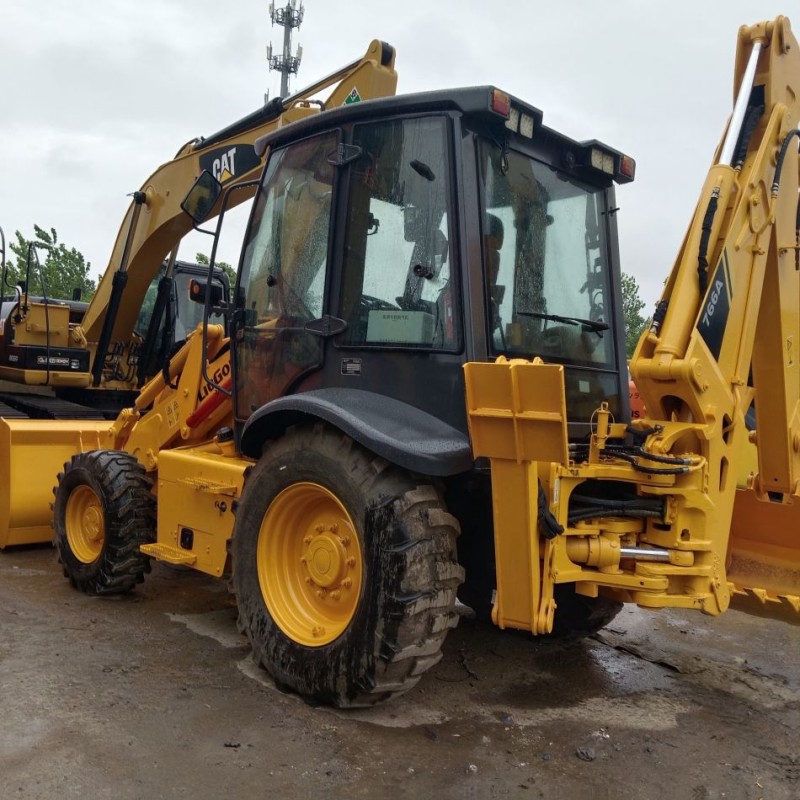

- Model: LIUGONG CLG766A Backhoe Loader
- Driving Mode: Optional 2WD / 4WD freely switch
- Total Operating Weight: 8100kg

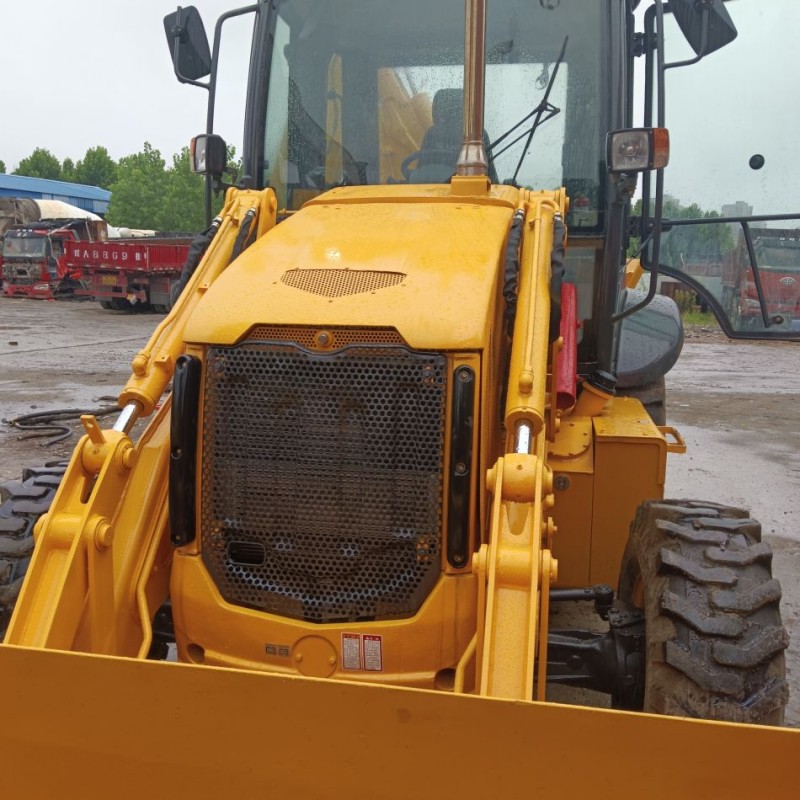

- Front Loading Device
Standard Bucket Capacity: 1.0m³
Maximum Breakout Force: 59.3kN
Maximum Dumping Height: 2691mm
Maximum Loading Reach: 890mm

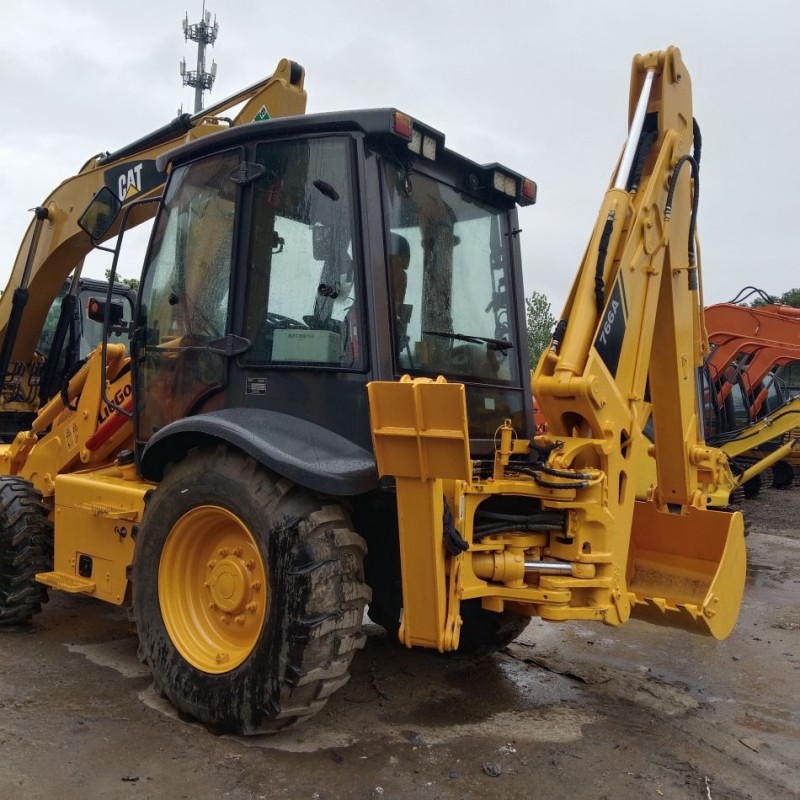

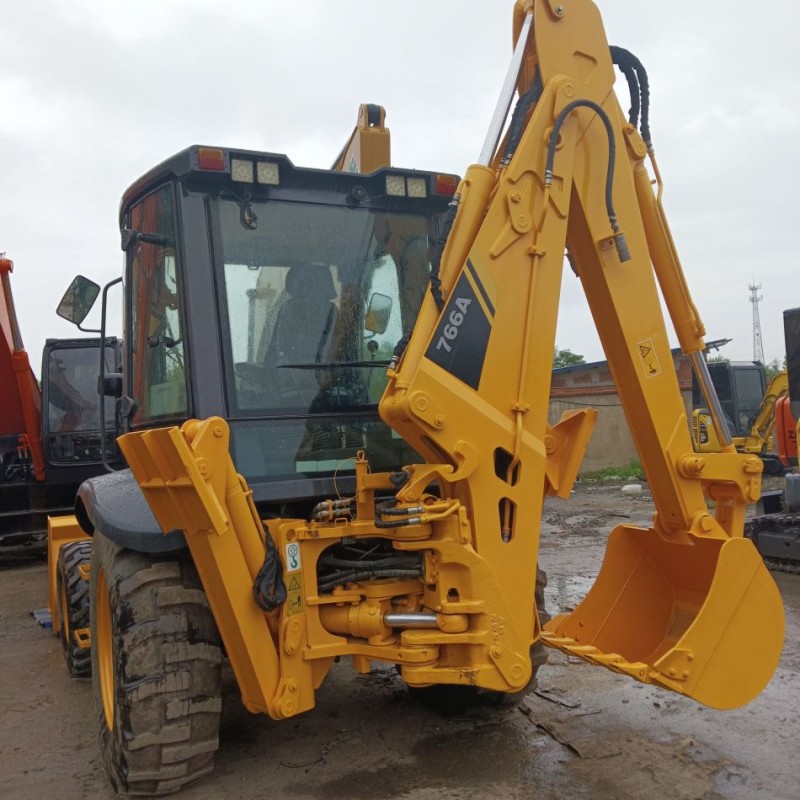

- Rear Digging Device
Digging Bucket Capacity: 0.2m³
Maximum Digging Depth: 4440mm
Maximum Digging Force: 58.2kN
Maximum Horizontal Working Reach: 5443mm
- Power Configuration
Optional Perkins 1104D-44T Diesel Engine
Optional Weichai WP4G95E221 Diesel Engine
Rated Power: 70kW – 74.5kW / 94HP – 100HP
Emission Standard: Tier 2 / Tier 3
- Running Performance
Maximum Travel Speed: 36km/h
Minimum Turning Radius: 3450mm
- Fuel System
Fuel Tank Capacity: 120L
- Overall Dimension
Length × Width × Height: 6970×2280×2876mm
- Safety & Comfort Configuration
ROPS & FOPS Safety Certified Cab
Panoramic Wide View Window
Optional Air Conditioning System
Vibration and Noise Reduction Design
Six Core Competitive Advantages
-
Reliable Original Power Assembly
Equipped with world-famous Perkins engine or domestic high-quality Weichai engine. Strong low-speed torque, stable power output and excellent cold start performance. Low fuel consumption effectively cuts daily operation expenditure, fits long-time heavy load construction work.
-
Super Loading & Digging Working Capacity
Front loading end owns powerful material pushing and stacking ability, quickly finish bulk cargo loading work. Rear digging arm reaches deep underground easily, suitable for foundation excavation and trench digging. Dual working design greatly improves comprehensive construction efficiency.
-
Reinforced Integral Durable Structure
Whole body uses thickened high-strength steel material and firm welding technology. Thickened boom, arm and digging bucket own strong wear resistance and impact resistance. Optimized chassis bearing structure effectively avoids deformation damage under harsh working conditions, prolong overall service life.
-
Precise Responsive Hydraulic Control System
Adopts advanced tandem gear pump hydraulic system, stable working pressure and sensitive action response. All working movements run smoothly without stuck phenomenon. Accurate operation control helps operators finish fine grading and shaping work conveniently.
-
Flexible Driving & Strong Terrain Adaptability
Support two-wheel drive and four-wheel drive free switching. Four-wheel drive mode provides powerful traction, freely pass muddy road, gravel ground and steep slope sites. Small turning radius suits narrow street, residential area and limited space construction scenes.
-

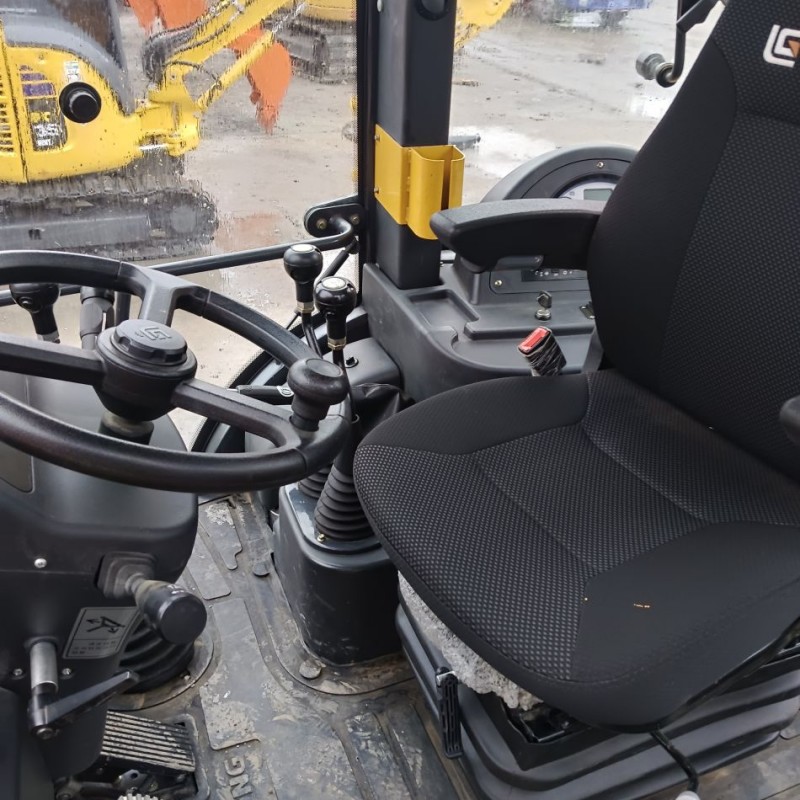

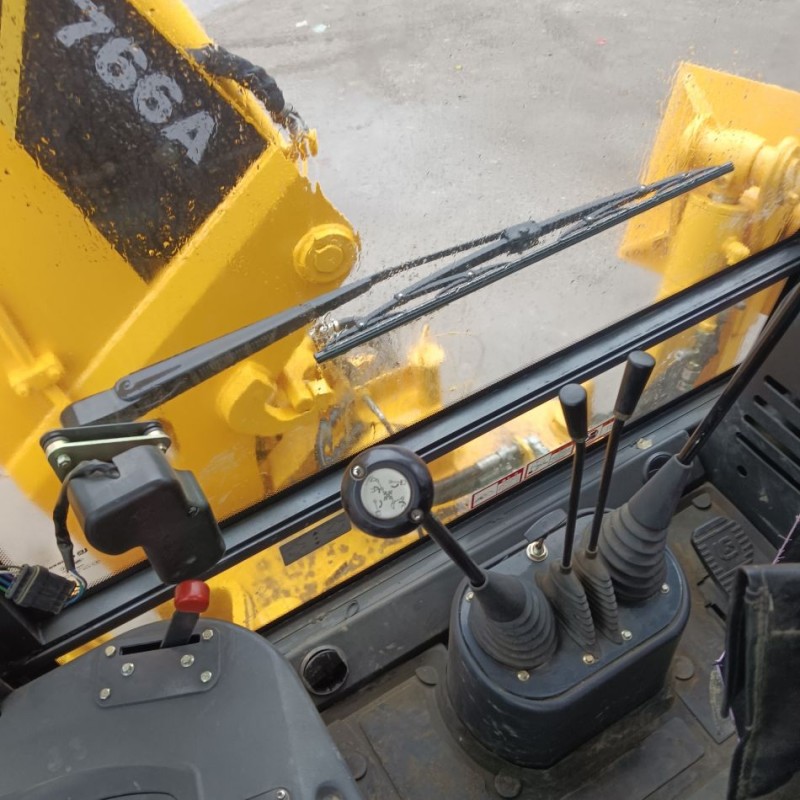

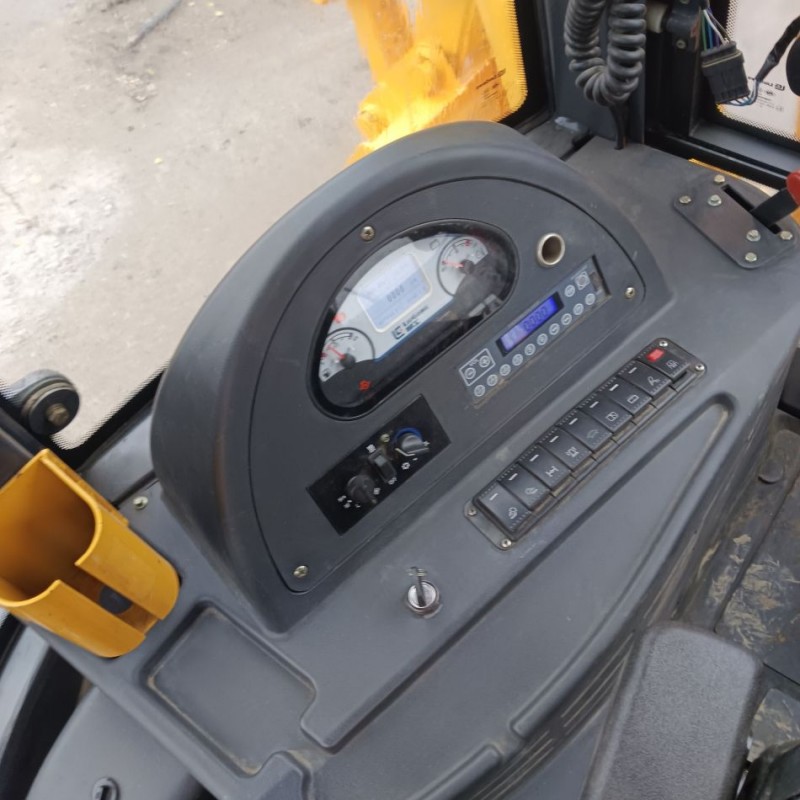

Humanized Operation & Convenient Daily Maintenance

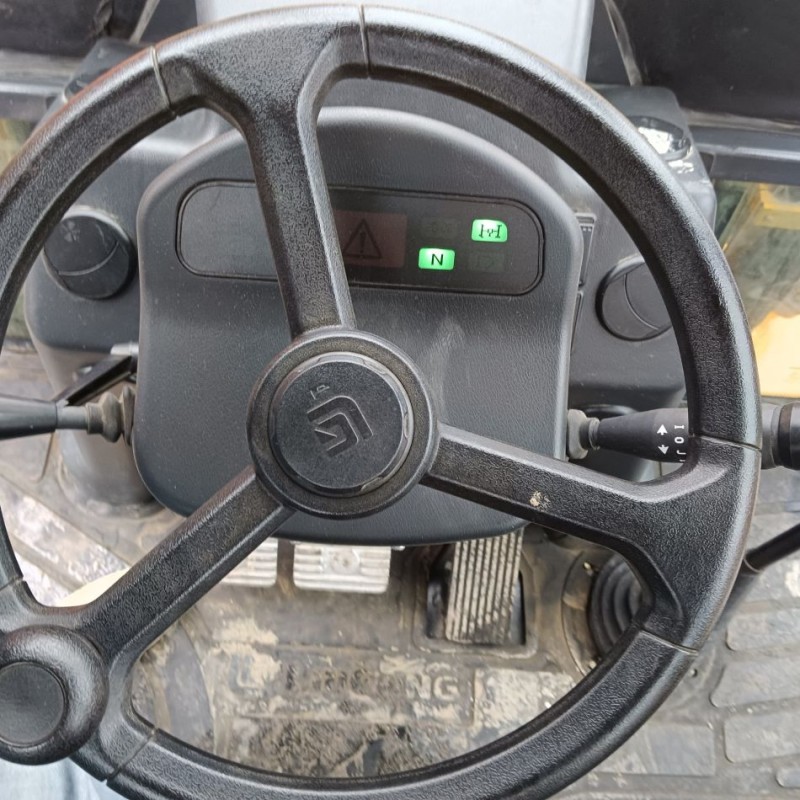

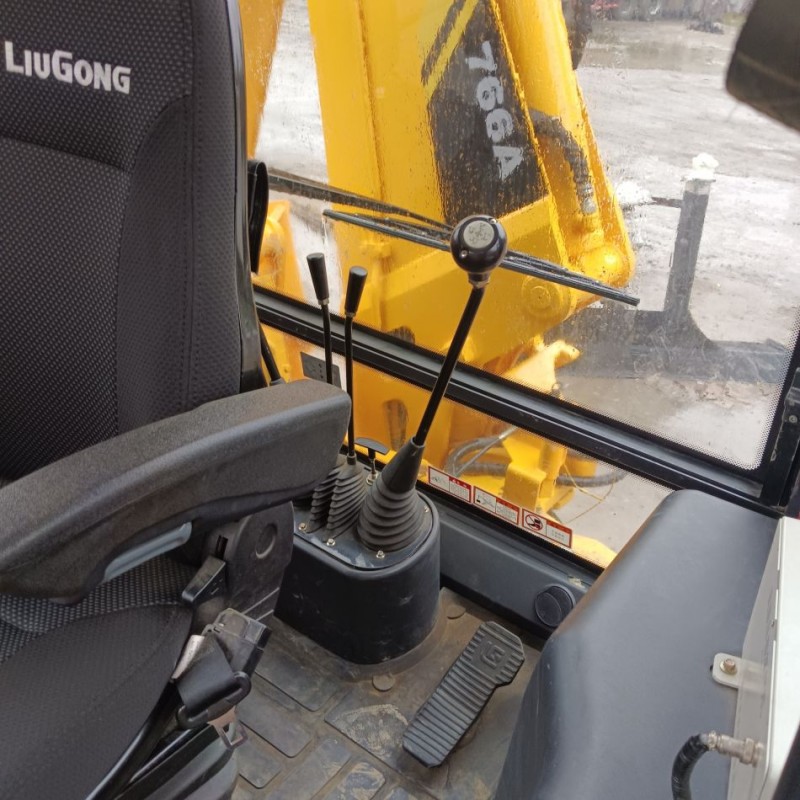

Ergonomic control layout, simple handle operation, new workers can get started quickly. Sealed cab reduces external noise and dust interference, creating comfortable working environment. Reasonable component layout makes daily inspection, oil replacement and fault maintenance simple and fast. Global standard spare parts supply lowers later maintenance difficulty.
