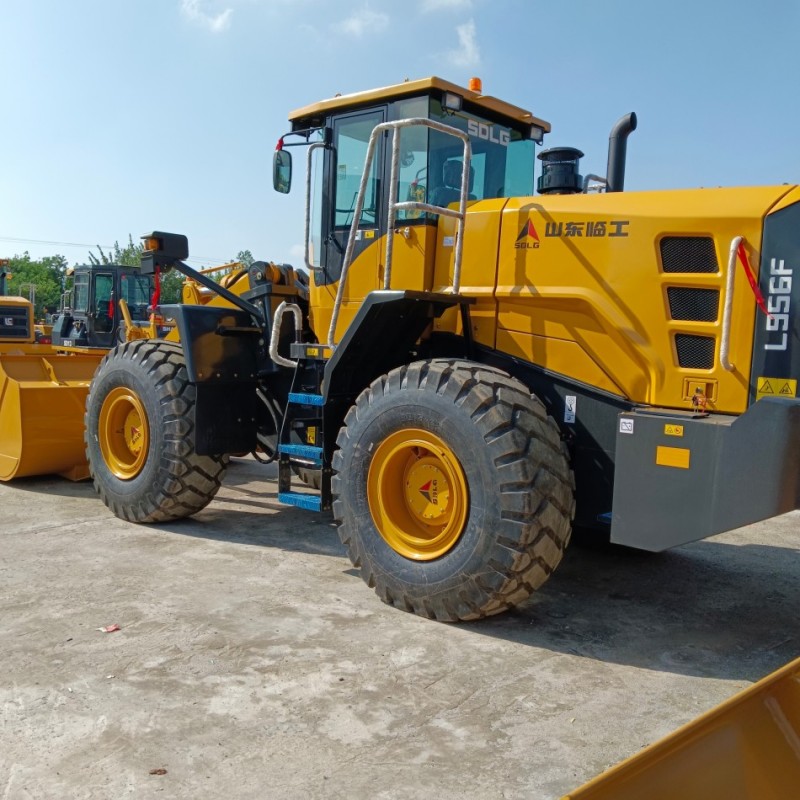

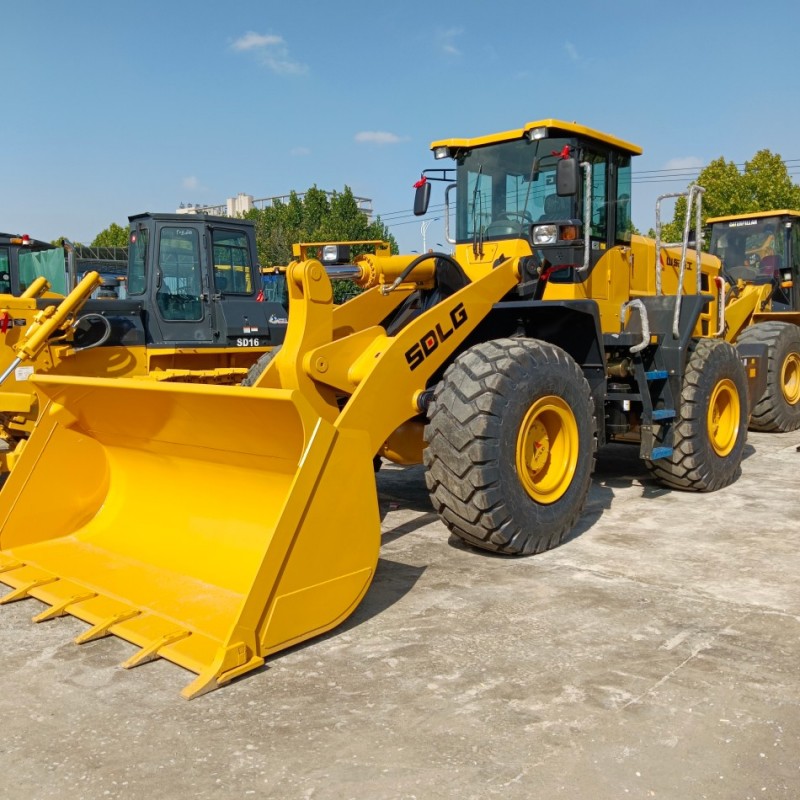

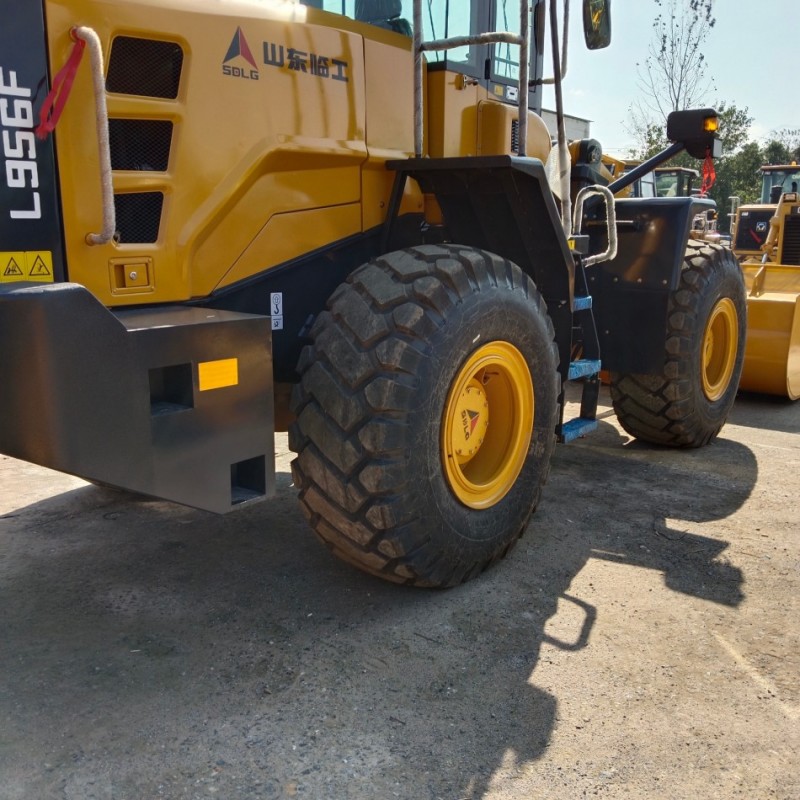

The SDLG L956F is a 5-ton (5000kg) long-wheelbase heavy-duty wheel loader, a flagship F-series model from Shandong Lingong (SDLG). It is powered by a Weichai WP10G270E23 diesel engine delivering 162kW (217HP) at 2000rpm, meeting China Stage II / Tier 2 emission standards. The standard 3.0m³ heavy-duty bucket provides a maximum breakout force of ≥175kN, ensuring efficient loading in tough mining and quarry conditions. Equipped with SDLG’s own BX50 planetary transmission and load-sensing hydraulic system, the L956F offers smooth operation and fast cycle times (≤9.8s). Built with a reinforced box frame and long 3300mm wheelbase, it delivers superior stability and durability for heavy-duty applications.
Technical Parameters
- Model：SDLG L956F Wheel Loader
- Rated Power：162kW / 217HP @ 2000rpm
- Engine：Weichai WP10G270E23 (6-cylinder)
- Emission Standard：China Stage II / Tier 2
- Rated Load：5000 kg (5 ton)
- Standard Bucket Capacity：3.0 m³ (range: 2.7–4.5 m³)
- Operating Weight：17,450 kg
- Max. Breakout Force：≥175 kN
- Hydraulic Cycle Time (Total)：≤9.8 s
- Wheelbase：3300 mm
- Min. Turning Radius (Tire Outer)：6325 mm
- Articulation Angle：35°
- Max. Dumping Height：3040 mm
- Fuel Tank Capacity：280 L
- Overall Dimensions (L×W×H)：8180 × 3024 × 3423 mm
Core Advantages
Weichai Power & Fuel Efficiency

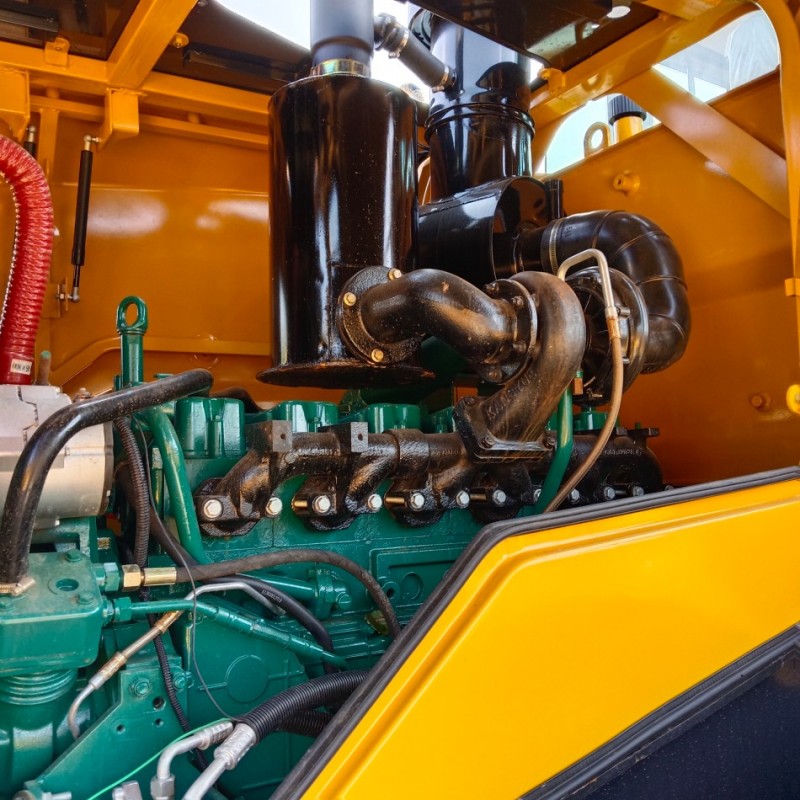

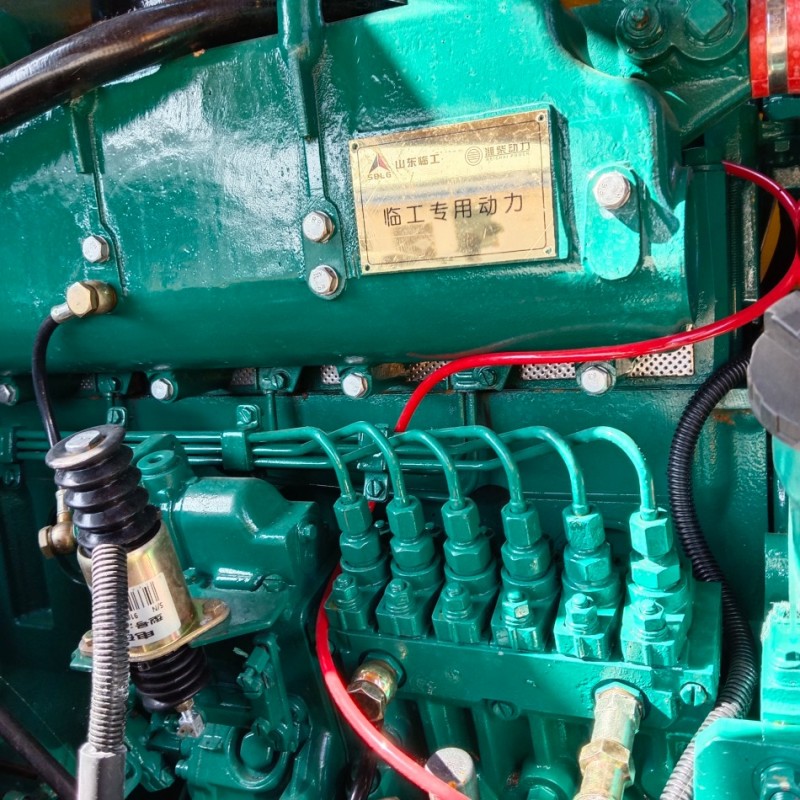

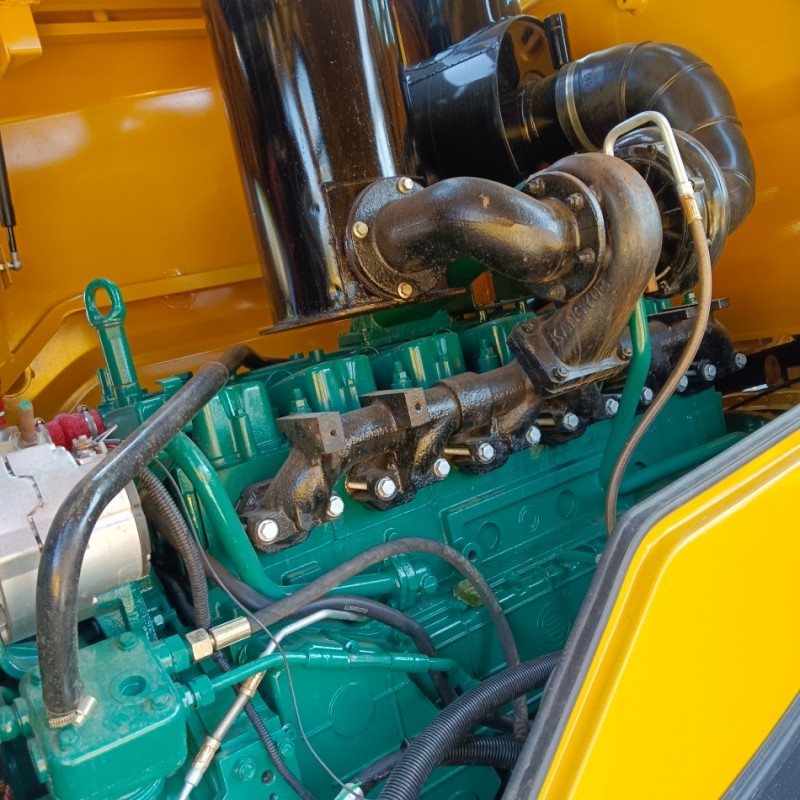

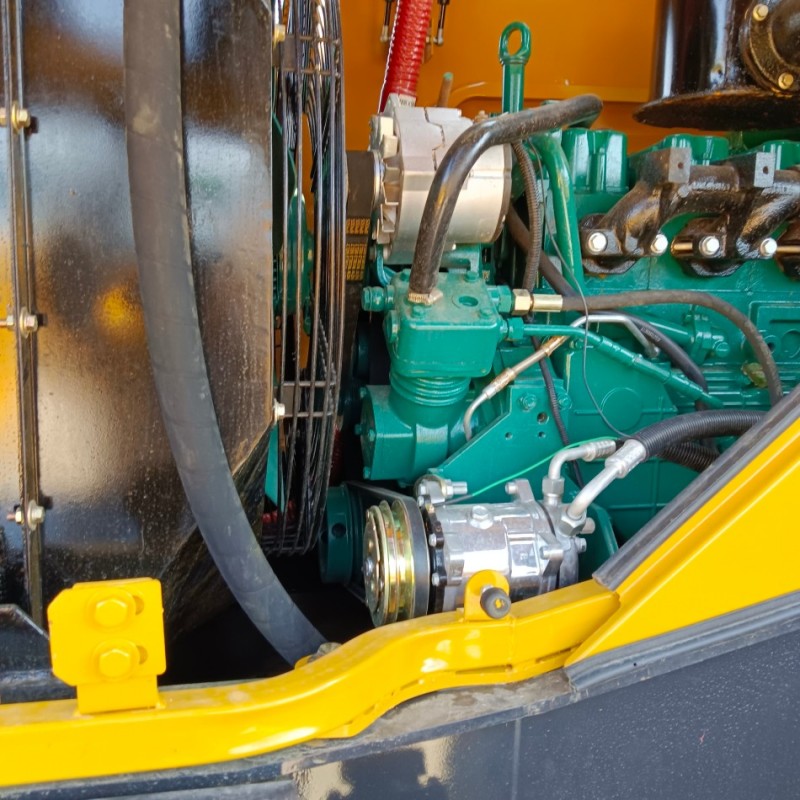

Powered by a Weichai WP10G270E23 low-speed high-torque engine with 217HP and 1500N·m peak torque, the L956F delivers strong digging power and 15–20% lower fuel consumption than older models. Proven reliability in global mining and construction projects.
Strong Breakout Force & Stability
≥175kN breakout force + 3300mm long wheelbase provide superior stability and lifting capacity. Optimized bucket geometry ensures fast filling and high efficiency in heavy materials.
Reinforced Structure & Durability
Reinforced box-type frame and thickened high-strength steel bucket provide superior impact resistance. Heavy-duty LG A515 axles with rear axle swing design ensure stability on rough terrain; key components tested for 10,000+ hours in harsh conditions.
Reliable Transmission & Hydraulics

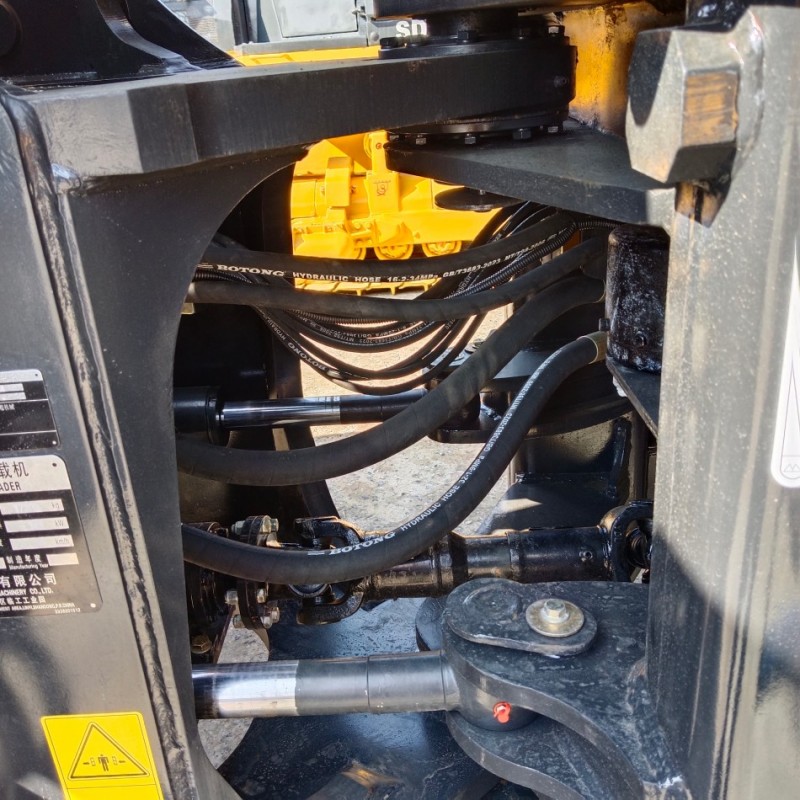

SDLG BX50 planetary transmission with high efficiency and durability. Load-sensing hydraulic system reduces energy waste; Parker multiway valves and Permco pumps ensure reliable performance.
Comfort Cab & Easy Maintenance

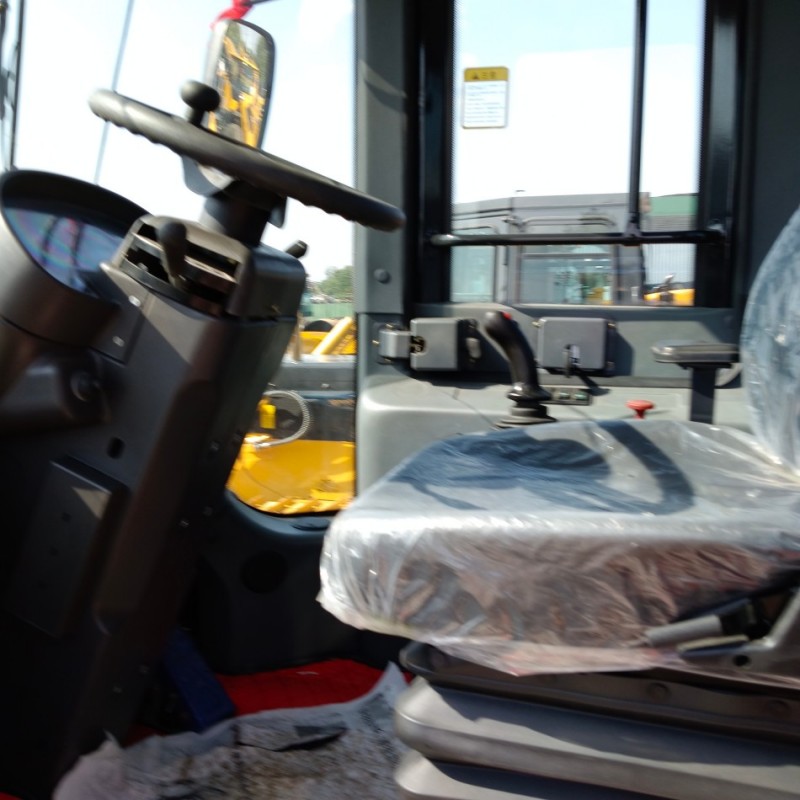

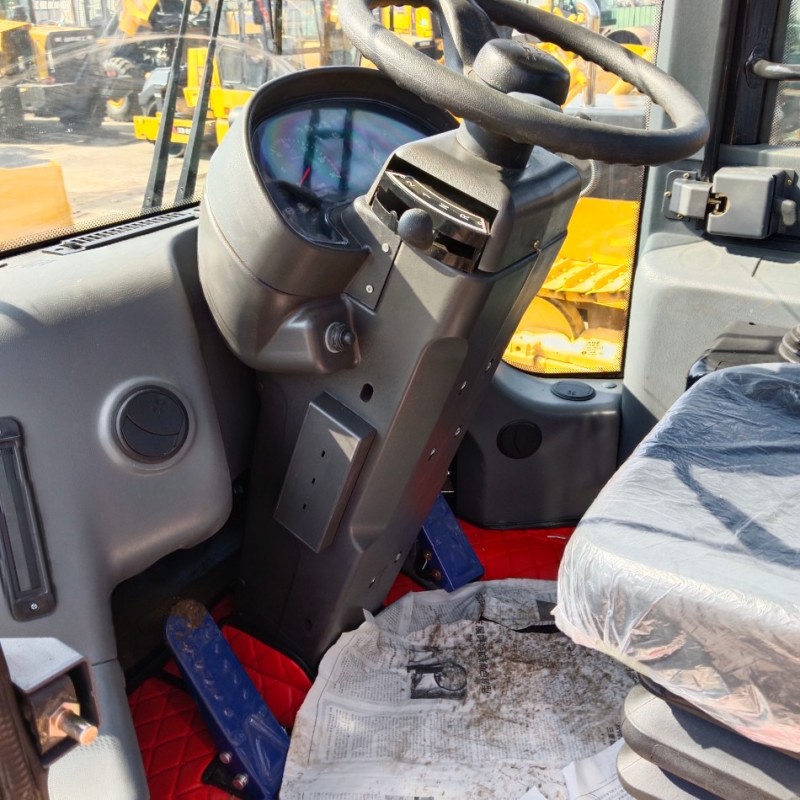

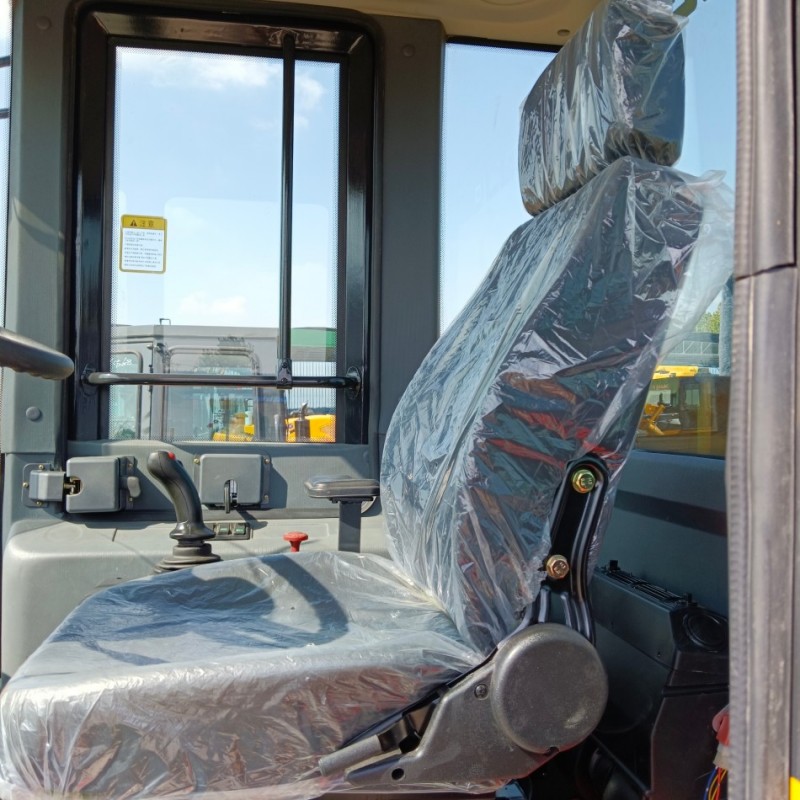

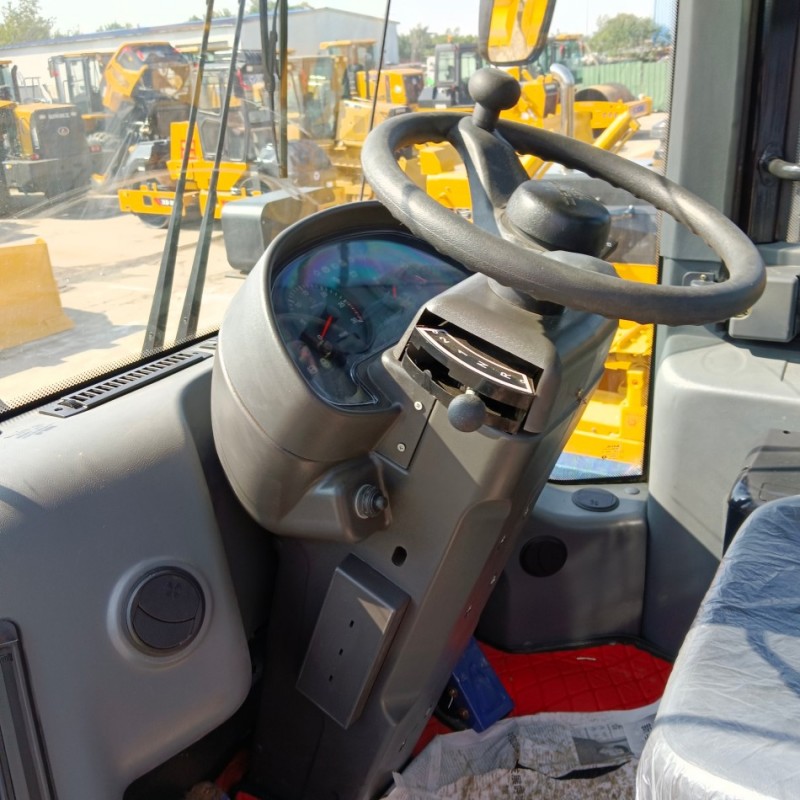

Ergonomic cab with 15% more space and 360° visibility, reducing operator fatigue. Air conditioning and mechanical suspended seat ensure comfort. Large-opening engine hood and ground-level service points simplify daily maintenance, minimizing downtime.
Application Scenarios
- Mining & quarry rock/stone loading
- Construction site earthmoving & material handling
- Port & terminal cargo loading/unloading
- Coal yard & bulk stockpile management
- Municipal road repair & snow removal
- Heavy industrial & logistics applications
