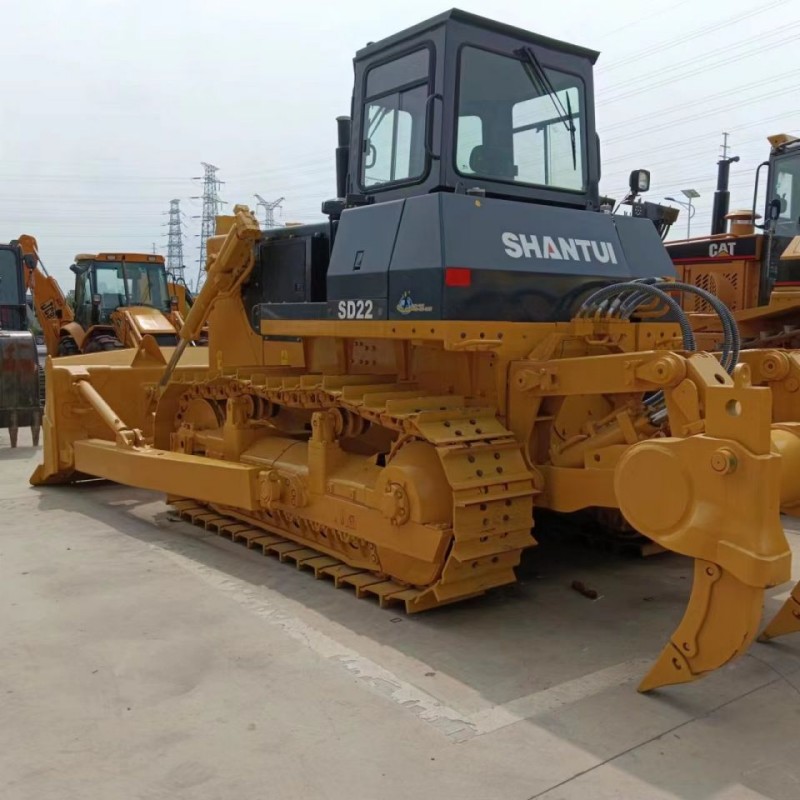

SHANTUI SD22 Bulldozer
1. Basic Introduction
2. Main Technical Parameters
- Model: SHANTUI SD22 Crawler Bulldozer
- Operating Weight: 23450 kg
- Engine Model: Cummins NT855-C280S10 / Weichai WP12G240E306
- Rated Power: 175kW (238HP) @1800rpm
- Emission Standard: China Stage III / Euro 3

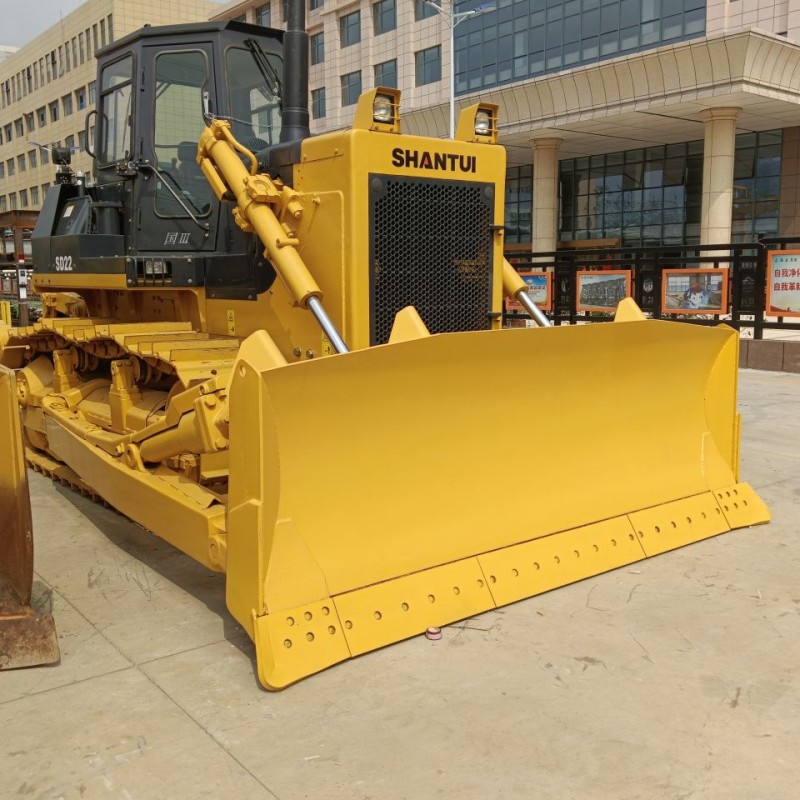

- Blade Type: Straight blade, Semi-U blade, U blade optional
- Standard Blade Capacity: 6.4~7.5 m³
- Travel Speed: Forward 0-11.2km/h, Reverse 0-13.2km/h
- Fuel Tank Capacity: 450L
- Ground Pressure: 66kPa
- Overall Dimension: 5495×3725×3402mm
3. Product Advantages
-

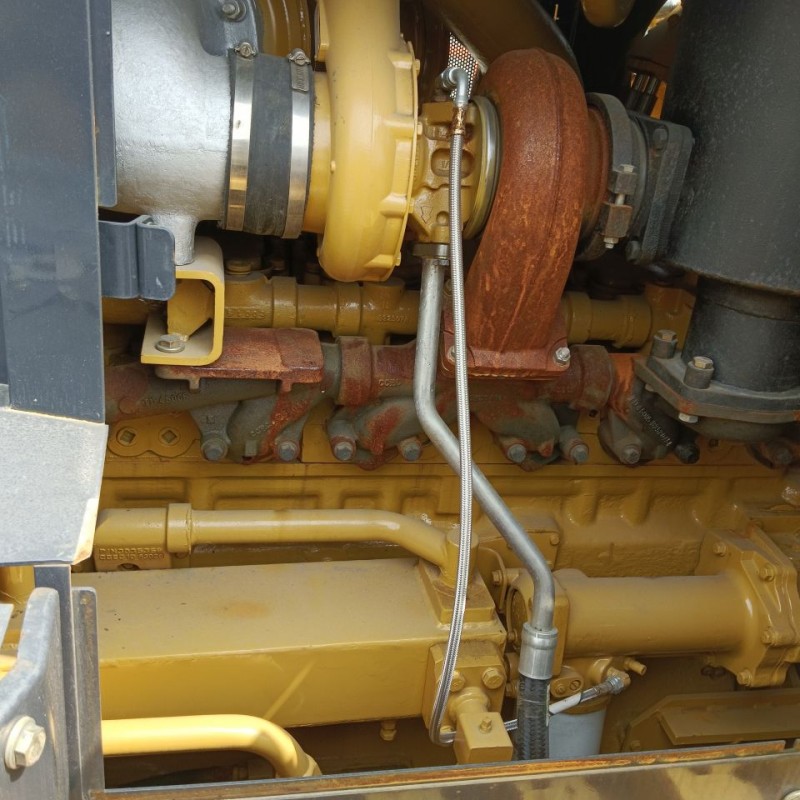

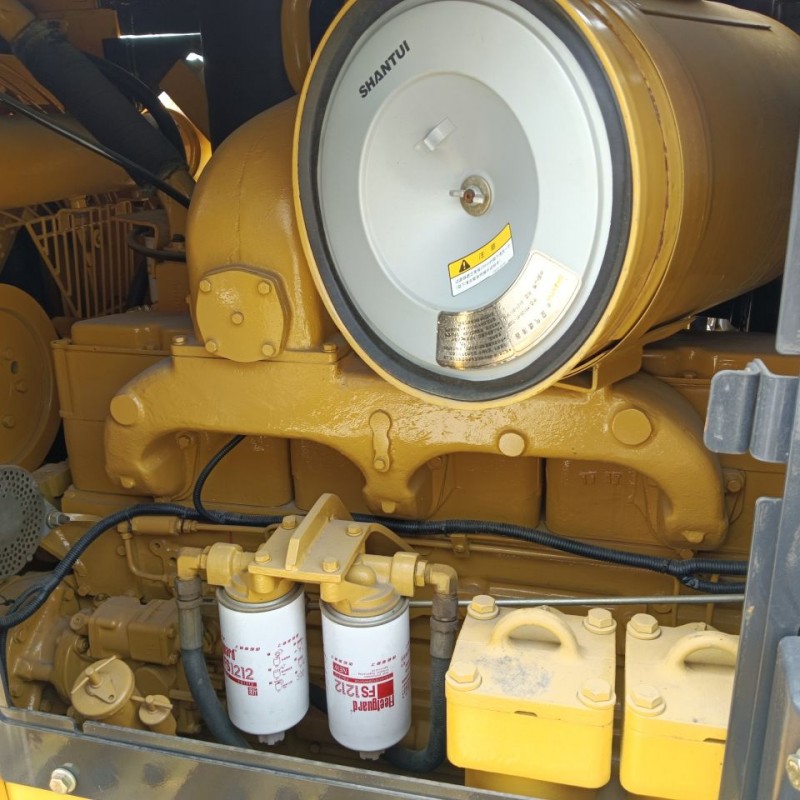

Strong & Reliable Power
Equipped with famous brand turbocharged diesel engine, it owns sufficient torque reserve, strong climbing ability and stable power output, suitable for plateau, cold area and heavy load working conditions with low fuel consumption.
-
Durable Heavy-duty Structure

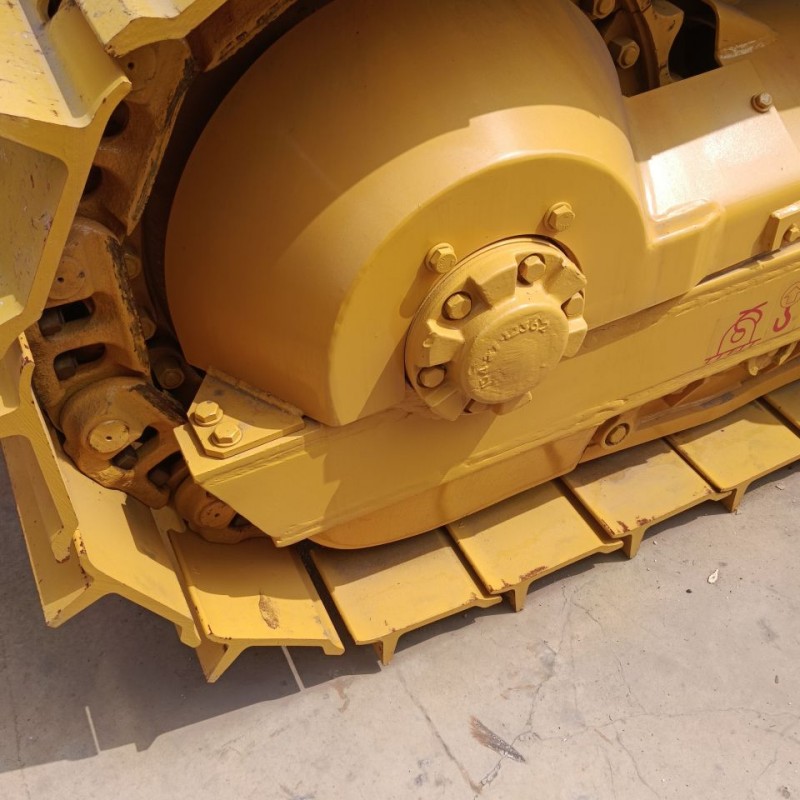

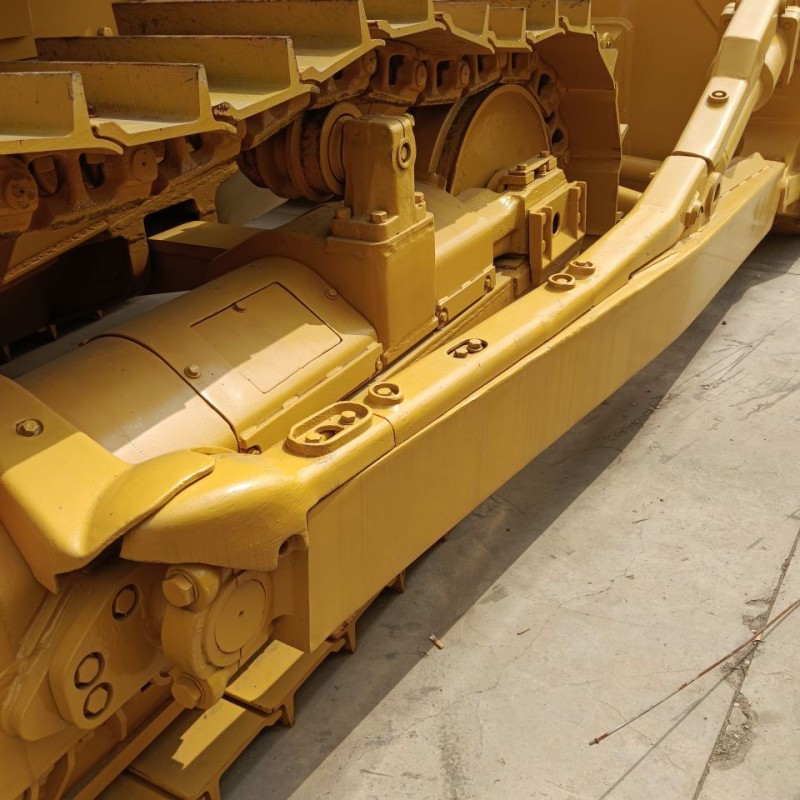

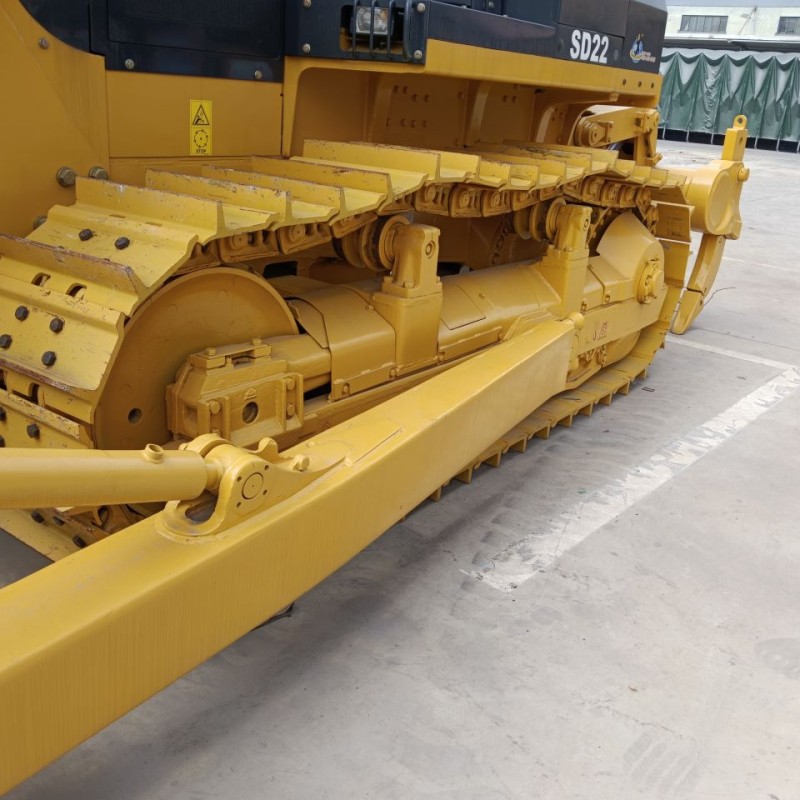

Adopts high strength integral frame, reinforced track frame and wear-resistant track shoes. The whole machine is solid and shock-resistant, long service life and low failure rate.
-
Efficient Hydraulic Control System
Full hydraulic operation for bulldozer blade and rear ripper, flexible movement, easy operation and high working efficiency.
-

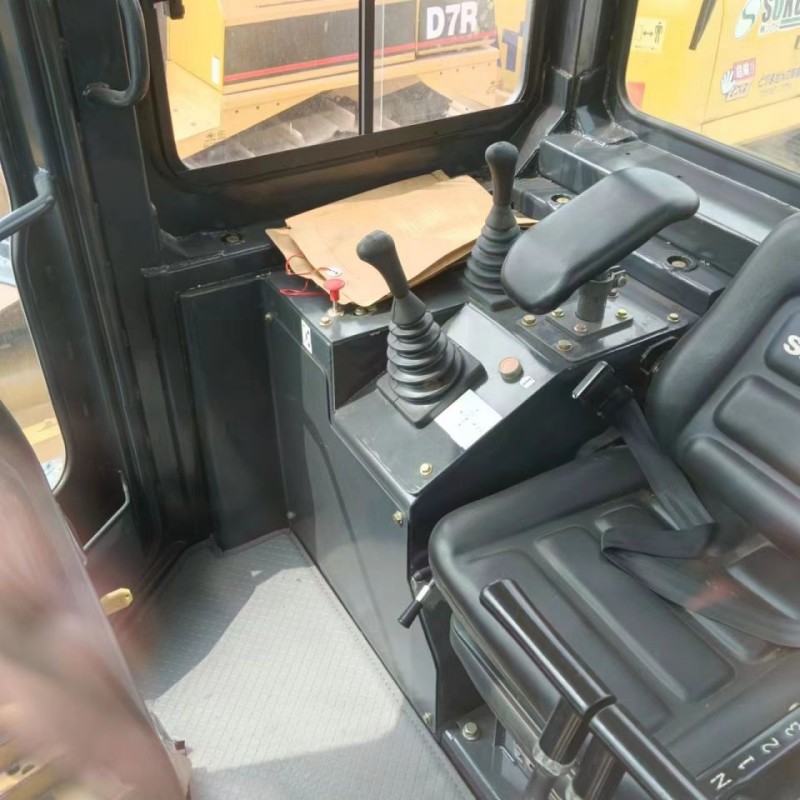

Safe & Comfortable Cab
Equipped with ROPS & FOPS protection structure, good sealing, noise reduction and wide vision, effectively improve driving comfort and construction safety.
-
Easy Maintenance & Low Cost
Reasonable overall layout, easy access for daily inspection, oil change and parts replacement. Spare parts are widely available with affordable maintenance cost.
4. Working Configuration & Application
It can be installed with single-tooth ripper or multi-tooth ripper to break hard soil, frozen soil and soft rock quickly.
Various modified versions are available: wetland type, desert type, forest type and sanitation type.
It is perfectly suitable for highway, railway, airport, reservoir, farmland renovation and open-pit mine construction projects all over the world.
