Product Description

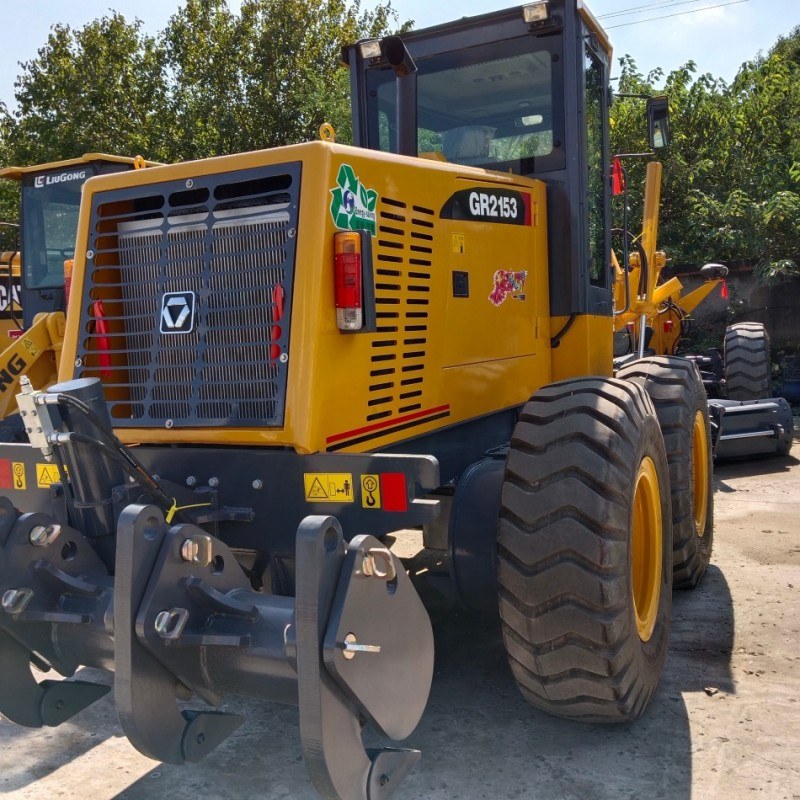

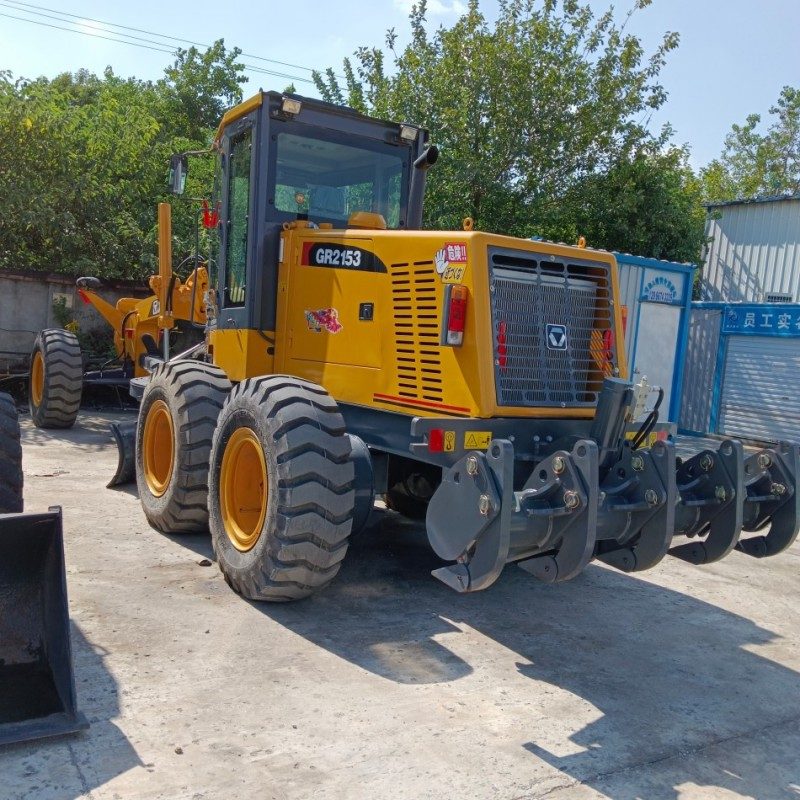

The XCMG GR2153 is a 16.5-ton, 162kW (220HP) heavy-duty motor grader, widely used in road construction and large earthmoving projects. It is equipped with a Cummins B6.7/QSB6.7 diesel engine, meeting Euro 5 emission standards, with strong low-speed torque and excellent fuel economy. The 4270mm heavy-duty blade supports multi-angle adjustment, enabling accurate leveling, ditching, slope cutting and material spreading. The reinforced box frame and optimized hydraulic system ensure stable performance under heavy loads and harsh conditions. As a cost-effective choice for contractors worldwide, the GR2153 delivers high efficiency and reliability in highways, airports, ports, farmland and municipal maintenance.
Technical Parameters
- Model：XCMG GR2153 Motor Grader
- Rated Power：162kW / 220HP @ 2200rpm
- Engine：Cummins B6.7 / QSB6.7
- Emission Standard：Euro 5
- Operating Weight：16,500 kg

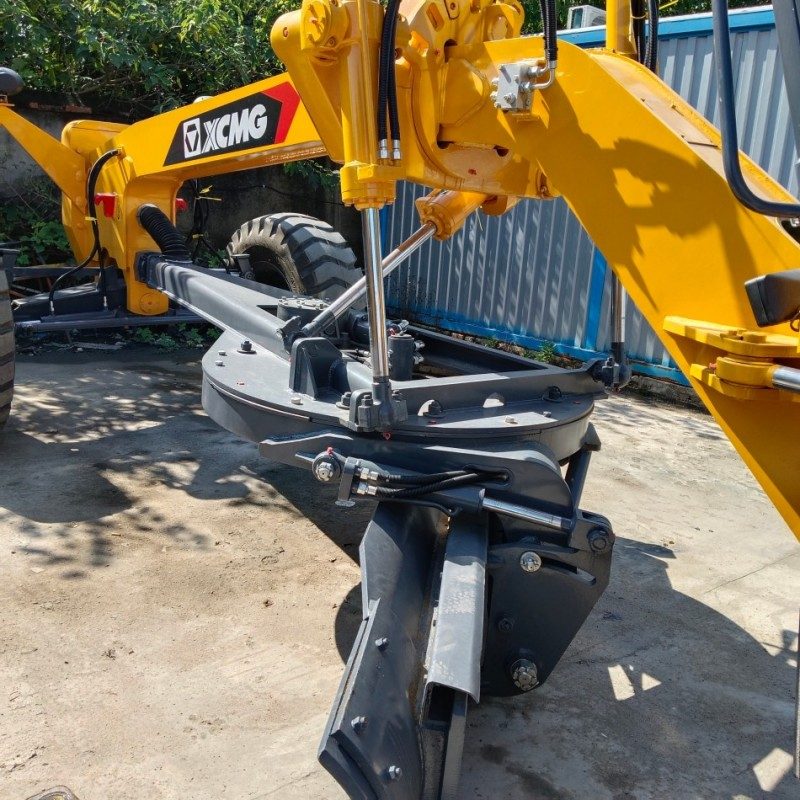

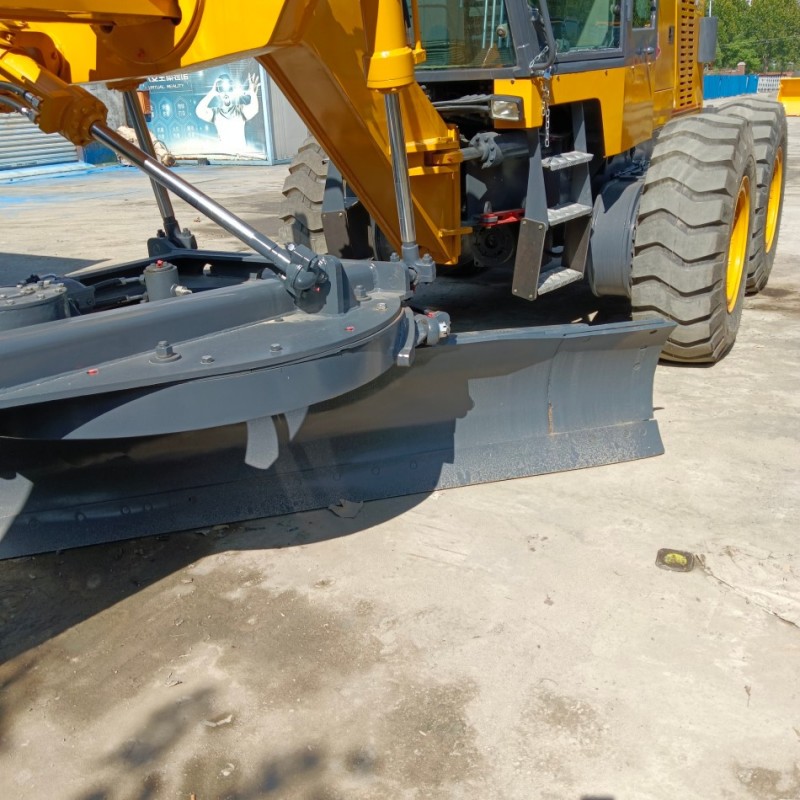

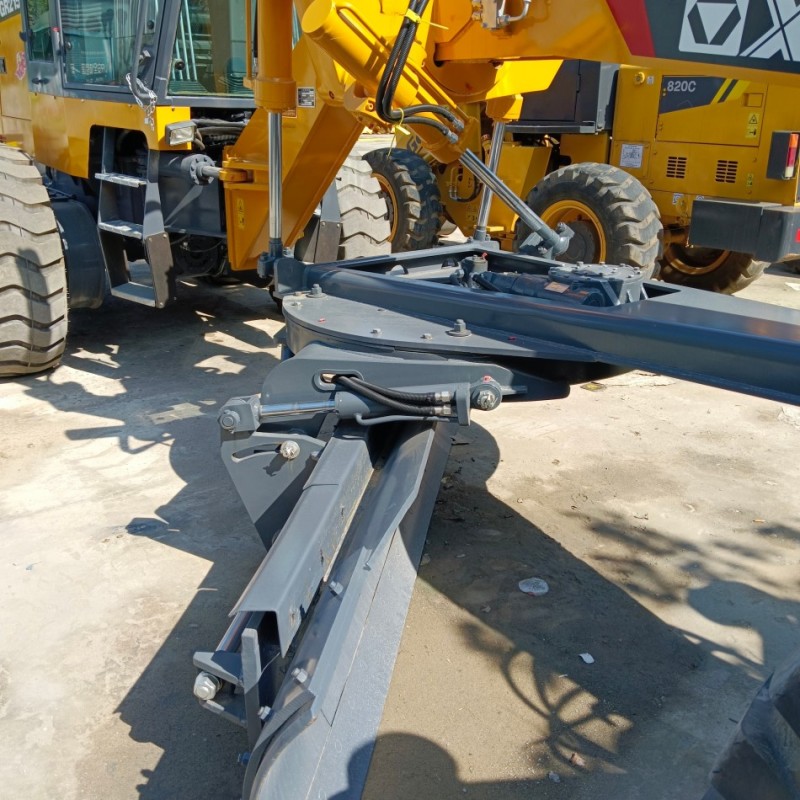

- Blade Size：4270 × 610 mm
- Max. Digging Depth：550 mm
- Max. Blade Lift：450 mm
- Forward Speed：5/8/11/19/23/38 km/h
- Reverse Speed：5/11/23 km/h
- Fuel Tank Capacity：280 L
- Overall Dimensions (L×W×H)：8970 × 2625 × 3420 mm
Core Advantages
Euro 5 Emission & Fuel-Saving Power
Powered by a Cummins Euro 5 engine, the GR2153 provides stable 220HP power with variable power control (Power/Eco modes), reducing fuel consumption by up to 8% compared to older models. Low-speed torque is boosted for heavy digging and grading.

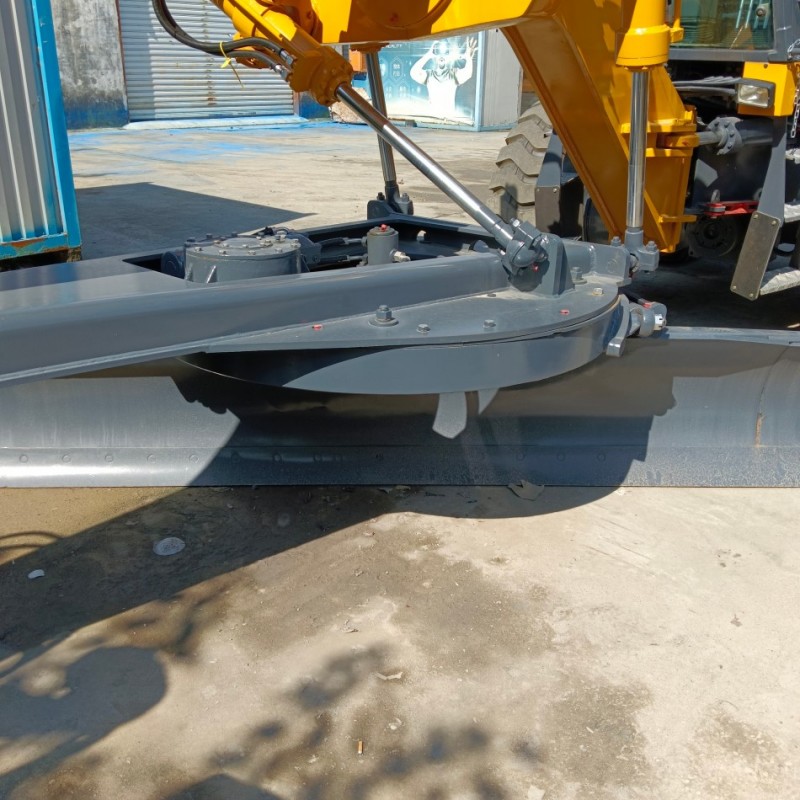

Precise Grading & High-Efficiency Hydraulics

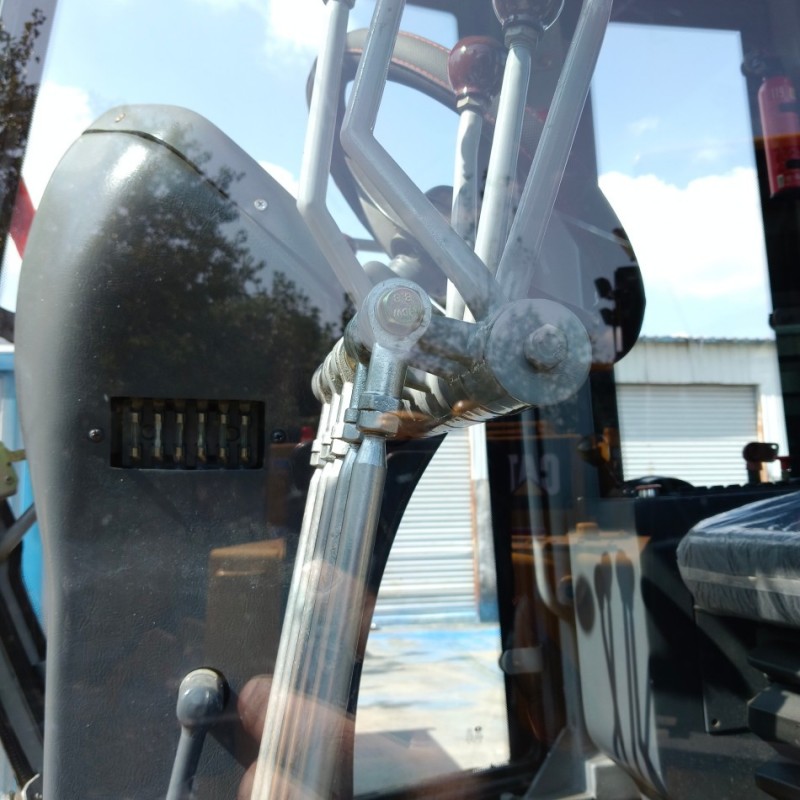

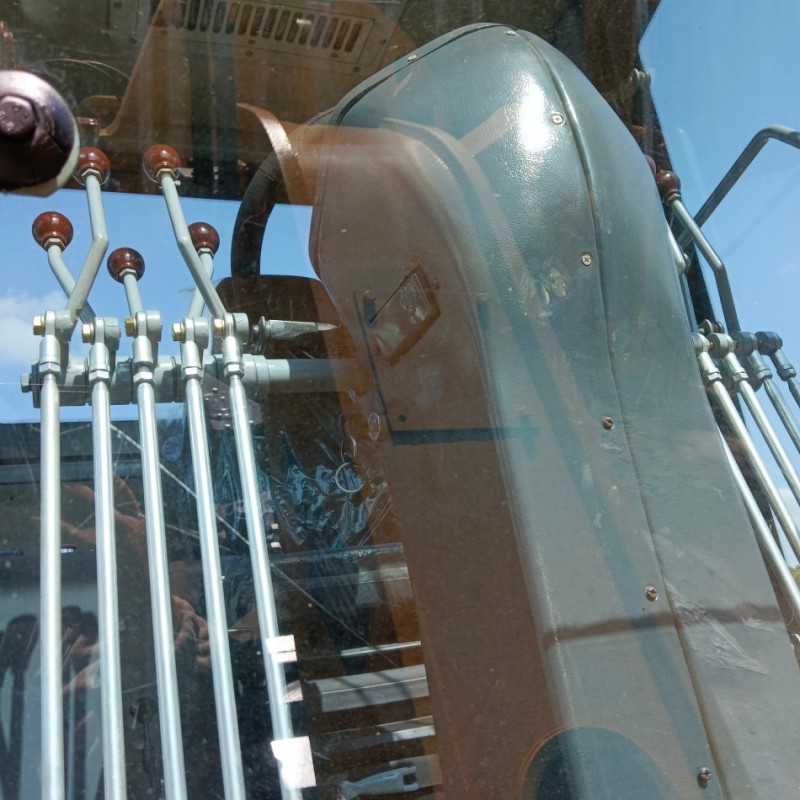

Advanced PPC hydraulic system enables faster, smoother blade movements. The optimized blade curve ensures efficient soil turning and spreading, delivering high-precision flat surfaces required for highway and airport projects.
Heavy-Duty Structure & Long Service Life
Reinforced box-type frame and thickened high-strength steel blade offer excellent impact resistance. Key components undergo CAE optimization and heat treatment, ensuring durability under long-term heavy-duty conditions.

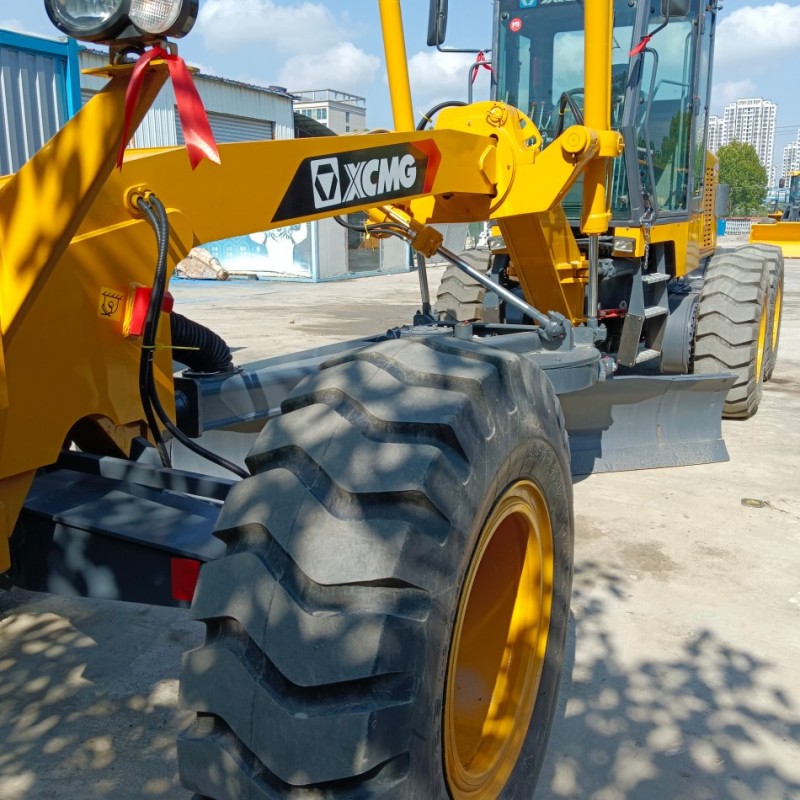

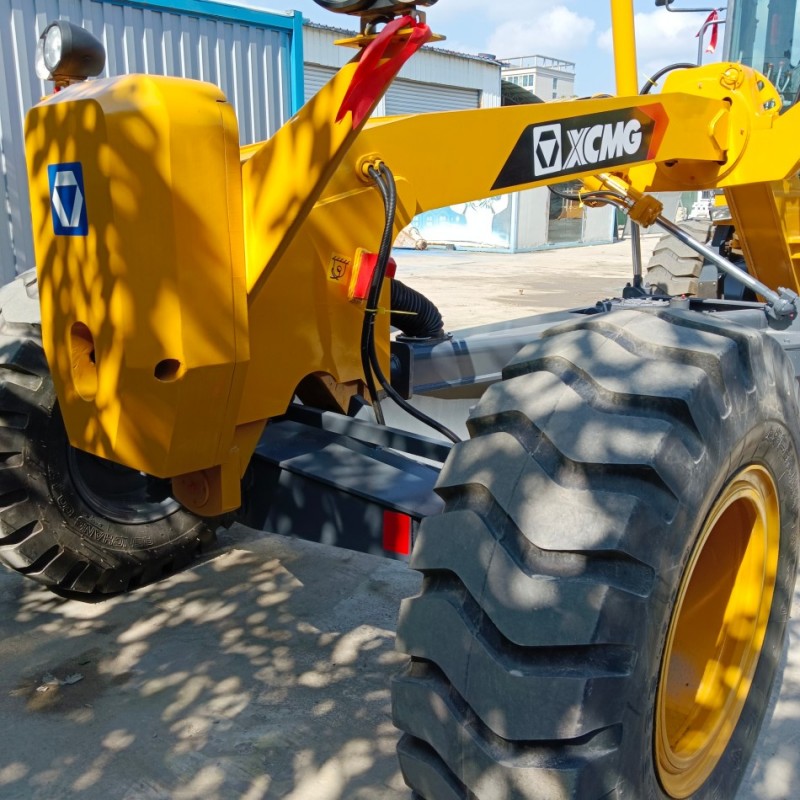

Strong Traction & Good Maneuverability
Articulated frame + heavy-duty front axle deliver a minimum turning radius of 7.3m, suitable for narrow job sites. Equipped with herringbone tires, traction reaches ≥85kN (f=0.75) for stable operation on muddy or loose ground.

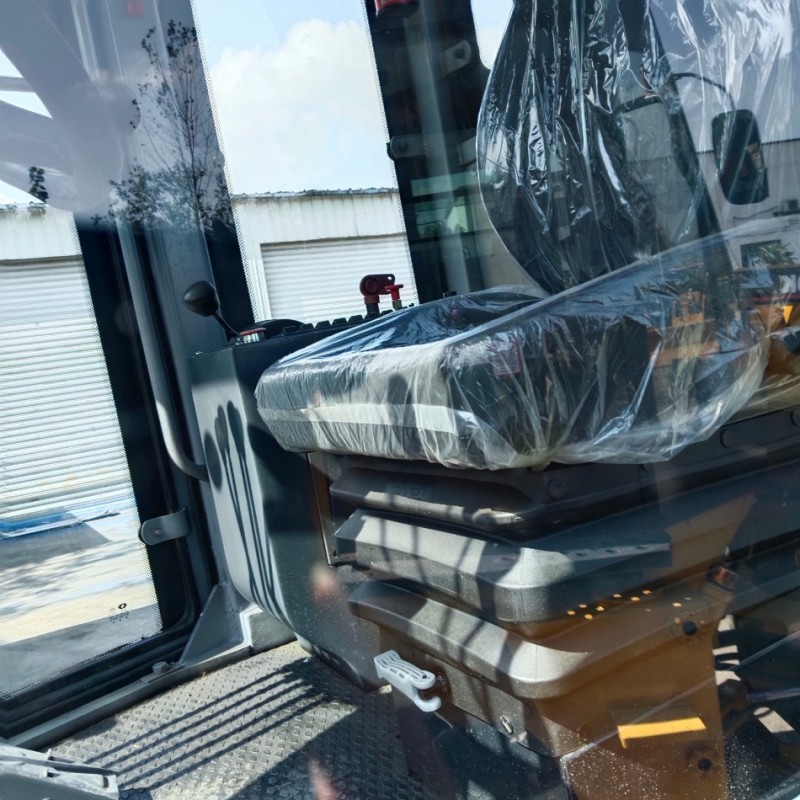

Comfort Cab & Easy Maintenance
Sealed, vibration-dampened cab with 6-point mounting reduces noise and operator fatigue. Centralized maintenance points and a hydraulic tilting engine hood simplify daily inspection and servicing, lowering operating costs.
Application Scenarios
- Highway base & surface leveling
- Municipal road repair and maintenance
- Airport, port and industrial site grading
- Slope trimming, ditching and drainage works
- Snow removal and road clearing
- Large earthmoving and land development
