Complete Technical Parameters
Basic Vehicle Data

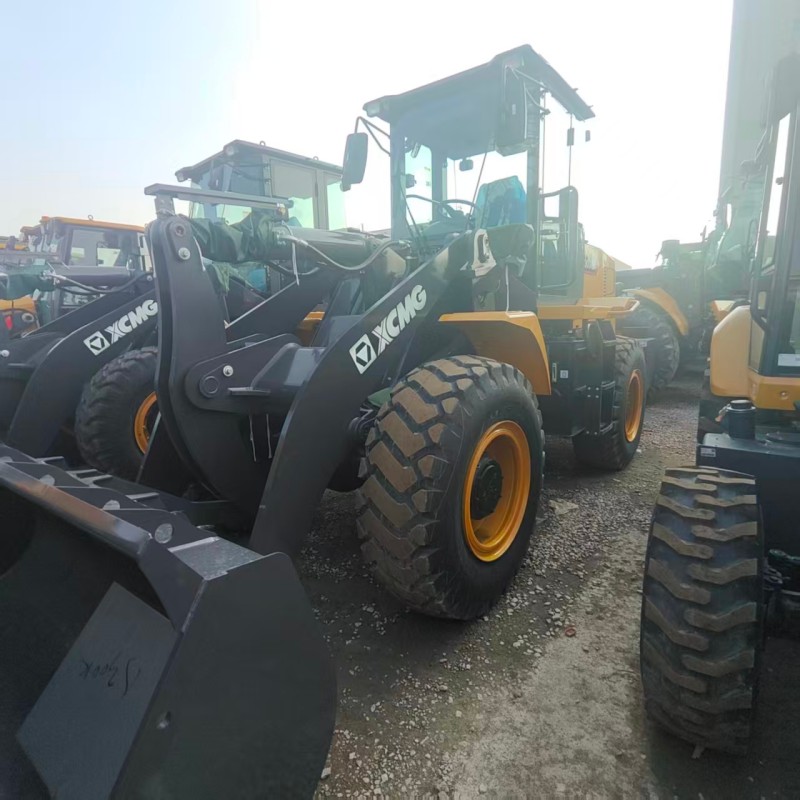

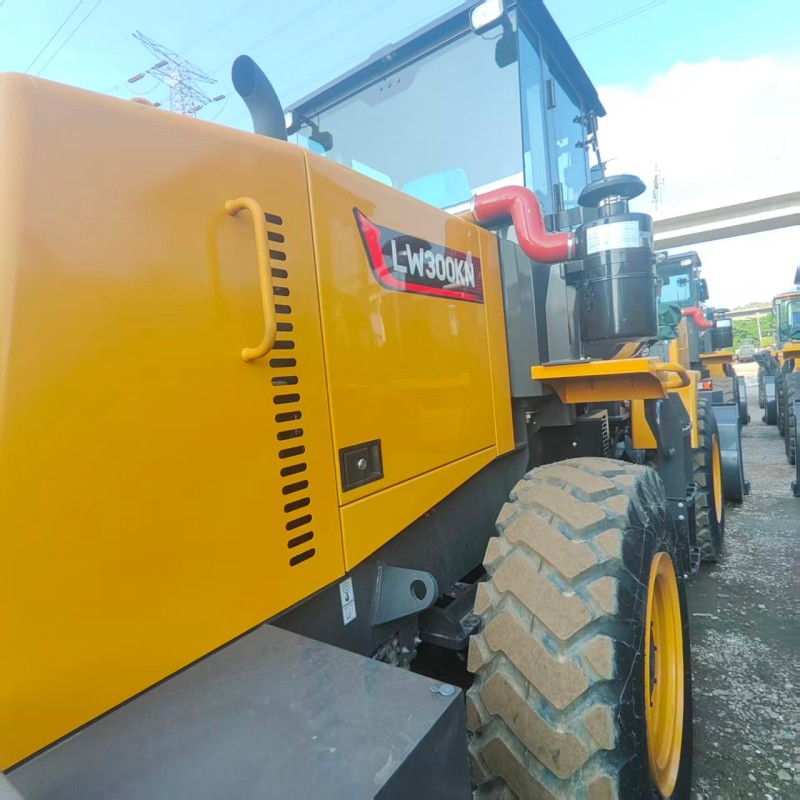

- Model: XCMG LW300KN Wheel Loader
- Rated Standard Load: 3000kg
- Operating Weight: 10900kg

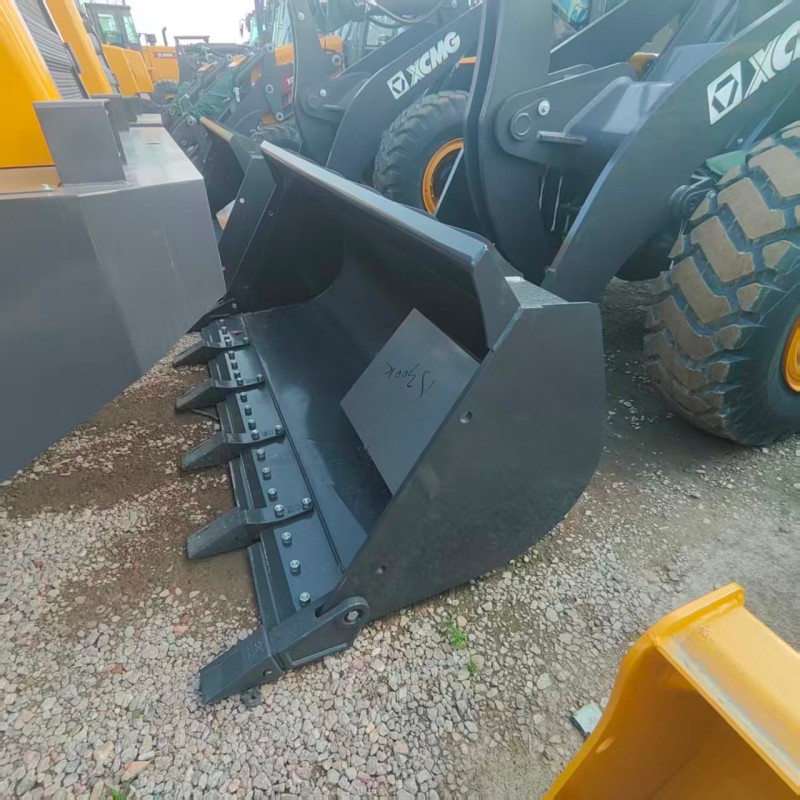

- Standard Bucket Capacity: 1.5m³, optional 2.0m³ / 2.5m³ / 3.0m³
- Overall Dimension(L×W×H): 7245×2482×3320mm
- Wheelbase: 2900mm
- Track Width: 1850mm
- Minimum Turning Radius: 6070mm
- Maximum Driving Speed: 40km/h
- Maximum Climbing Gradient: 28°
- Fuel Tank Volume: 170L
- Hydraulic Oil Tank Volume: 175L
- Standard Tire Specification: 17.5-25-12PR
Working Performance Parameter
- Maximum Breakout Force: 130kN
- Maximum Traction Force: 100kN
- Maximum Dumping Height: 2770mm
- Maximum Dumping Reach: 1010mm
- Maximum Lifting Height: 4870mm
- Total Hydraulic Working Cycle Time: ≤9.8s
- Boom Lifting Time: ≤5.6s

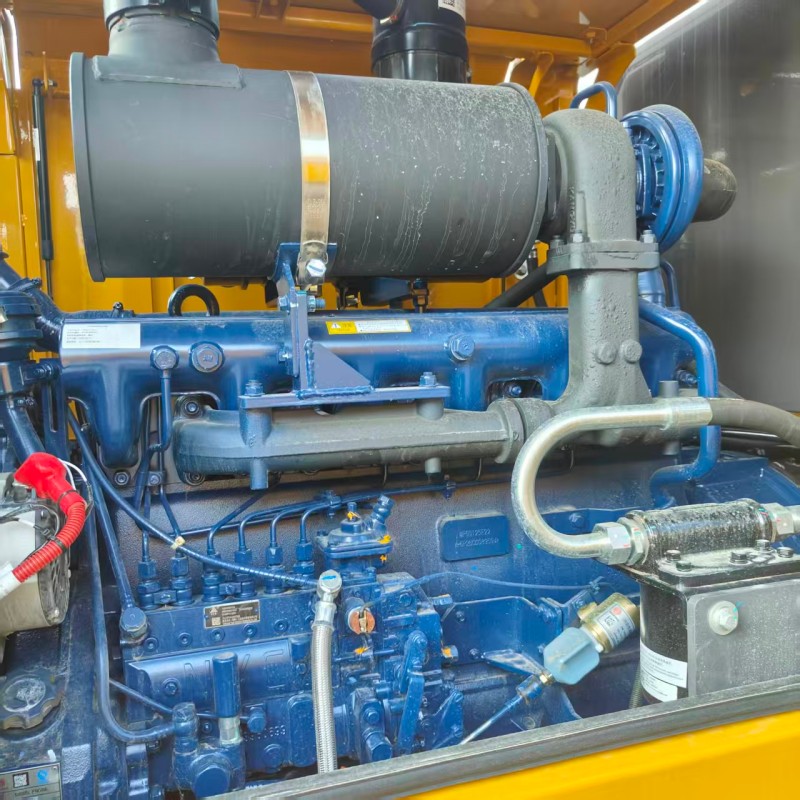

Power System Configuration
- Optional Engine Brand: Weichai / Yuchai Diesel Engine
- Rated Power: 92kW / 125HP
- Rated Rotation Speed: 2000rpm
- Emission Standard: Euro 2 / Tier 2
- Performance Characteristic: Low speed large torque, excellent cold start effect, energy saving and stable output
Transmission and Chassis System
- Transmission Type: Fixed shaft power shift gearbox
- Gear Position: 2 forward gears, 2 reverse gears
- Torque Converter: Three element high capacity type

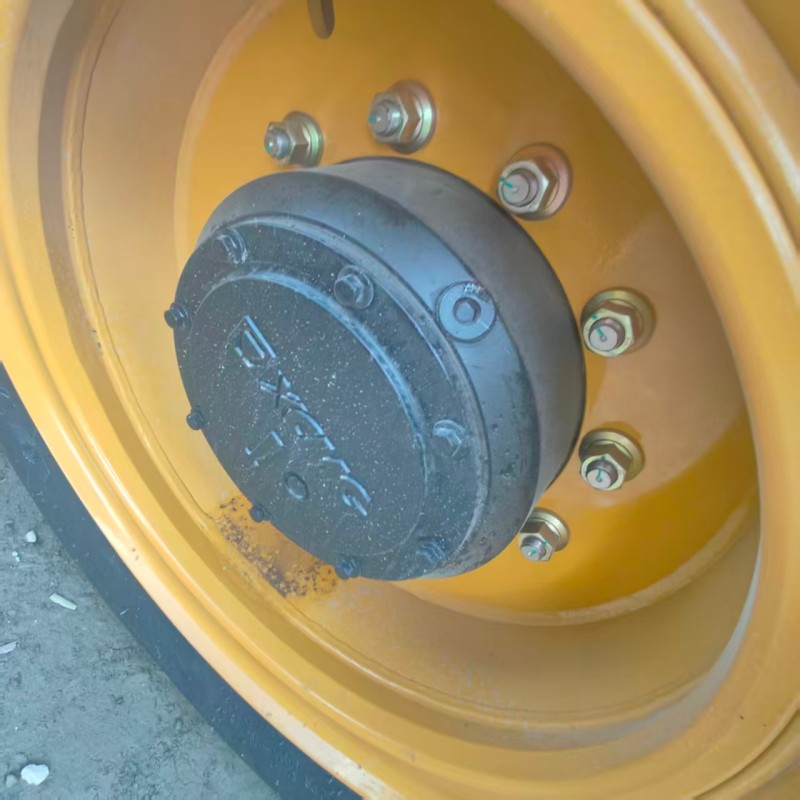

- Front and Rear Drive Axle: Reinforced heavy duty axle, strong bearing capacity
- Swing Angle: 38 degrees, good shock absorption performance

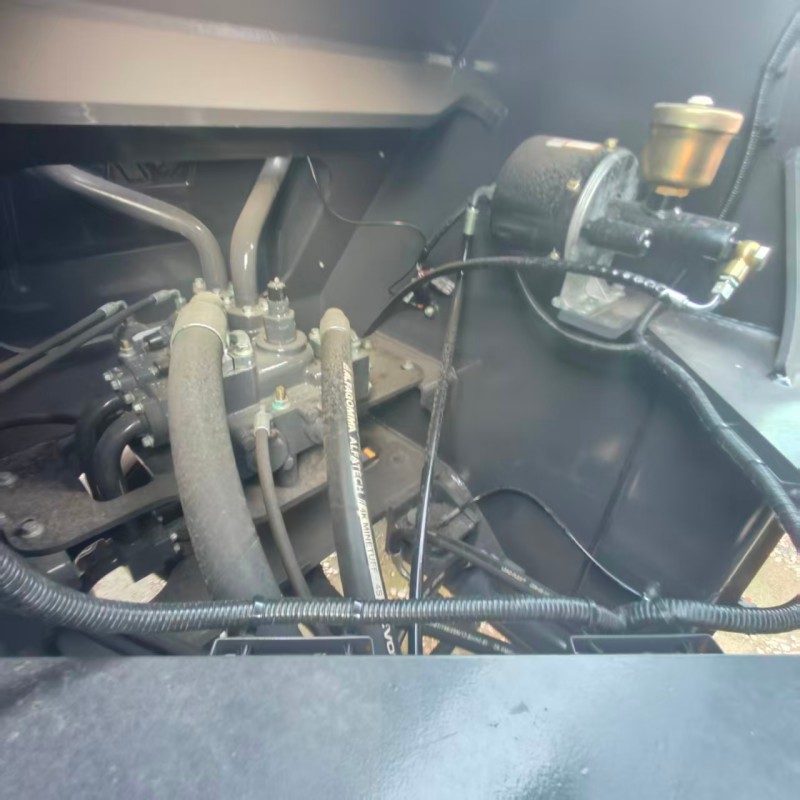

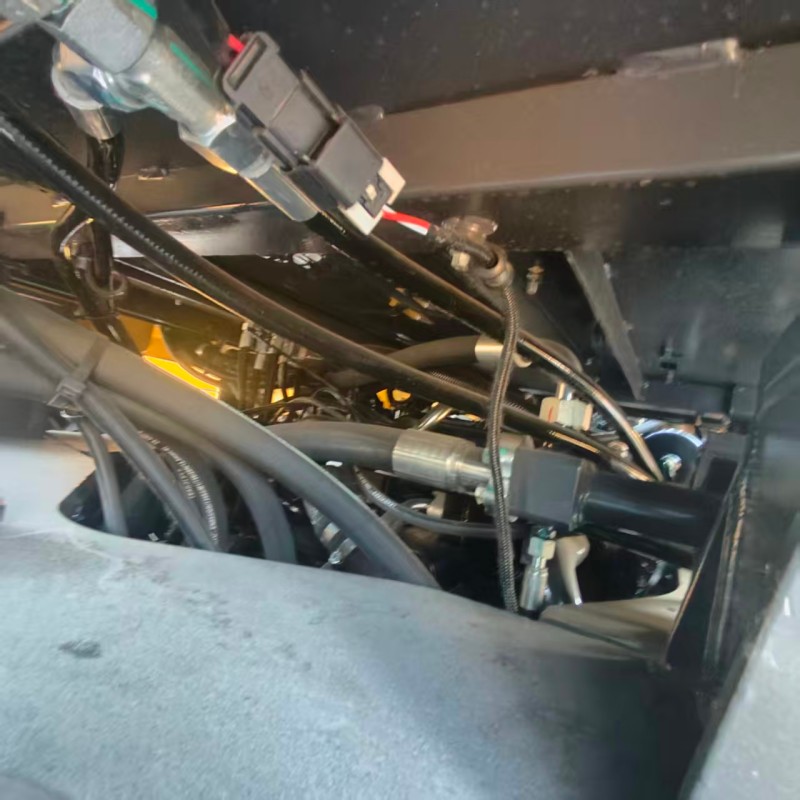

Hydraulic Working System
- Hydraulic Structure: Dual pump confluence hydraulic system
- System Working Pressure: 20MPa
- Working Advantage: Sensitive action response, stable operation, high material filling efficiency

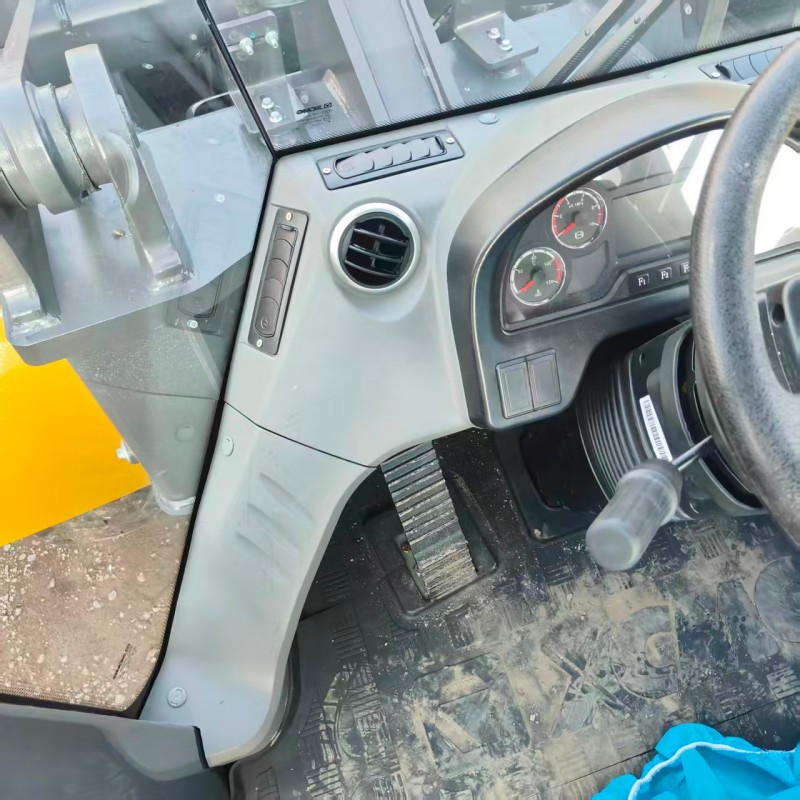

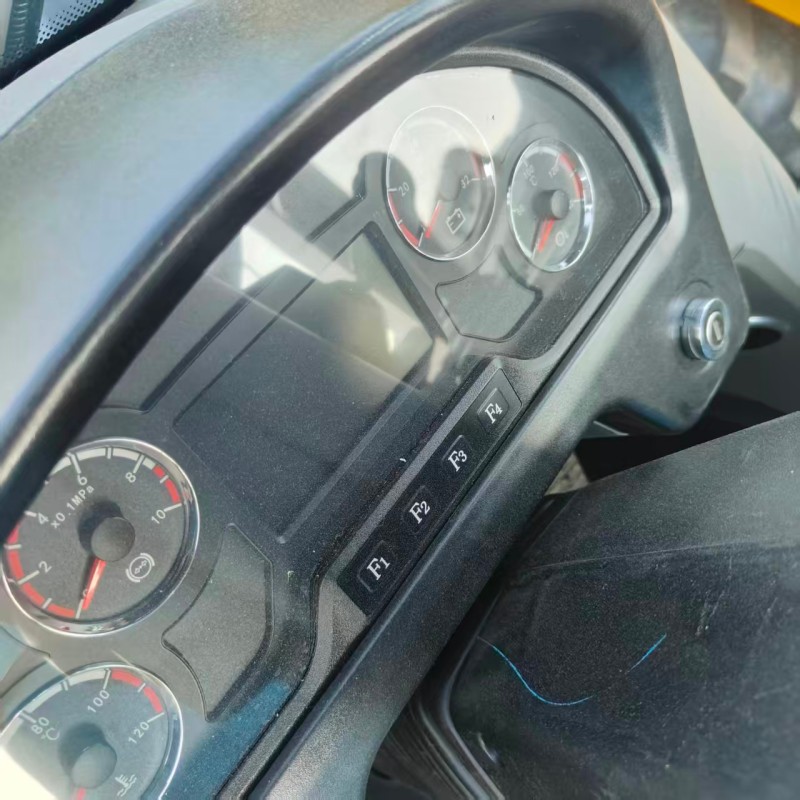

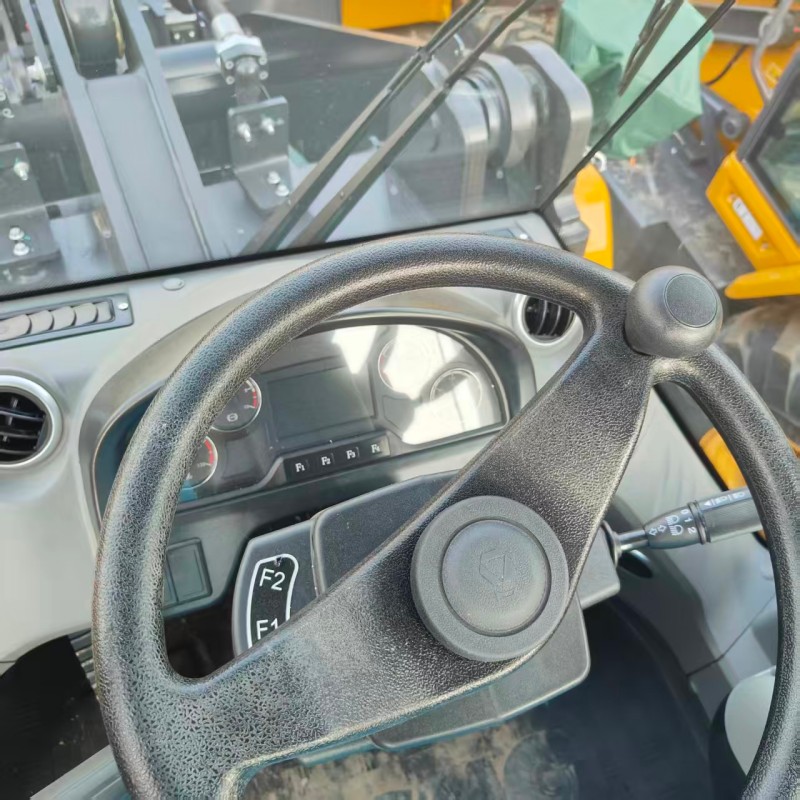

Driving Cab and Safety Configuration
- Cab Type: Fully enclosed dustproof cab
- Safety Grade: FOPS safety protection certified

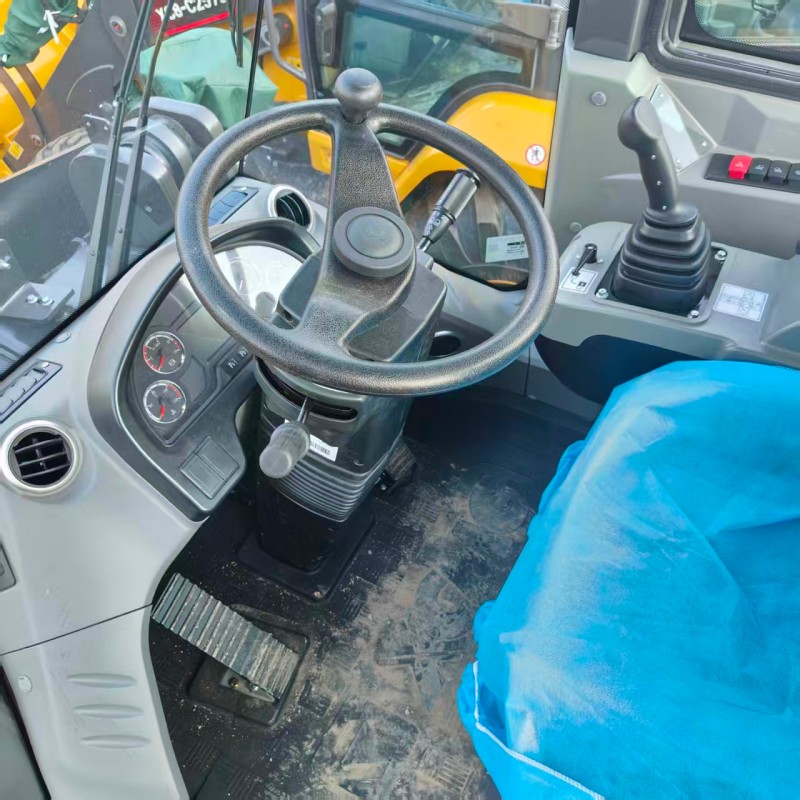

- Internal Configuration: Adjustable suspension seat, ergonomic control handle
- Optional Function: Air conditioning system
- Noise Control: Internal noise lower than 78dB
- Visual Effect: Large panoramic window, 360° clear operating view
Six Core Product Advantages
Mature Stable Power Performance
Matched with well-known brand diesel engine, it owns sufficient power reserve and outstanding low-speed torque. The power output keeps stable under continuous loading operation. It consumes less fuel daily, adapts to long-time outdoor construction, and greatly reduces comprehensive operating expenses.
Compact Body with Flexible Maneuverability
Reasonable small wheelbase and compact overall size make the machine turn flexibly. It can easily pass narrow road, small yard and limited working space, realizing efficient construction in crowded and compact sites.
Strong Loading and Shoveling Capacity
Great breakout force and traction force ensure excellent shoveling and pushing ability. It can quickly load sand, soil, coal and gravel materials, with high bucket filling rate and fast working cycle, effectively improving daily construction output.
Reinforced Durable Whole Vehicle Structure
The whole machine adopts high strength steel plate and integrated welding process. Working arm, bucket and chassis key stress parts are thickened and strengthened. It resists impact, abrasion and deformation, adapting to harsh and bumpy working ground with long service life.
Smooth Hydraulic Control Experience
Advanced dual pump confluence hydraulic system makes lifting, dumping and reset actions smooth and coherent. The operation handle is light and handy, the response is rapid, novice operators can master operating skills quickly and finish fine construction work easily.
Low Maintenance Cost and Convenient Service
Simple and reliable mechanical structure reduces daily failure probability. Large opening engine hood facilitates daily inspection, oil replacement and parts maintenance. Universal spare parts are easy to purchase globally, lowering later maintenance difficulty and downtime loss.
