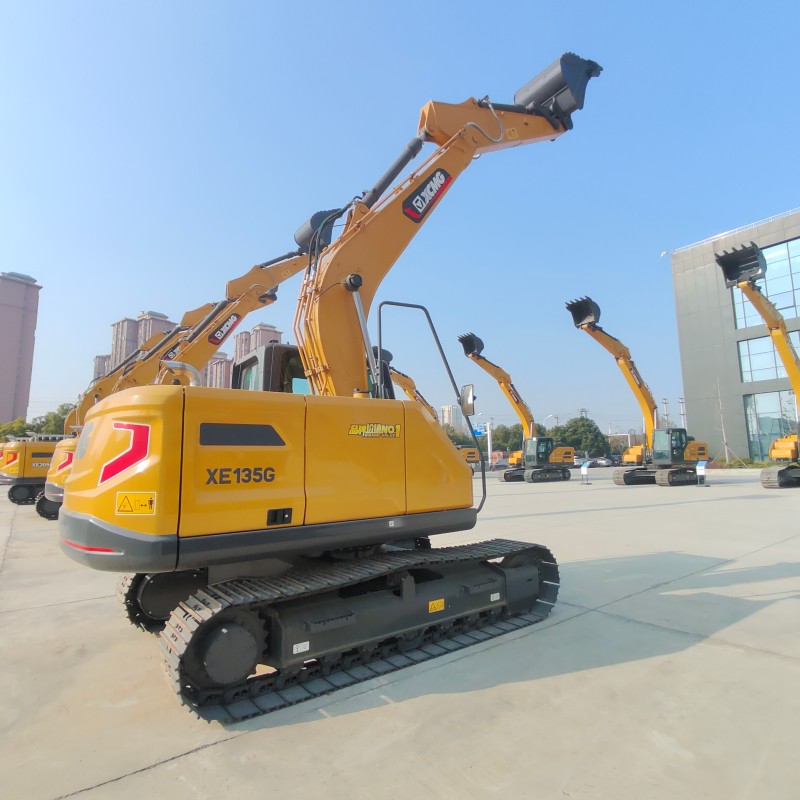

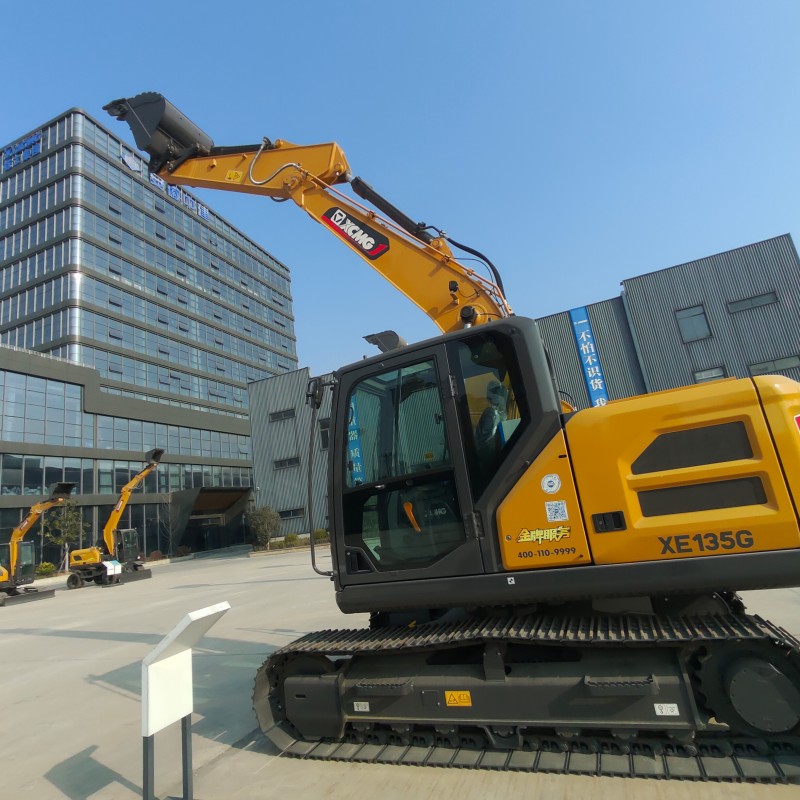

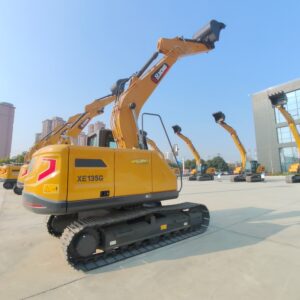

Product Overview of XCMG XE135G Crawler Excavator
The XCMG XE135G crawler excavator is a mature G-series 13.5-ton medium heavy-duty crawler digging machine independently developed by XCMG Construction Machinery, designed for highway infrastructure construction, municipal road reconstruction, river dredging, farmland water conservancy, residential land leveling and small quarry light stone loading projects. This XCMG XE135G crawler excavator is equipped with authentic Cummins F3.8 turbocharged diesel engine that meets China Stage IV / Tier4 Final emission standards, matched with upgraded ELAC intelligent load-adaptive positive flow hydraulic system, realizing precise power matching between engine and main pumps to cut comprehensive fuel consumption by 8% while improving truck loading cycle efficiency. All core structural components including boom, arm and reinforced widened X-type track chassis are thickened with high-strength wear-resistant steel, enhancing anti-impact and anti-abrasion performance under long-hour medium-heavy load construction conditions. The fully enclosed FOPS wide-view intelligent cab and ground centralized one-side maintenance layout greatly reduce operator fatigue and shorten daily inspection time, making XCMG XE135G crawler excavator the mainstream cost-effective medium excavator for global engineering contractors, municipal fleets and equipment rental businesses.
Full Official Technical Parameters of XCMG XE135G Crawler Excavator
Basic Overall Dimension & Weight of XCMG XE135G Crawler Excavator
- Model: XCMG XE135G Medium Heavy-Duty Crawler Excavator
- Operating Weight: 13500kg (13.5 ton)
- Standard HD Bucket Capacity: 0.60m³ general earth bucket, optional 0.55m³ narrow bucket / 0.65m³ rock bucket
- Standard Boom Length: 4600mm
- Standard Arm Length: 2500mm
- Overall Transport Total Length: 7700mm
- Overall Transport Total Width: 2595mm
- Overall Cab Top Height: 2940mm
- Track Gauge: 1990mm
- Track Length on Ground: 2200mm
- Standard Track Shoe Width: 500mm triple-grouser wear-resistant steel track shoe
- Minimum Ground Clearance: 420mm
- Rear Tail Swing Radius: 2300mm
- Ground Pressure: 43.2kPa
- Fuel Tank Volume: 240L
- Hydraulic Oil Tank Volume: 90L
- Full System Hydraulic Oil Volume: 130L
Travel & Swing Performance
- Two-speed Travel Speed: Low gear 3.0km/h, High gear 5.4km/h
- Slew Rotation Speed: 12rpm
- Maximum Climbing Gradient: 35° (70%)
- Maximum Drawbar Traction Force: 130kN
- Slew Torque: 39kN·m
- Travel System: Full hydraulic dual-speed crawler motor with built-in automatic parking brake, double-side support 7 bottom track rollers per side for stable heavy load operation
- Slew System: Independent large-displacement hydraulic slew motor, heavy-duty roller slewing bearing with built-in holding brake for steady truck loading and ground grading
- Optional Configuration: Front floating dozer blade for ground leveling work
ISO Standard Digging Working Range & Digging Force
- Max Horizontal Digging Radius: 8420mm
- Max Digging Depth: 5505mm
- Max Vertical Digging Depth: 4860mm
- Max Digging Height: 8465mm
- Max Material Dumping Height: 6055mm
- Minimum Front Swing Radius: 2830mm
- Max Bucket Digging Force (ISO): 108kN
- Max Arm Digging Force (ISO): 69kN
- Standard Factory Configuration: Pre-reserved multi-way hydraulic piping for large hydraulic breaker hammer
Cummins Power Engine System
The XCMG XE135G crawler excavator is equipped with mature Cummins F3.8 industrial turbo diesel engine, fully compliant with Tier4 Final / EU Stage V / China Stage IV global emission standards. You can check complete engine technical data from Cummins official construction equipment website.

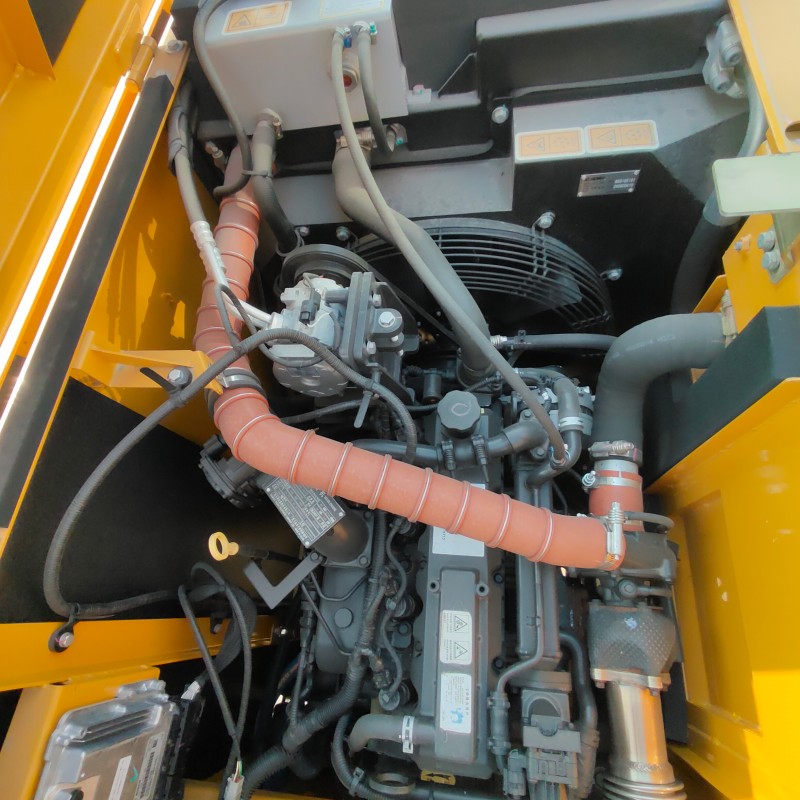

- Engine Model: Cummins F3.8 Water-cooled 4-cylinder inline turbocharged diesel engine
- Rated Power: 100kW / 134HP @ 2200rpm
- Peak Torque: 450N·m @ 1200–1600rpm
- Displacement: 3.8L
- Emission Standard: China Stage IV / Tier4 Final (DOC+DPF+SCR aftertreatment)
- Core Advantages: Optimized low EGR structure, strong low-speed torque output, intelligent fuel injection calibration to reduce hourly fuel consumption, reliable cold start under low temperature environment, 500-hour filter maintenance cycle, global complete spare parts supply network.
ELAC Intelligent Load-Adaptive Positive Flow Hydraulic System

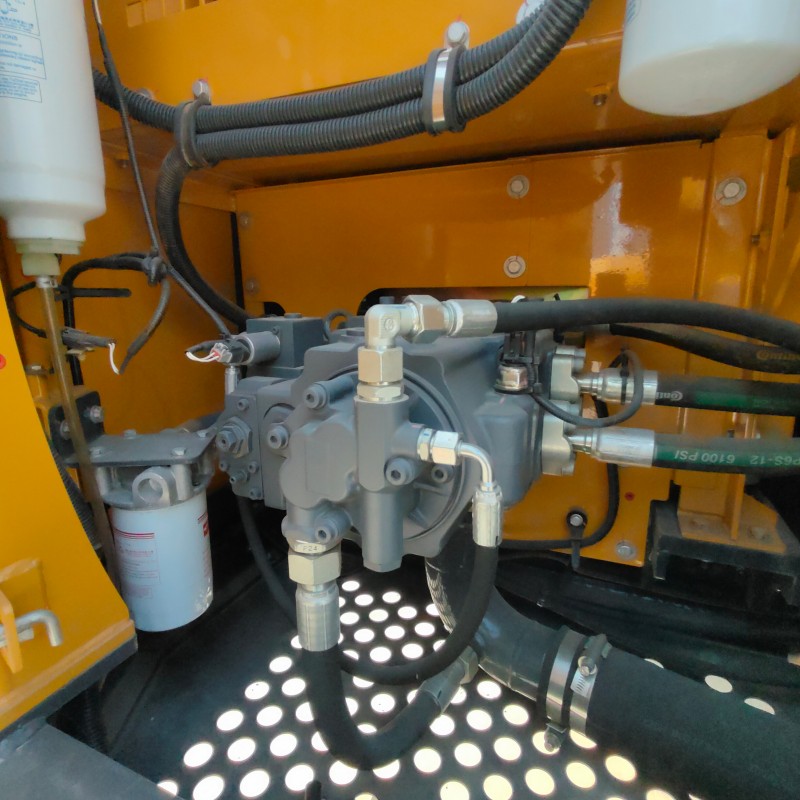

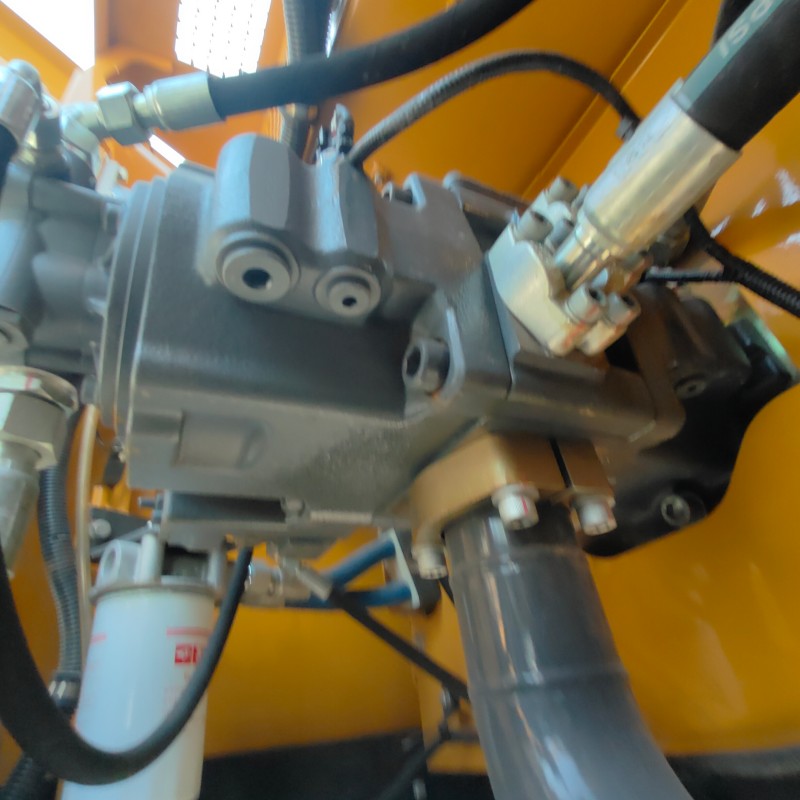

- Main Pump Configuration: Dual variable displacement piston main pumps
- Total Main Pump Max Output Flow: 2 × 126 L/min
- Pilot Auxiliary Pump Flow: 20 L/min
- Standard System Working Pressure: 27.5MPa
- Power Boost Instant Pressure: 34.3MPa
- Slew Circuit Max Pressure: 34.3MPa, Pilot Control Pressure: 3.9MPa
- Control Logic: ELAC independent electronic load adaptive control system, intelligently distributes pump flow and pressure according to real-time working load, smooth synchronous compound movement of lifting, digging, slewing and dumping without power waste and action lag

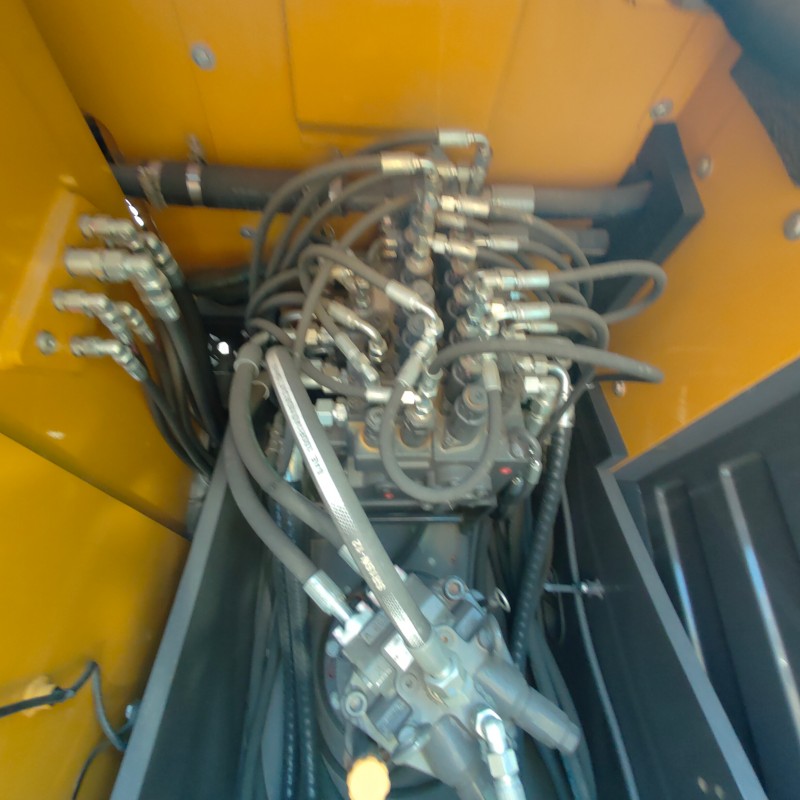

- Auxiliary Hydraulic Circuit: Factory pre-installed multi-function breaker piping, compatible with large hydraulic rock hammer, earth auger, log thumb grab and hydraulic quick hitch coupler
- Hydraulic Oil Replacement Cycle: Up to 2000 working hours
Chassis & Reinforced Working Attachment

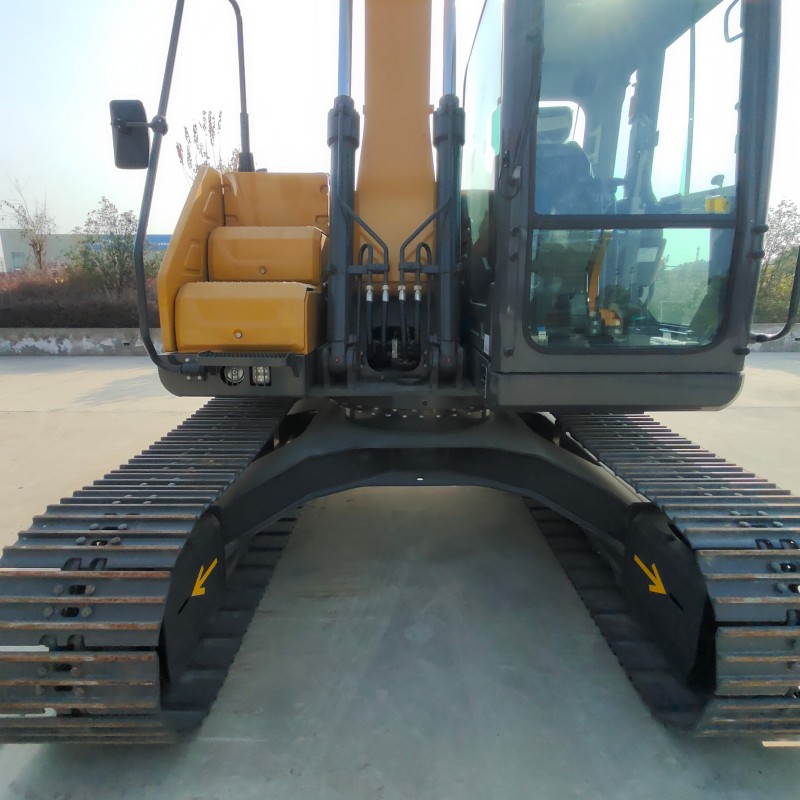

Crawler Chassis Frame
- Integral thickened X-type heavy-duty anti-torsion frame, full penetration robot welding technology
- 7 bottom track rollers + 1 top carrier roller per side, double-side support stable structure, thick quenched steel track shoes with fully sealed lubricated track pins, long service life under muddy river dredging and rocky municipal construction sites
- Optional front floating dozer blade with floating leveling function
Boom & Arm Working Device
- Boom, arm and bucket base adopt ultra-high strength low-alloy wear-resistant steel plate, all stress joint positions thickened with buffer anti-shock heavy bushings
- Large cross-section box-type boom & arm structure, significantly improved bending resistance for medium-heavy earthmoving and light rock loading tasks
- High-efficiency curved bucket design with imported HB400 wear-resistant cutting edge, higher soil filling efficiency and lower daily abrasion loss
Cab, Electronic Control & Safety Configuration
- Cab Type: Fully enclosed positive pressure dustproof & noise reduction FOPS falling object protection safety cab
- Standard Interior Equipment
- 8-inch intelligent color LCD touch monitor, real-time display fuel consumption, hydraulic pressure, engine fault code and ECO fuel-saving operation guidance

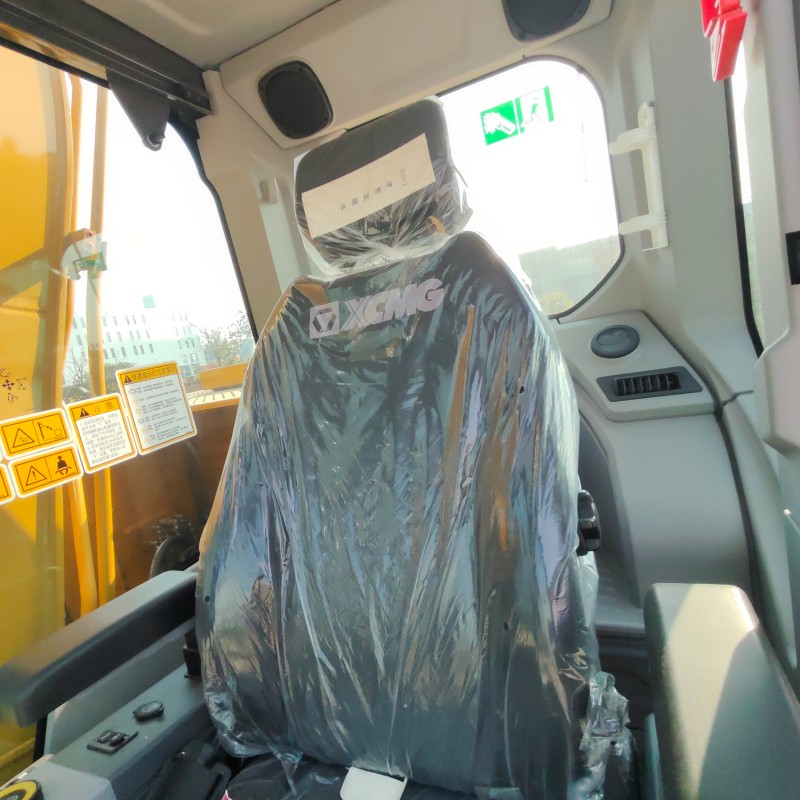

- Multi-adjustable air suspension shock absorption seat with heating function

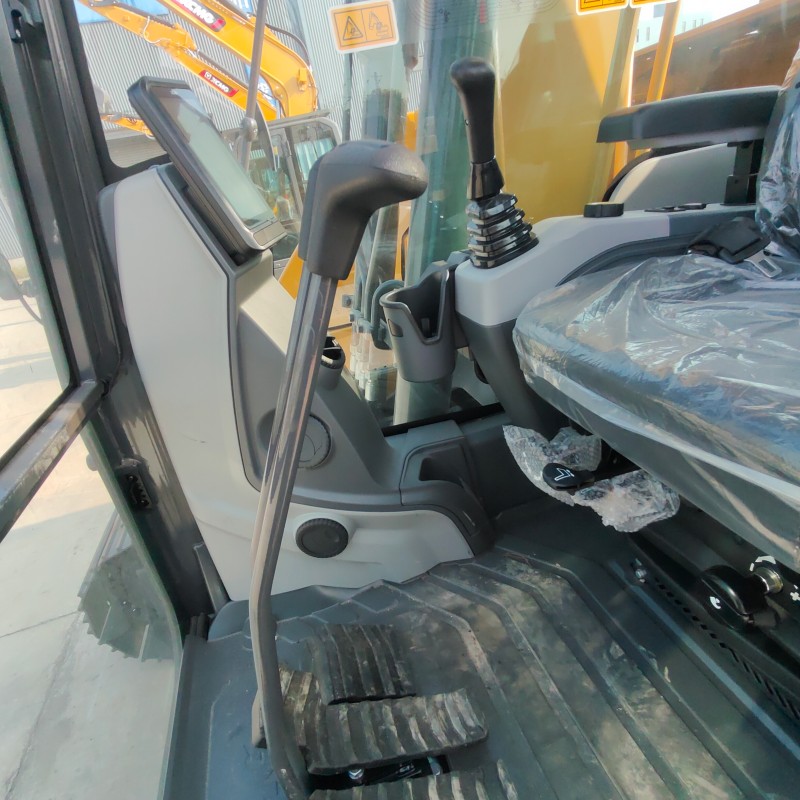

- Ergonomic ISO standard pilot control joysticks, one-touch engine start/stop button, USB fast charging port, Bluetooth hands-free call
- Large panoramic laminated safety glass, 360° unobstructed wide operating vision for road loading and pipeline trenching work
- Optional Upgrades: Full automatic constant temperature heating & cooling air conditioner, 360° panoramic surround camera, multi-group high-bright LED working lights
- Internal Operating Noise: ≤76dB
- Safety Design: Emergency flameout switch, overload sound-light alarm, hydraulic safety lock handle, anti-rollover reinforced cab frame; 95% daily maintenance inspection points set at ground height without climbing steps
Standard Factory Equipment & Optional Matching Attachments
Standard Configuration
0.60m³ general earth bucket, pre-installed breaker hydraulic piping, 500mm steel track shoes, FOPS safety intelligent cab, ELAC electronic hydraulic control system, ECO fuel consumption intelligent monitoring system
Optional Attachments
Front floating dozer blade, rubber track pad, 0.55/0.65m³ rock/narrow bucket, large hydraulic stone breaker, earth auger, log thumb grab, hydraulic quick hitch coupler, 360° panoramic surround view camera, full automatic cab air conditioner
Six Core Competitive Advantages of XCMG XE135G Crawler Excavator
1. Global Certified Cummins Tier4 Power, Low Comprehensive Fuel Consumption
Equipped with genuine Cummins F3.8 turbo engine meeting strict global emission standards, the XCMG XE135G crawler excavator delivers ultra-high low-speed torque for road earthmoving and light rock loading. Built-in ELAC intelligent power matching system optimizes coordination between engine and hydraulic pumps, cutting hourly fuel consumption by 8% compared with traditional negative flow hydraulic machines, greatly reducing long-term operation cost for domestic and overseas engineering fleets.
2. ELAC Intelligent Adaptive Positive Flow Hydraulic System, Fast & Smooth Loading Cycles
The upgraded ELAC electronic load-adaptive hydraulic system of the XCMG XE135G crawler excavator automatically adjusts flow and pressure based on real-time working load. Lifting, digging, slewing and dumping compound actions run synchronously without lag, shortening truck loading cycle time by 10%. One-click power boost instantly raises digging force to handle compact hard soil and broken rock construction conditions, lifting daily construction output obviously.
3. Fully Reinforced Heavy-Duty Structural Parts, Extended Service Life for Harsh Sites
The whole machine frame, boom, arm and track system of the XCMG XE135G crawler excavator are fully upgraded for medium-heavy earthmoving, river dredging and municipal working conditions. Double-side support multi-roller track structure, large cross-section high-strength steel working attachments and full penetration anti-impact welding structure effectively resist mud abrasion and stone impact, extending whole machine service cycle and reducing wearing part replacement frequency.
4. Spacious FOPS Intelligent Comfort Cab, All-Day Low-Fatigue Long-Shift Operation
The fully sealed positive pressure large cab of the XCMG XE135G crawler excavator isolates construction dust and engine operating noise. Adjustable air suspension seat, ergonomic pilot joysticks and 8-inch intelligent touch monitor effectively relieve operator fatigue during continuous long work shifts. FOPS anti-falling object safety frame and optional 360° panoramic camera eliminate operation blind zones to guarantee construction safety on busy road and river sites.
5. Ground Centralized One-Side Maintenance Layout, 40% Faster Daily Inspection
All engine oil, hydraulic oil, fuel filters and daily inspection points of the XCMG XE135G crawler excavator are centrally arranged on the side hood at ground height, operators can complete routine maintenance without climbing steps. Global universal Cummins engine spare parts and XCMG hydraulic components shorten machine downtime, lowering repair labor and time cost for equipment owners.
6. Multi-Scenario Attachment Compatibility, High Equipment Investment Return Rate
The XCMG XE135G crawler excavator reserves complete multi-way auxiliary hydraulic piping, compatible with hydraulic rock breaker, earth auger, timber grab and quick hitch coupler. It can freely switch between municipal road reconstruction, infrastructure earthmoving, river dredging and farmland irrigation tasks, maximizing machine utilization rate and investment profit margin for global engineering contractors and rental fleets.
Wide Application Scope
The XCMG XE135G crawler excavator is widely used for municipal road reconstruction, underground pipeline trenching, highway & rural infrastructure earthmoving, river channel dredging, farmland irrigation channel digging, residential land leveling, small open-pit light quarry loading and large landfill construction projects. If you need compact 10.5-ton short-tail digging machine for narrow urban alleys, check our XCMG XE105GA Crawler Excavator. For heavy-duty 21-ton excavator for large-scale highway and quarry projects, view the XCMG XE205G Crawler Excavator product page.
Concise Sales Promotion Closing Text
The XCMG XE135G crawler excavator is a high-efficiency 13.5-ton medium earthmoving digger equipped with global certified Cummins Tier4 low-fuel engine and ELAC intelligent adaptive positive flow hydraulic system. Featuring powerful digging force, reinforced anti-wear heavy-duty structure and low comprehensive operation cost, this XCMG XE135G crawler excavator is the most cost-effective medium construction machinery for global municipal road, infrastructure, river dredging and equipment rental engineering customers.
