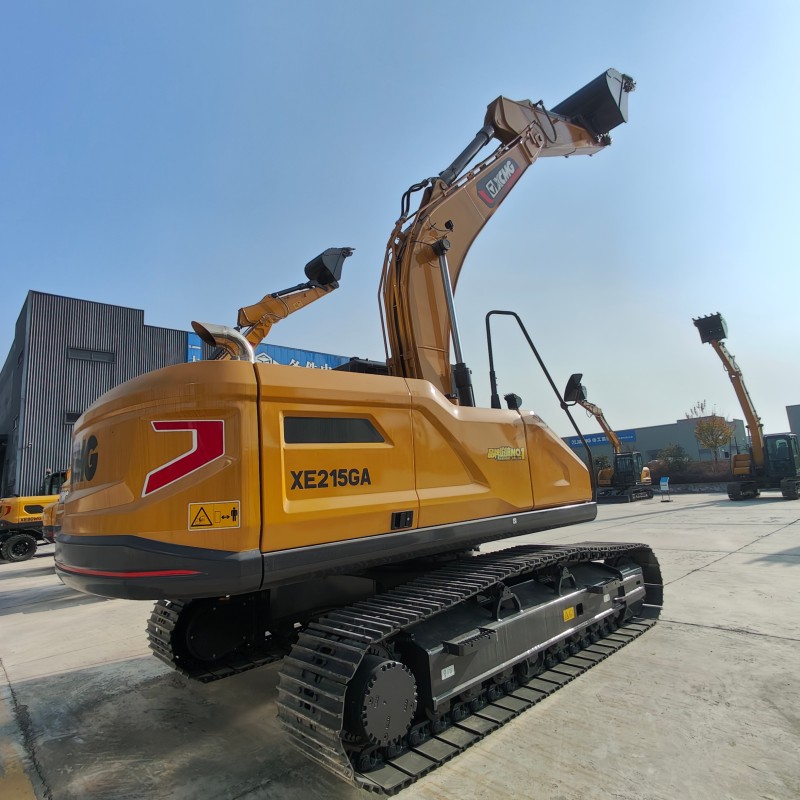

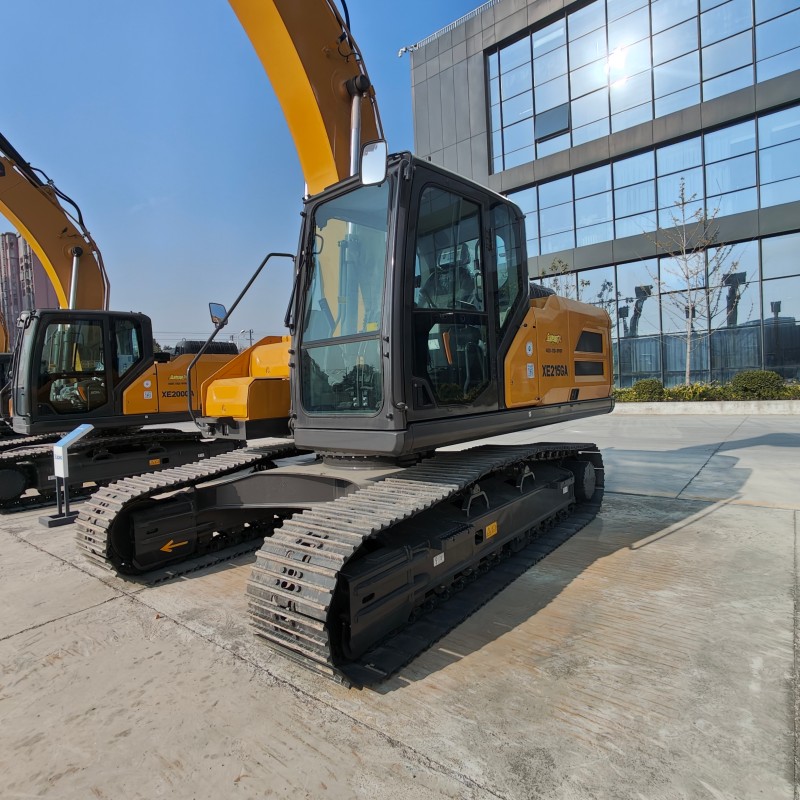

Product Overview of XCMG XE215GA Crawler Excavator
The XCMG XE215GA crawler excavator is XCMG flagship National Stage IV 22.5-ton medium heavy-duty excavator, equipped with six-cylinder Cummins power to deliver class-leading low-speed torque, specially designed for highway subgrade backfill, large municipal development, open-pit light quarry stone loading, river dredging and large-scale farmland water conservancy projects. This XCMG XE215GA crawler excavator adopts customized Cummins QSB6.7 six-cylinder inline turbocharged diesel engine, matched with optimized SCR urea aftertreatment system with intelligent urea injection logic to cut urea consumption by 20% and extend DPF ash cleaning cycle to 5000 hours, drastically reducing routine maintenance downtime. Equipped with imported Kawasaki large-spec pump-valve hydraulic system and XCMG self-developed PIC feedforward intelligent control technology, it reduces system pressure loss by 10%, cuts single-bucket fuel consumption by 7% and boosts hourly earthwork output by 5% compared with older generation models. All core load-bearing components including thickened reinforced box boom & arm and widened heavy X-shaped track chassis are upgraded with high-strength wear-resistant steel, with thicker bucket & arm cylinders lifting digging force by 9% for heavy rock and compact soil working conditions. The new-generation energy-absorbing FOPS panoramic intelligent cab and ground centralized one-side maintenance layout with rotatable condenser bracket greatly improve operator comfort and daily maintenance efficiency, making XCMG XE215GA crawler excavator the top choice for heavy-load long-shift engineering contractors and large rental fleets worldwide.
Full Official Technical Parameters of XCMG XE215GA Crawler Excavator
Basic Overall Dimension & Weight of XCMG XE215GA Crawler Excavator
- Model: XCMG XE215GA Six-Cylinder High-Torque Medium Heavy-Duty Crawler Excavator
- Operating Weight: 22500kg (22.5 ton)
- Standard HD Bucket Capacity: 1.05m³ general earth bucket, optional 0.9m³ narrow bucket / 1.2m³ large capacity bulk bucket / 0.85m³ rock bucket
- Standard Boom Length: 5600mm
- Standard Arm Length: 2910mm
- Overall Transport Total Length: 9780mm
- Overall Transport Total Width: 2990mm
- Overall Cab Top Height: 3145mm
- Track Gauge: 2390mm widened stable track base
- Track Length on Ground: 3460mm
- Standard Track Shoe Width: 600mm triple-grouser wear-resistant steel track shoe
- Minimum Ground Clearance: 460mm
- Rear Tail Swing Radius: 3035mm compact design
- Ground Pressure: 47.2kPa
- Fuel Tank Volume: 400L
- Hydraulic Oil Tank Volume: 155L
- Full System Hydraulic Oil Volume: 195L, service life up to 4000 working hours
Travel & Swing Performance
- Two-speed Travel Speed: Low gear 3.3km/h, High gear 5.5km/h
- Slew Rotation Speed: 10.2rpm
- Maximum Climbing Gradient: 35° (70%)
- Maximum Drawbar Traction Force: 222kN
- Travel System: Full hydraulic intelligent auto-shift dual-speed crawler motor with built-in automatic parking brake, 9 bottom track rollers + 2 top carrier rollers per side with double-side heavy support structure for stable heavy-load quarry operation

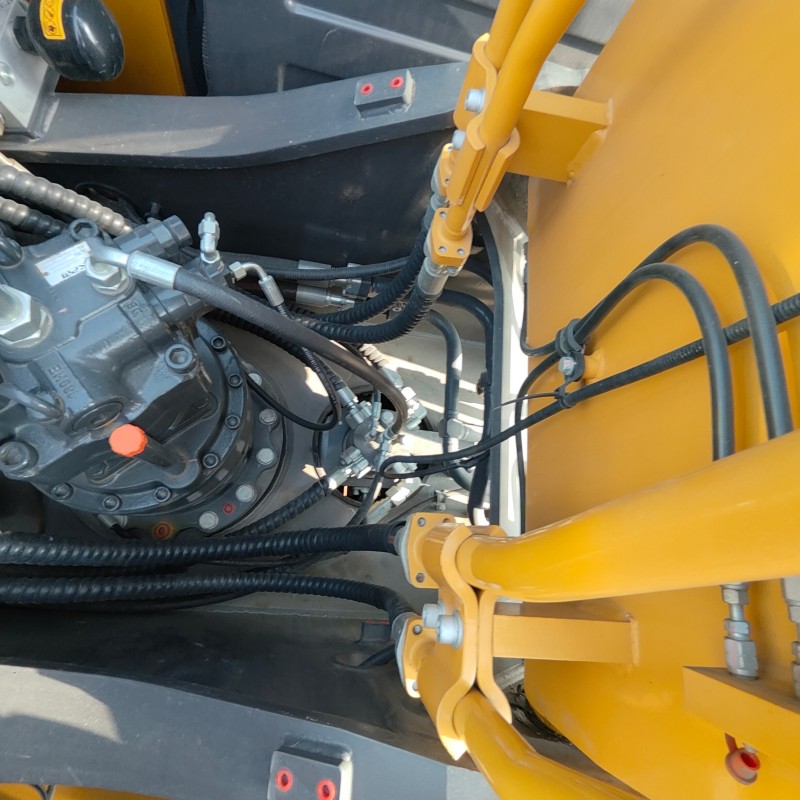

- Slew System: Oversized non-uniform heavy-duty roller slewing bearing + independent large-displacement hydraulic slew motor, built-in mechanical holding brake for steady truck loading and precision ground grading
- Optional Configuration: Front floating dozer blade for ground leveling work
ISO Standard Digging Working Range & Digging Force
- Max Horizontal Digging Radius: 9780mm
- Max Ground Digging Radius: 9590mm
- Max Digging Depth: 6680mm
- Max Vertical Digging Depth: 6010mm
- Max Digging Height: 9820mm
- Max Material Dumping Height: 6880mm
- Minimum Front Swing Radius: 3260mm
- Max Bucket Digging Force (ISO): 165kN, 9% higher than previous generation
- Max Arm Digging Force (ISO): 120kN
- Standard Factory Configuration: Pre-reserved multi-way heavy-duty hydraulic piping for large 135mm mining hydraulic breaker hammer
Cummins Six-Cylinder Stage IV Power Engine System

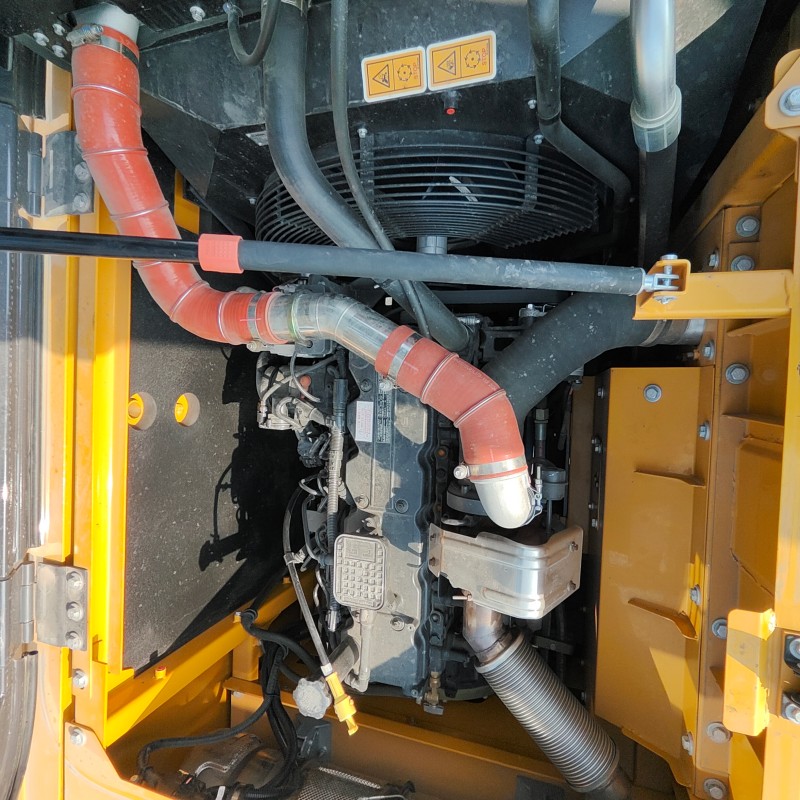

The XCMG XE215GA crawler excavator is equipped with globally verified Cummins QSB6.7 six-cylinder inline turbocharged industrial diesel engine, fully compliant with China Stage IV / Tier4 Final global emission standards with optimized SCR urea aftertreatment system. You can check complete engine technical data from Cummins official construction equipment website.
- Engine Model: Cummins QSB6.7 Water-cooled 6-cylinder inline turbocharged diesel engine
- Rated Power: 129kW / 176HP @ 2000rpm
- Peak Torque: 850N·m @ 1300–1600rpm, torque output increased by 15% vs National III models
- Displacement: 6.7L large six-cylinder displacement for sustained heavy-load power output
- Emission Standard: China Stage IV / Tier4 Final (DOC+DPF+SCR integrated aftertreatment)
- Core Advantages: Intelligent urea injection logic cuts urea consumption by 20%; ultra-long 5000-hour DPF ash cleaning cycle; silent automatic DPF regeneration without construction interruption; outstanding high-altitude and low-temperature cold start performance; 500-hour filter maintenance cycle; global complete spare parts supply network for overseas mining sites.
Imported Kawasaki Hydraulic System with XCMG PIC Feedforward Intelligent Control
- Main Pump Configuration: Dual imported Kawasaki large-displacement variable displacement piston main pumps
- Total Main Pump Max Output Flow: 2 × 162 L/min
- Pilot Auxiliary Pump Flow: 25 L/min
- Standard System Working Pressure: 30MPa
- Power Boost Instant Pressure: 34.5MPa
- Slew Circuit Max Pressure: 34.5MPa, Pilot Control Pressure: 4.0MPa
- Control Logic: XCMG proprietary PIC feedforward intelligent load matching control technology, high flow-pressure fitting accuracy, reduces mid-position reflux energy loss by 10%, 15% faster compound action response, smooth synchronous lifting/digging/slewing/dumping without impact or lag
- Multi working modes: Standard / High-Efficiency / Crushing / High-Altitude, one-touch switch to match different construction load scenarios

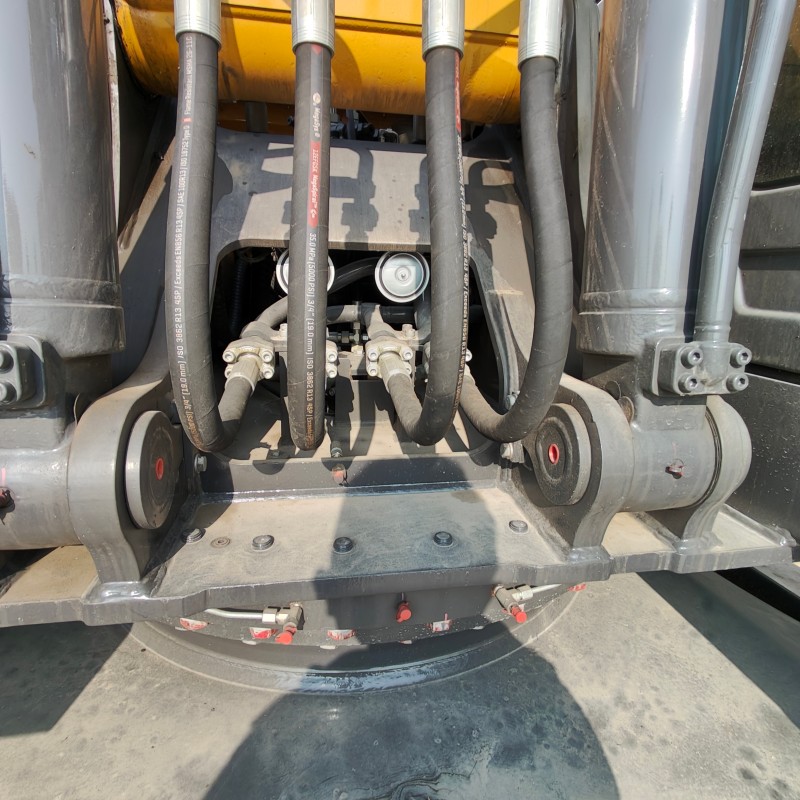

- Auxiliary Hydraulic Circuit: Factory pre-installed multi-function heavy-duty breaker piping, compatible with large hydraulic rock hammer, earth auger, log thumb grab, hydraulic shear and hydraulic quick hitch coupler (1-minute quick attachment switch)
- Hydraulic Oil Replacement Cycle: Extended to 2000 working hours, full system hydraulic oil service life warranty up to 4000 hours
Chassis & Reinforced Working Attachment
Crawler Chassis Frame

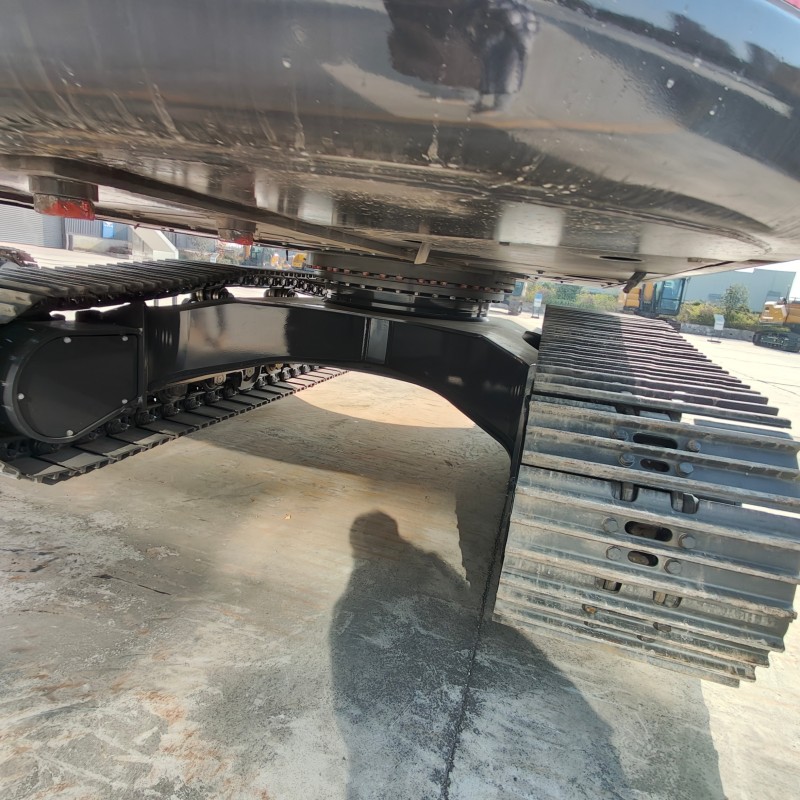

- Integral ultra-thickened mountain-shaped X-type heavy anti-torsion frame, full penetration robot welding technology, double-side heavy support structure optimized for impact-resistant quarry and heavy earthmoving conditions

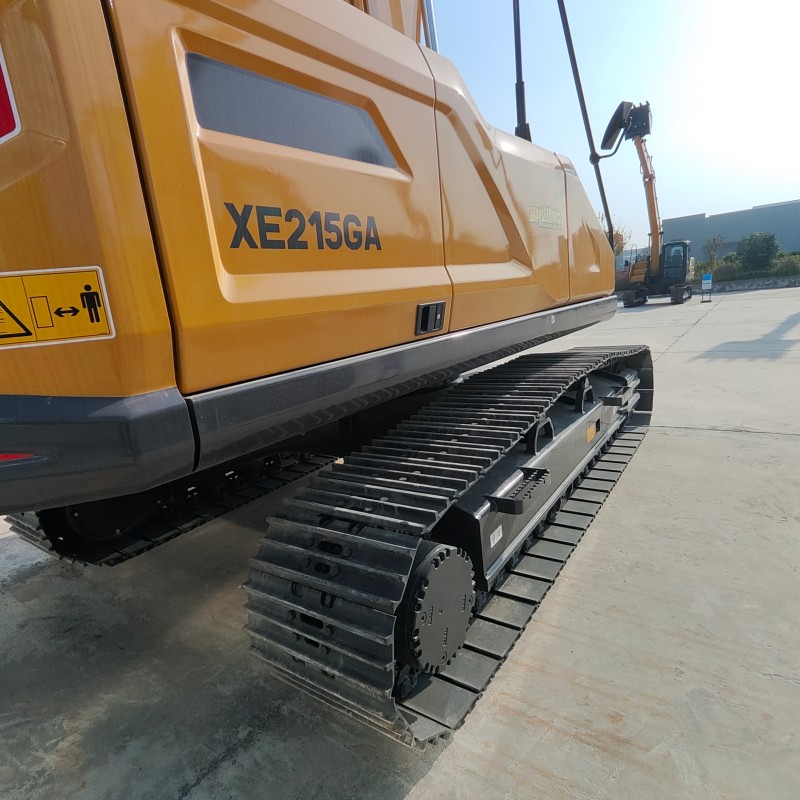

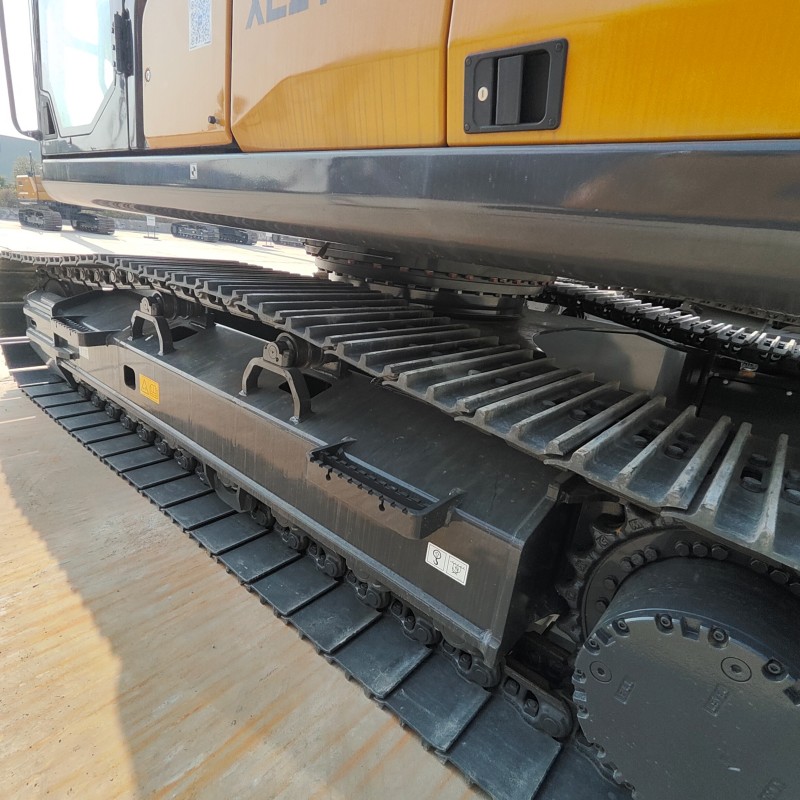

- 9 bottom track rollers + 2 top carrier rollers per side, thick quenched steel track shoes with fully sealed long-lubrication track pins, long service life under muddy river dredging and rocky quarry construction sites
- Optional front floating dozer blade with floating leveling function for fine ground flatting
Boom & Arm Working Device
- Boom, arm and bucket base adopt ultra-high strength low-alloy wear-resistant steel plate, all stress joint positions thickened with oversized buffer anti-shock heavy bushings
- Oversized cross-section box-type boom & arm structure, bucket and arm cylinders upgraded to thicker specifications, digging force improved by 9% for hard soil and rock breaking tasks
- High-efficiency curved heavy-duty bucket design with HB400 imported wear-resistant cutting edge, higher stone & soil filling efficiency and ultra-low daily abrasion loss
Cab, Electronic Control & Safety Configuration
- Cab Type: Fully enclosed positive pressure dustproof & noise reduction FOPS falling object protection safety cab, high-strength energy-absorbing integral stamping steel frame with anti-roll reinforcement design
- Standard Interior Equipment

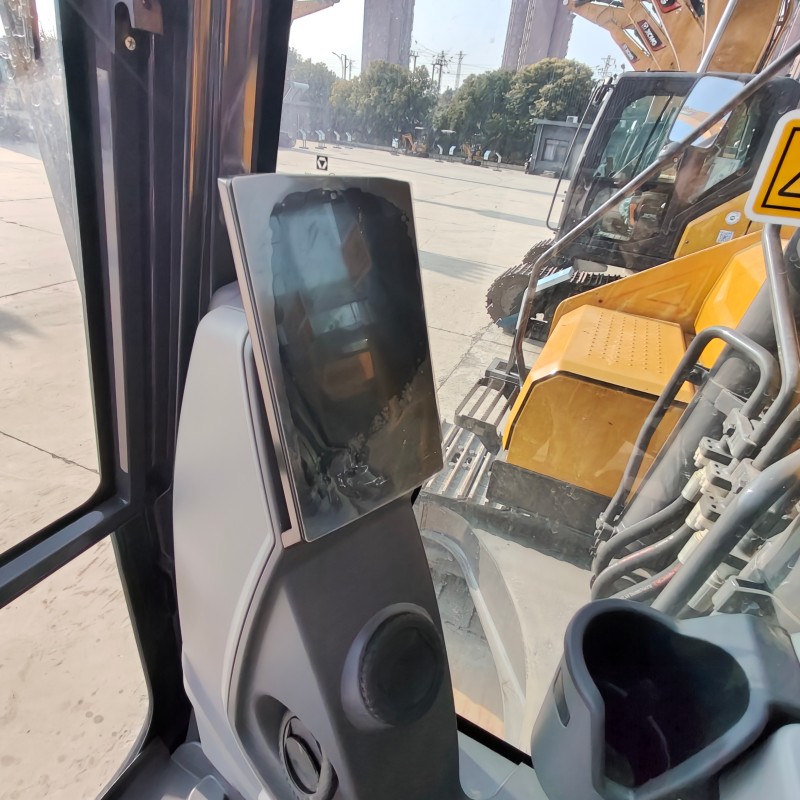

- 8-inch high-resolution intelligent color LCD touch monitor, real-time display fuel consumption, hydraulic pressure, engine fault code, DPF regeneration status and four working mode switching, support custom startup password & one-touch engine start

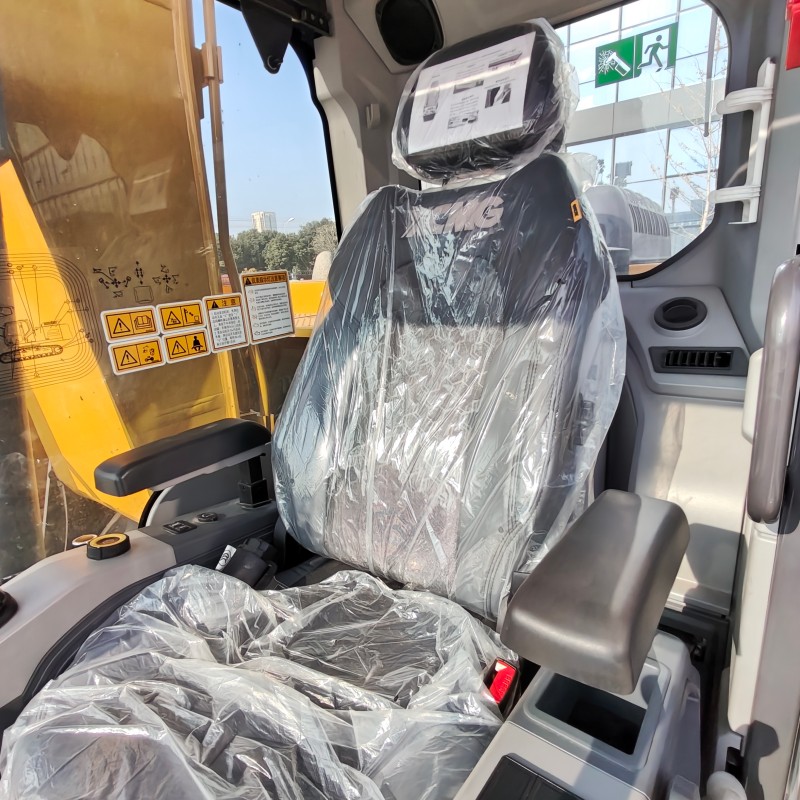

- Multi-adjustable automotive-grade air suspension shock absorption seat with heating function, built-in cold & warm storage box

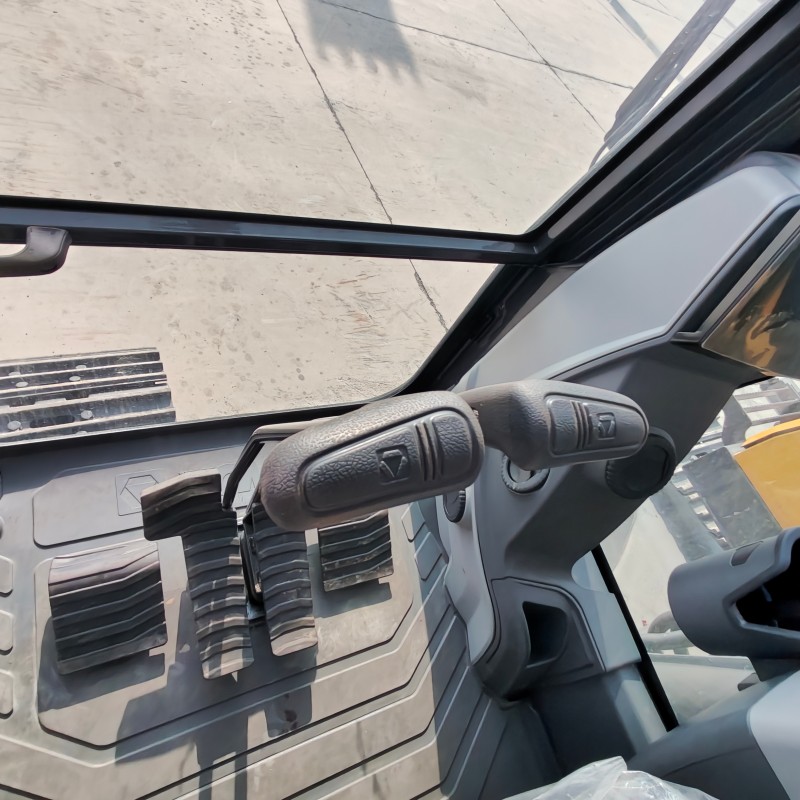

- Ergonomic ISO standard pilot control joysticks, flip left armrest to widen boarding space, USB fast charging port, Bluetooth hands-free call & audio playback
- Large panoramic laminated safety glass, expanded wide vision area, full surrounding sunshade for road loading and river dredging work
- Optional Upgrades: Full automatic constant temperature heating & cooling air conditioner, 360° panoramic surround camera, multi-group high-bright LED mining working lights
- Internal Operating Noise: ≤75dB
- Safety Design: Emergency flameout switch, overload sound-light alarm, hydraulic safety lock handle, anti-rollover reinforced cab frame; all daily maintenance inspection points set at ground height without climbing steps, rotatable condenser bracket for easy radiator dust cleaning
Standard Factory Equipment & Optional Matching Attachments
Standard Configuration
1.05m³ general earth bucket, pre-installed heavy-duty breaker hydraulic piping, 600mm steel track shoes, FOPS positive pressure intelligent safety cab, Kawasaki pump-valve PIC intelligent hydraulic control system, four-mode ECO fuel consumption intelligent monitoring system
Optional Attachments
Front floating dozer blade, rubber track pad, 0.85/0.9/1.2m³ rock/narrow/bulk bucket, large mining hydraulic stone breaker, hydraulic shear, earth auger, log thumb grab, hydraulic quick hitch coupler, 360° panoramic surround view camera, full automatic cab heating & cooling air conditioner
Six Core Competitive Advantages of XCMG XE215GA Crawler Excavator
1. Six-Cylinder Cummins Stage IV Power, Ultra-High Torque & Low Urea Consumption
Equipped with genuine six-cylinder Cummins QSB6.7 turbo engine delivering 15% higher low-speed torque than four-cylinder counterparts, the XCMG XE215GA crawler excavator handles heavy rock loading and mountain backfill effortlessly. Optimized intelligent SCR urea system cuts urea usage by 20% and extends DPF ash cleaning interval to 5000 hours, drastically reducing routine maintenance labor and parts cost; PIC intelligent hydraulic power matching cuts hourly fuel consumption by 7%, maximizing profit for domestic and overseas heavy-load engineering rental fleets. Six-cylinder layout delivers stable sustained power for long 12-hour quarry shifts and high-altitude construction environments.
2. Imported Kawasaki Hydraulic System with XCMG PIC Feedforward Control, High Efficiency & Smooth Operation
The upgraded dual Kawasaki large-spec pump-valve hydraulic system paired with proprietary PIC feedforward intelligent load matching control reduces internal pressure loss by 10%, with 15% faster action response speed and minimal idle energy loss. All compound lifting, digging, slewing and dumping actions run synchronously without lag; one-click power boost instantly raises digging force to handle compact hard soil and broken rock construction conditions, shortening truck loading cycle time by 13% and lifting daily earthwork output by 5% vs older models. Four preset working modes freely switch to adapt landscaping, heavy earthmoving, plateau and rock breaking scenarios.
3. Full Heavy-Load Reinforced Structural Parts, Extended Service Life for Quarry & Harsh Sites
The whole machine mountain-shaped X-frame chassis, oversized cross-section boom & arm and multi-roller heavy track system of the XCMG XE215GA crawler excavator are fully upgraded for medium-heavy earthmoving, river dredging and light quarry working conditions. Double-side multi-roller heavy support track structure, thickened high-strength steel working attachments and full penetration anti-impact robot welding structure effectively resist mud abrasion and stone impact, extending whole machine service cycle and reducing wearing part replacement frequency by 30%. Thicker bucket & arm cylinders directly boost digging force by 9% for tough rock excavation tasks.
4. New-Generation FOPS Energy-Absorbing Intelligent Cab, Automotive-Grade All-Day Comfort
The fully sealed positive pressure large cab passes international FOPS anti-falling safety certification, adopts automotive-grade interior materials and energy-absorbing steel frame to effectively isolate construction dust and engine running noise, internal noise controlled below 75dB. Adjustable air suspension seat with cold/warm storage box, ergonomic pilot joysticks and 8-inch high-definition touch monitor effectively relieve operator fatigue during continuous 8–12 hour heavy construction shifts. Panoramic large glass and optional 360° panoramic camera eliminate operation blind zones to guarantee construction safety on busy highway, river and quarry sites.
5. Ground Centralized One-Side Maintenance Layout, 45% Faster Daily Inspection
All engine oil, hydraulic oil, fuel filters, DPF inspection ports and daily maintenance components of the XCMG XE215GA crawler excavator are centrally arranged on the wide side hood at ground height, operators can complete routine oil replacement and fault inspection without climbing steps. Unique rotatable condenser bracket simplifies radiator dust cleaning to solve quarry dust clogging troubles; global universal Cummins engine spare parts and XCMG hydraulic components shorten machine downtime, greatly cutting maintenance labor and time cost for equipment owners. Hydraulic oil service life extended to 4000 hours, further reducing long-term maintenance expenditure.
6. Multi-Functional Attachment Compatibility, 1-Minute Quick Switch for High ROI
The XCMG XE215GA crawler excavator reserves complete multi-way heavy auxiliary hydraulic piping, compatible with large mining hydraulic rock breaker, hydraulic shear, stone grab, timber grab and quick hitch coupler. It supports 1-minute rapid attachment switching without tool disassembly, freely switching between municipal road reconstruction, highway infrastructure earthmoving, river dredging and light quarry loading tasks, maximizing machine utilization rate and investment profit margin for global engineering contractors and rental fleets.
Wide Application Scope
The XCMG XE215GA crawler excavator is widely used for municipal road reconstruction, underground pipeline trenching, commercial residential foundation excavation, highway & rural infrastructure subgrade backfill, river channel dredging, farmland irrigation channel digging, small open-pit light quarry stone loading and large landfill construction projects. If you need balanced 21.8-ton twin-turbo four-cylinder medium digger for general urban construction yards, check our XCMG XE205GA Crawler Excavator. For heavy-duty 37-ton mining excavator for large-scale mountain stone mass loading projects, view the XCMG XE370GA Crawler Excavator product page.
The XCMG XE215GA crawler excavator is a high-efficiency 22.5-ton medium heavy earthmoving digger equipped with six-cylinder high-torque Cummins Stage IV low-fuel engine and imported Kawasaki PIC intelligent feedforward hydraulic system. Featuring class-leading digging force, full quarry-grade reinforced anti-wear structure, multi-scenario adjustable working modes and ultra-low comprehensive maintenance cost, this XCMG XE215GA crawler excavator is the most reliable high-output 20-ton-class construction machinery for global highway, municipal, water conservancy, light quarry and heavy rental engineering customers.
