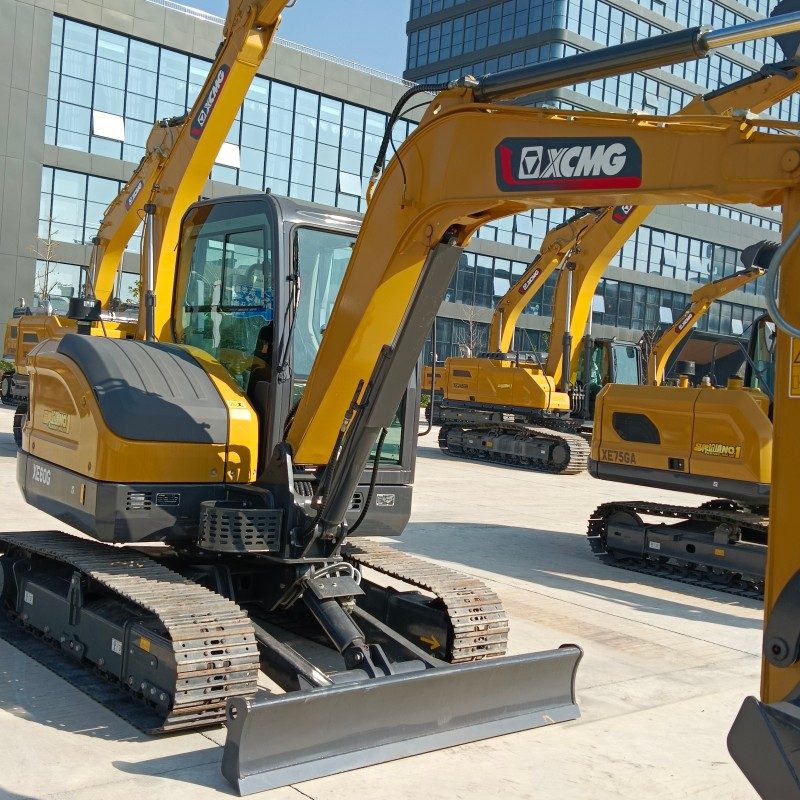

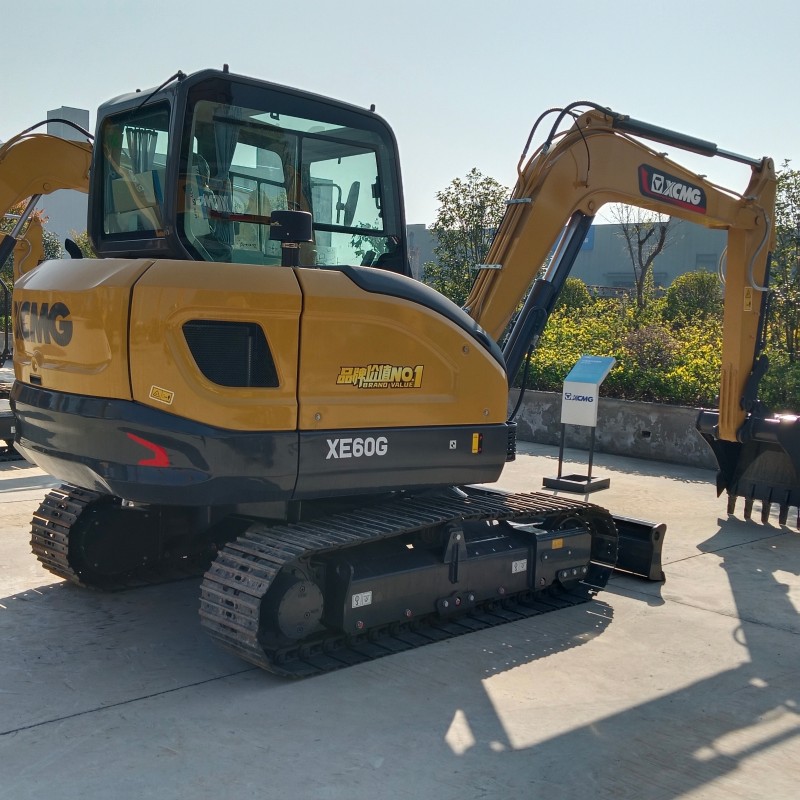

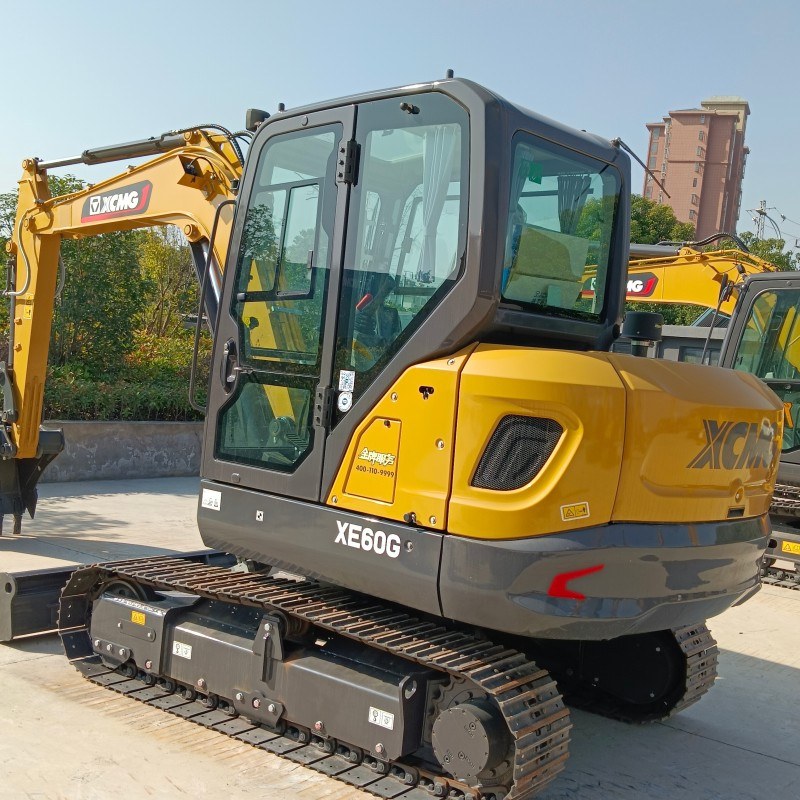

XCMG XE60G 6 Ton Compact Mini Crawler Excavator
Product Overview of XCMG XE60G Crawler Excavator
The XCMG XE60G crawler excavator is a new-generation 6-ton compact mini digging machine independently developed by XCMG Construction Machinery, optimized for urban municipal road maintenance, landscaping greening, residential community reconstruction, farmland water conservancy, underground pipeline laying and narrow-space indoor demolition projects. This XCMG XE60G crawler excavator is equipped with two mature power options for global markets: imported Kubota V2607 engine for export Tier2 regions and domestic Weichai engine for China Stage IV market, featuring stable low-speed high torque and 4% lower comprehensive fuel consumption via intelligent E/P/B three working modes徐工集团. The upgraded low-loss load-sensing hydraulic main valve realizes smoother coordinated multi-action operation, improving flatting and loading efficiency. Reinforced thickened boom, arm and heavy-duty widened X-type chassis greatly enhance stability during long-hour light-duty construction. The TOPS/FOPS certified panoramic intelligent cab and ground centralized maintenance layout effectively reduce operator fatigue and daily inspection labor cost, making XCMG XE60G crawler excavator the cost-preferred compact construction machine for global landscaping contractors, municipal maintenance teams and equipment rental fleets.
Full Official Technical Parameters of XCMG XE60G Crawler Excavator
Basic Overall Dimension & Weight of XCMG XE60G Crawler Excavator
- Model: XCMG XE60G Compact Mini Crawler Excavator
- Operating Weight: 5960kg / 6000kg (6 ton class)
- Standard Bucket Capacity: 0.23m³ general earth bucket, optional 0.20m³ / 0.26m³ rock bucket
- Standard Boom Length: 3000mm
- Standard Arm Length: 1600mm
- Overall Total Length: 6010mm
- Overall Total Width: 2000mm
- Overall Cab Height: 2650mm
- Track Gauge: 1600mm
- Standard Track Shoe Width: 400mm wear-resistant steel track, rubber track pad optional
- Minimum Ground Clearance: 385mm
- Tail Swing Radius: 1750mm compact short-tail design
- Ground Pressure: 33.4kPa
- Fuel Tank Volume: 130L
- Hydraulic Oil Tank Volume: 65L
Travel & Swing Performance
- Two-speed Travel Speed: Low gear 2.4km/h, High gear 3.9km/h
- Slew Rotation Speed: 11rpm
- Maximum Climbing Gradient: 35° (70%)
- Maximum Drawbar Traction Force: 70kN
- Travel System: Full hydraulic dual-speed crawler motor with built-in automatic parking brake, multiple bottom track rollers for stable flatting work
- Slew System: Independent low-noise hydraulic slew motor, built-in holding brake for precise grading and pipeline trenching
ISO Standard Digging Working Range & Digging Force
- Max Horizontal Digging Radius: 6130mm
- Max Digging Depth: 3830mm
- Max Vertical Digging Depth: 2680mm
- Max Digging Height: 5600mm
- Max Material Dumping Height: 3945mm
- Minimum Front Swing Radius: 2460mm
- Max Bucket Digging Force (ISO): 48.3kN
- Max Arm Digging Force (ISO): 32.5kN
- Standard Factory Configuration: Front floating dozer blade, pre-reserved multi-way hydraulic piping for hydraulic breaker hammer
Dual Power Engine Options
Option 1: Imported Kubota V2607 Export Version (Tier 2 Global Market)
The export version XCMG XE60G crawler excavator adopts reliable Kubota industrial diesel engine for overseas construction projects. You can view complete engine data from Kubota official construction engine website.
- Engine Model: Kubota V2607 Water-cooled 4-cylinder diesel engine
- Rated Power: 35kW / 47HP @ 2200rpm
- Peak Torque: 171.5N·m @ 1100–1500rpm
- Displacement: 2.615L
- Emission Standard: Tier 2 / Euro III

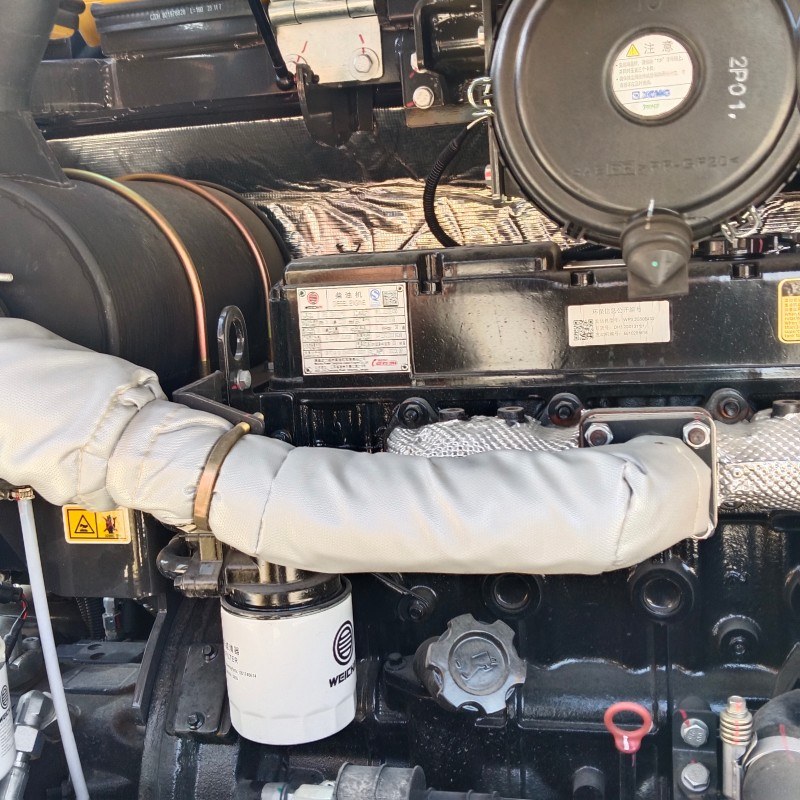

Option 2: Domestic Weichai Stage IV Version (China Local Market)
- Engine Model: WP3.2G36E401 Turbocharged diesel engine
- Rated Power: 36.8kW / 49.3HP @ 2200rpm
- Peak Torque: 210N·m @ 1400–1600rpm
- Displacement: 3.17L
- Emission Standard: China Stage IV
Shared Engine Advantages
Three adjustable working modes (ECO/Power/Breaker) match different construction loads, auto idle technology reduces idle fuel waste, reliable low-temperature cold start, extended 500-hour filter maintenance cycle, low hourly fuel consumption of 5.0–5.8L under 70% load.
Optimized Load-Sensing Hydraulic System
- System Type: Upgraded electronic load-sensing hydraulic system with large flow main valve
- Single variable displacement main pump total output flow: 144 L/min
- Standard System Working Pressure: 26MPa
- Pilot Control Pressure: 3.5MPa
- Control Feature: Optimized flow distribution logic, smoother start & stop without impact, improved coordination of lifting, digging, slewing and dozing actions; sensitive micro-operation for landscaping fine trimming
- Auxiliary Hydraulic Circuit: Factory pre-installed multi-function breaker piping, compatible with hydraulic hammer, earth auger, thumb grab and quick hitch coupler
- Hydraulic Oil Replacement Cycle: Extended to 2000 working hours
Chassis & Reinforced Working Attachment

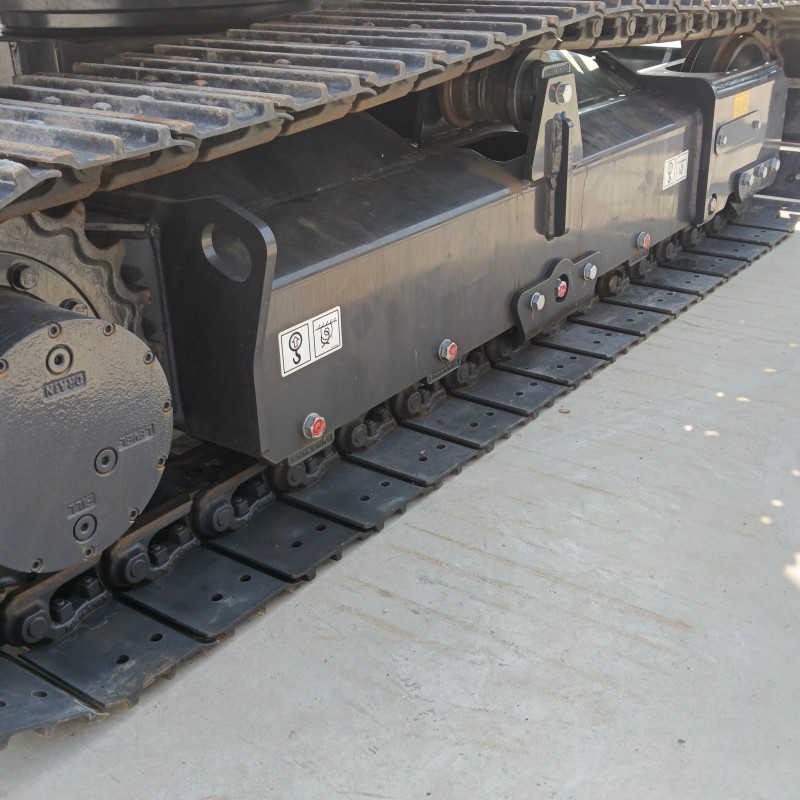

Crawler Chassis Frame
- Integral thickened X-type heavy-duty anti-torsion frame, full penetration robot welding technology
- Widened track structure with multiple bottom rollers, sealed lubricated track pins, thick quenched wear-resistant steel track shoes, long service life under muddy farmland and rocky municipal sites

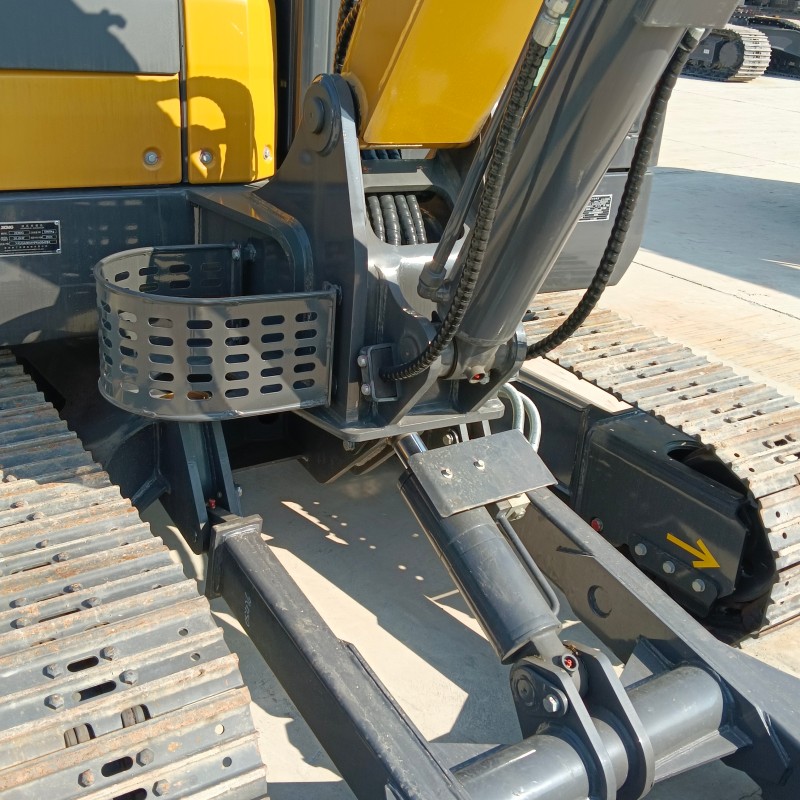

- Front dozer blade with floating leveling function and hydraulic lock for stable ground leveling

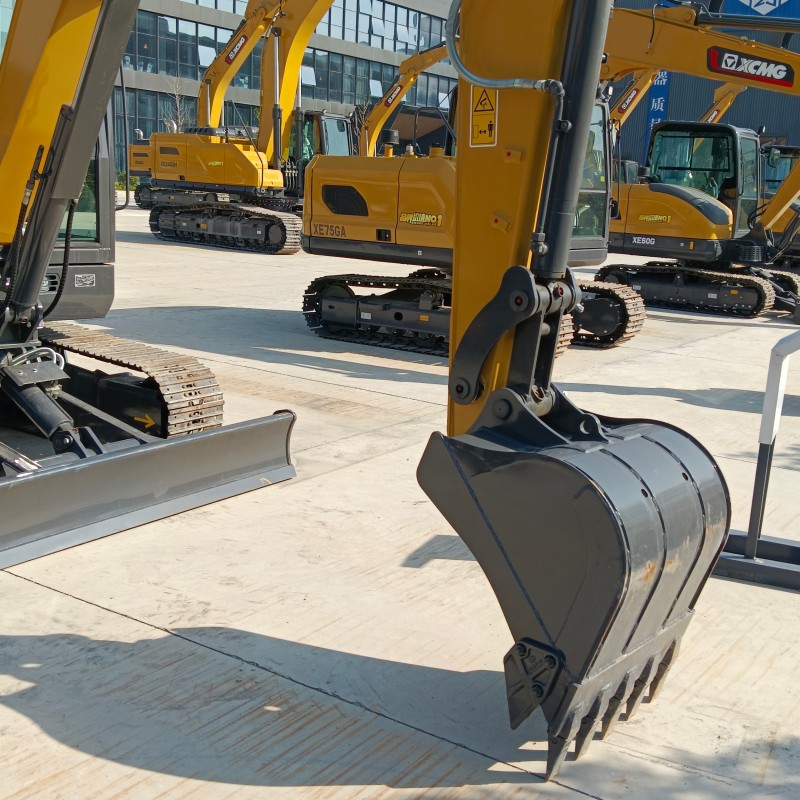

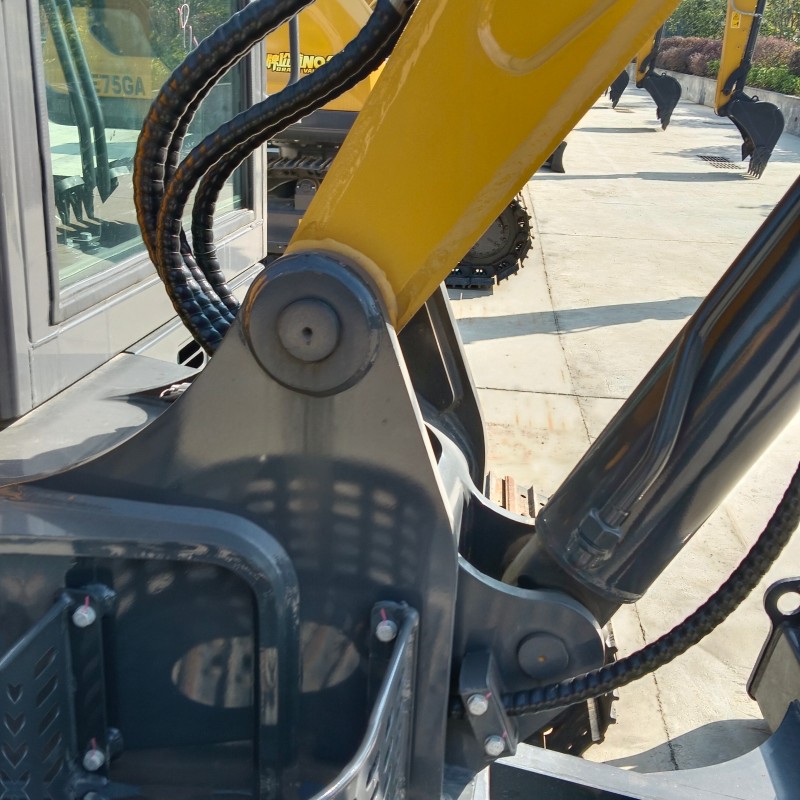

Boom & Arm Working Device
- Boom, arm and bucket base adopt 16mm thick high-strength low-alloy wear-resistant steel plate, all stress joint positions thickened with buffer anti-shock bushings
- Bucket cutting edge adopts HB400 wear-resistant steel, improving soil filling efficiency and reducing daily abrasion loss

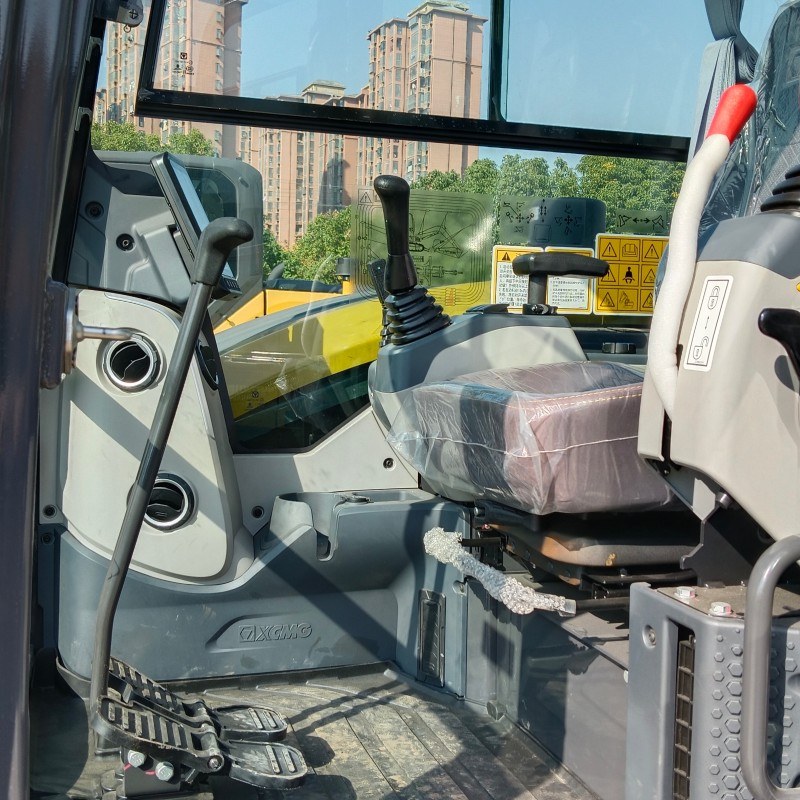

Cab, Electronic Control & Safety Configuration
- Cab Type: Fully enclosed positive pressure dustproof & noise reduction safety cab, certified TOPS/FOPS anti-falling object protection standard
- Standard Interior Equipment
- 7-inch intelligent color LCD touch monitor, real-time display fuel consumption, hydraulic pressure, engine fault code and three working mode switching
- Multi-adjustable ergonomic suspension shock absorption seat, one-touch engine start/stop button, USB fast charging port, built-in fresh air circulation system
- ISO standard pilot control joysticks, left flip armrest to widen boarding space
- Large panoramic laminated safety glass with 360° wide unobstructed operating vision
- Optional Upgrades: Full automatic heating & cooling air conditioner, rear-view HD reversing camera, multi-group high-bright LED working lights
- Internal Operating Noise: ≤74dB
- Safety Design: Emergency flameout switch, overload sound-light alarm, hydraulic safety lock handle, anti-rollover reinforced cab frame; all daily maintenance inspection points set at ground height without climbing steps
Standard Factory Equipment & Optional Matching Attachments
Standard Configuration
Front floating dozer blade, pre-installed breaker hydraulic piping, 400mm steel track shoes, 0.23m³ general earth bucket, TOPS/FOPS safety cab, three-mode intelligent hydraulic control system, intelligent fuel consumption monitoring system
Optional Attachments
Rubber track pad, 0.20/0.26m³ rock bucket, hydraulic stone breaker, earth auger, log thumb grab, hydraulic quick hitch coupler, rear-view reversing camera, full automatic cab air conditioner
Six Core Competitive Advantages of XCMG XE60G Crawler Excavator
1. Compact Short-Tail Body Design, Outstanding Narrow-Site Flexibility
The XCMG XE60G crawler excavator features a compact 1750mm tail swing radius and only 2000mm overall width, easily passing narrow alleys, small courtyard gates and indoor construction doorways. The short-tail structure eliminates tail collision risks in crowded urban municipal and residential renovation projects, greatly improving site adaptability.
2. Dual Energy-Saving Power Options, Low Long-Term Operation Cost
Customers can choose Kubota imported engine for overseas Tier2 export markets or Weichai domestic Stage IV engine for local projects. Three intelligent E/P/B working modes match light landscaping, heavy earthmoving and rock breaking tasks separately, auto idle technology cuts comprehensive fuel consumption by 4% compared with old generation models, maximizing profit for long-term rental business owners.
3. Upgraded Low-Loss Load-Sensing Hydraulic System, Smooth & Efficient Operation
The optimized large-flow main valve hydraulic system of XCMG XE60G crawler excavator intelligently distributes flow and pressure without power waste. All multi-action coordination runs synchronously without lag, soft start-stop eliminates walking impact, and one-click power boost instantly increases digging force to handle compact soil and small rock blocks, improving daily construction output.
4. Fully Reinforced Heavy-Duty Structural Parts, Extended Service Life
All load-bearing components including chassis frame, boom, arm and bucket adopt thickened high-strength steel with full penetration anti-impact robot welding. Multi-roller wide chassis and sealed lubricated track pins reduce daily abrasion loss, extending whole machine service cycle and lowering spare parts replacement frequency under frequent municipal and landscaping operation.
5. Spacious Certified TOPS/FOPS Comfort Cab, All-Day Low-Fatigue Operation
The fully sealed positive pressure cab of XCMG XE60G crawler excavator isolates urban construction dust and engine noise. Flip armrest design widens boarding space, ergonomic suspension seat and sensitive pilot joysticks effectively relieve operator fatigue during continuous all-day shifts. Panoramic large glass eliminates operating blind zones for safer construction in crowded residential sites.
6. Ground Centralized Maintenance Layout, 40% Faster Daily Inspection
95% of daily maintenance components including fuel filter, air filter, engine oil port and hydraulic oil inspection window are arranged on the side hood at ground height, operators can complete routine inspection and oil replacement without climbing steps. Global universal XCMG spare parts supply shortens machine downtime, greatly reducing maintenance labor and time cost for equipment owners.
Wide Application Scope
The XCMG XE60G crawler excavator is widely applied to urban municipal road maintenance, underground pipeline trenching, community old house reconstruction, landscaping greening tree pit excavation, farmland irrigation channel digging, small earthwork backfilling, indoor small demolition and rural infrastructure construction projects. If you need ultra-compact mini digger for ultra-narrow indoor work, check our XCMG XE35U Mini Crawler Excavator. For medium 8-ton compact excavator with stronger digging power, view the XCMG XE80G Crawler Excavator product page.
The XCMG XE60G crawler excavator is a cost-effective 6-ton compact mini digger equipped with optional Kubota/Weichai low-fuel engine and upgraded load-sensing hydraulic system. Featuring compact flexible short-tail body, adjustable three working modes, reinforced durable structure and convenient ground maintenance, this XCMG XE60G crawler excavator is the ideal small construction machinery for global municipal, landscaping and equipment rental business customers.
