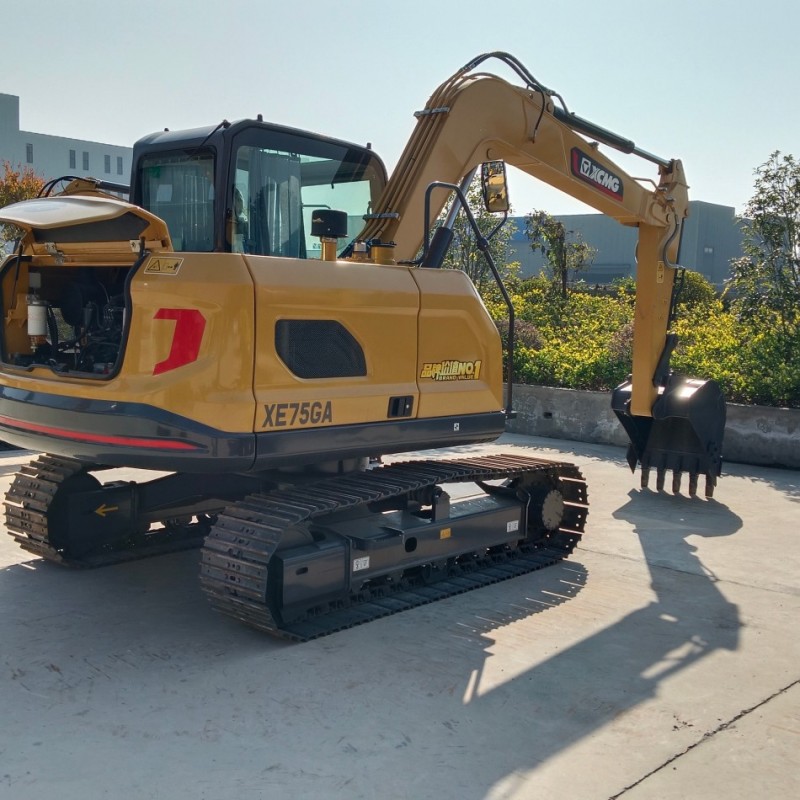

Product Overview of XCMG XE75GA Crawler Excavator
The XCMG XE75GA crawler excavator is a new-generation National Stage IV 7.7-ton short-tail compact mini excavator independently developed by XCMG Construction Machinery, targeting urban municipal road maintenance, residential community reconstruction, landscaping greening, farmland water conservancy, pipeline trenching and small light rock breaking projects徐工集团. This XCMG XE75GA crawler excavator adopts imported genuine Kubota V2607 turbocharged diesel engine, featuring low-speed high torque, low vibration and urea-free aftertreatment to cut daily operation cost. It is matched with upgraded large-displacement electronic load-sensing hydraulic system, delivering precise flow distribution, smooth compound actions and 5% lower comprehensive fuel consumption compared with old models. Standard front dozer blade with hydraulic anti-drop lock avoids safety risks caused by pipeline burst pressure loss. Reinforced X-type heavy chassis, thickened boom & arm and enlarged FOPS positive-pressure cab greatly boost durability and operator comfort, making XCMG XE75GA crawler excavator the top cost-effective small machine for global rental fleets, landscaping contractors and municipal engineering teams.
Full Official Technical Parameters of XCMG XE75GA Crawler Excavator
Basic Overall Dimension & Weight of XCMG XE75GA Crawler Excavator
- Model: XCMG XE75GA Short-Tail Compact Mini Crawler Excavator
- Operating Weight: 7700kg (7.7 ton)
- Standard Bucket Capacity: 0.33m³ general earth bucket, optional 0.18m³ narrow bucket / 0.35m³ rock bucket
- Standard Boom Length: 3720mm
- Standard Arm Length: 1622mm
- Overall Total Transport Length: 6185mm
- Overall Total Transport Width: 2265mm
- Overall Cab Top Height: 2645mm
- Track Gauge: 1800mm
- Track Wheelbase: 2195mm
- Standard Track Shoe Width: 450mm wear-resistant steel track, rubber track pad optional
- Minimum Ground Clearance: 385mm
- Short Tail Swing Radius: 1840mm compact design
- Ground Pressure: 33.5kPa
- Fuel Tank Volume: 170L
- Hydraulic Oil Tank Volume: 76L
- Engine Oil Capacity: 10L
Travel & Swing Performance
- Two-speed Travel Speed: Low gear 2.5km/h, High gear 4.3km/h
- Slew Rotation Speed: 11rpm
- Maximum Climbing Gradient: 35° (70%)
- Maximum Drawbar Traction Force: 68.3kN
- Travel System: Full hydraulic dual-speed automatic shift crawler motor with built-in parking brake, reinforced bottom track rollers for stable heavy load work

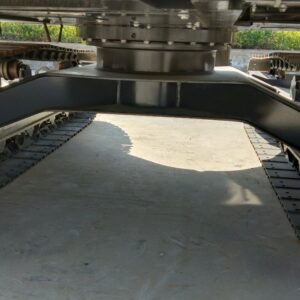

- Slew System: Enlarged heavy-duty slewing bearing + independent low-noise slew motor, built-in holding brake for precise grading and trenching
- Standard Safety: Front floating dozer blade with hydraulic lock anti-drop protection徐工集团
ISO Standard Digging Working Range & Digging Force
- Max Horizontal Digging Radius: 6260mm
- Max Digging Depth: 4020mm
- Max Vertical Digging Depth: 2960mm
- Max Digging Height: 7085mm
- Max Material Dumping Height: 5160mm
- Minimum Front Swing Radius: 2210mm
- Max Bucket Digging Force (ISO): 55kN
- Max Arm Digging Force (ISO): 37.8kN
- Standard Factory Configuration: Pre-reserved multi-way hydraulic piping for hydraulic breaker hammer

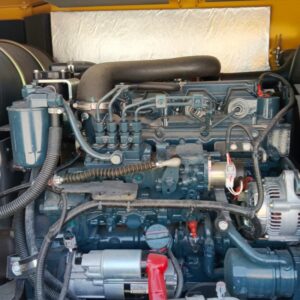

Kubota Power Engine System
The XCMG XE75GA crawler excavator is equipped with mature imported Kubota V2607 turbo diesel engine, compliant with China Stage IV & global Tier2 emission standards without urea tank. You can check full engine data from Kubota official construction engine website.
- Engine Model: Kubota V2607 Water-cooled 4-cylinder turbocharged diesel engine
- Rated Power: 36kW / 48HP @ 2000rpm
- Peak Torque: 206.9N·m @ 1100–1500rpm
- Displacement: 2.615L
- Emission Standard: China Stage IV / Tier 2, urea-free DOC aftertreatment
- Core Advantages: Low-speed high torque, auto idle fuel saving, stable cold start at low temperature, 500-hour filter maintenance cycle, three adjustable working modes (ECO/Power/Breaker) for different construction loads.
Upgraded Electronic Load-Sensing Hydraulic System
- System Type: Large-displacement variable piston main pump + large bore multi-way load-sensing valve
- Total Main Pump Max Output Flow: 160 L/min
- Standard System Working Pressure: 28MPa
- Travel Circuit Pressure: 27.4MPa
- Slew Circuit Pressure: 18.6MPa
- Pilot Control Pressure: 3.5MPa
- Control Feature: Independent flow compensation technology, low pressure loss & vibration, soft start-stop without jerk, micro-operation precision improved for landscaping fine shaping
- Auxiliary Hydraulic Circuit: Factory pre-installed multi-function breaker piping, compatible with hydraulic hammer, earth auger, thumb grab and quick hitch coupler
- Full System Hydraulic Oil Replacement Cycle: Up to 2000 working hours
Chassis & Reinforced Working Attachment

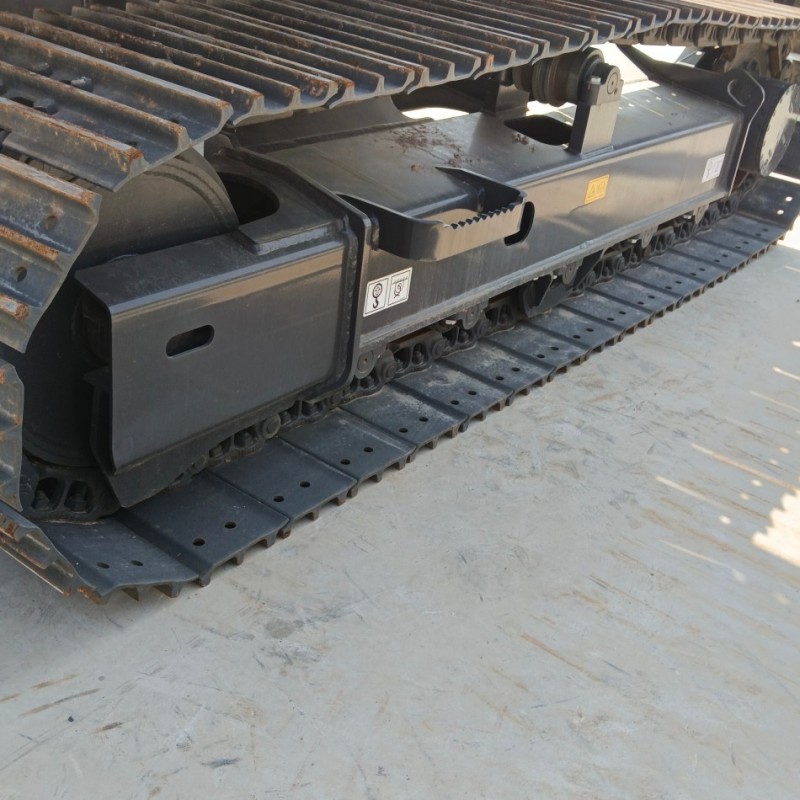

Crawler Chassis Frame
- Integral thickened X-type anti-torsion heavy frame, full penetration robot welding technology
- Widened track structure with multiple reinforced bottom rollers, sealed lubricated track pins, quenched high-wear steel track shoes, long service life under muddy farmland and rocky municipal sites
- Front dozer blade with hydraulic lock floating leveling function and anti-drop safety protection

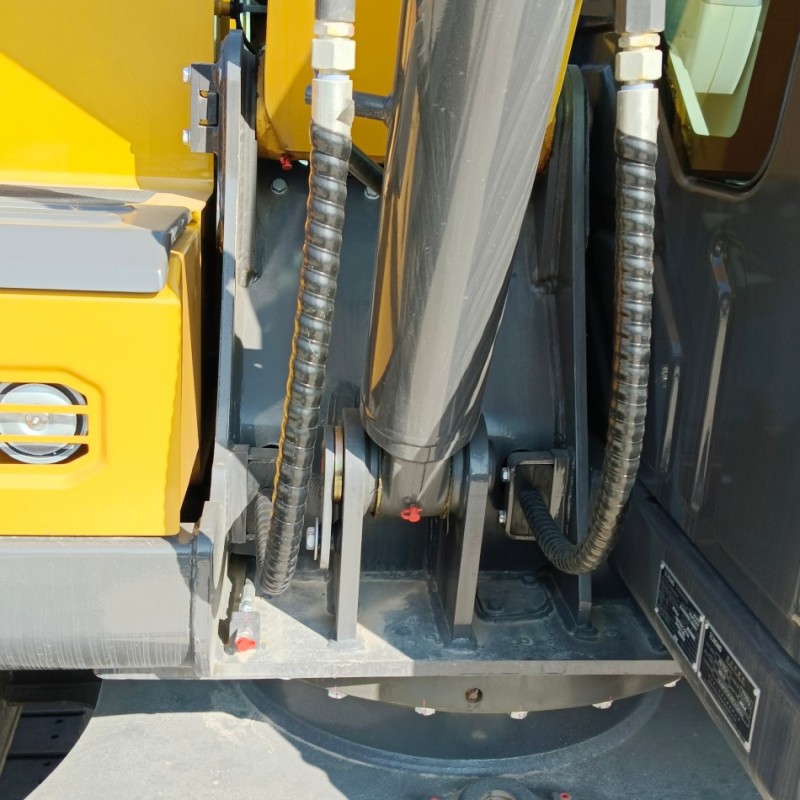

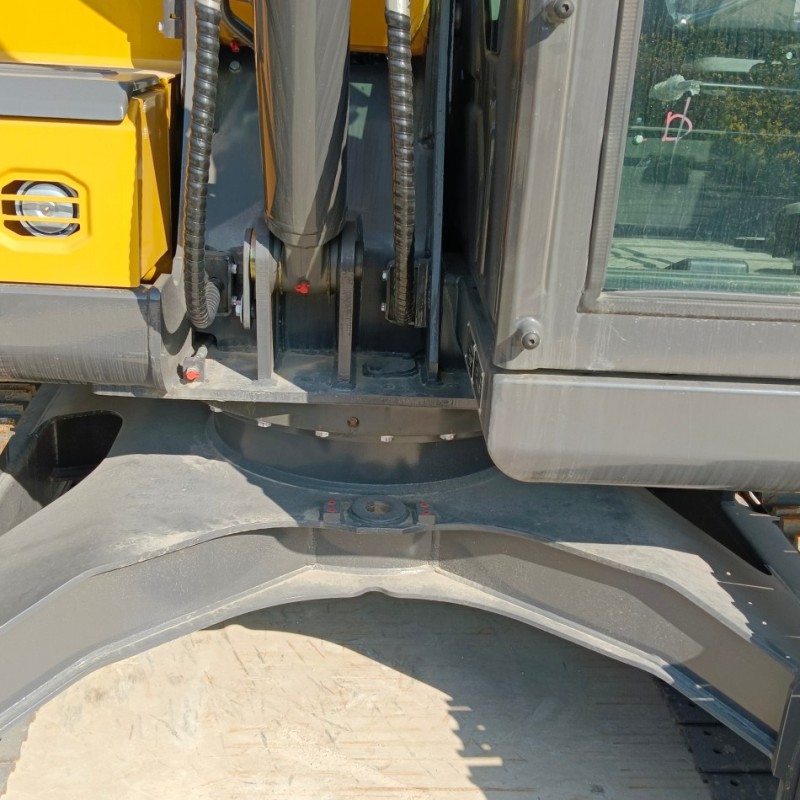

Boom & Arm Working Device
- Boom, arm and bucket base adopt thick high-strength low-alloy wear-resistant steel plate, all stress joints thickened with buffer anti-shock bushings
- Bucket cutting edge adopts HB400 wear-resistant steel, higher soil filling efficiency and lower abrasion loss

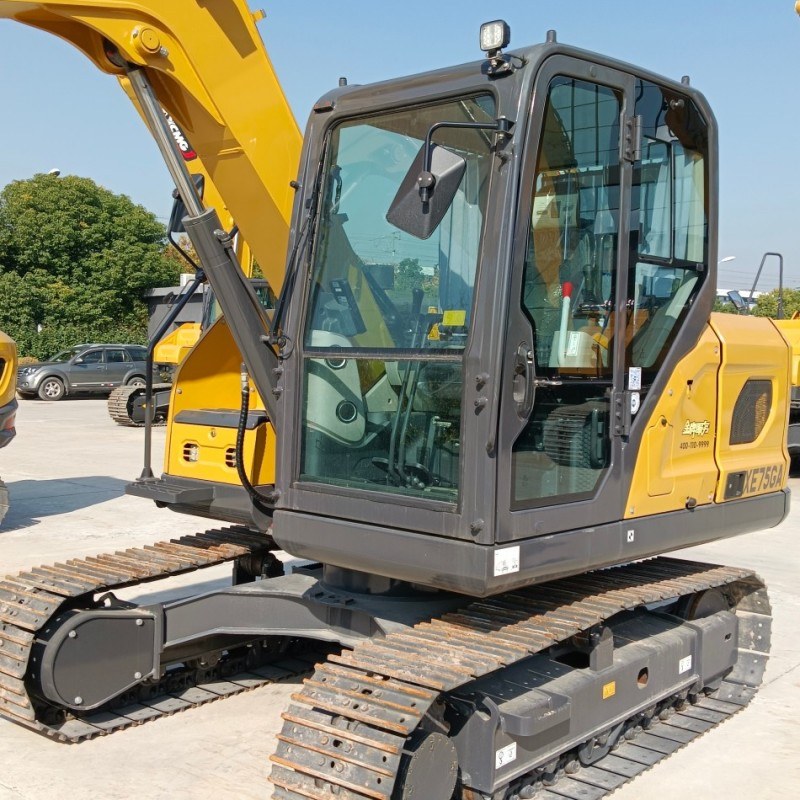

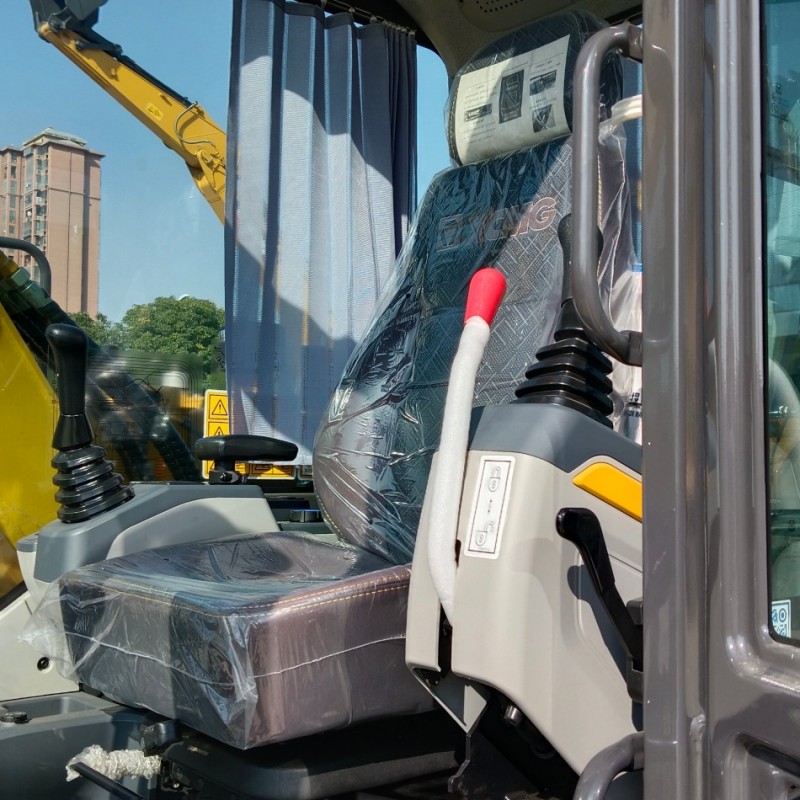

Cab, Electronic Control & Safety Configuration
- Cab Type: Fully enclosed positive-pressure fresh air dustproof & noise reduction FOPS anti-falling safety cab, internal space expanded by 10%徐工集团

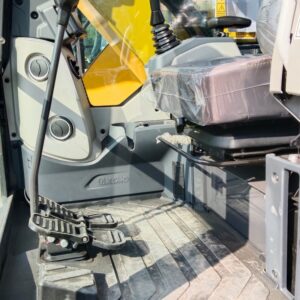

- Standard Interior Equipment
- 7-inch intelligent color LCD touch monitor, real-time display fuel consumption, hydraulic pressure, engine fault code, support custom startup password & one-touch engine start
- Multi-adjustable ergonomic suspension shock absorption seat, USB fast charging port, Bluetooth audio playback
- ISO standard pilot control joysticks, flip left armrest to widen boarding space
- Large panoramic laminated safety glass, 360° unobstructed wide operating vision, full surrounding sunshade
- Optional Upgrades: Full automatic heating & cooling air conditioner (air volume +25%, cooling efficiency +20%), rear-view HD reversing camera, multi-group high-bright LED working lights
- Internal Operating Noise: ≤74dB
- Safety Design: Emergency flameout switch, overload sound-light alarm, hydraulic safety lock handle, anti-rollover reinforced cab frame; all daily maintenance inspection points set at ground height without climbing steps
Standard Factory Equipment & Optional Matching Attachments
Standard Configuration
Front floating dozer blade with hydraulic lock, pre-installed breaker hydraulic piping, 450mm steel track shoes, 0.33m³ general earth bucket, FOPS fresh air safety cab, E/P/B three-mode intelligent hydraulic control system, 7-inch touch intelligent monitor with one-button start
Optional Attachments
Rubber track pad, 0.18/0.35m³ rock/narrow bucket, hydraulic stone breaker, earth auger, log thumb grab, hydraulic quick hitch coupler, rear-view reversing camera, full automatic cab heating & cooling air conditioner
Six Core Competitive Advantages of XCMG XE75GA Crawler Excavator
1. Compact Short-Tail Body, Outstanding Narrow-Site Flexibility
The XCMG XE75GA crawler excavator features only 1840mm tail swing radius and 2265mm overall width, easily passing narrow urban alleys, community gateways and small construction yards. Short-tail layout eliminates tail collision risks in crowded municipal and residential renovation projects, greatly improving adaptability to limited-space working environments.
2. Imported Kubota Urea-Free Stage IV Power, Ultra-Low Operation Cost
Matched with genuine Kubota V2607 turbo engine without SCR urea system, the machine avoids urea filling, pipeline blockage and aftertreatment fault troubles. Three intelligent working modes match light landscaping, heavy earthmoving and rock breaking separately; auto idle technology cuts comprehensive fuel consumption by 5%, global universal spare parts reduce long-term maintenance expense for rental owners.
3. Large-Displacement Load-Sensing Hydraulic System, Smooth & High Efficiency
The upgraded big-bore main valve hydraulic system of XCMG XE75GA crawler excavator distributes flow and pressure accurately with minimal energy loss. All compound lifting, digging, slewing and dozing actions run synchronously without lag; one-click power boost instantly lifts digging force to handle compact soil and small rock blocks, lifting daily construction output by 10%.
4. Unique Standard Dozer Hydraulic Lock Anti-Drop Safety Design
Industry-leading standard hydraulic lock for front dozer blade prevents blade falling caused by pipeline burst or sudden pressure loss, fully protecting operator safety during long-hour ground leveling work. All load-bearing structural parts adopt thickened high-strength steel with full penetration anti-impact welding, reducing wearing part replacement frequency and extending whole machine service cycle.
5. Enlarged FOPS Fresh Air Comfort Cab, All-Day Low-Fatigue Operation
The fully sealed positive-pressure fresh air cab expands internal operating space by 10%, effectively isolating construction dust and engine running noise. Flip armrest design simplifies entry & exit; ergonomic suspension seat and sensitive pilot joysticks relieve operator fatigue during continuous all-day shifts. Panoramic large glass eliminates operation blind zones for safer construction in crowded urban sites.

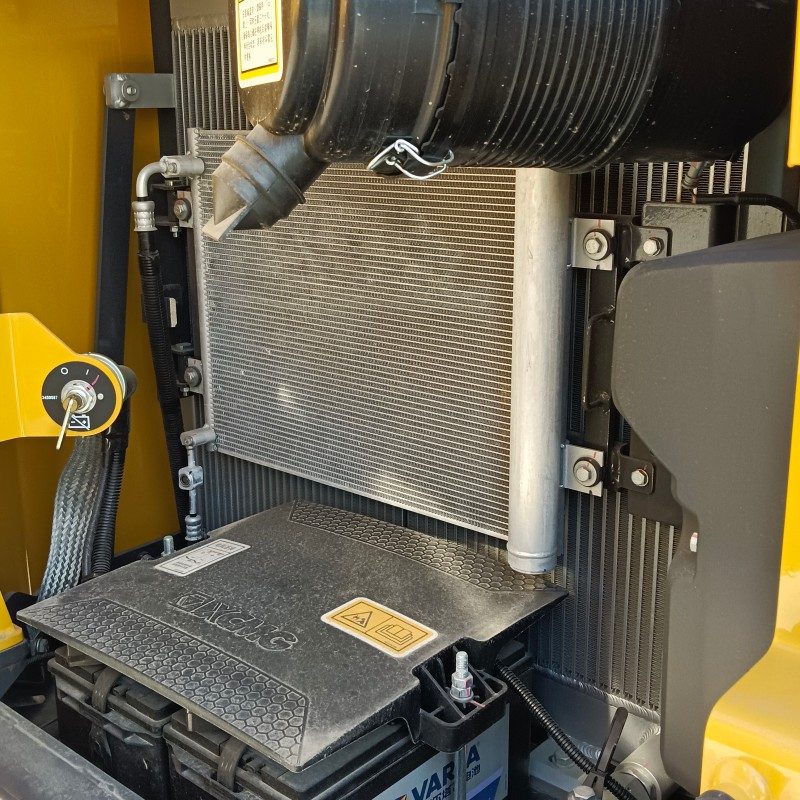

6. Ground Centralized Maintenance Layout, 40% Faster Daily Inspection
95% of daily maintenance components including fuel filter, air filter, engine oil port and hydraulic oil inspection window are arranged on side hood at ground height, operators complete routine inspection and oil replacement without climbing steps. Global XCMG & Kubota spare parts supply shortens machine downtime, greatly cutting maintenance labor and time cost for equipment owners.
Wide Application Scope
The XCMG XE75GA crawler excavator is widely applied to urban municipal road maintenance, underground pipeline trenching, community old house reconstruction, landscaping greening tree pit excavation, farmland irrigation channel digging, small earthwork backfilling, indoor small demolition and rural infrastructure construction projects. If you need compact 6-ton mini digger for ultra-narrow indoor work, check our XCMG XE60GA Crawler Excavator. For medium 13-ton heavy-duty excavator with stronger loading power, view the XCMG XE135G Crawler Excavator product page.
The XCMG XE75GA crawler excavator is a cost-effective 7.7-ton compact mini digger equipped with imported Kubota urea-free Stage IV low-fuel engine and upgraded electronic load-sensing hydraulic system. Featuring compact flexible short-tail body, standard dozer anti-drop hydraulic lock, three adjustable working modes, enlarged FOPS fresh air cab and convenient ground maintenance, this XCMG XE75GA crawler excavator is the ideal small construction machinery for global municipal, landscaping and equipment rental business customers.
