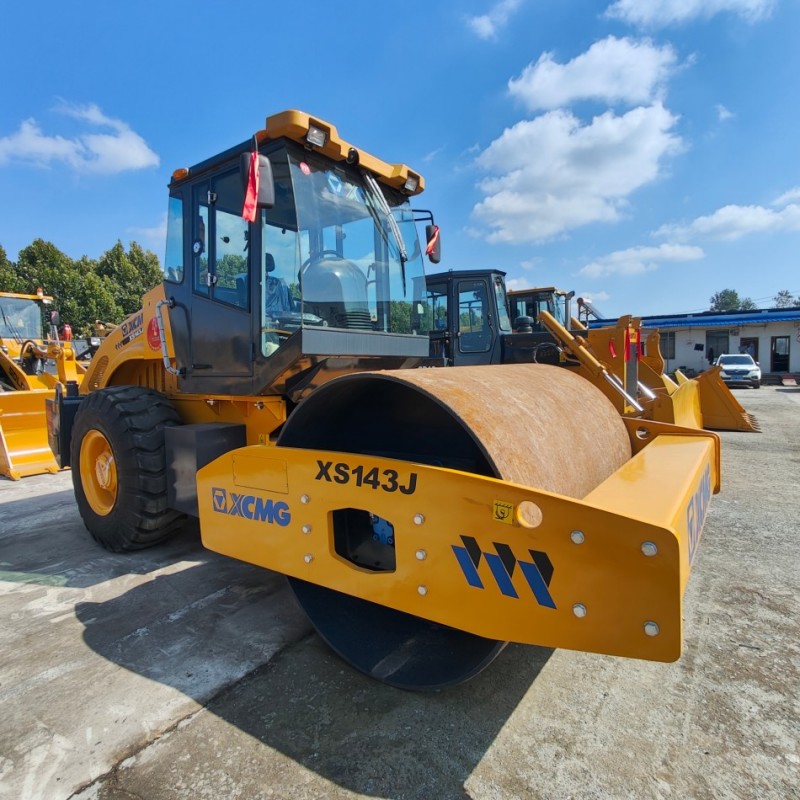

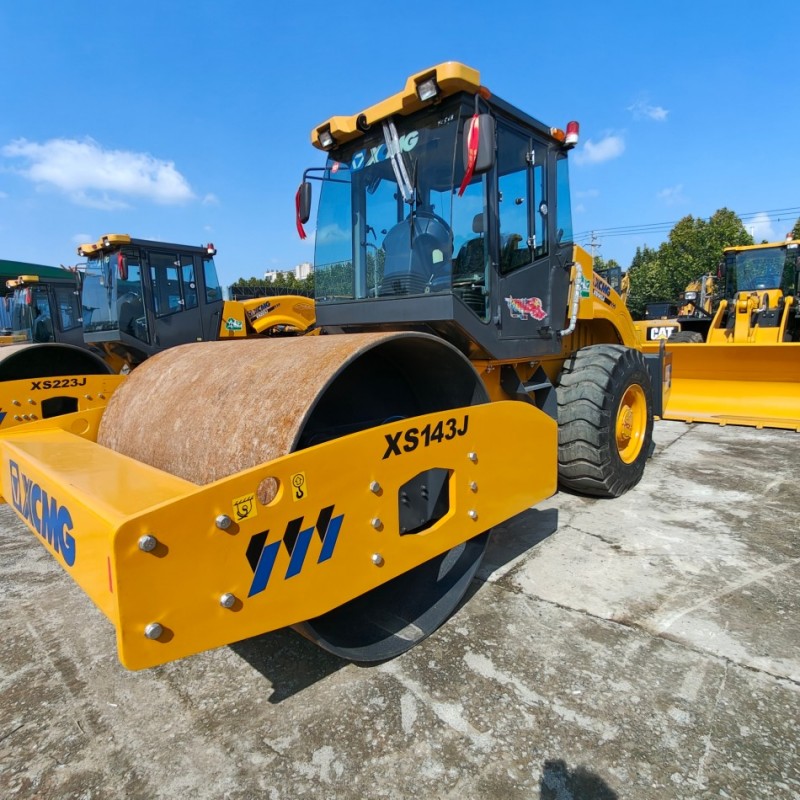

XCMG XS143J Single Drum Vibratory Roller
Overview
XCMG XS143J is a 14-ton mechanical drive single drum vibratory roller, designed for medium-duty compaction tasks in road construction, municipal projects, and earthworks. It delivers reliable performance and high cost-effectiveness.
Main Technical Parameters
- Operating Weight: 14,000 kg
- Front Drum Load: 7,300 kg; Rear Load: 6,700 kg
- Static Linear Load: 315 N/cm
- Engine: Shangchai SC4H140.1G2, 103 kW (140 HP) @ 1800 rpm
- Emission Standard: China Stage II
- Vibration Frequency: 28 / 33 Hz
- Nominal Amplitude: 1.9 / 0.95 mm
- Exciting Force: 274 / 190 kN
- Drum Width: 2,130 mm; Drum Diameter: 1,523 mm
- Travel Speed: 2.85–11.17 km/h
- Gradeability: 30%
- Min. Turning Radius: 6,800 mm
- Fuel Tank Capacity: 280 L
- Dimensions (L×W×H): 6,150 × 2,300 × 3,200 mm
Key Features
- Dual-Frequency Dual-Amplitude: Switchable for different materials (soil, gravel, base courses).
- Reliable Power: Shangchai turbocharged engine, low fuel consumption, strong torque.

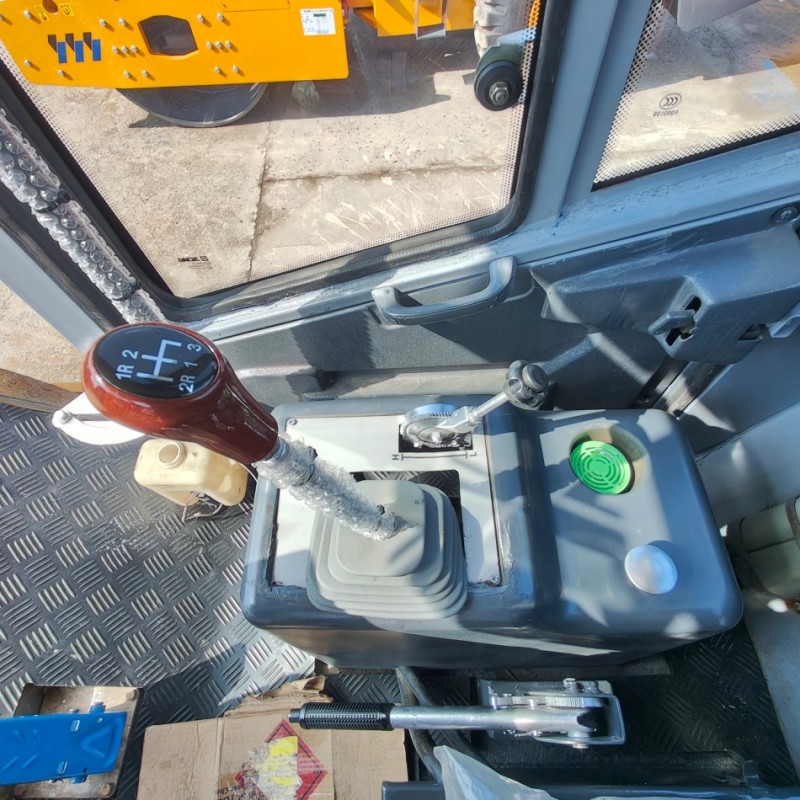

- Mechanical Transmission: Synchromesh gearbox, easy operation, low maintenance.
- Robust Structure: Reinforced frame and drum for durability.

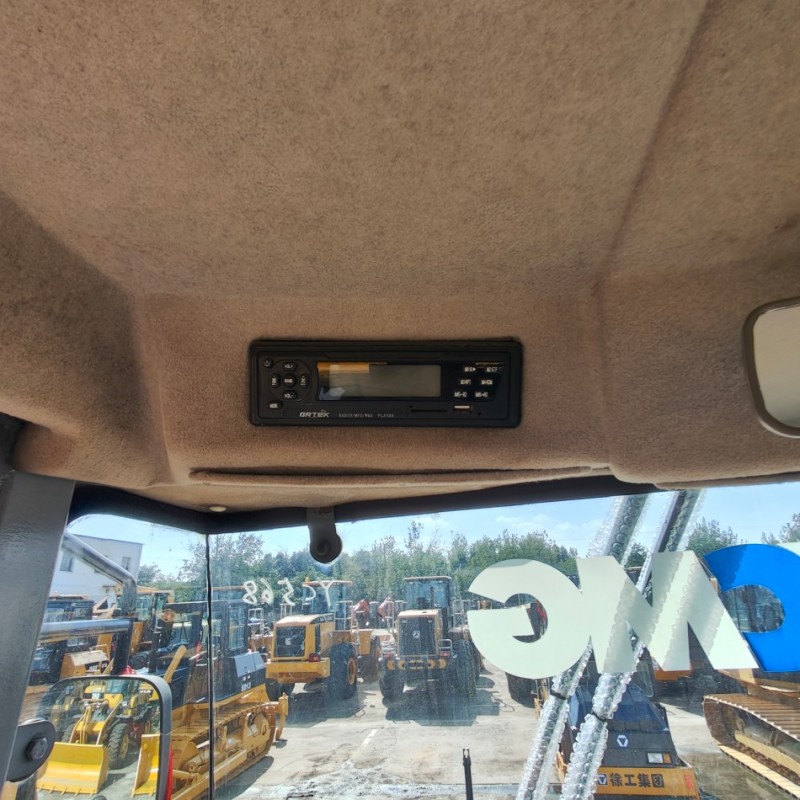

- Comfortable Cab: Optional air conditioning, ergonomic controls, low noise.
Applications
- Subgrade & base compaction for highways, municipal roads
- Airport runways, port & industrial yard construction
- Earthwork, backfill & slope compaction
- Stabilized soil and gravel layer compaction
