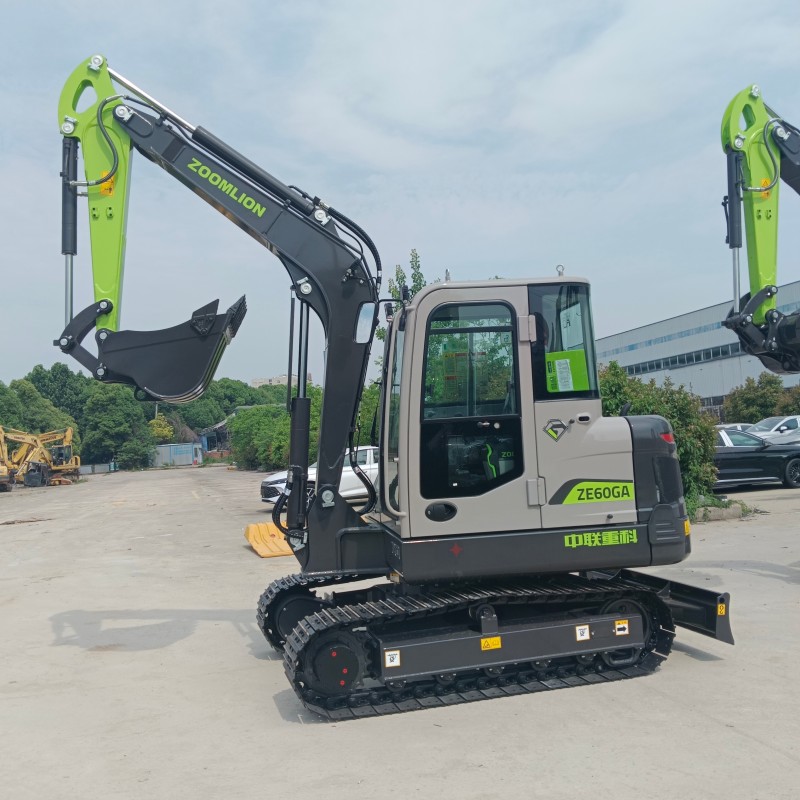

Product Overview of ZOOMLION ZE60GA Crawler Excavator
The ZOOMLION ZE60GA crawler excavator is a brand-new 6-ton compact mini crawler digging machine independently developed by ZOOMLION Heavy Industry, specially optimized for urban municipal renovation, landscaping greening, farmland irrigation, residential reconstruction and narrow-space pipeline trenching projects. This ZOOMLION ZE60GA crawler excavator adopts compact body layout with optimized load-sensing hydraulic system, realizing smooth compound actions and 10% higher working efficiency compared with old generation models. Equipped with reliable Yanmar low-speed high-torque diesel engine as standard option, the ZOOMLION ZE60GA crawler excavator features low hourly fuel consumption and stable continuous power output. Reinforced thickened boom, arm and heavy-duty chassis frame greatly extend service life under frequent light-duty construction conditions. The humanized wide-view FOPS cab and ground-centralized maintenance design effectively reduce operator fatigue and daily maintenance cost, making ZOOMLION ZE60GA crawler excavator the cost-effective preferred machine for global landscaping contractors, municipal maintenance teams and equipment rental fleets.
Full Official Technical Parameters of ZOOMLION ZE60GA Crawler Excavator
Basic Overall Dimension & Weight of ZOOMLION ZE60GA Crawler Excavator
- Model: ZOOMLION ZE60GA Compact Mini Crawler Excavator
- Operating Weight: 6050kg (6.05 ton)
- Standard Bucket Capacity: 0.23m³ general earth bucket, optional 0.18m³ / 0.26m³ rock bucket
- Standard Boom Length: 2980mm
- Standard Arm Length: 1530mm
- Overall Total Length: 5880mm
- Overall Total Width: 1900mm
- Overall Cab Height: 2628mm
- Track Gauge: 1500mm
- Standard Track Shoe Width: 400mm wear-resistant steel track, rubber track optional
- Minimum Ground Clearance: 330mm
- Tail Swing Radius: 1720mm
- Fuel Tank Volume: 115L
- Hydraulic Oil Tank Volume: 68L
Travel & Swing Performance
- Two-speed Travel Speed: Low gear 2.3km/h, High gear 4.2km/h
- Slew Rotation Speed: 10.8rpm
- Maximum Climbing Gradient: 35°
- Maximum Drawbar Traction Force: 46kN
- Travel System: Full hydraulic dual-speed crawler motor with built-in automatic parking brake
- Slew System: Independent low-noise hydraulic slew motor, built-in holding brake for stable grading work
ISO Standard Digging Working Range & Digging Force
- Max Horizontal Digging Radius: 6160mm
- Max Digging Depth: 3850mm
- Max Vertical Digging Depth: 3420mm
- Max Digging Height: 5790mm
- Max Material Dumping Height: 3980mm
- Minimum Front Swing Radius: 2080mm
- Max Bucket Digging Force (ISO): 42kN
- Max Arm Digging Force (ISO): 28.6kN
- Standard Factory Configuration: Front dozer blade, pre-reserved hydraulic piping for breaker hammer

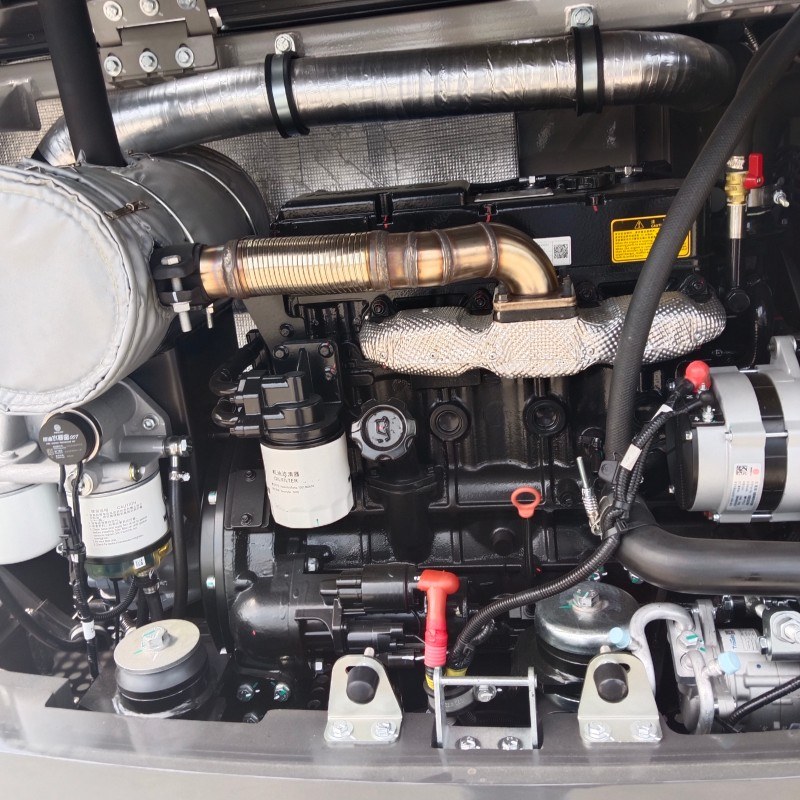

Power Engine System
The ZOOMLION ZE60GA crawler excavator provides two mature power options for global customers, Yanmar imported engine as mainstream matching. You can check detailed industrial engine data from Yanmar official construction equipment website.
Option 1: Imported Yanmar Engine (Global Export Version)
- Engine Model: Yanmar 4TNV94L Water-cooled 4-cylinder diesel engine
- Rated Power: 36.8kW / 49.3HP @ 2200rpm
- Peak Torque: 210N·m @ 1400–1600rpm
- Displacement: 3168cc
- Emission Standard: Tier 2 / China Stage III
Option 2: Domestic Weichai Engine (Domestic Market Version)
- Engine Model: WP3.2G36E401 Turbocharged diesel engine
- Rated Power: 35.9kW / 48.1HP @ 2000rpm
- Peak Torque: 205N·m @ 1200–1500rpm
- Emission Standard: China Stage IV
Shared Engine Advantages
Low-speed high torque output, fully optimized fuel injection logic, 5% lower comprehensive fuel consumption, reliable cold start performance under low temperature environment, extended 500-hour fuel filter maintenance cycle.
Load-Sensing Hydraulic System
- System Type: Advanced LS Load Sensing Electro-hydraulic Control System
- Dual variable displacement main pumps
- Total Main Pump Max Output Flow: 136 L/min
- Standard System Working Pressure: 22MPa
- Power Boost Instant Pressure: 24MPa
- Control Feature: Intelligent automatic flow distribution according to real-time load, sensitive operation response, smooth synchronous compound movement of lifting, digging, slewing and dozing

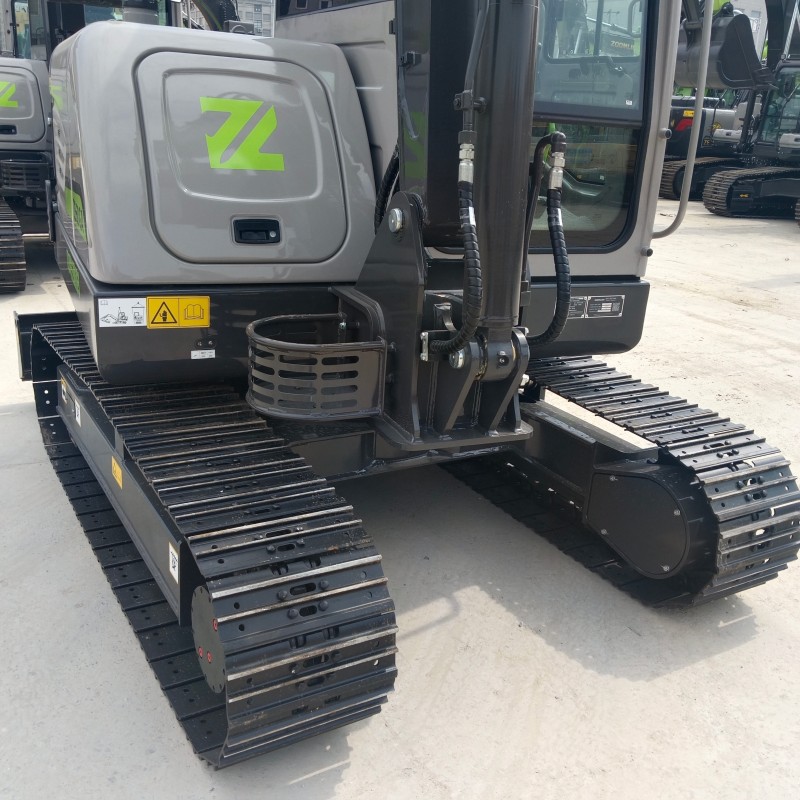

- Auxiliary Hydraulic Circuit: Factory pre-installed multi-way breaker piping, compatible with hydraulic hammer, earth auger, thumb grab and quick hitch coupler
- Hydraulic Oil Replacement Cycle: Extended to 2000 working hours
Chassis & Reinforced Working Attachment

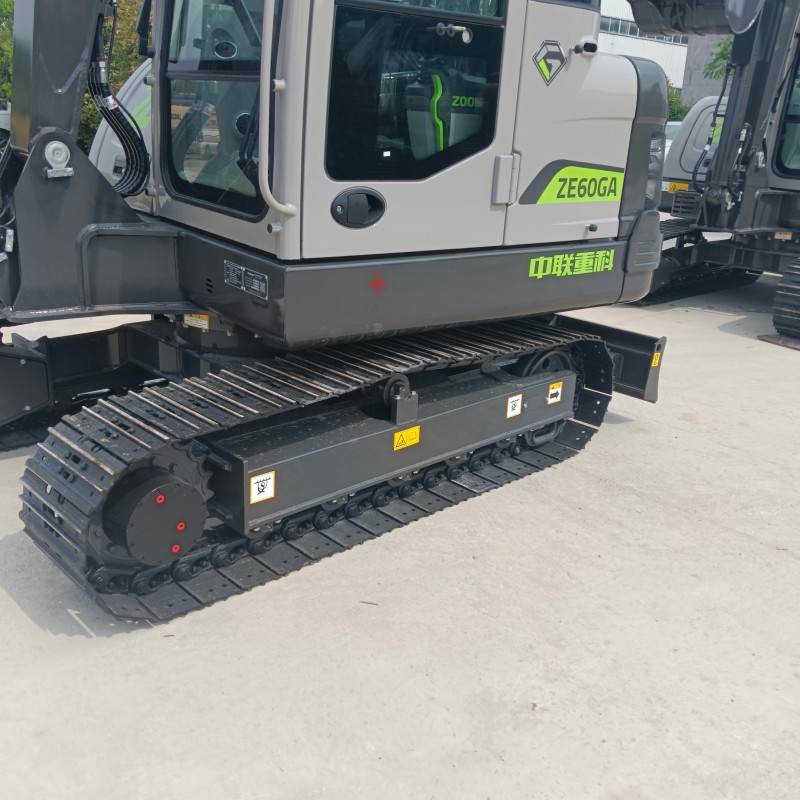

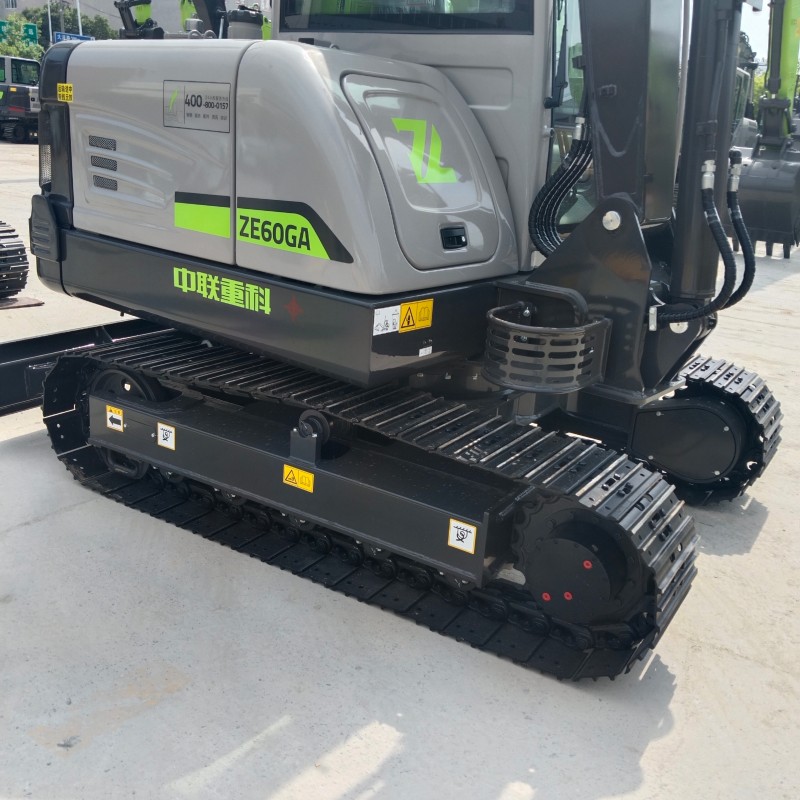

Crawler Chassis Frame
- Integral thickened X-type heavy-duty anti-torsion frame, full penetration robot welding technology
- Sealed lubricated track pins, quenched wear-resistant steel track shoes, long service life under muddy and rocky construction sites

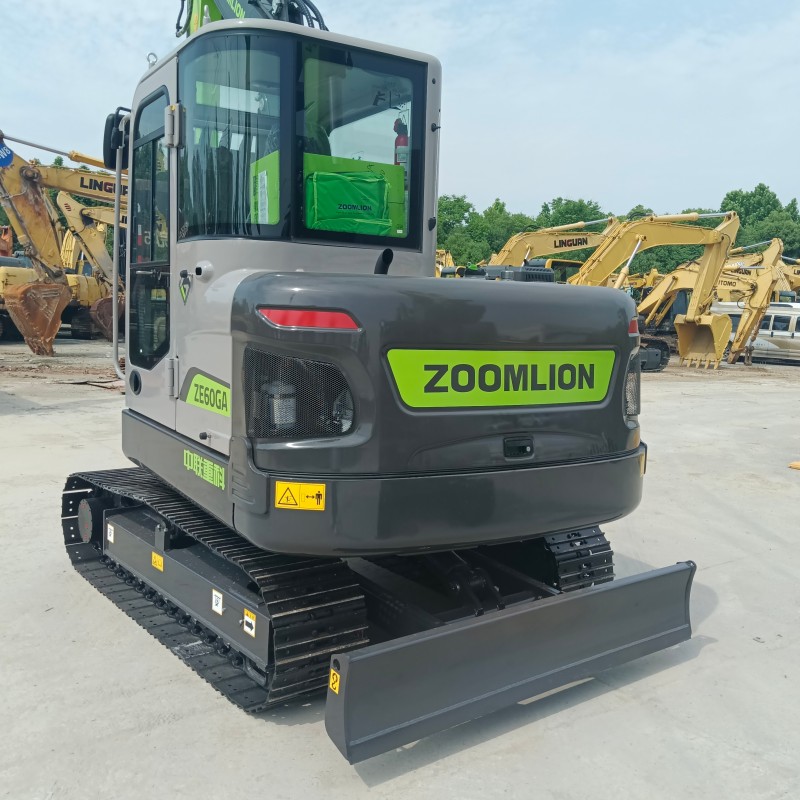

- Widened front dozer blade with floating leveling function for fine grading operation

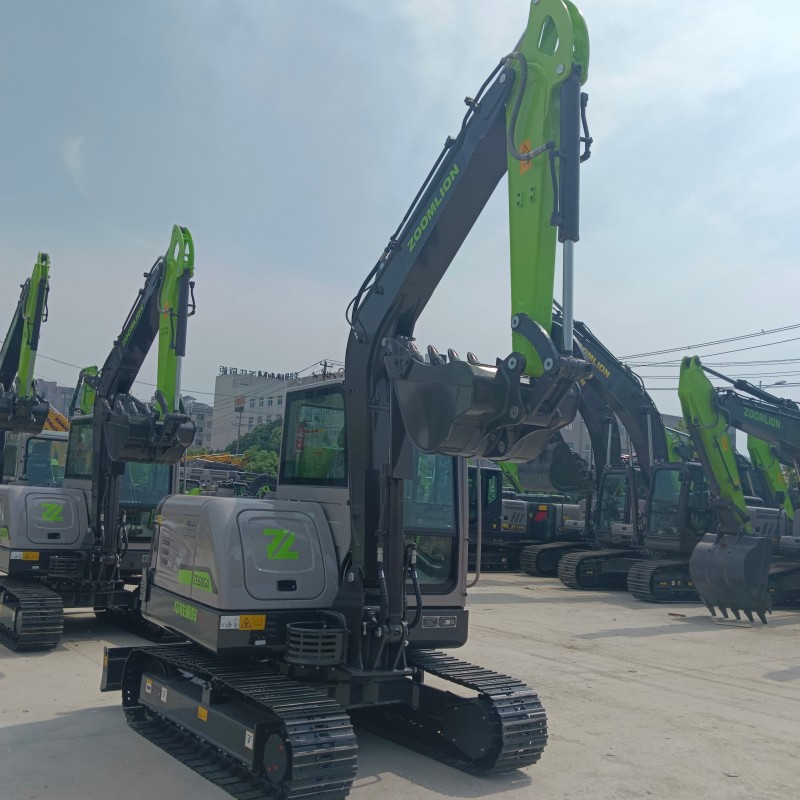

Boom & Arm Working Device
- Boom, arm and bucket base adopt high-strength low-alloy wear-resistant steel plate, all stress joint positions thickened with buffer bushings
- D-ARCS anti-resistance bucket design, imported wear-resistant steel for bucket cutting edge, improve bucket filling efficiency and extend service life

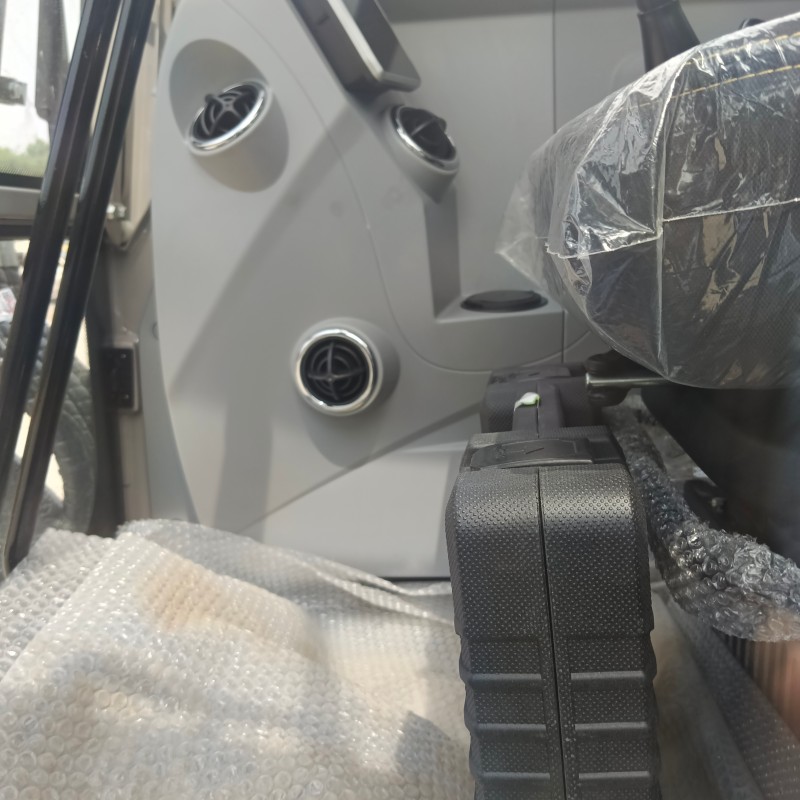

Cab, Electronic Control & Safety Configuration
- Cab Type: Fully enclosed positive pressure dustproof & noise reduction FOPS safety cab with falling object protection standard

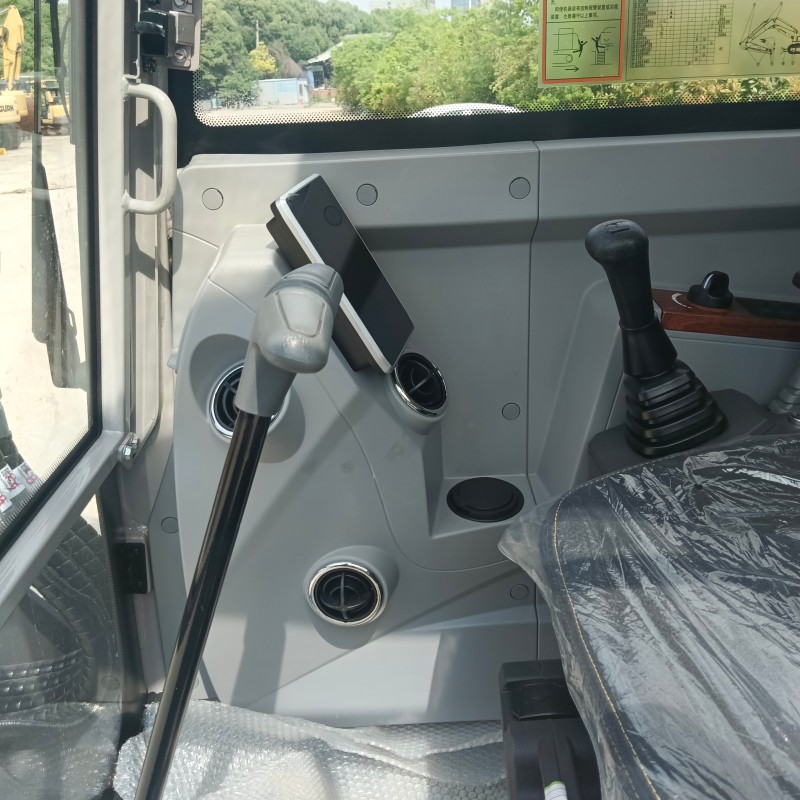

- Standard Interior Equipment
- 7-inch intelligent LCD color monitor, real-time display fuel consumption, hydraulic pressure, engine fault code and ECO fuel-saving reminder
- Multi-adjustable ergonomic suspension seat, one-touch engine start/stop button, USB fast charging port
- ISO standard pilot control joysticks, flexible micro-operation control for landscaping fine trimming
- Large panoramic laminated safety glass, 360° unobstructed wide operating vision
- Optional Upgrades: Full automatic air conditioner, rear-view HD reversing camera, multi-group high-bright LED working lights
- Internal Operating Noise: ≤75dB
- Safety Design: Emergency flameout switch, overload sound-light alarm, hydraulic safety lock handle, anti-rollover reinforced cab frame, all maintenance points set at ground height for convenient inspection without climbing
Standard Factory Equipment & Optional Matching Attachments
Standard Configuration
Front dozer blade, pre-installed breaker hydraulic piping, 400mm steel track shoes, 0.23m³ general earth bucket, FOPS safety cab, LS load-sensing hydraulic system, intelligent fuel consumption monitoring system
Optional Attachments
Rubber track pad, 0.18/0.26m³ rock bucket, hydraulic stone breaker, earth auger, log thumb grab, hydraulic quick hitch coupler, rear-view camera, cab heating & cooling air conditioner
Six Core Competitive Advantages of ZOOMLION ZE60GA Crawler Excavator
1. Compact Short-Body Design, Outstanding Flexibility for Narrow Sites
The ZOOMLION ZE60GA crawler excavator adopts optimized compact body layout with only 1720mm tail swing radius, effectively avoiding tail collision risks in residential alleys, narrow municipal roads and small courtyard renovation projects. 1900mm narrow overall width allows easy passage through small gateways and tight construction zones, greatly improving adaptability to complex urban limited-space working environments.
2. Energy-Saving Yanmar Power, Low Hourly Operating Cost
Matched with genuine Yanmar 4TNV94L industrial diesel engine, the ZOOMLION ZE60GA crawler excavator outputs sufficient low-speed torque for trenching, grading and light breaking tasks. Optimized fuel injection calibration reduces hourly fuel consumption by 5%, and extended maintenance intervals of engine filters cut frequent parts replacement expense for long-term rental users.
3. Upgraded LS Load-Sensing Hydraulic System, Smooth & Efficient Operation
The customized low-loss load-sensing hydraulic system of ZOOMLION ZE60GA crawler excavator intelligently distributes flow and pressure without power waste. All multi-action coordination runs smoothly without lag, and one-click power boost instantly increases digging force to handle compact soil and small rock blocks. Micro-operation sensitivity is improved by 20%, perfectly matching landscaping fine shaping and pipeline precise trenching work.
4. Reinforced Full-Strength Structure, Long Service Life Under Heavy Wear
All load-bearing components of ZOOMLION ZE60GA crawler excavator including chassis frame, boom, arm and bucket adopt thickened high-strength steel with full penetration anti-impact welding. Sealed lubricated track pins and wear-resistant bucket cutting edge reduce daily abrasion loss, extending whole machine service cycle and lowering spare parts replacement frequency.
5. Spacious FOPS Comfort Cab, All-Day Low-Fatigue Operation
The fully sealed positive pressure cab of ZOOMLION ZE60GA crawler excavator isolates urban construction dust and engine noise. Ergonomic suspension seat and sensitive pilot joysticks effectively relieve operator fatigue during continuous all-day shifts. Large panoramic glass eliminates operating blind zones, and optional rear-view camera further guarantees construction safety in crowded urban sites.
6. Ground Centralized Maintenance Layout, 30% Faster Daily Inspection
95% of daily maintenance components of ZOOMLION ZE60GA crawler excavator are arranged on the side hood at ground height, operators can complete oil replacement, filter inspection and fault check without climbing steps. Global universal ZOOMLION spare parts supply shortens machine downtime, greatly reducing overall maintenance labor and time cost for equipment owners.
Wide Application Scope
The ZOOMLION ZE60GA crawler excavator is widely applied to urban municipal road maintenance, underground pipeline trenching, community old house reconstruction, landscaping greening tree pit excavation, farmland irrigation channel digging, small earthwork backfilling, indoor small demolition and rural infrastructure construction projects. If you need smaller ultra-compact mini digger for ultra-narrow indoor work, check our ZOOMLION ZE35GU Mini Crawler Excavator. For medium-size 8-ton compact excavator with stronger digging power, view the ZOOMLION ZE80GA Crawler Excavator product page.
The ZOOMLION ZE60GA crawler excavator is a cost-effective 6-ton compact mini digger equipped with reliable Yanmar engine and energy-saving LS hydraulic system. Featuring compact flexible body, low fuel consumption, reinforced durable structure and convenient ground maintenance, this ZOOMLION ZE60GA crawler excavator is the ideal small construction machinery for global municipal, landscaping and equipment rental business customers.
